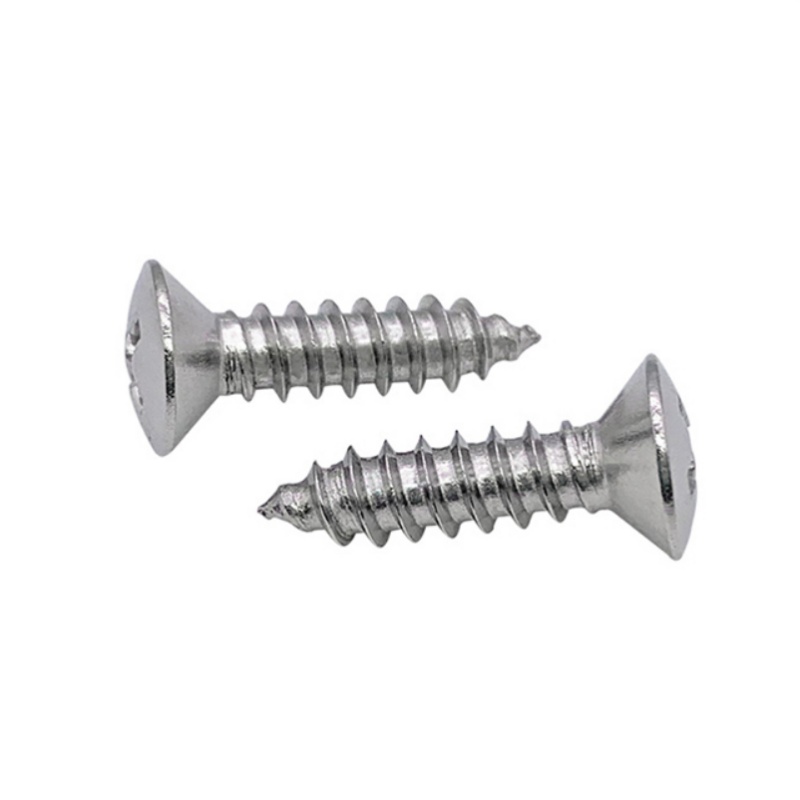

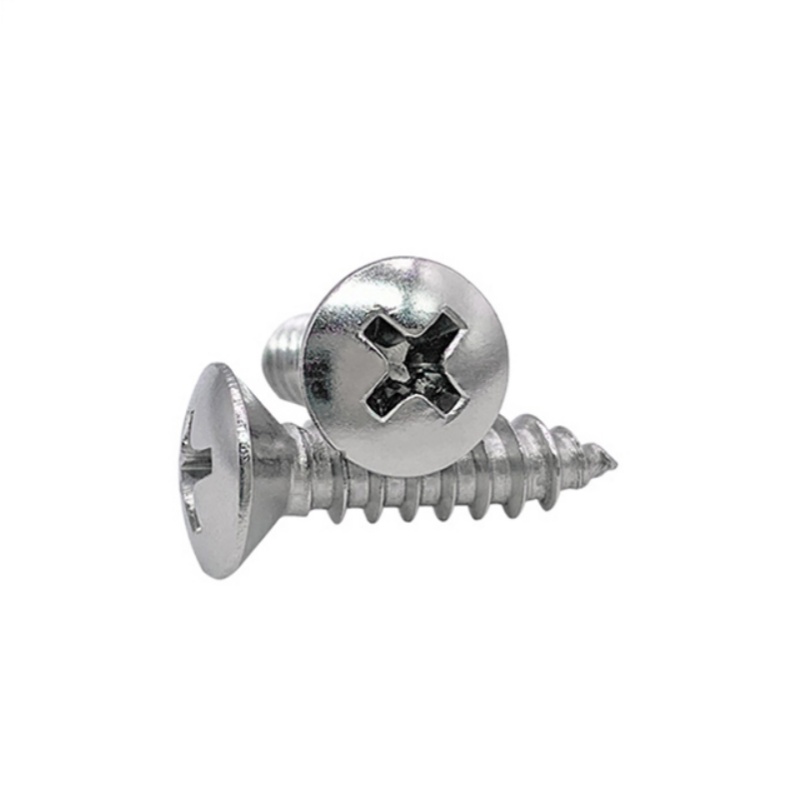

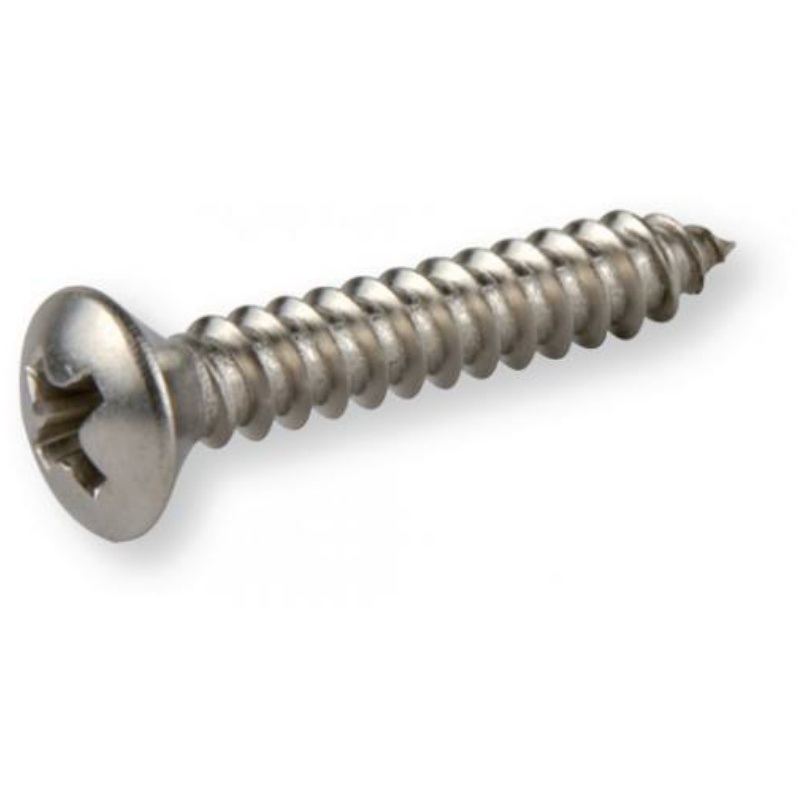

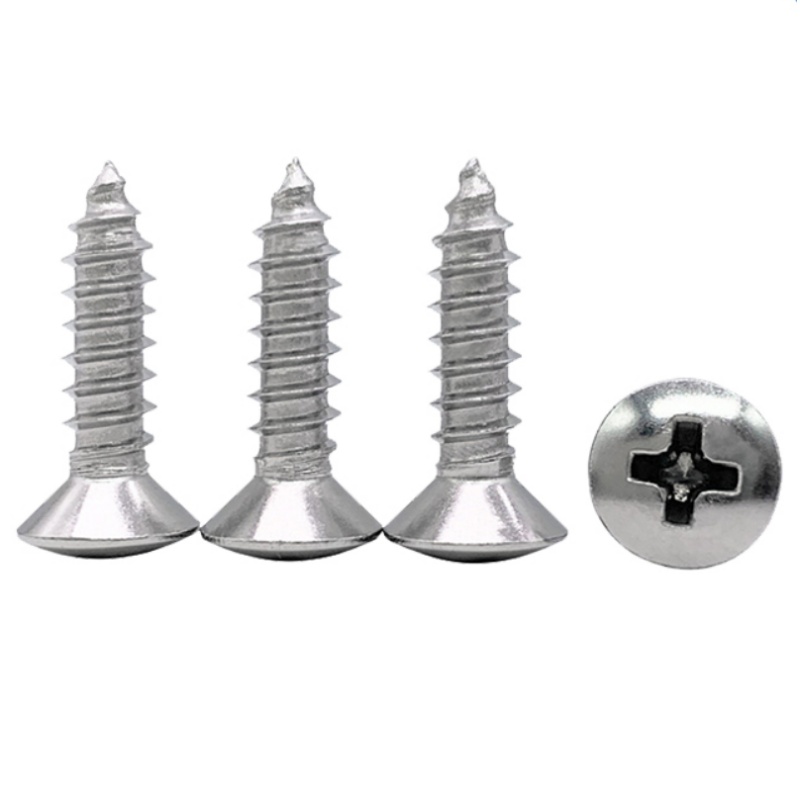

DIN 7983:1990 Oval Countersunk Head Phillips Tapping Screw combines an oval countersunk head, Phillips drive, and tapping thread. It is suitable for assemblies that need a lower head height while retaining a rounded visible appearance.
The oval countersunk head partially seats into a countersunk hole, and the rounded top improves visual harmony. The Phillips drive supports quick installation, while the tapping thread is suitable for sheet metal, plastic, and light materials without requiring nuts or separate tapping.
This product can be used for decorative panels, appliance housings, instrument covers, plastic parts, and light bracket fastening. Coating, material, and point-style options can be selected to meet appearance, rust resistance, assembly efficiency, and cost requirements.

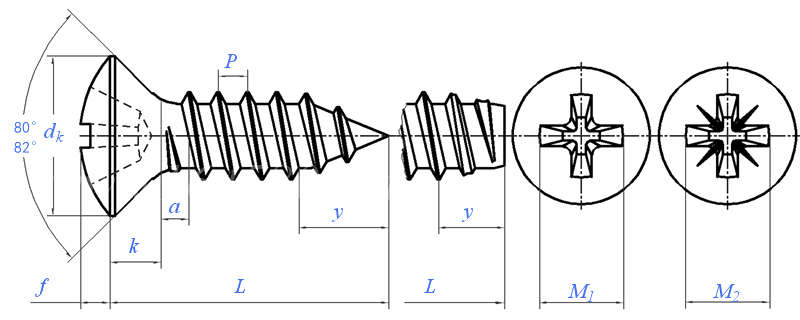

Dimensions unit: inch
|
Thread size d |
ST2.2 |
ST2.9 |
ST3.5 |
(ST3.9) |
ST4.2 |
ST4.8 |
ST5.5 |
ST6.3 |
|
|
P |
Pitch |
0.8 |
1.1 |
1.3 |
1.3 |
1.4 |
1.6 |
1.8 |
1.8 |
|
a |
Max. |
0.8 |
1.1 |
1.3 |
1.3 |
1.4 |
1.6 |
1.8 |
1.8 |
|
dk |
Max.=Nominal |
4.3 |
5.5 |
6.8 |
7.5 |
8.1 |
9.5 |
10.8 |
12.4 |
|
Min. |
4 |
5.2 |
6.44 |
7.14 |
7.74 |
9.14 |
10.37 |
11.97 |
|
|
f |
≈ |
0.7 |
0.9 |
1.2 |
1.3 |
1.4 |
1.5 |
1.7 |
2 |
|
k |
≈ |
1.3 |
1.7 |
2.1 |
2.3 |
2.5 |
3 |
3.4 |
3.8 |
|
y |
Type C |
2 |
2.6 |
3.2 |
3.5 |
3.7 |
4.3 |
5 |
6 |
|
Type F |
1.6 |
2.1 |
2.5 |
2.7 |
2.8 |
3.2 |
3.6 |
3.6 |
|
|
Slot number |
1 |
1 |
2 |
2 |
2 |
2 |
3 |
3 |
|
|
M1 |
≈ |
2.8 |
3.4 |
4.6 |
4.7 |
4.9 |
5.4 |
7 |
7.4 |
|
M2 |
≈ |
2.4 |
3.1 |
4.3 |
4.4 |
4.6 |
5.1 |
6.6 |
7.1 |
|
Thousand pieces of steel weigh ≈kg |
- |
- |
- |
- |
- |
- |
- |
- |
|
