Better Fastener Industry Co., Ltd. is a China-based fastener manufacturer supplying a specialty nut range for joints where standard hexagon, flange or lock nuts do not fit. Our Other Nuts cover miniature metric and sub-millimeter threads, non-standard outer profiles, and material grades selected for conductivity, chemical exposure or sustained elevated temperature.
The range serves medical instruments, microelectronics, smart devices, optical assemblies and industrial equipment with extreme size or environmental constraints. We produce from customer engineering drawings, 3D models or physical samples, and support both prototype and production batch quantities.
What Our Other Nuts Range Covers
Other Nuts is our specialty category for nuts that fall outside the standard hexagon, square, flange, combination and lock families. The category is organized around three variables: thread size, outer geometry and material. That structure lets us quote a drawing directly instead of forcing a standard part into a joint it was not designed for.
Miniature Formats
Ultra-small metric and sub-millimeter thread sizes for precision electronic, optical and medical assembly where a standard nut exceeds the available joint geometry.
Specialty Geometries
Non-standard outer profiles produced by cold forging, machining and press forming for anti-rotation, embedded or aesthetic functions defined by customer drawings.
Extended Materials
Titanium, brass, Monel and high-temperature alloys for applications requiring specific electrical conductivity, chemical resistance or elevated-temperature performance.
Standard and Drawing-Based Items in the Range
Alongside fully custom parts, the category includes established specialty nut types that we produce to published dimensional standards. These give project teams a known reference point for thread, geometry and material before moving to a drawing-specific design.
| Item | Reference | Typical Fit |
|---|---|---|

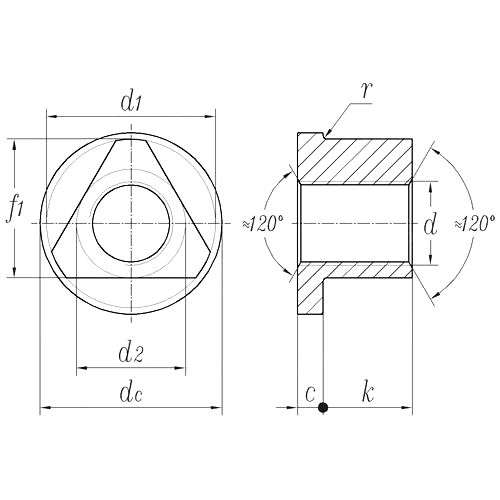

| Triangular Nut | DIN 22425:1990 | Three-point contact and anti-rotation locations |

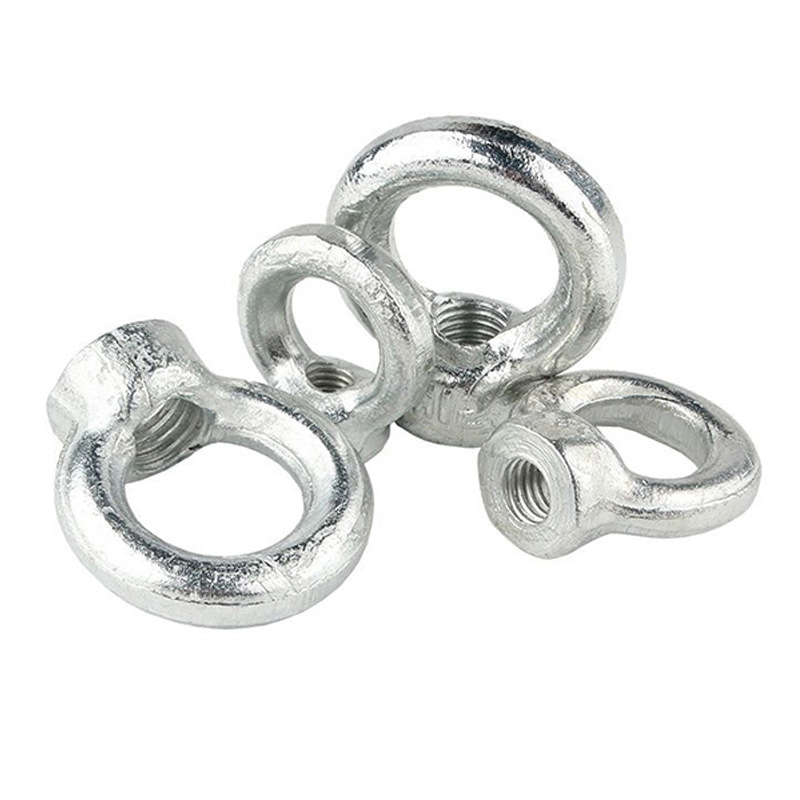

| Eye Nut | DIN 582:2024 | Lifting and rigging attachment points |

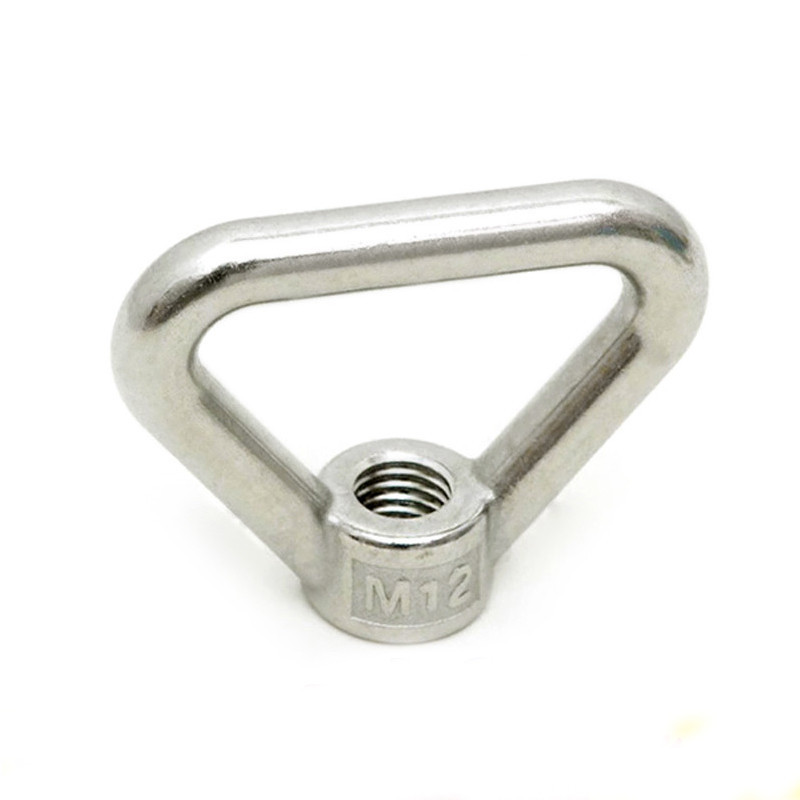

| Metric Bow Eye Nut | DIN 80704:1968 | Bow-form lifting and tensioning hardware |

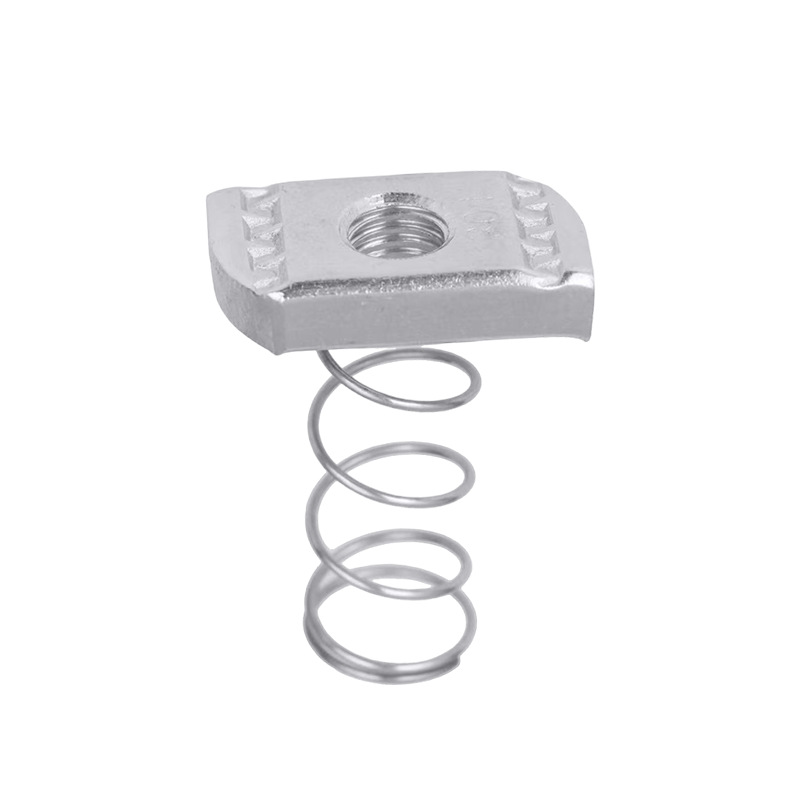

| Spring Nut, Type 2 / Type 3 | YJT 3020 (41/41SN) | Channel and strut framing systems |

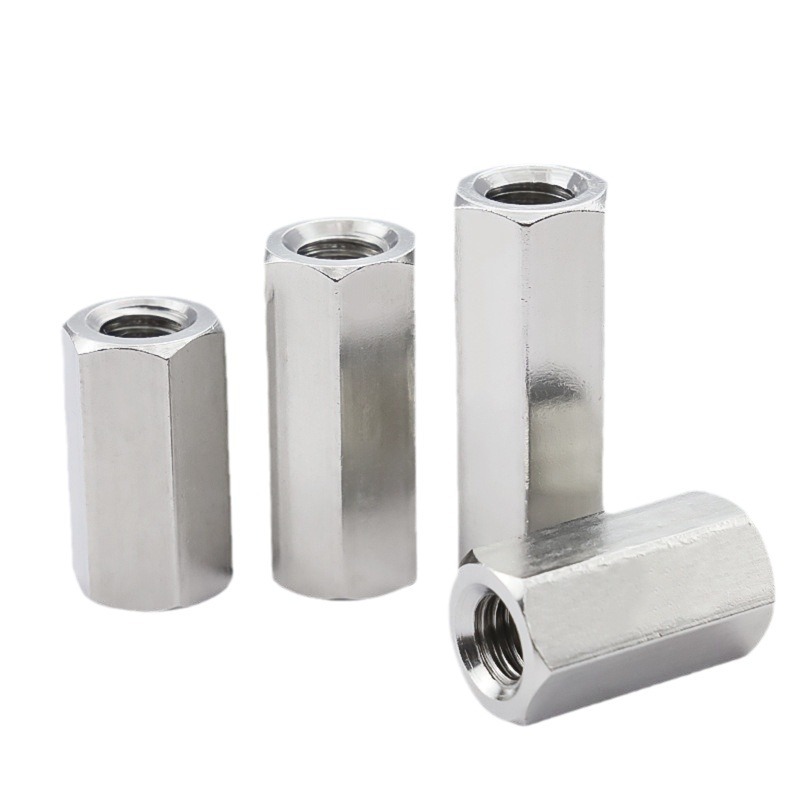

| Hex Coupling Nut | DIN 6334 | Threaded rod joining and extension |
Application Fit by Industry
Specialty nuts are usually specified because the joint, not the catalog, sets the limits. The table below maps common application conditions to the nut characteristics we would normally discuss during configuration.
| Application | Key Requirement | Relevant Nut Characteristic |
|---|---|---|
| Medical instruments | Small envelope, cleanable surfaces | Miniature thread, stainless or titanium |
| Microelectronics and smart devices | Sub-millimeter thread, controlled torque | Precision-machined miniature nut |
| Optical assemblies | Stable clamping, low outgassing risk | Fine thread, selected alloy |
| Chemical and process equipment | Corrosion resistance | Monel or high-alloy grade |
| Elevated-temperature equipment | Strength retention when hot | High-temperature alloy |
| Lifting and rigging | Defined attachment geometry | Eye nut and bow eye nut forms |
Configuration Options We Build Around
A specialty nut is defined by the interface it must satisfy. We treat the following as the main configuration levers, and confirm each one against the drawing before production.
- Thread: metric coarse or fine, inch series, and sub-millimeter sizes; internal thread form matched to the mating screw or stud.
- Outer profile: triangular, bow, eye, coupling, spring and other non-standard shapes produced by cold forging, machining or press forming.
- Material: carbon steel, stainless steel, titanium, brass, Monel and high-temperature alloys, selected for conductivity, corrosion resistance or thermal duty.
- Surface treatment: plating, passivation, blackening and other post-treatments applied according to the service environment.
- Dimensional class: tolerance band and critical dimensions agreed from the customer drawing or 3D model.
- Batch scope: prototype quantities through production batches across a wide dimensional and material range.
Quality Control and Acceptance
We implement total quality management through the production process, with inspection after each process and final inspection of finished products against customer requirements and international standards. Our laboratory is equipped with a spectrometer, CMM, X-ray flaw detector and other testing equipment, covering chemical composition, mechanical properties, non-destructive testing and geometric dimensions.
For specialty nuts, the acceptance conversation usually centers on the drawing. We confirm which dimensions are critical, which characteristics are inspected by attribute and which require measurement, and we align the inspection record with the agreed specification before the batch is released.
Related Fasteners in Our Range
Other Nuts is one part of a broader nut and washer program. Where a project needs a standard nut alongside a specialty item, we can consolidate the requirement rather than split it across suppliers.
- T-Nuts for channel, strut and furniture framing where a captive threaded insert is required.
- Washers including plain, spring, lock, retaining and other washer types for load distribution and preload retention.
- Bolts covering hexagon head, flange, carriage, countersunk and other bolt families that pair with our nut range.
Information We Use to Configure Your Solution
To quote a specialty nut accurately, we work from the following project inputs. Where a drawing already exists, it usually answers most of these points directly.
- Engineering drawing, 3D model or physical sample, with the mating thread specified.
- Thread size and pitch, or the mating screw or stud part number.
- Material grade and any conductivity, corrosion or temperature requirement.
- Surface treatment and appearance requirements.
- Critical dimensions and the tolerance band that governs acceptance.
- Assembly method, torque target and any anti-rotation feature.
- Prototype and production quantities, plus packaging and delivery scope.
Production, Packaging and Delivery
Better Fastener operates 12 energy-efficient production lines, including one fully automatic shell molding line and four heat treatment lines, with annual capacity exceeding 20,000 tons. Our facilities are within a short drive of Shanghai and Ningbo ports, which supports sea freight as the main shipping mode and air freight for urgent deliveries.
Packaging is configured to the sales channel: retail kits, blister packs, custom boxes and export cartons. For specialty nuts, we confirm the packaging unit, labeling and carton marking as part of the order scope so the goods arrive ready for the next stage of the supply chain.
Frequently Asked Questions
Can you produce nuts from our drawings or samples?
Yes. Customized production is our core business. We develop and manufacture from engineering drawings, 3D models or physical samples, and support both prototype and production batch quantities across a wide dimensional and material range.
What materials are available for Other Nuts?
We work in carbon steel, stainless steel, titanium, brass, Monel and high-temperature alloys. The material is selected against the service condition, whether that is electrical conductivity, chemical resistance or sustained elevated-temperature performance.
How small can the thread sizes go?
Our miniature formats cover ultra-small metric and sub-millimeter thread sizes for precision electronic, optical and medical assembly. The practical limit depends on the material and the outer geometry required, so we confirm feasibility from the drawing.
How is quality verified before shipment?
Inspection is conducted after each process, and finished products undergo final inspection in accordance with customer requirements and international standards. Our laboratory supports chemical composition analysis, mechanical property testing, non-destructive testing and dimensional measurement.
Can you supply standard nuts together with specialty items?
Yes. Our nut range includes hexagon, square, flange, combination and lock nuts alongside Other Nuts, and our washer and bolt ranges cover the mating components. We consolidate these into one specification-led supply program.
What information do you need for a quotation?
Send the drawing or sample, thread size, material grade, surface treatment, critical dimensions, quantities and packaging requirements. On working days we respond to inquiries within 12 hours.
