T-Nuts Manufacturers

What Our T-Nut Range Covers

A T-nut is an inverted T-shaped body with a flange and a threaded barrel. The barrel is pressed or set into a pre-drilled hole so the thread becomes captive in the workpiece and remains accessible from one face. That single-sided access is the reason the part appears in furniture panels, climbing wall panels, profile systems and machine table slots.

We supply the following body forms, each matched to a different workpiece and load direction:

• Pronged T-nuts — four prongs bite into wood, MDF or particle board and resist rotation when the bolt is tightened.
• Round flange T-nuts — a plain circular flange for flush seating in drilled panels and composite boards.
• Slotted flange T-nuts — flange slots allow position adjustment before final tightening in profile and frame assemblies.

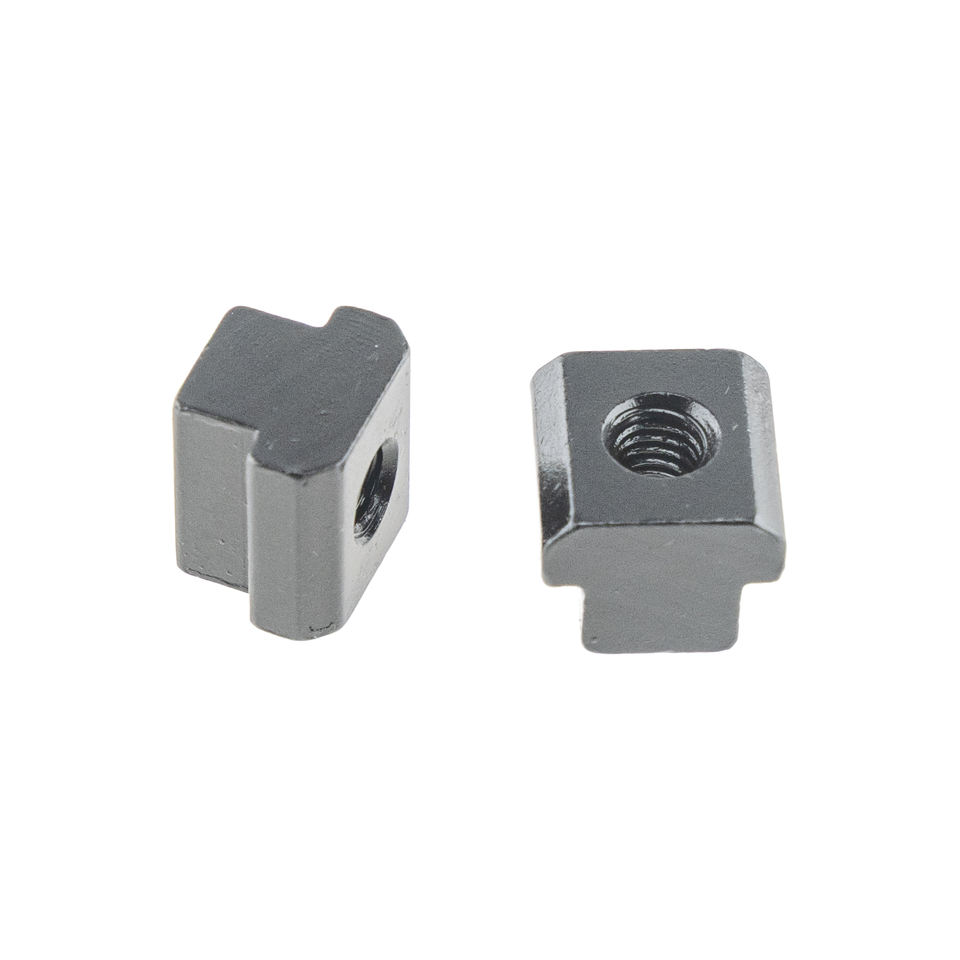

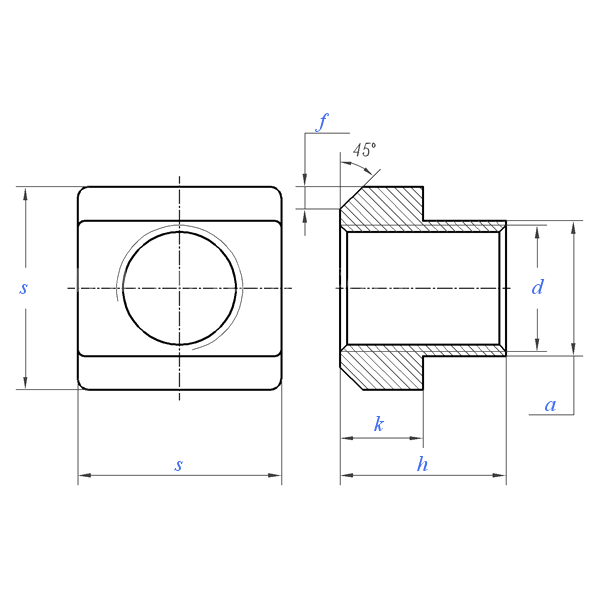

• T-slot nuts — rectangular bodies that slide into machine table and aluminium profile slots, referenced to DIN 508:2002 and JIS B 1167:2011.

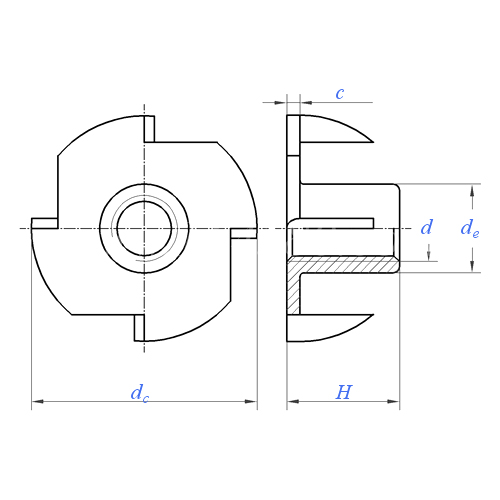

• Four-prong nuts — YJT 3023 pattern for panel and furniture applications requiring a wider grip footprint.

Application Fit by Product Type

The table below maps our T-nut forms to the workpiece and the assembly condition they suit. Use it to shortlist the body type before we confirm dimensions.

Materials, Threads and Finishes

We produce T-nuts in carbon steel and stainless steel. Carbon steel parts are normally zinc plated for indoor furniture and light industrial use; stainless steel grades are selected where moisture, cleaning agents or outdoor exposure are present. Threads are cut or formed to the metric or inch series the drawing specifies.

• Standards referenced: DIN 508:2002, JIS B 1167:2011, YJT 3023, plus customer drawings.
• Thread sizes: M4 to M12 and equivalent inch threads, confirmed against the mating bolt.
• Barrel forms: straight knurled, barbed or plain, depending on the workpiece and pull-out requirement.
• Finishes: zinc plating, passivation and blackening, applied to suit the corrosion class of the end product.
• Matching hardware: we supply the mating Hexagon Head Bolts and Plain Washers from the same production group so thread and bearing face are consistent.

Critical Specifications We Confirm Before Production

T-nut performance depends on a small set of dimensions. We verify each one against the panel or slot before releasing a batch:

• Barrel outside diameter and the corresponding panel hole diameter.
• Barrel length relative to panel thickness, so the thread does not protrude or sit short.
• Flange diameter, thickness and head height for flush or recessed seating.
• Thread pitch, class and depth of usable thread.
• Prong count, prong length and spacing for board grip.
• Body width and height for T-slot nuts sliding in a machined table slot.

Installation and Assembly Notes

Pronged and flanged T-nuts are set by pressing the barrel into a pre-drilled hole until the flange seats. The prongs or knurled collar grip the material and hold the nut against rotation and pull-out during bolt tightening. T-slot nuts are positioned by sliding along the slot, then locked by the bolt.

For volume furniture and panel lines, we can discuss barrel geometry that suits automated insertion tooling, and we keep flange and barrel tolerances consistent between batches so press settings do not need constant adjustment.

Quality Control and Acceptance

Our quality system follows total quality management across the production process, with inspection after each operation and final inspection of finished goods against the agreed specification. The in-house laboratory is equipped with a spectrometer, CMM, X-ray flaw detector and other testing equipment for chemical composition, mechanical properties, non-destructive testing and geometric dimensions.

• Dimensional inspection of barrel diameter, length, flange and thread.
• Material verification by spectrometer on the heat used.
• Thread gauging to confirm fit with the mating bolt.
• Plating thickness and appearance checks on coated parts.
• Inspection records issued with the shipment where the order requires them.

Customization, Packing and Delivery Scope

Custom development is a core part of our business. We produce T-nuts from customer drawings or samples, including non-standard barrel lengths, flange profiles, prong patterns and thread combinations. Post-treatment processes such as hot-dip galvanizing and blackening allow us to handle parts of different shapes, sizes and materials.

Packing is arranged to the sales channel: bulk export cartons, retail kits, blister packs or custom boxes. Our location is within a two-hour drive of Shanghai and Ningbo ports, and we ship by sea as standard with air freight for urgent deliveries. Related fastener families such as Other Nuts and Washers can be consolidated into the same shipment.

Information We Use to Configure Your Solution

To quote a T-nut that fits first time, we work from the following project inputs. Where a drawing exists, we quote from the drawing; where it does not, these details let us propose a standard or modified part.

• Drawing or sample, including the standard reference if one applies.
• Workpiece material and panel thickness, or slot dimensions for T-slot nuts.
• Mating bolt thread size, pitch and required engagement depth.
• Material grade and corrosion requirement for the end product.
• Estimated annual quantity and first order quantity.
• Packing format and any labelling or barcode requirement.
• Inspection documentation and acceptance criteria expected at goods receipt.

Frequently Asked Questions

Do you manufacture T-nuts to DIN 508 and JIS B 1167?

Yes. We produce T-slot nuts referenced to DIN 508:2002 and JIS B 1167:2011, as well as YJT 3023 four-prong nuts. Dimensions are confirmed against the standard or your drawing before production.

Which material should I choose for a furniture or outdoor application?

Carbon steel with zinc plating suits indoor furniture and light industrial assemblies. For moisture, cleaning agents or outdoor exposure, we recommend a stainless steel grade. We confirm the grade against the corrosion class of your finished product.

Can you produce non-standard barrel lengths and prong patterns?

Yes. Custom development from drawings or samples is our core business. Barrel length, flange profile, prong pattern and thread combination can all be produced to your specification.

How do you control quality on a T-nut order?

Inspection is carried out after each production process, and finished goods are inspected against the agreed specification. Our laboratory uses a spectrometer, CMM and X-ray flaw detector to monitor chemical composition, mechanical properties, non-destructive testing and geometric dimensions.

What packing and shipping options do you offer?

We pack to bulk export cartons, retail kits, blister packs or custom boxes. Sea freight is our main mode from Shanghai and Ningbo ports, with air freight available for urgent deliveries.

Can T-nuts be combined with other fasteners in one order?

Yes. As a comprehensive fastener supplier we consolidate T-nuts with bolts, nuts and washers from our own production group, which keeps thread fit consistent and reduces the number of shipments you handle.
