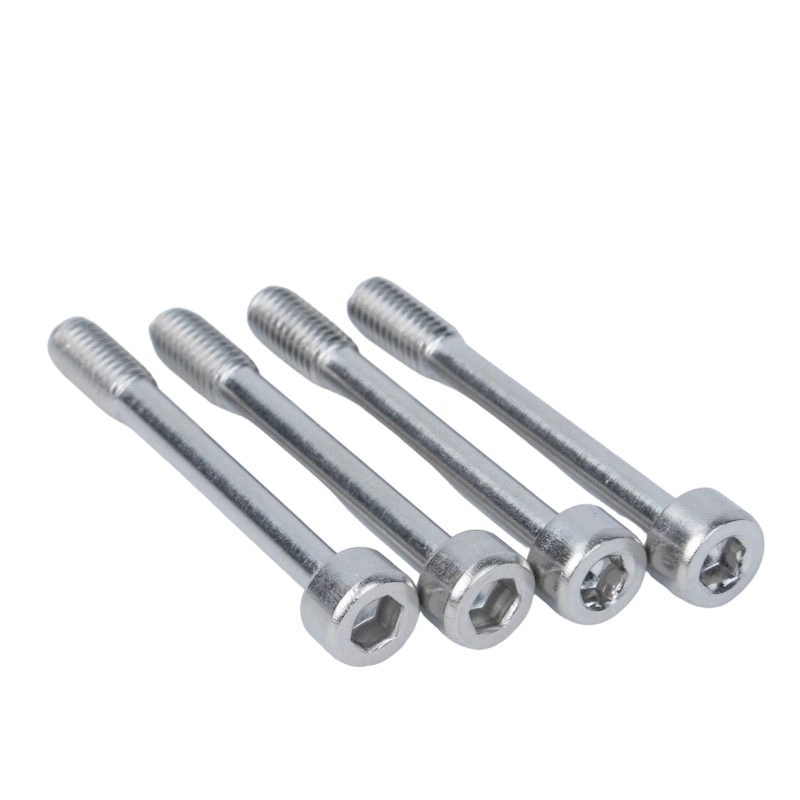

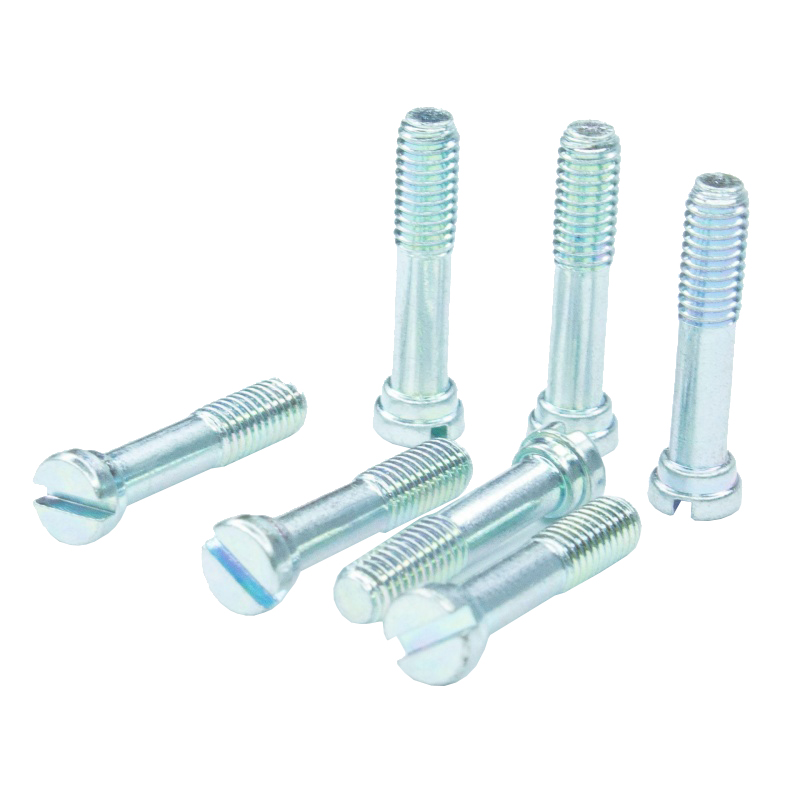

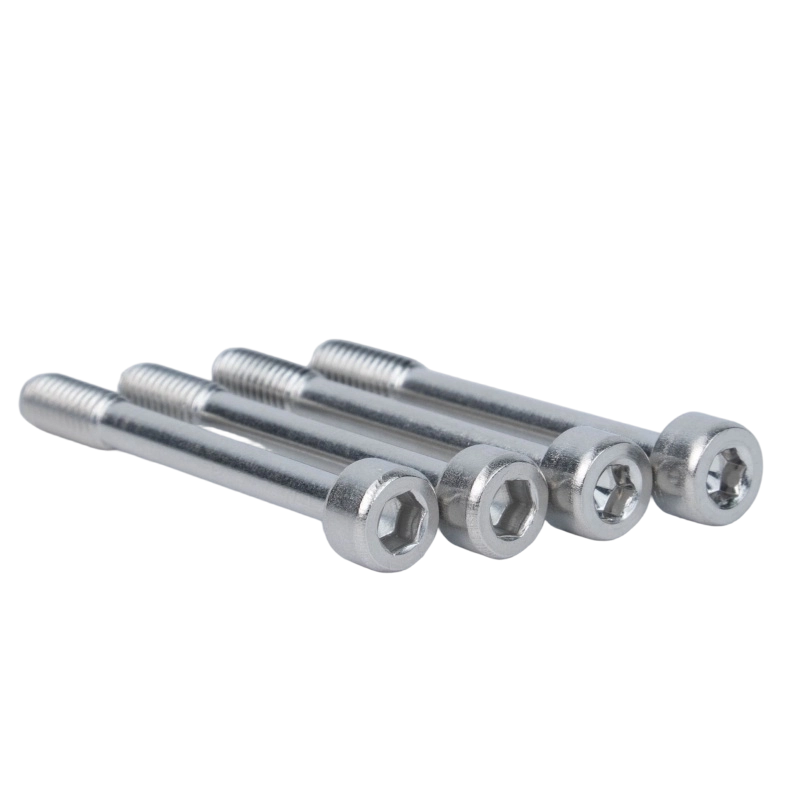

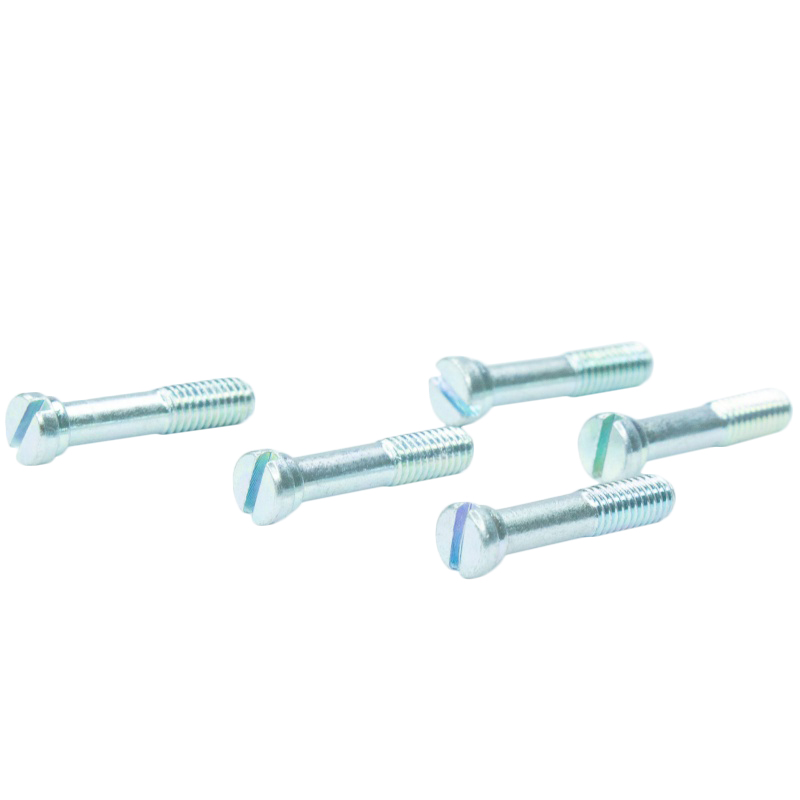

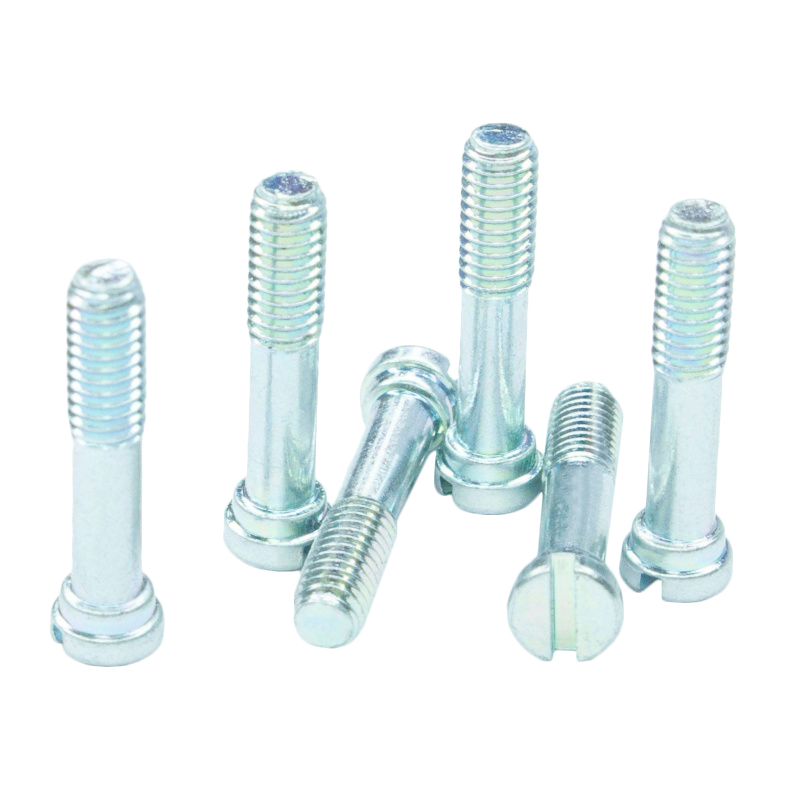

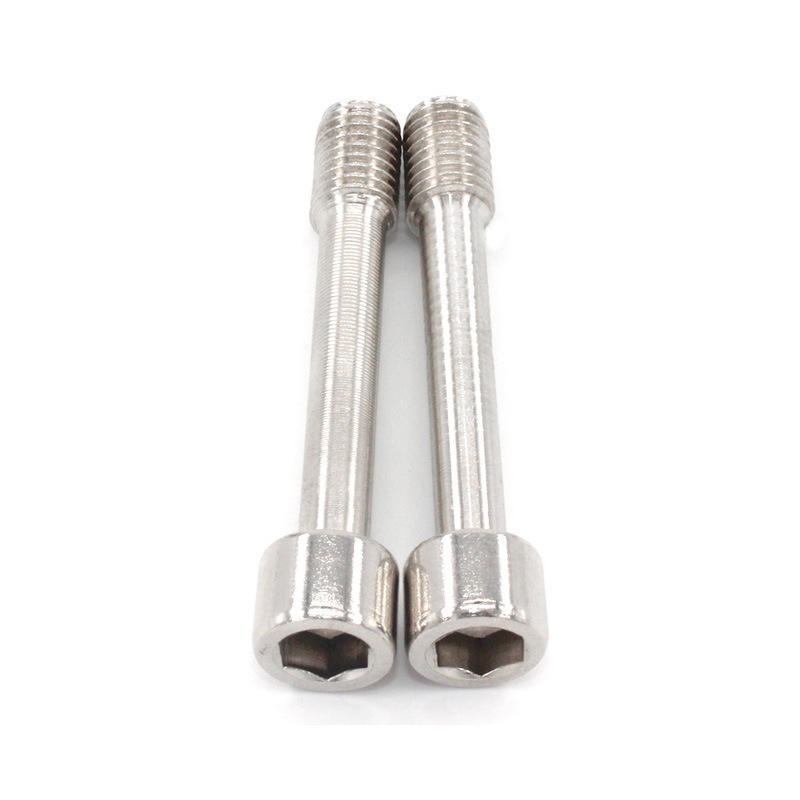

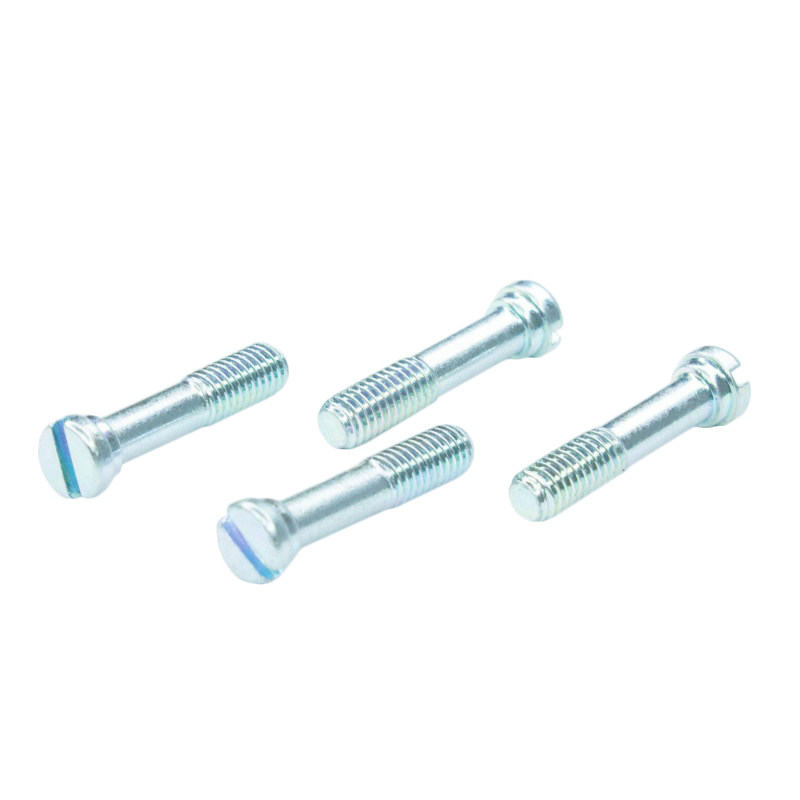

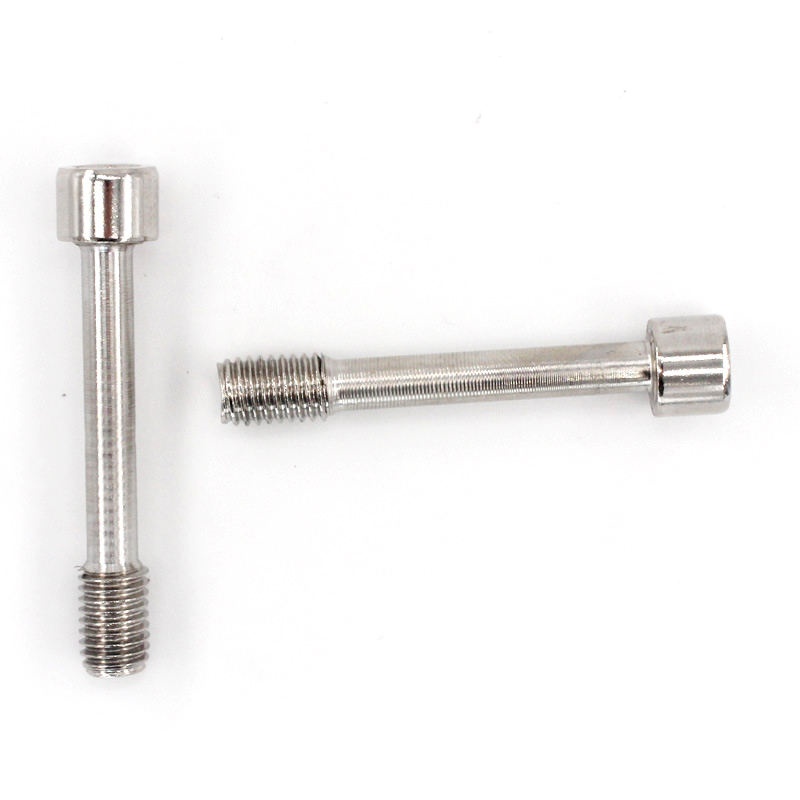

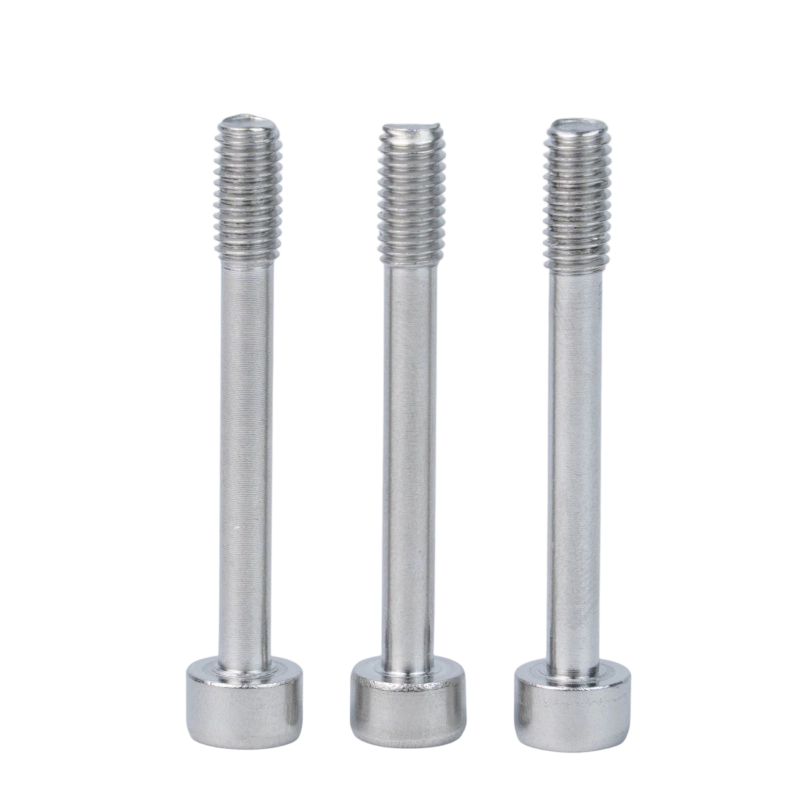

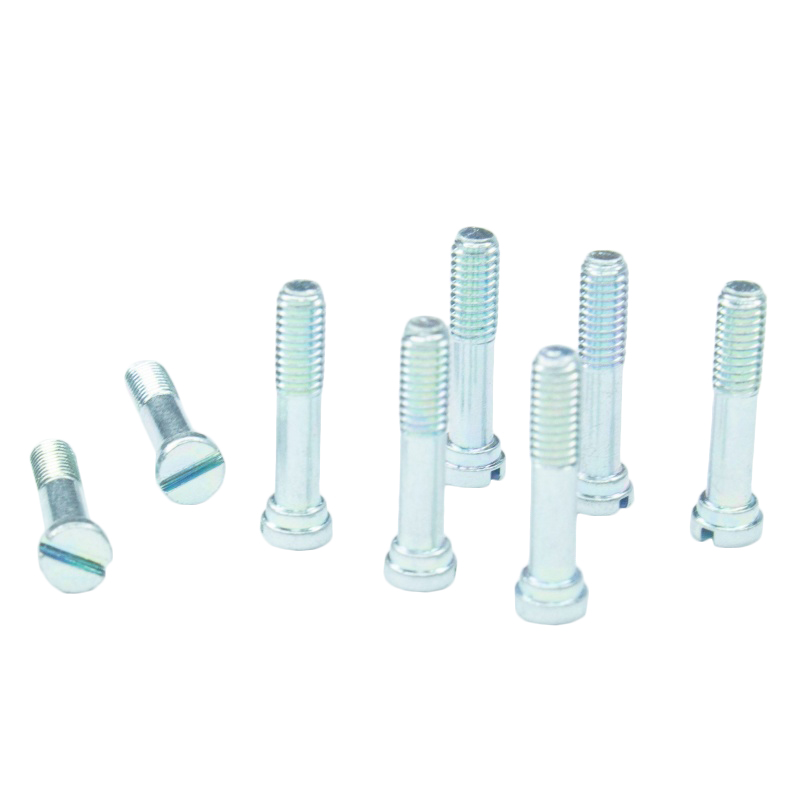

DIN 7964:1990 Coarse Thread Reduced Shank Bolt and Screw uses a reduced shank design that maintains fastening function while allowing more flexibility around shank transition, elastic behavior, and installation clearance. It is suitable for joints where an overly rigid shank is not preferred.
The coarse thread enables quick engagement, making the product practical for field installation, maintenance, and general industrial assembly. The reduced shank can help manage stress concentration and is often used in machinery parts, fixtures, transmission structures, and serviceable equipment joints.
Diameter, length, thread size, strength class, and surface finish can be configured according to the application. In vibration, slight offset, or space-limited conditions, it is recommended to pair the fastener with suitable washers, locking parts, or anti-loosening measures.
![]() |
|

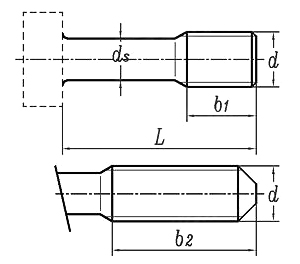

Dimensions unit: mm
|
Thread size d |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
||
|
P |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
3.5 |
||
|
b1 |
0 ~ +2P |
K type Short Thread |
3.2 |
3.8 |
5 |
6.25 |
7.5 |
10 |
12.5 |
15 |
20 |
25 |
30 |
38 |
|
L type Long Thread |
10 |
12 |
14 |
16 |
18 |
22 |
26 |
30 |
38 |
46 |
54 |
66 |
||
|
b2 |
0 ~ +2P |
K type Short Thread |
3.75 |
4.5 |
6 |
7.55 |
8.5 |
11.2 |
14.3 |
17.5 |
23 |
28.5 |
33.5 |
43 |
|
L type Long Thread |
10.55 |
12.7 |
15 |
17.3 |
19 |
23.2 |
27.8 |
32.5 |
41 |
49.5 |
57.5 |
71 |
||
|
ds |
Max. |
1.9 |
2.3 |
3 |
3.9 |
4.6 |
6.2 |
7.7 |
9.2 |
12.7 |
16.2 |
19.2 |
24.2 |
|
|
Min. |
1.7 |
2.1 |
2.8 |
3.7 |
4.4 |
6 |
7.5 |
9 |
12.5 |
16 |
19 |
24 |
||
