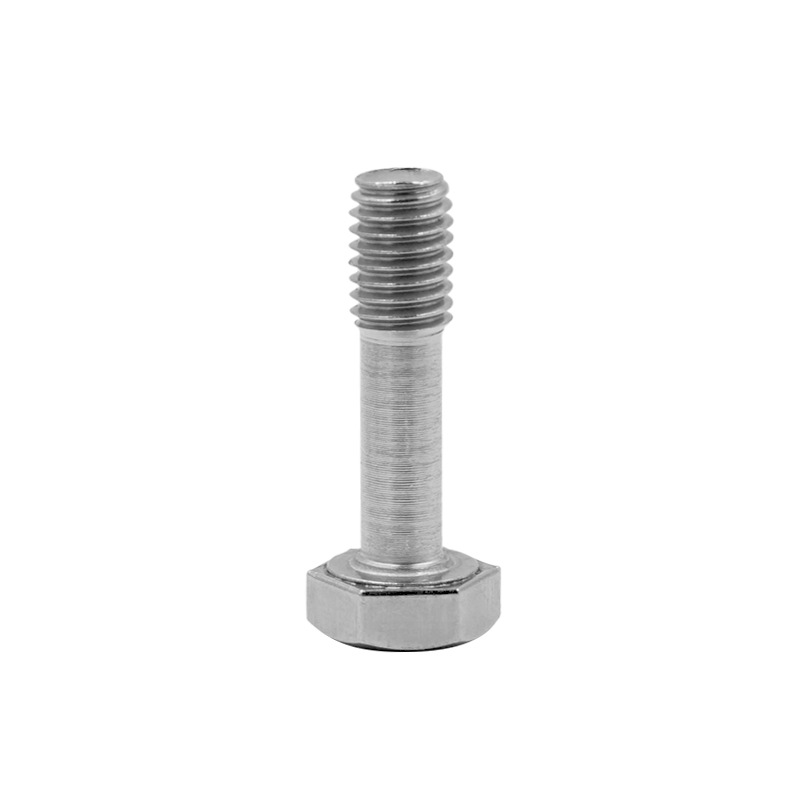

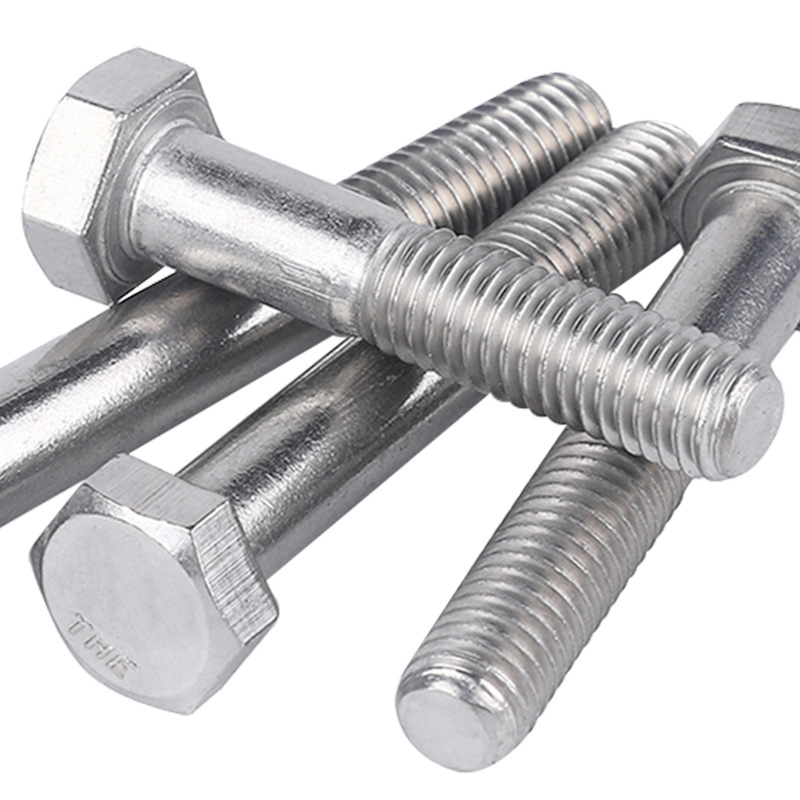

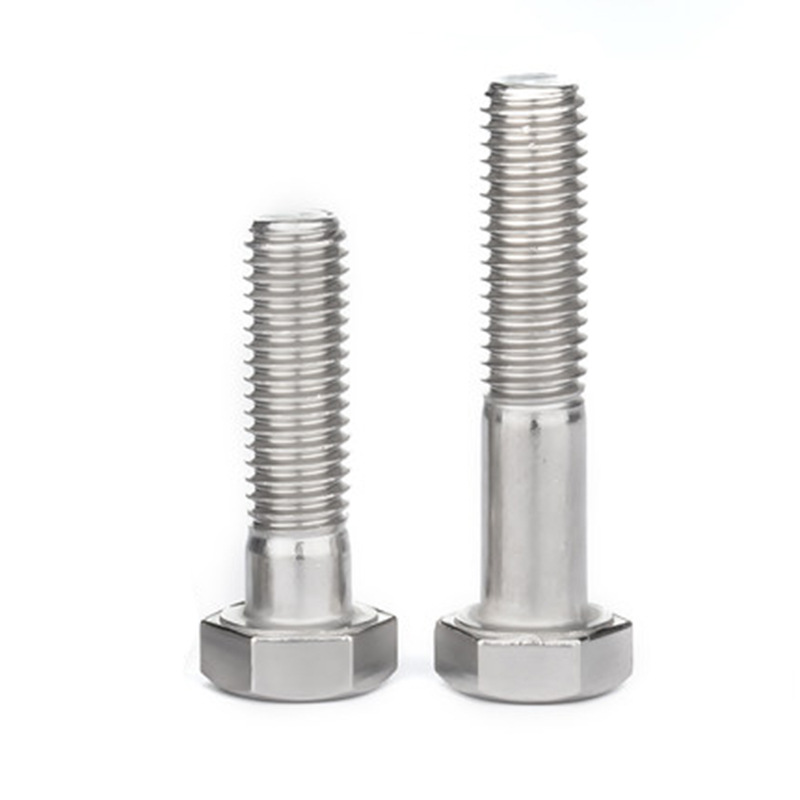

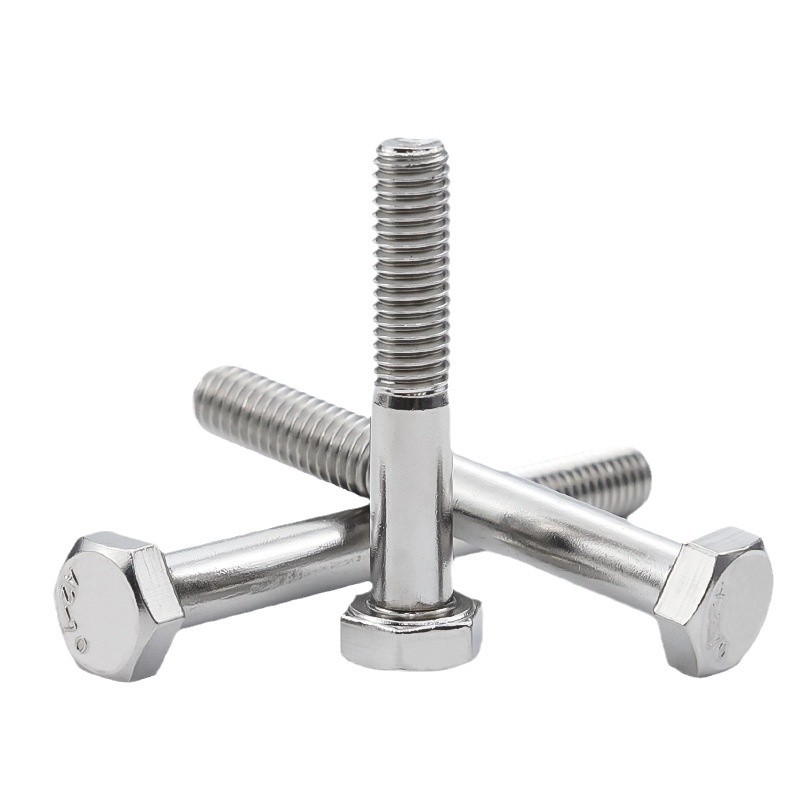

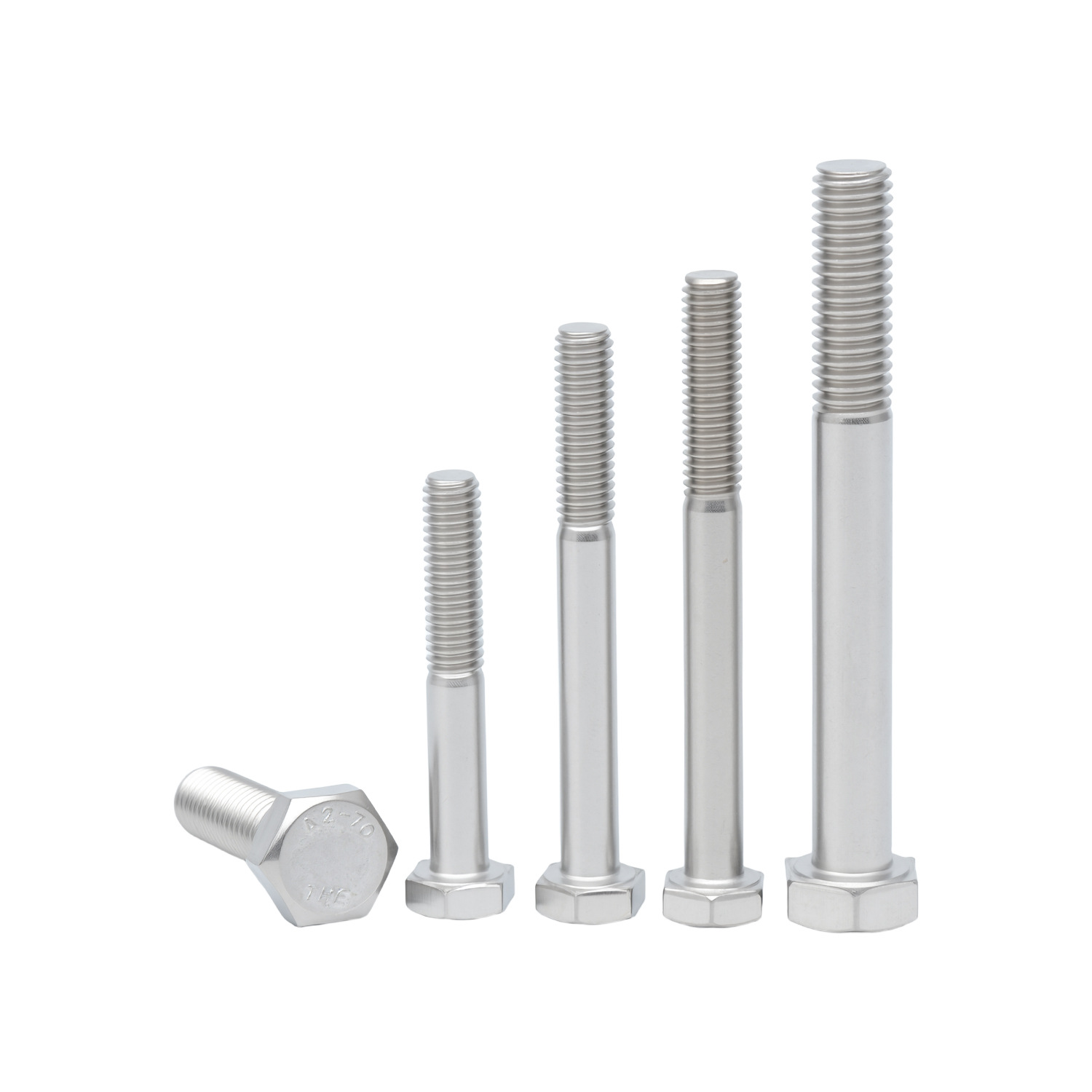

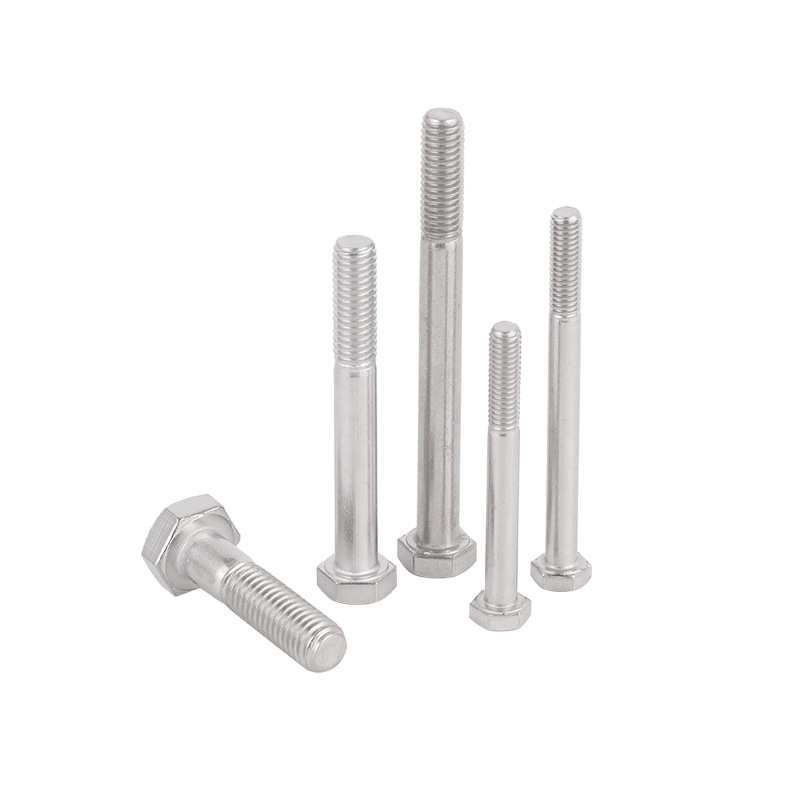

DIN 931-2:2009 Metric M68-M160×6 Grade B Hex Head Bolt is designed for large-size metric fastening requirements. Covering the M68 to M160×6 range, it is suitable for heavy equipment and large structural components where load capacity, installation stability, and standard compatibility are important.
The hex head supports tightening with common wrenches, sockets, or hydraulic tools. Its partially threaded body leaves a longer plain shank for bearing and alignment, which is useful in thick-plate joints, multi-layer assemblies, and heavy machinery base connections.
The bolt can be supplied in carbon steel, alloy steel, or other material options, with finishes such as black oxide, zinc plating, or hot-dip galvanizing. For outdoor, humid, or high-load conditions, it can be combined with matching nuts and washers to form a complete fastening set.

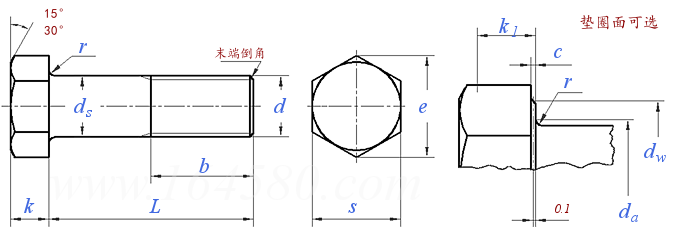

Dimensions unit: mm
|
Thread size d |
(M68) | M72 | (M76) | M80 | M90 | M100 | M110 | M125 | M140 | M160 | |
| P | Pitch | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| b | 125<L≤200 | 148 | 156 | 164 | 172 | 192 | - | - | - | - | - |
| L>200 | 161 | 169 | 177 | 185 | 205 | 225 | 245 | 275 | 305 | 345 | |
| c | Min. | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| da | Max. | 75 | 79 | 83 | 87 | 97 | 107 | 117 | 132 | 147 | 167 |
| ds | Max. = Nominal | 68 | 72 | 76 | 88 | 90 | 100 | 110 | 125 | 140 | 160 |
| Min. | 67.26 | 71.26 | 75.26 | 79.26 | 89.13 | 99.13 | 109.13 | 124 | 139 | 159 | |
| dw | Min. | 92.9 | 97.7 | 102.1 | 106.9 | 121.1 | 135.4 | 144.9 | 168.6 | 185.6 | 214.1 |
| e | Min. | 110.51 | 116.16 | 121.81 | 127.46 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 |
| k | Nominal | 43 | 45 | 48 | 50 | 57 | 63 | 69 | 79 | 88 | 100 |
| Min. | 42.5 | 44.5 | 47.5 | 49.5 | 56.4 | 62.4 | 68.4 | 78.4 | 87.3 | 99.3 | |
| Max. | 43.5 | 45.5 | 48.5 | 50.5 | 57.6 | 63.6 | 69.6 | 79.6 | 88.7 | 100.7 | |
| k1 | Min. | 29.8 | 31.2 | 33.2 | 34.6 | 40.3 | 43.7 | 47.9 | 54.9 | 61.1 | 69.5 |
| r | Min. | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| s | Max. = Nominal | 100 | 105 | 110 | 115 | 130 | 145 | 155 | 180 | 200 | 230 |
| Min. | 97.8 | 102.8 | 107.8 | 112.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | |
| Thread length b | - | - | - | - | - | - | - | - | - | - | |
①Material:
Steel, mechanical properties: as per respective material or agreement
Note: If the mechanical properties of each material can be guaranteed, the strength grade of DIN EN ISO 898-1 is also applicable to specifications above M39
