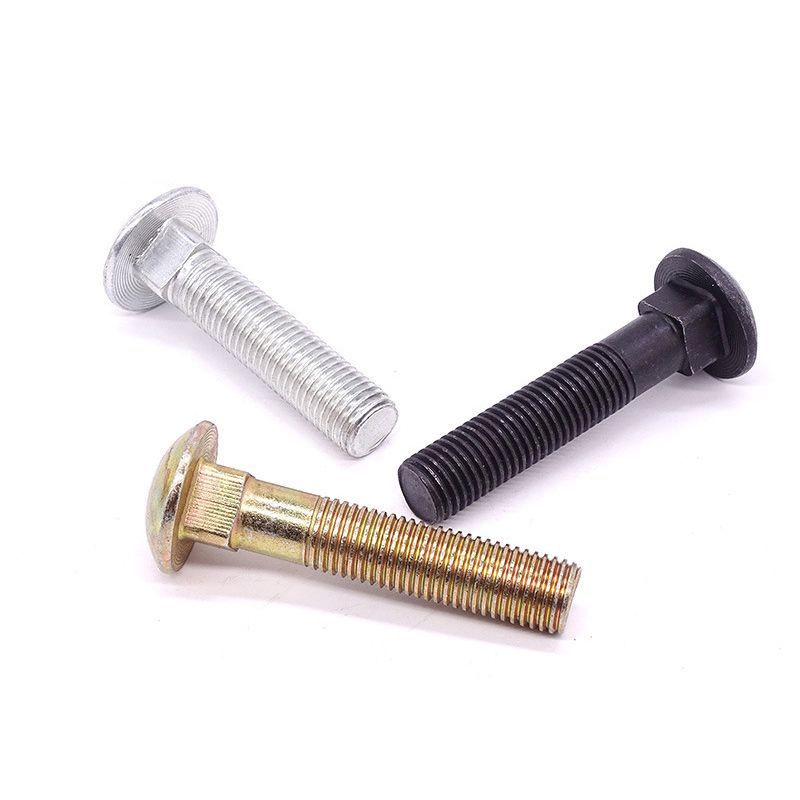

DIN 603:2017 Large Round Head Square Neck Bolt

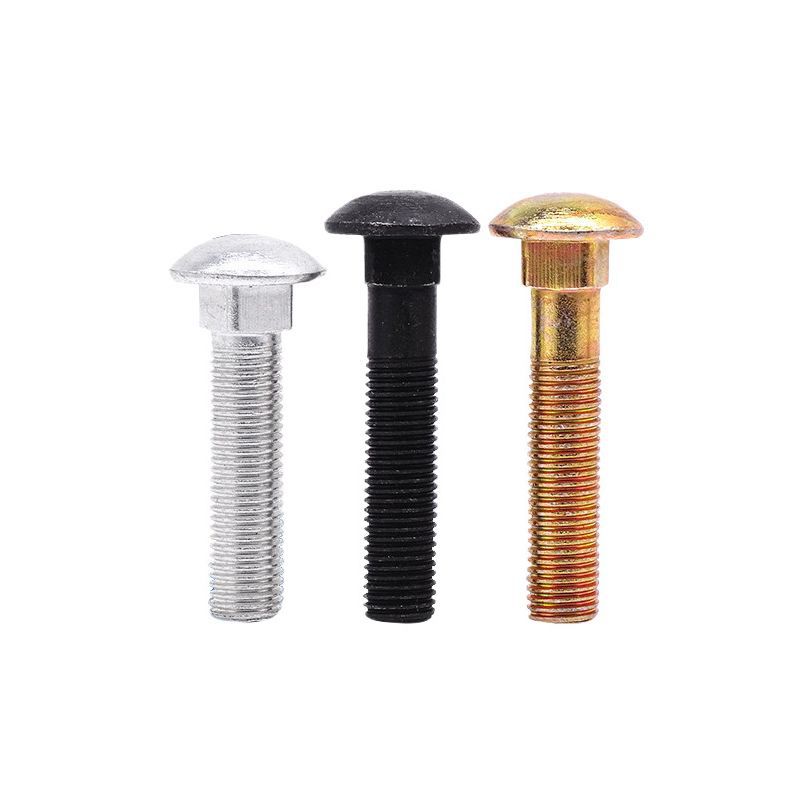

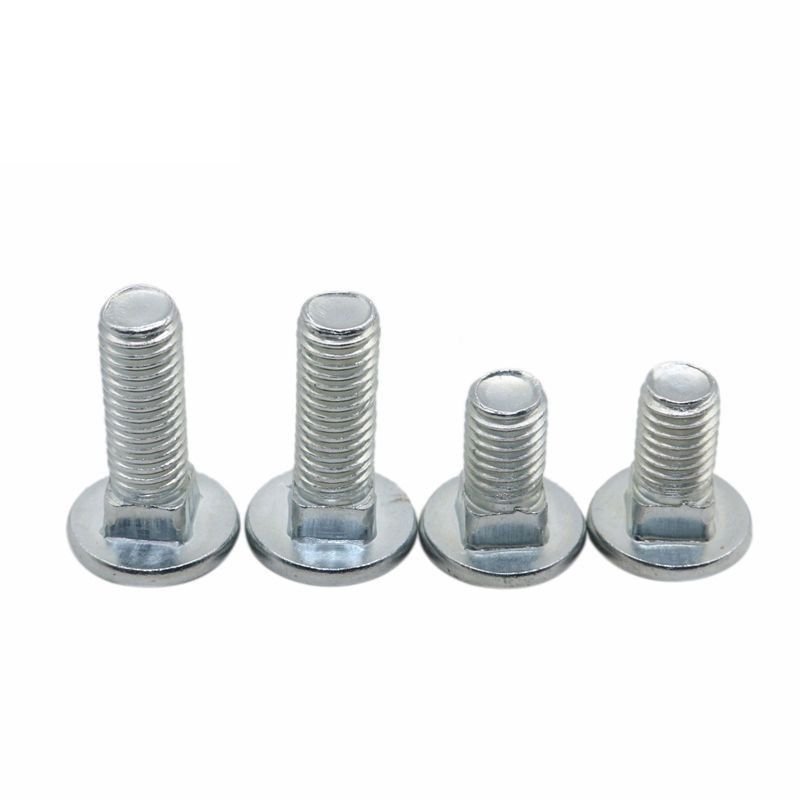

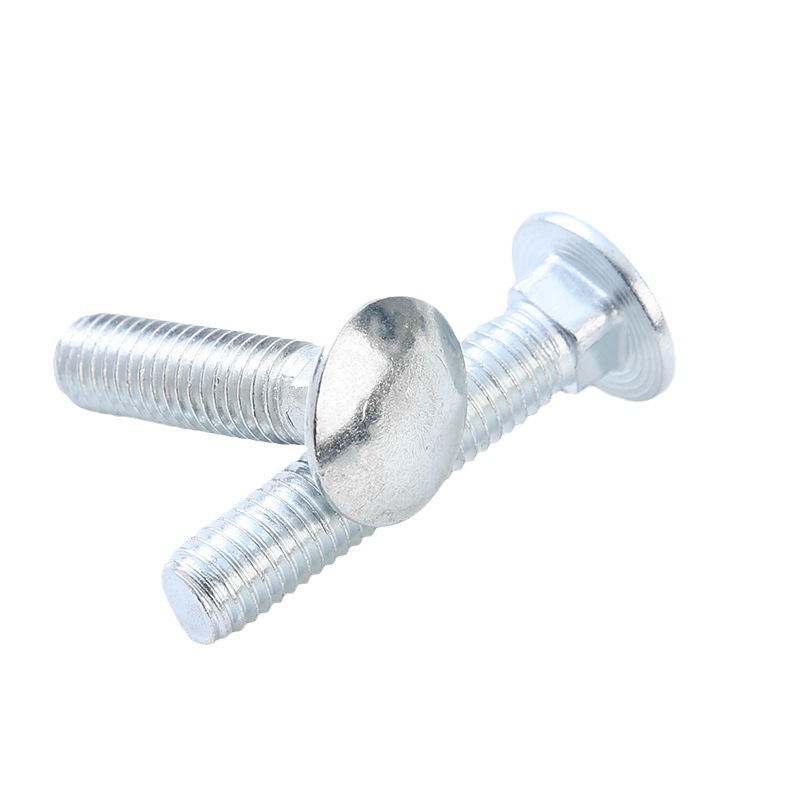

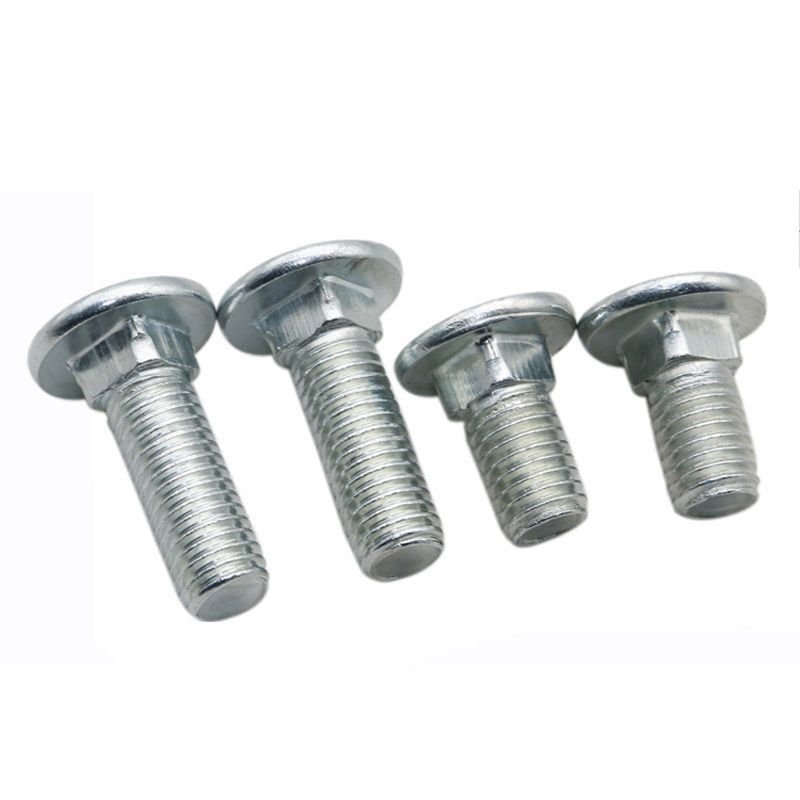

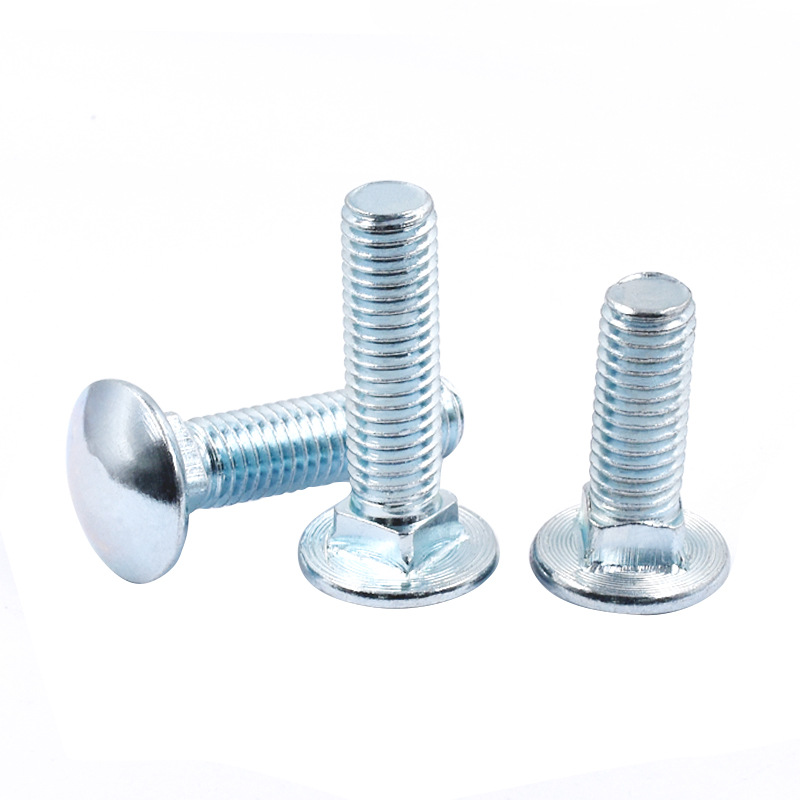

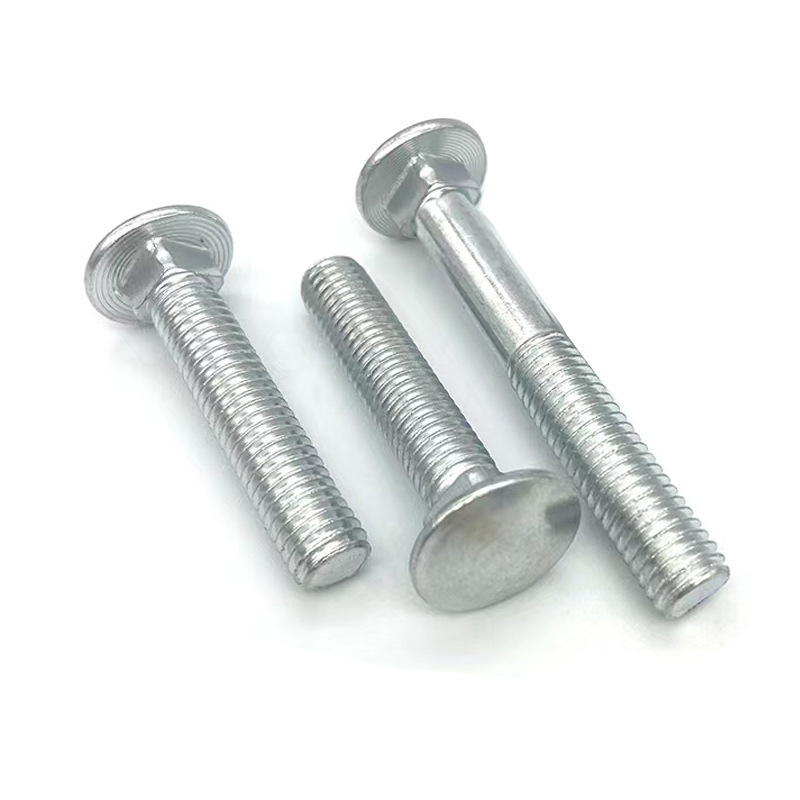

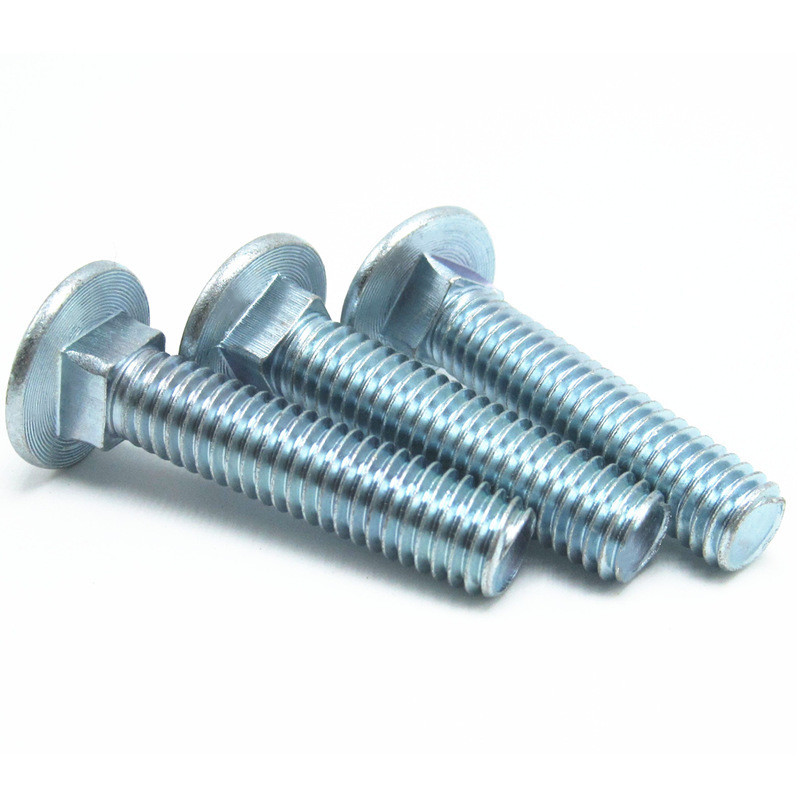

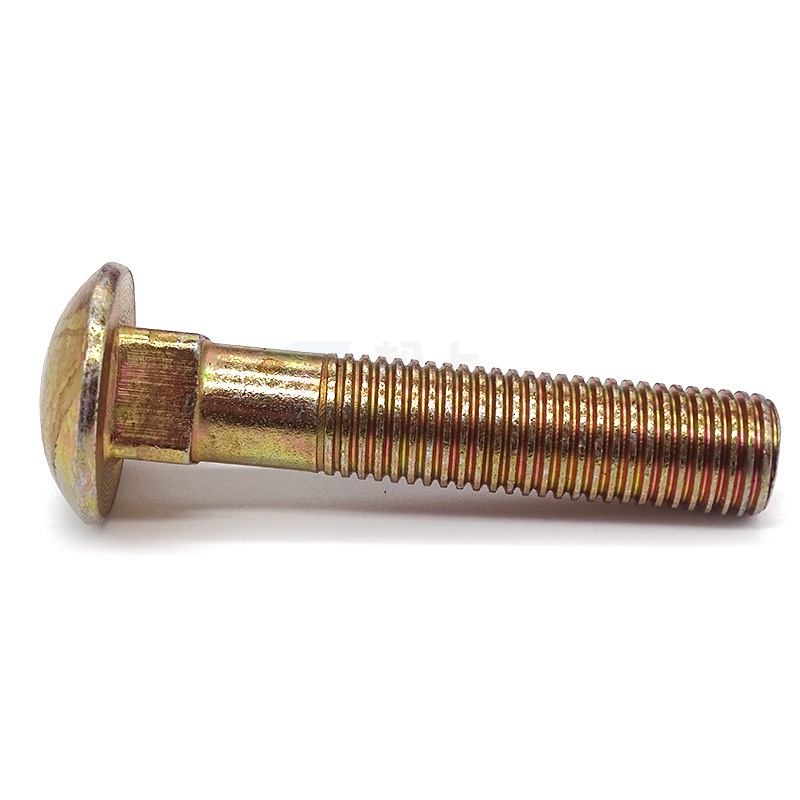

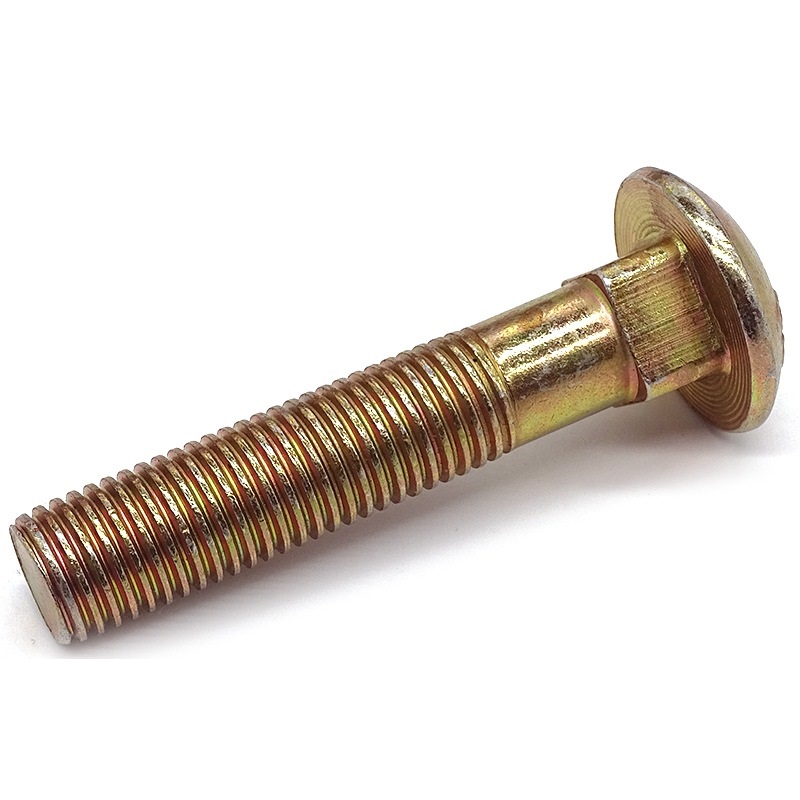

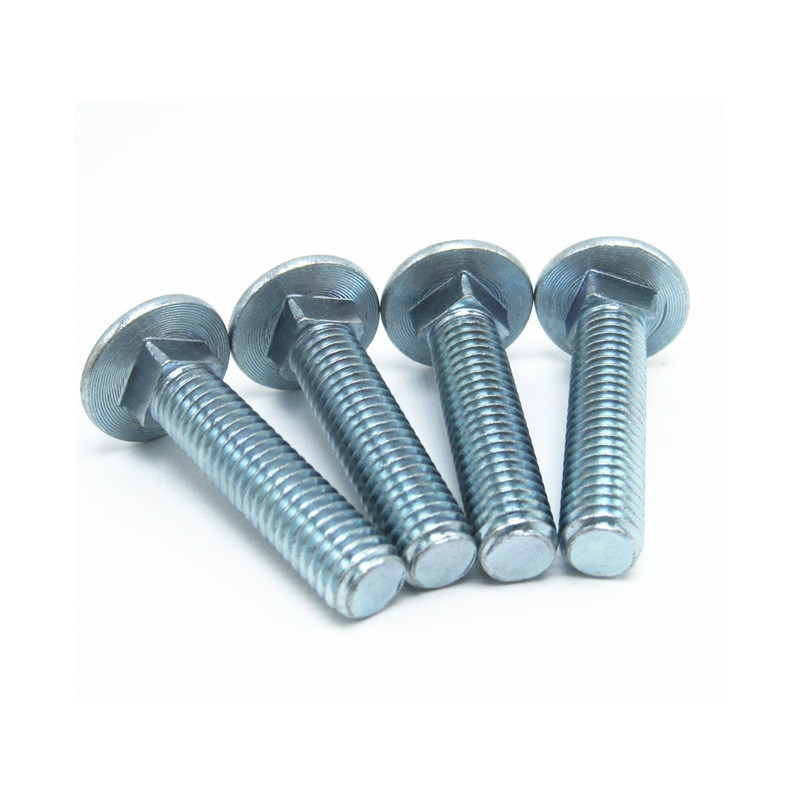

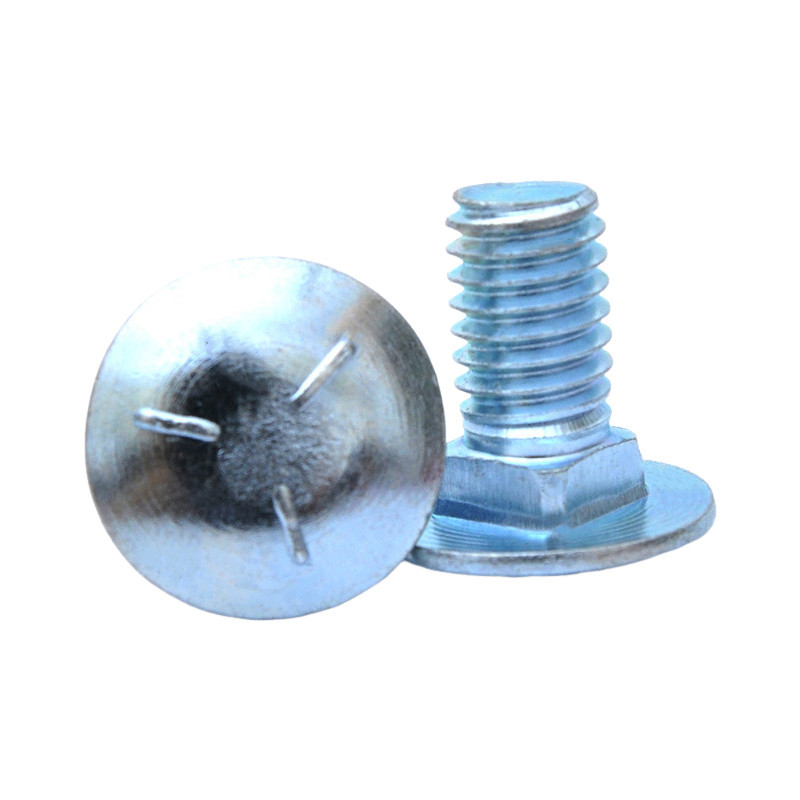

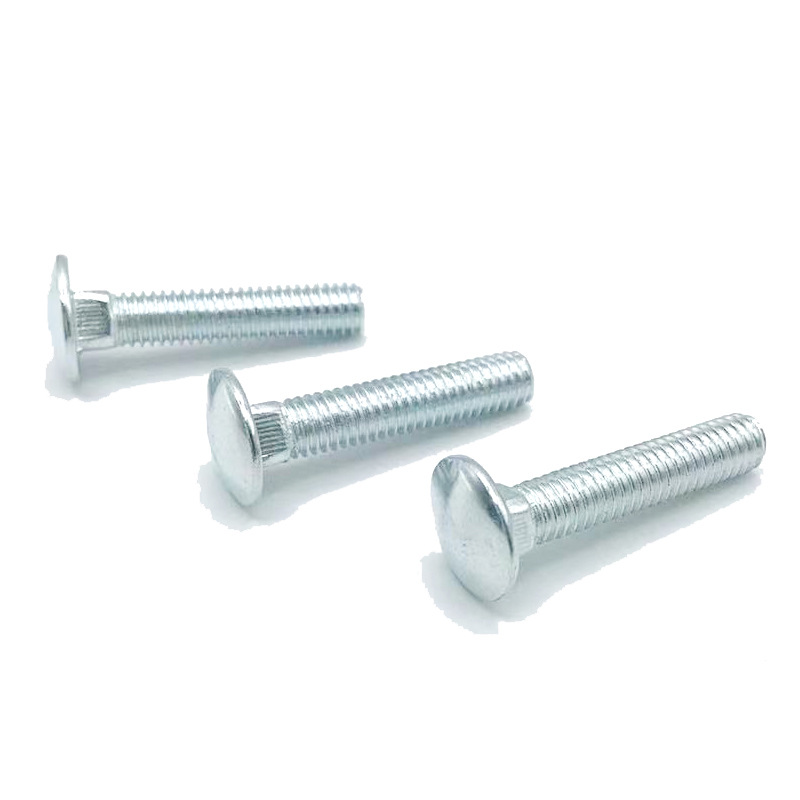

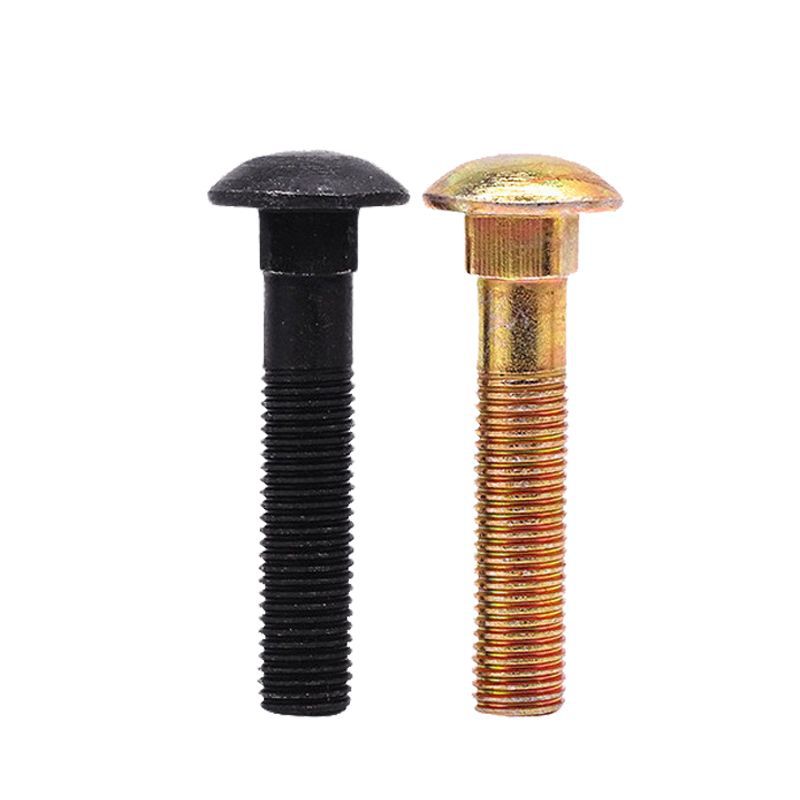

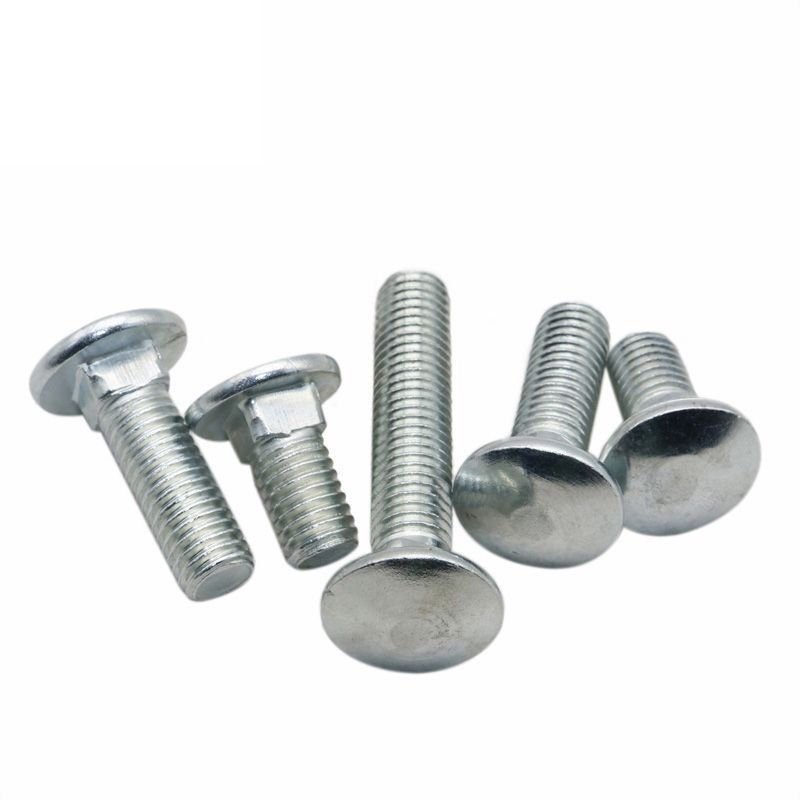

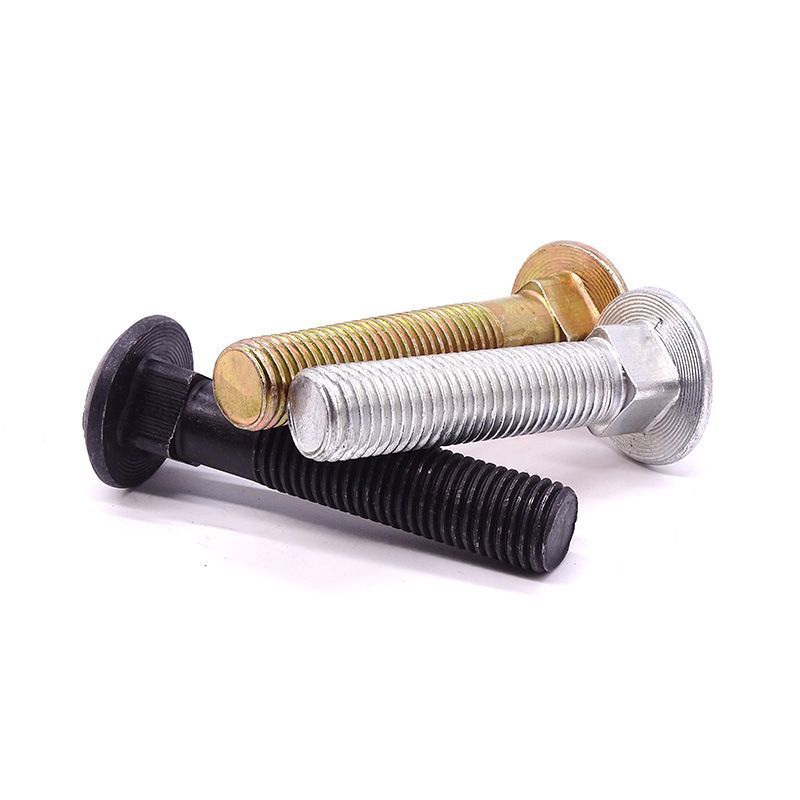

DIN 603:2017 Large Round Head Square Neck Bolt has a large round bearing head and a square neck that prevents rotation. It is suitable for exposed joints where a smooth appearance and self-locating installation are desired.

Typical applications include wood structures, fences, shelving, vehicle accessories, agricultural machinery, and light steel-wood assemblies. The large round head provides better coverage, while the square neck seats into the prepared hole to resist turning.

During installation, the square neck should be matched with a square hole or suitable base material for reliable seating. For outdoor and wood-structure uses, corrosion protection, head appearance, and matching thread hardware strongly affect service life.

Contact Us

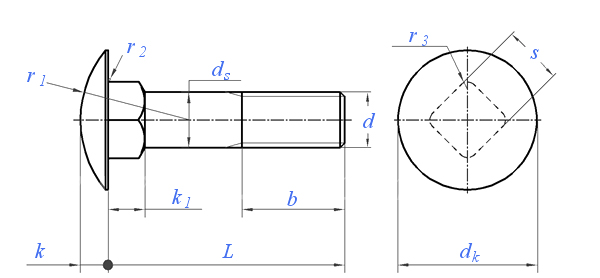

Dimensions unit: mm

Thread size d M5 M6 M8 M10 M12 M16 M20
P Pitch 0.8 1 1.25 1.5 1.75 2 2.5
b L≤125 16 18 22 26 30 38 46
125<L≤200 22 24 28 32 36 44 52
L>200 / / 41 45 49 57 65
dk Max. 13.55 16.55 20.65 24.65 30.65 38.8 46.8
Min. 12.45 15.45 19.35 23.35 29.35 37.2 45.2
ds Max. 5 6 8 10 12 16 20
Min. 4.52 5.52 7.42 9.42 11.3 15.3 19.16
k1 Max. 4.1 4.6 5.6 6.6 8.75 12.9 15.9
Min. 2.9 3.4 4.4 5.4 7.25 11.1 14.1
k Max. 3.3 3.88 4.88 5.38 6.95 8.95 11.05
Min. 2.7 3.12 4.12 4.62 6.05 8.05 9.95
r1 ≈ 10.7 12.6 16 19.2 24.1 29.3 33.9
r2 Max. 0.5 0.5 0.5 0.5 1 1 1
r3 Max. 0.75 0.9 1.2 1.5 1.8 2.4 3
s Max. 5.48 6.48 8.58 10.58 12.7 16.7 20.84
Min. 4.52 5.52 7.42 9.42 11.3 15.3 19.16
 Thousand pieces of steel weigh ≈kg  - - - - - - -
Thread length b  - - - - - - -

① Material:

a) Steel, strength grade: 4.6, 4.8, 8.8 according to DIN EN ISO 898-1

b) Stainless steel, strength grade: A2-70, A4-70 according to DIN EN ISO 3506-1
