Thread Rods Manufacturers

What Our Thread Rods Range Covers

Thread rods are continuous full-threaded cylindrical bars. Because the thread runs the entire length, nuts, couplers and fixtures can be positioned and locked at any point along the bar, which allows adjustable mounting heights and lengths without pre-cut dimensions. We supply the range in three standard references and in project-specific cut lengths.

Materials and Thread Selection

Carbon steel and stainless steel are the two base material families we produce for thread rods. Carbon steel is normally selected for structural and general support duty where a protective finish is applied; stainless steel is selected where corrosion resistance, hygiene or outdoor exposure governs. Low-alloy steel is available for higher-strength bolting duties.

• Carbon steel: general support, bracing and anchoring; finish options include zinc plating, hot-dip galvanizing and blackening.
• Stainless steel: outdoor, wet, coastal and process environments where the rod remains exposed.
• Low-alloy steel: higher-strength threaded studs for pressure and high-temperature joints.
• Thread forms: metric coarse and fine, plus inch series UNC/UNF as required by the drawing.

Application Fit

Full-length threading makes thread rods the practical choice wherever a support point must be adjusted on site rather than fixed at the drawing stage. The main application groups we supply into are:

• Suspended ceiling and cable tray systems
• Mechanical and electrical equipment supports
• Pipe hangers and pipe support frames
• Concrete anchoring and cast-in positioning
• Structural bracing and temporary works
• Flange and pressure-joint studding where A193 equivalent grades apply

Where a project needs a headed anchor rather than a plain bar, our Foundation Bolts range covers cast-in anchoring, and Double End Studs cover applications that require defined threaded ends rather than full-length thread.

Specifications That Govern a Thread Rod Order

Thread rods are dimensionally simple parts, so the specification is concentrated in a small number of variables. These are the points we confirm before production:

• Diameter and thread pitch: nominal diameter, coarse or fine pitch, tolerance class.
• Length: standard stock length or cut-to-length per project schedule.
• Material grade: carbon steel, stainless steel grade, or low-alloy grade.
• Mechanical properties: tensile strength, yield and elongation where a grade is specified.
• Surface finish: plain, zinc plated, hot-dip galvanized, blackened or stainless passivated.
• End condition: square cut, chamfered or deburred for safe handling.
• Straightness: critical for long rods used in vertical suspension.

Custom Cutting and Length Control

We supply thread rods in standard lengths and in customer-specified cut lengths. Cutting to the project schedule reduces on-site waste and removes the need for secondary machining at the installation point. For long spans and vertical hanger runs, cut length, end squareness and straightness are confirmed together, because a rod that is cut accurately but not straight will not hang cleanly.

Quality Control and Acceptance

Thread rods pass through in-process inspection and a final inspection stage before packing. Our laboratory is equipped with a spectrometer, coordinate measuring machine and X-ray flaw detector, which allows chemical composition, mechanical properties, non-destructive testing and geometric dimensions to be monitored across a production batch.

• Chemical composition verification by spectrometer
• Dimensional and thread inspection, including pitch and major diameter
• Mechanical property testing where a grade is specified
• Non-destructive testing by X-ray where required
• 100% final inspection of finished products against the agreed specification

Inspection records and material certificates are issued with the shipment so the receiving inspection can be matched against the order specification.

Installation, Handling and Maintenance

Thread rods are installed with matching nuts, couplers and washers. Correct engagement length, nut grade and finish compatibility matter more than the rod alone, because a mismatched nut or a dissimilar finish at a joint will govern the service life of the assembly. We supply matched nut and washer sets from our own production so the thread fit and finish are consistent across the assembly.

• Confirm nut engagement and coupler length against the design load.
• Keep plated and stainless components separated where galvanic corrosion is a risk.
• Protect cut ends on galvanized rods with a suitable repair coating.
• Inspect exposed threads periodically in outdoor and wet service.

Packaging and Delivery Scope

Thread rods are packed to protect the thread during transport and to suit the receiving channel. Standard export cartons, bundles and pallets are used according to length and quantity, with retail-ready or bulk packing selected per order. We are located within a short drive of Shanghai and Ningbo ports, which supports sea freight as the main shipping mode, with air freight available for urgent deliveries.

Information We Use to Configure Your Solution

To prepare a thread rod configuration and quotation, we work from the following project inputs. Where a drawing or sample exists, we develop from that directly.

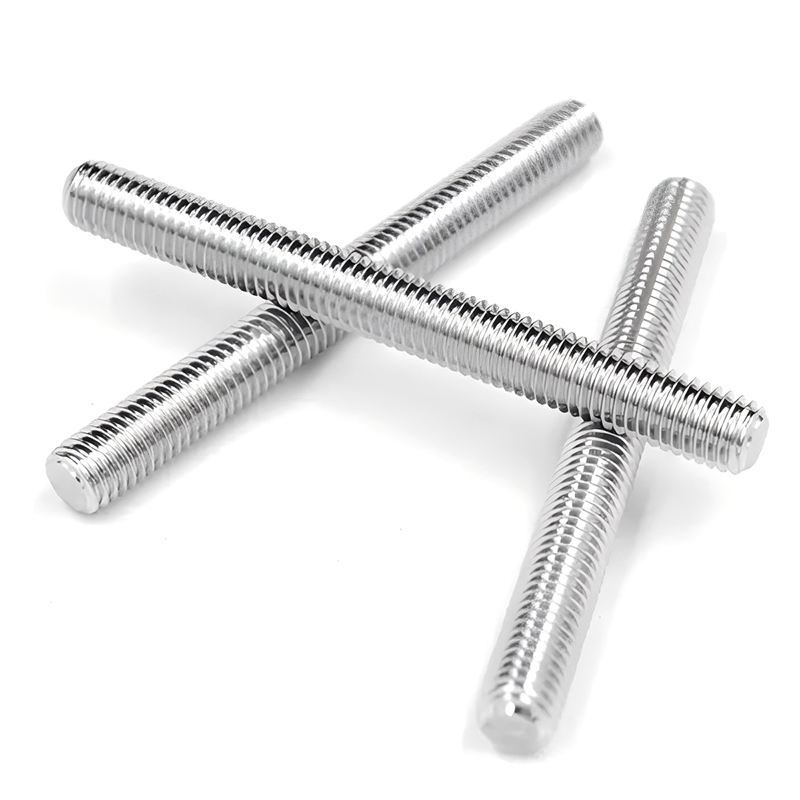

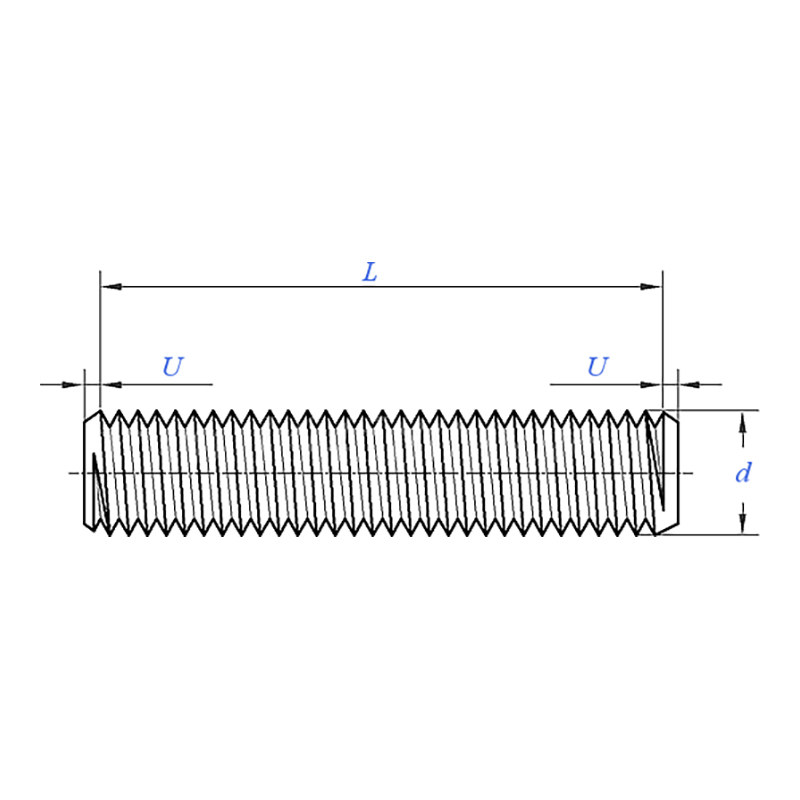

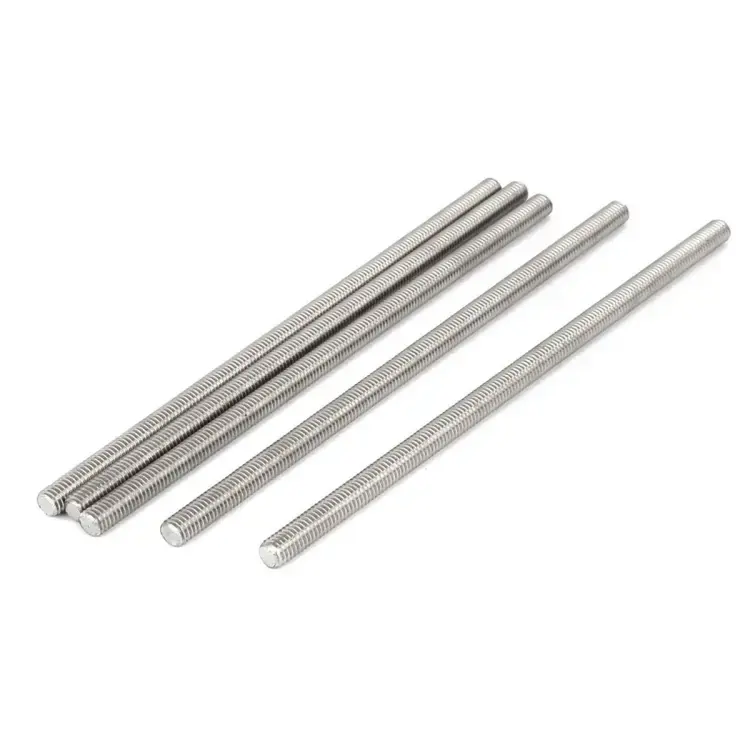

• Reference standard and thread system (DIN 975, DIN 976-1, ASME B18.31.2, ASTM A193 equivalent)
• Diameter, pitch and tolerance class
• Length and whether standard or cut-to-length
• Material grade and required mechanical properties
• Surface finish and any coating thickness requirement
• Quantity per length and total project volume
• Matching nuts, washers or couplers required in the same shipment
• Packaging format and marking requirements
• Destination port and required delivery window

Frequently Asked Questions

Which standards do your thread rods follow?

We produce to DIN 975:1986, DIN 976-1:2016 and ASME B18.31.2:2014, and to ASTM A193 equivalent specifications for higher-strength studding. Metric and imperial thread systems are both supported.

Can you cut thread rods to project lengths?

Yes. We supply standard lengths and customer-specified cut lengths, which reduces on-site waste and removes secondary cutting at the installation point.

What materials are available?

Carbon steel, stainless steel and low-alloy steel. Finish options include zinc plating, hot-dip galvanizing, blackening and stainless passivation, selected against the service environment.

Do you supply matching nuts and washers?

Yes. Thread rods are produced alongside our nut and washer ranges, so matched assemblies can be supplied in the same shipment with consistent thread fit and finish.

How is quality verified before shipment?

Each batch passes in-process inspection and 100% final inspection. Our laboratory uses a spectrometer, CMM and X-ray flaw detector to verify chemical composition, dimensions, mechanical properties and internal soundness where required.

Can you develop thread rods from a drawing or sample?

Yes. Customized development from drawings or samples is part of our standard production scope, and our engineering team reviews the specification before quoting.
