Countersunk Head Bolts Manufacturers

Flush-Head Fastening for Panels, Casings and Structural Joints

Countersunk head bolts seat fully within a matching conical recess, leaving a smooth surface where head protrusion would interfere with clearance, safety or appearance. The tapered underside distributes clamping load along the cone and resists lateral movement under shear, which is why these fasteners are common in precision instruments, flat-panel furniture, electronic enclosures, rail interiors and aerospace assemblies.

We produce countersunk bolts as part of our Bolts range, alongside hexagon head, flange and carriage bolt families. The countersunk family is specified when the joint face must remain flush after tightening, or when the head must not catch on moving parts, fabric or operators.

Our Countersunk Head Bolt Range

Standard and application-specific countersunk bolts are produced to the following dimensional references. Each item can be supplied with matching nuts and washers from our Nuts range where a complete joint kit is required.

Materials, Finishes and Head Geometry

Countersunk bolts are produced in carbon steel, stainless steel and low-alloy steel. The 90-degree conical underside is the standard countersink angle for most metric and inch-series recesses; the head must match the recess angle and diameter so the bolt seats without rocking or leaving a gap.

• Carbon steel: general-purpose joints, available with zinc electroplating or blackening.
• Stainless steel: corrosion-resistant assemblies in instruments, food-adjacent equipment and outdoor hardware.
• Low-alloy steel: higher-strength countersunk bolts for preloaded structural connections.
• Surface finishes: zinc electroplating, blackening and anodizing for aluminium versions, selected for corrosion class and appearance.

Specification Variables That Determine Fit

Countersunk bolts are selected by the joint, not by the bolt alone. The recess angle, head diameter, neck type and thread length must all match the mating part. We confirm the following variables before quoting:

• Thread size and pitch, metric or inch series.
• Nominal length and thread length, fully or partially threaded.
• Head diameter and countersink angle.
• Neck type: square neck, nib, or plain countersunk.
• Drive type: slotted, square, hex or tension-control spline.
• Property class or grade, and the corresponding material.
• Surface finish and corrosion requirement.
• Mating nut, washer or threaded hole specification.

Production, Quality Control and Acceptance

Better Fastener operates multiple bolt workshops and a testing laboratory equipped with a spectrometer, CMM, X-ray flaw detector and mechanical testing equipment. Inspections are carried out after each process, and finished countersunk bolts are checked against the drawing, the referenced standard and the customer's acceptance criteria.

Typical acceptance checks for countersunk bolts include:

• Chemical composition verification by spectrometer.
• Dimensional inspection of head diameter, countersink angle, length and thread.
• Mechanical property testing for the specified property class.
• Surface finish and coating thickness checks.
• Visual inspection for head cracks, burrs and thread damage.

We can supply inspection records and material certificates with the shipment when the project requires documented acceptance. Our quality system is certified to ISO 9001, and our products are exported to North America, Australia, Europe and other high-end markets.

Custom Countersunk Bolts and Related Fasteners

Custom production is our core business. We develop countersunk bolts from customer drawings or samples, including non-standard head diameters, special neck geometry, extended lengths and specific material grades. Our engineering team reviews the drawing, confirms the process route and produces a sample or first-article batch for approval before series production.

Countersunk bolts are often supplied with matching nuts and washers as a joint kit. Our Hexagon Nuts range covers the standard mating threads, and we can consolidate bolts, nuts and washers into one shipment to simplify receiving and kitting.

Packaging, Delivery and Documentation

Countersunk bolts are packed to protect the head and thread during transport. Standard options include bulk cartons, small boxes, blister packs and retail kits, with labels carrying the standard, size, material and batch reference. Export cartons are sized for container loading, and we can arrange DDP delivery to the customer's door when required.

Our location within a two-hour drive of Shanghai and Ningbo ports supports sea freight for volume orders and air freight for urgent deliveries. Shipping documents, packing lists and inspection certificates are prepared to match the agreed terms.

Information We Use to Configure Your Solution

To prepare an accurate countersunk bolt proposal, we need the following project inputs. Missing details are confirmed with the customer before production.

Frequently Asked Questions

What countersunk head bolt standards do you produce?

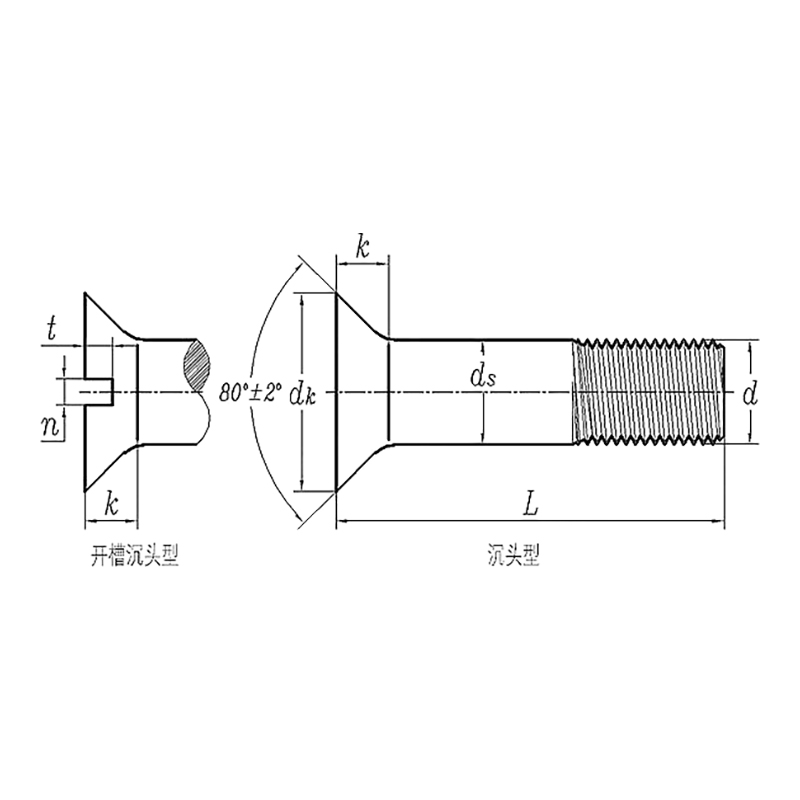

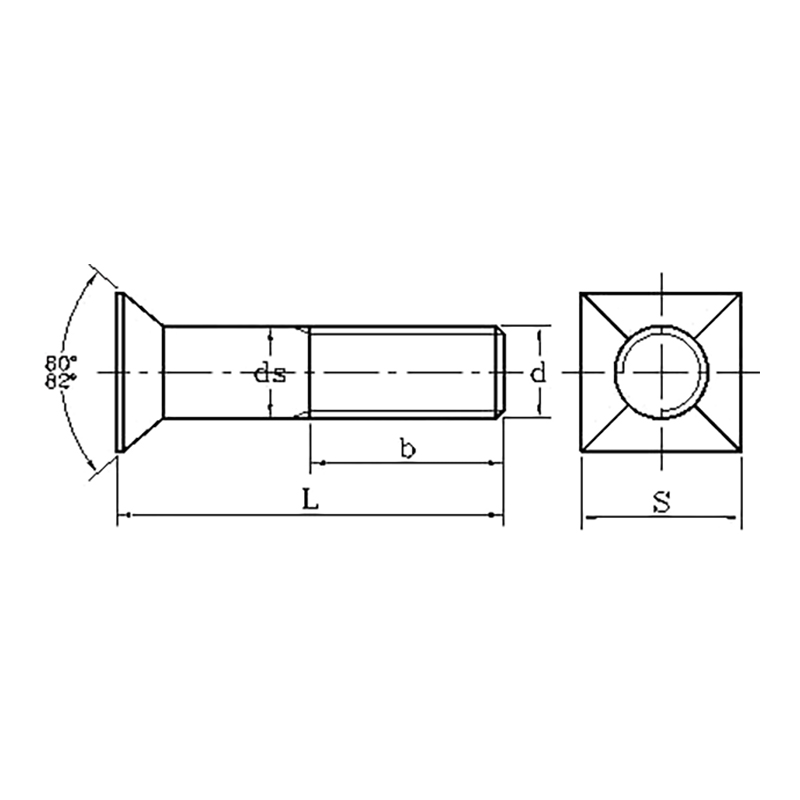

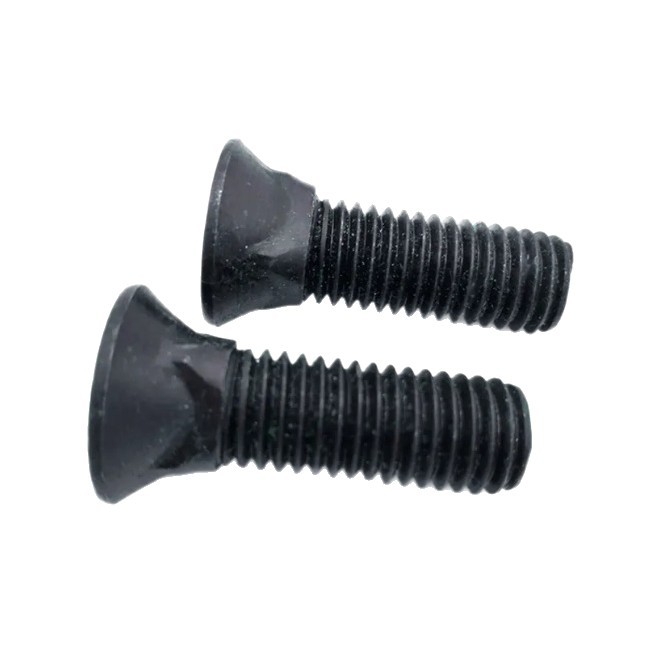

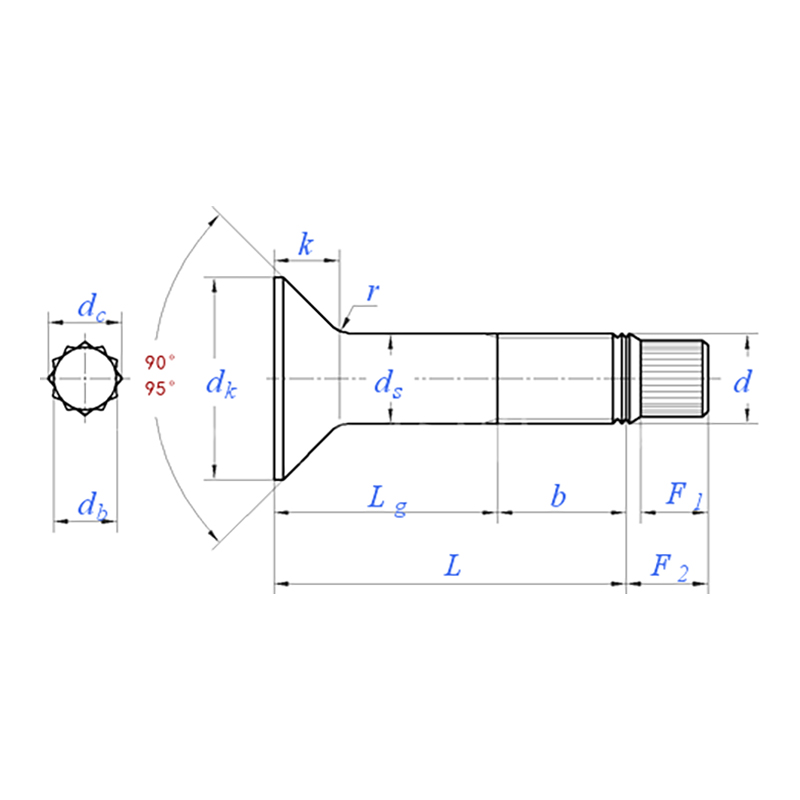

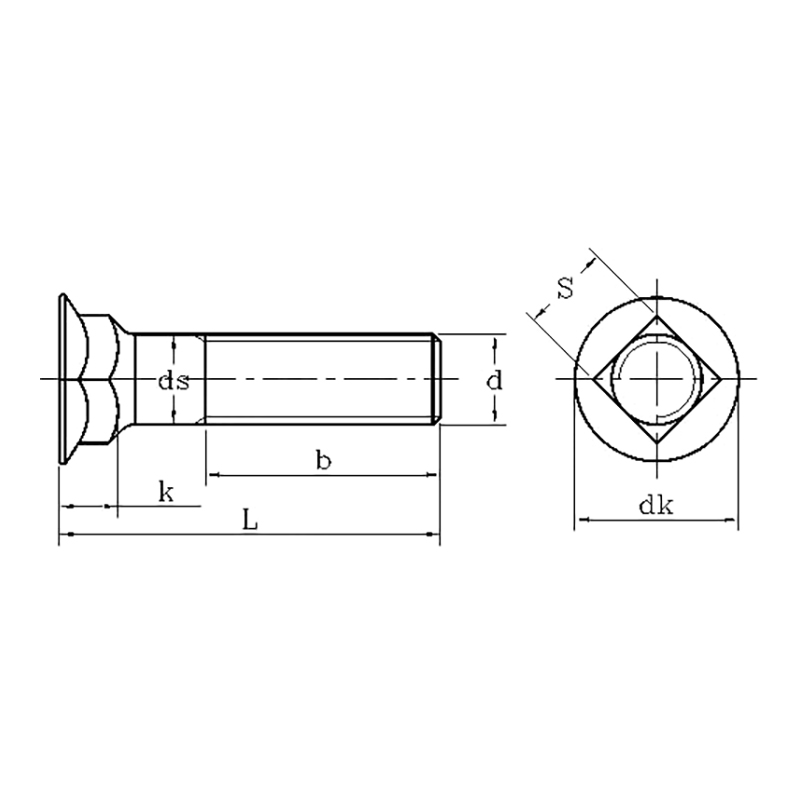

We produce countersunk bolts to DIN 608, DIN 604, ASME/ANSI B18.9, ASME/ANSI B18.5 (T7) and EN 14399-10, as well as customer drawings for non-standard head and neck geometry.

Can you supply countersunk bolts in stainless steel?

Yes. Countersunk bolts are available in carbon steel, stainless steel and low-alloy steel. Stainless steel is selected for corrosion resistance in instruments, outdoor hardware and equipment exposed to moisture.

How do I specify the countersink angle?

The countersink angle must match the recess in the mating part. Most metric and inch-series countersunk bolts use a 90-degree cone. We confirm the angle and head diameter against the drawing or the mating component before production.

Do you provide matching nuts and washers?

Yes. We supply matching hexagon nuts and washers from our own range, and can consolidate bolts, nuts and washers into one shipment or kit to reduce handling at the receiving end.

What information is needed for a quotation?

A drawing or sample, the standard reference, material and grade, size and quantity, surface finish, acceptance requirements and packaging preference. With these inputs we can confirm the process route and prepare a quotation.

Can you produce custom countersunk bolts from samples?

Yes. Custom production from drawings or samples is our core business. We review the sample, confirm dimensions and material, and produce a first-article batch for approval before series production.
