Better Fastener Industry Co., Ltd. manufactures Hexagon Socket Screws for machine tool construction, mold making, automation equipment, hydraulic assemblies and precision machinery where high clamping force must be applied in confined or counterbored locations. Our socket head range covers cylindrical head cap screws, countersunk head and round head variants in alloy steel and stainless steel, produced to DIN, ISO and ASME dimensional standards.
Since 2001 we have built our business around fastener manufacturing, expanding in 2010 into a comprehensive enterprise covering washers, nuts, bolts and screws. Hexagon socket screws sit within that integrated range, so a single project can be supplied with the socket screws, matching Nuts and washers it requires under one specification-led program.
Our Hexagon Socket Screw Range
The internal hex recess transmits torque deep inside the head, allowing greater tightening force than surface-drive formats while keeping the head profile compact. Installed in a counterbored hole, the cylindrical head sits at or below the workpiece surface, removing protrusions that would obstruct moving assemblies or interrupt a machined face.
Socket Head Cap

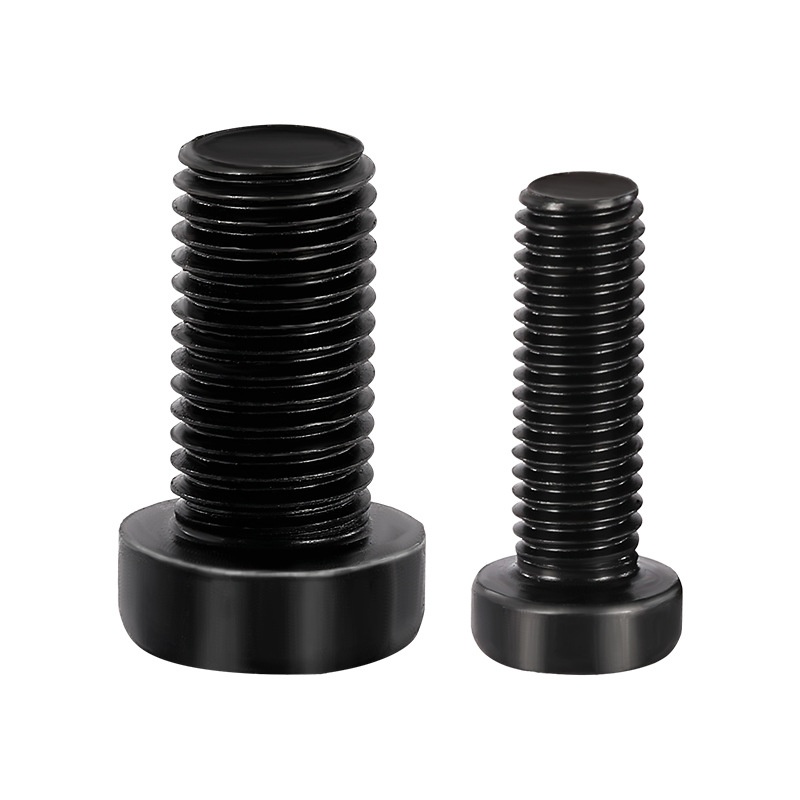

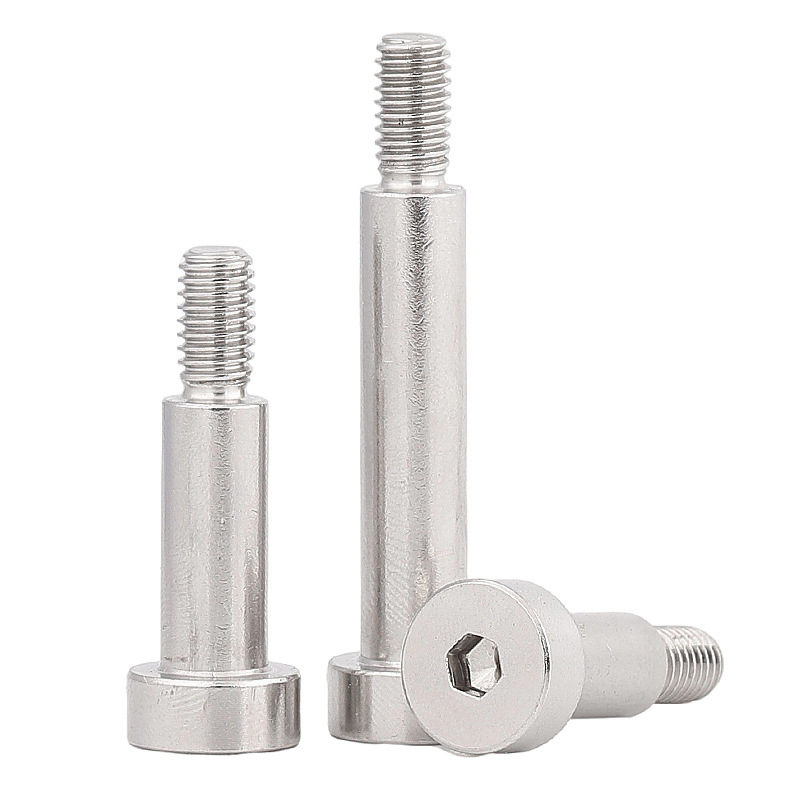

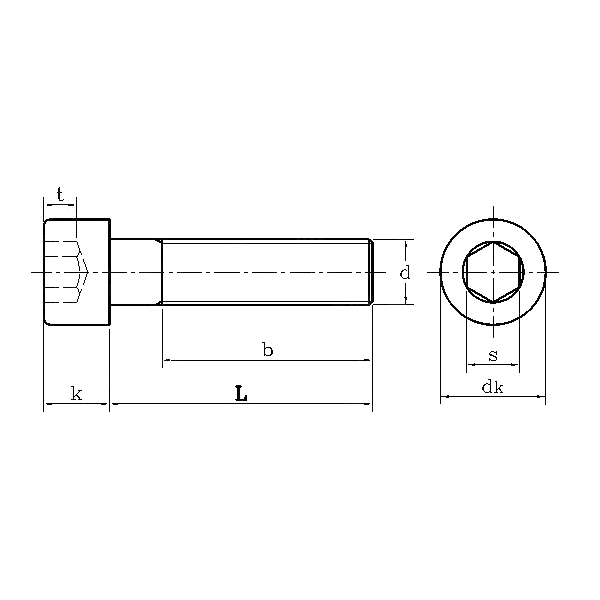

DIN 7984:2022, ASME/ANSI B18.3:1986 and ASME B18.3 (T13):2012 cylindrical head cap screws for general high-torque clamping.
Countersunk Head

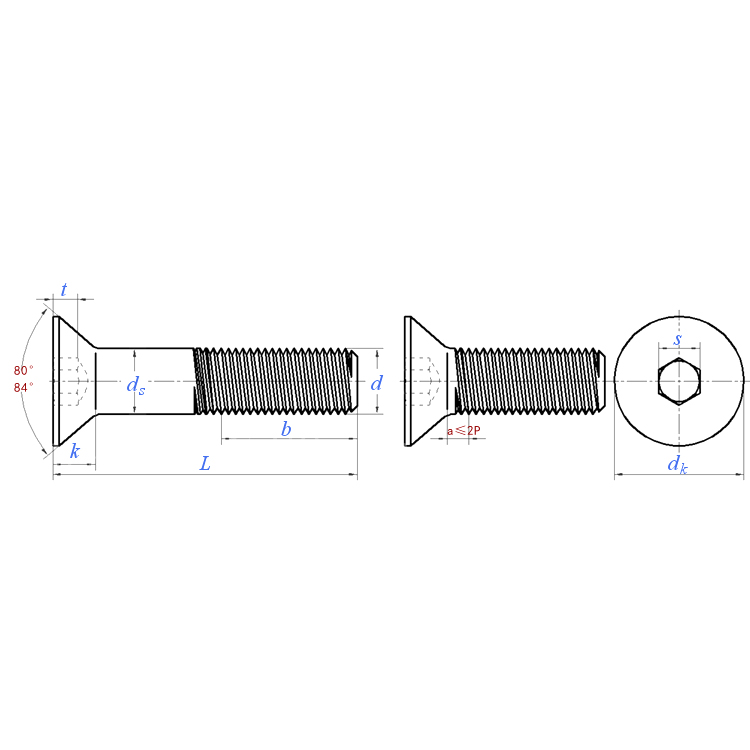

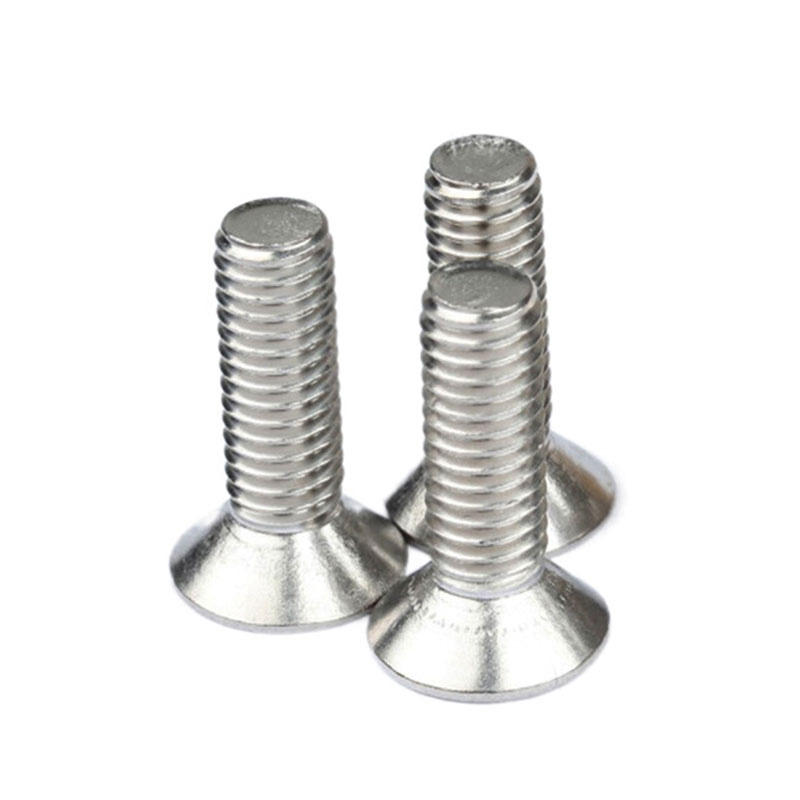

DIN 7991:1986 and ASME B18.3 (T8):2012 flat head socket screws for flush seating in tapered counterbores.
Round Head

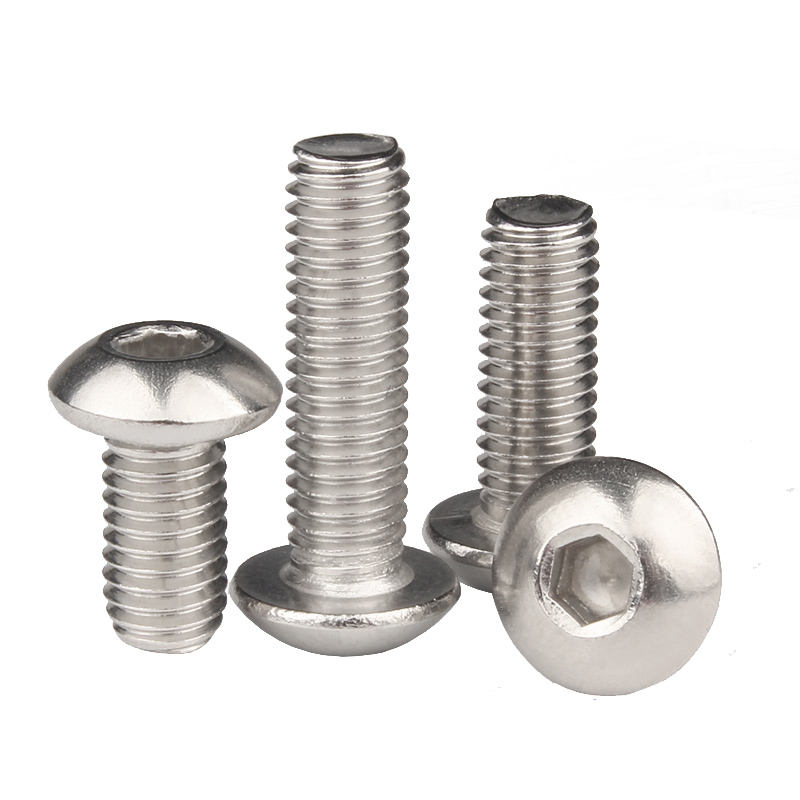

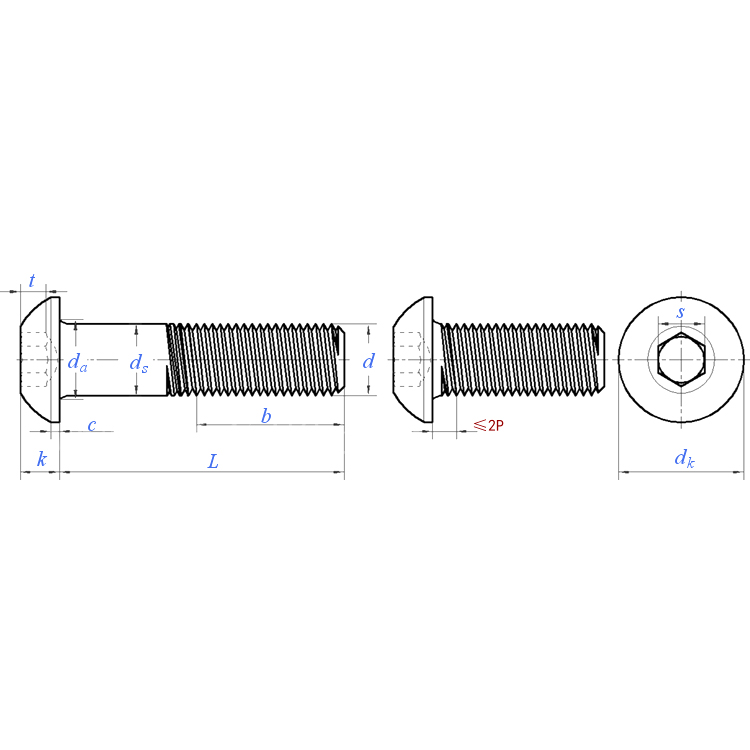

DIN EN ISO 7380-1:2023 and ASME B18.3 (T11):2012 button head socket screws for low-profile exposed joints.
Special Socket Screws

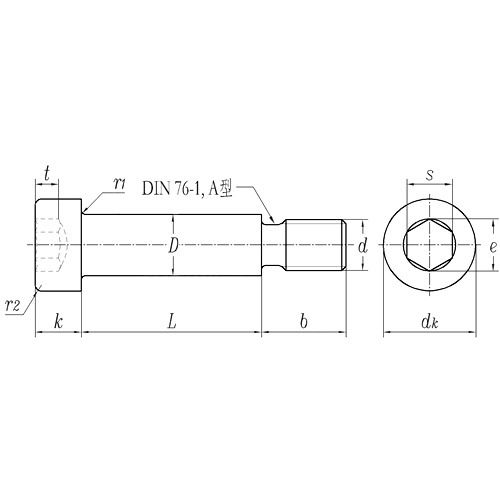

DIN 9841:2017 hex socket screws and drawing-based variants for non-standard head, length or thread combinations.
Standards, Materials and Strength Grades
Socket screws are produced in alloy steel and stainless steel, with strength grades 8.8, 10.9 and 12.9 selected according to the structural demand of the joint. Grade choice, thread tolerance and surface treatment are confirmed against the drawing or the referenced standard before production begins.
| Product Type | Reference Standards | Typical Material / Grade | Application Fit |
|---|---|---|---|
| Socket head cap screw | DIN 7984:2022; ASME/ANSI B18.3:1986; ASME B18.3 (T13):2012 | Alloy steel 8.8 / 10.9 / 12.9; stainless steel | Machine tools, molds, hydraulic blocks, automation frames |
| Countersunk head socket screw | DIN 7991:1986; ASME B18.3 (T8):2012 | Alloy steel; stainless steel | Flush surfaces, moving slides, precision plates |
| Round head socket screw | DIN EN ISO 7380-1:2023; ASME B18.3 (T11):2012 | Alloy steel; stainless steel | Low-clearance covers, guards, panel assemblies |
| Hex socket screw, special | DIN 9841:2017; customer drawing | Carbon steel, alloy steel, stainless steel | Non-standard heads, lengths, threads and coatings |
Where Hexagon Socket Screws Fit
The socket drive is chosen when a joint needs high preload but the surrounding structure leaves no room for an external wrench. Typical positions include mold cavity plates, machine tool slideways, hydraulic manifold blocks, robot end effectors, indexing tables and control cabinet frames.
- Counterbored joints: the head sits flush or below the surface, so adjacent parts can slide or seat without interference.
- Restricted access: a hex key reaches the recess where a socket or spanner cannot be positioned.
- Repeated assembly: internal hex drives tolerate repeated tightening and loosening cycles in maintenance-heavy equipment.
- Vibration environments: combined with lock nuts or spring washers from our range where the joint must resist loosening.
Configuration Options
We build each socket screw order around the working point rather than a catalogue default. Thread form, head style, length, strength grade and finish are fixed from the drawing, sample or referenced standard, and the same parameters drive inspection criteria.
- Thread: metric coarse or fine, unified inch series, full or partial thread as specified.
- Head form: cylindrical cap, countersunk, round or special profile per drawing.
- Grade: 8.8, 10.9 or 12.9 alloy steel, or stainless steel for corrosion exposure.
- Finish: plain, black oxide, zinc plating, hot-dip galvanizing or blackening, selected for the service environment.
- Length and diameter: produced to the required nominal size with the corresponding hex key engagement.
Quality Control and Inspection
Total quality management runs through the production process, with inspection after each operation and final inspection of finished socket screws against customer requirements and the referenced international standard. Our laboratory is equipped with a spectrometer, coordinate measuring machine and X-ray flaw detector, covering chemical composition, mechanical properties, non-destructive testing and geometric dimensions.
For socket screws this means the hex recess dimensions, head geometry, thread gauge fit and hardness are verified as part of the release sequence. Inspection records and dimensional reports are prepared against the agreed specification so the receiving inspection at your plant can be matched to the same data set.
Production Capacity and Delivery Scope
Our facilities operate 12 energy-efficient production lines, including one fully automatic shell molding line and four heat treatment lines, with annual output exceeding 20,000 tons. That capacity supports both large-volume socket screw programs and small to medium batch purchases without changing the inspection standard.
Packaging is configured for the sales channel: bulk export cartons, retail kits, blister packs or custom boxes. Shipment is arranged by sea from Shanghai and Ningbo, with air freight available for urgent deliveries. DDP delivery can be quoted where the project requires goods delivered directly to site.
Related Fasteners from Our Range
Socket screws are frequently specified alongside other threaded fasteners on the same assembly. We supply the matching items from our own production so thread, grade and finish remain consistent across the bill of materials.
- Hexagon Head Bolts for external-wrench positions on the same frame.
- Hexagon Nuts matched to the socket screw thread and property class.
- Bolts covering flange, countersunk and stud formats for complete joint assemblies.
Information We Use to Configure Your Solution
A usable quotation for hexagon socket screws depends on a small set of inputs. When these are supplied with the inquiry, we can confirm the standard, grade, finish and inspection plan without back-and-forth.
| Input | What We Confirm From It |
|---|---|
| Drawing or sample | Head form, recess size, thread, length and tolerances |
| Referenced standard | Dimensional and inspection criteria to apply |
| Material and grade | Steel type, property class and heat treatment route |
| Service environment | Surface finish and corrosion protection |
| Quantities and sizes | Batch planning, packaging format and delivery schedule |
| Inspection and documentation needs | Test scope, reports and acceptance criteria |
Frequently Asked Questions
Which standards do your hexagon socket screws follow?
Our socket head cap screws are produced to DIN 7984:2022, ASME/ANSI B18.3:1986 and ASME B18.3 (T13):2012; countersunk head screws to DIN 7991:1986 and ASME B18.3 (T8):2012; round head screws to DIN EN ISO 7380-1:2023 and ASME B18.3 (T11):2012; and special hex socket screws to DIN 9841:2017 or the supplied drawing.
What strength grades and materials can you supply?
We produce socket screws in alloy steel at grades 8.8, 10.9 and 12.9, and in stainless steel for corrosive or hygienic environments. The grade is selected against the required clamping load and the material of the mating component.
Do you manufacture non-standard socket screws?
Yes. Customized production is our core business. We develop and manufacture socket screws from drawings or samples, covering non-standard head profiles, lengths, thread forms and surface treatments, alongside the standard DIN, ISO and ASME items in our range.
How is quality verified before shipment?
Inspection is carried out after each production process, and 100% of finished products undergo final inspection against customer requirements and the applicable international standard. Our laboratory uses a spectrometer, CMM and X-ray flaw detector to monitor chemical composition, mechanical properties, non-destructive testing and geometric dimensions.
Can socket screws be supplied together with nuts and washers?
Yes. As a comprehensive fastener manufacturer we consolidate socket screws, hexagon nuts, washers and bolts into one supply program, so thread fit, property class and finish stay consistent across the assembly and arrive under a single delivery schedule.
What packaging and shipping options are available?
We configure bulk export cartons, retail kits, blister packs or custom boxes to suit the sales channel. Sea freight is arranged from Shanghai and Ningbo, air freight is available for urgent deliveries, and DDP delivery can be quoted where goods are required directly at the destination.
