Better Fastener Industry Co., Ltd. manufactures Square Slot Screws in carbon steel and stainless steel for construction machinery, railway infrastructure, heavy industrial equipment and utility enclosures. The square internal socket keeps the driver fully engaged through rotation, so high installation torque transfers without cam-out and the recess resists casual disassembly.
What We Manufacture in This Range
Our square slot screws use a square internal drive with flat socket walls. Unlike cross or hex recesses, the driver contacts the full recess wall, so torque is applied evenly and the bit does not climb out of the head. This makes the range practical where assembly torque is high and must be repeatable across production or field work.
We produce these screws to Robertson and equivalent international specifications, covering multiple head forms and thread sizes. The table below lists the head forms we currently offer with their governing standards.
| Head Form | Standard | Typical Application |
|---|---|---|

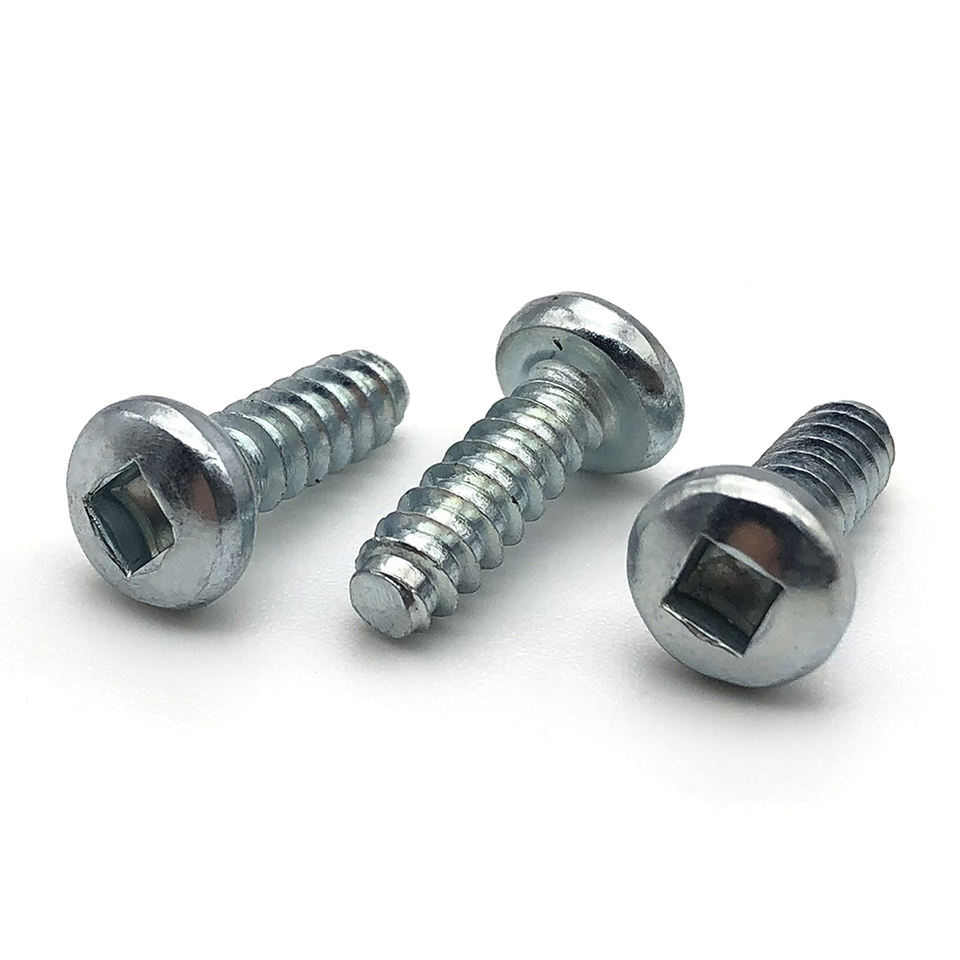

| Pan Head Square Drive | ASME/ANSI B18.6.3:2010 | General machinery, electrical enclosures |

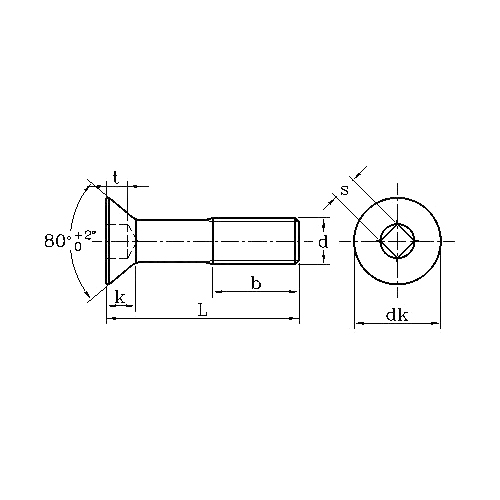

| Countersunk Head Square Drive | ASME/ANSI B18.6.3:2010 | Flush surfaces, panels, walkways |

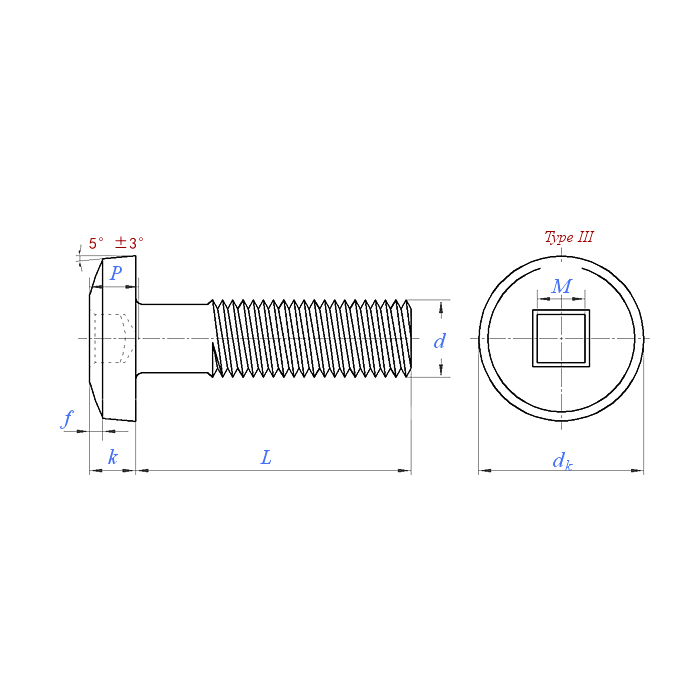

| Oval Fillister Head Square Drive | ASME B18.6.3 (H8B-III):2024 | Equipment housings, covers |

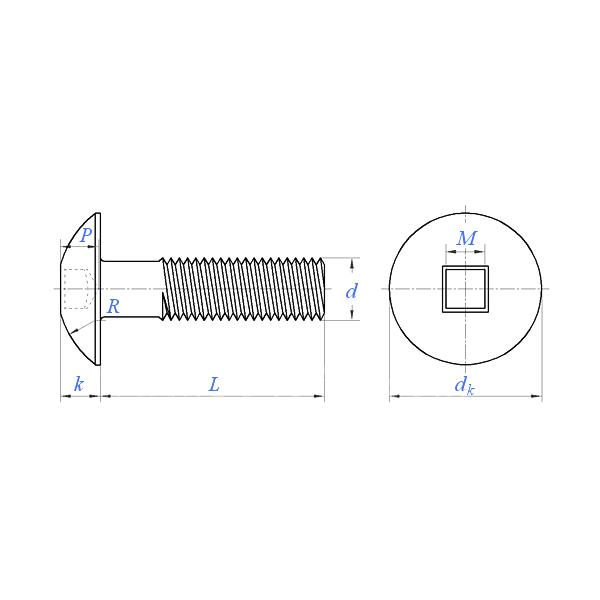

| Truss Head Square Drive | ASME B18.6.3 (H7B-III):2024 | Sheet metal, thin-gauge assemblies |

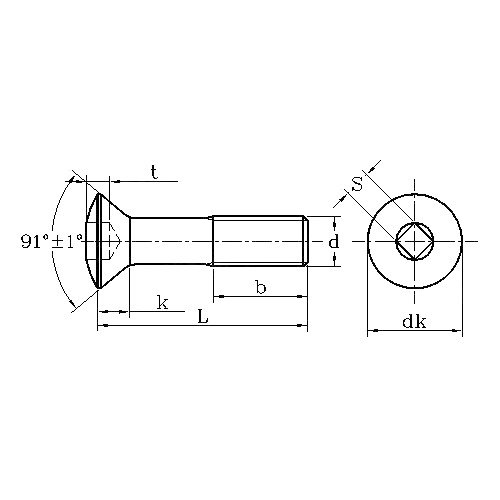

| Metric Oval Countersunk Square Drive | ASME/ANSI B18.6.7M:1998 | Metric-design equipment, export builds |
Where Square Slot Screws Fit
Square slot screws suit joints that combine high torque demand with a need to limit casual access. The square recess needs a matching driver, which acts as a passive deterrent in outdoor utility enclosures, public infrastructure panels and commercial equipment housings.
- Construction machinery: access covers, guards and panels subject to vibration and re-torque.
- Railway infrastructure: track-side enclosures and signalling cabinets where tamper resistance matters.
- Heavy industrial equipment: frames, skids and machine guards assembled with powered drivers.
- Utility and public infrastructure: meter boxes, lighting panels and street furniture housings.
Materials and Drive Performance
We produce square slot screws in carbon steel and stainless steel. Carbon steel grades are selected for strength and cost efficiency in structural and machinery joints; stainless steel is used where corrosion resistance is the governing requirement. Post-treatment options include zinc plating, hot-dip galvanizing and blackening, applied according to the service environment.
The square socket maintains full driver-to-recess contact throughout rotation. This eliminates cam-out and delivers torque transfer beyond the capacity of standard cross or hex drives, which matters when the same torque must be achieved consistently across a production run or in field assembly.
Configuration Options
We configure each order around the joint, the driver system and the environment. The main variables are:
- Head form: pan, countersunk, oval fillister, truss or metric oval countersunk.
- Thread: metric or inch series, coarse or fine pitch, full or partial thread.
- Length and diameter: specified to the drawing or standard.
- Material: carbon steel or stainless steel, with grade matched to load and corrosion exposure.
- Finish: zinc plating, hot-dip galvanizing, blackening or passivation.
- Point: machine screw point or self-tapping point where the application requires it.
Quality Control and Acceptance
We implement total quality management through the production process. Inspections are conducted after each process, and finished products undergo final inspection in accordance with customer requirements and international standards. Our laboratory is equipped with a spectrometer, CMM, X-ray flaw detector and other testing equipment for chemical composition, mechanical properties, non-destructive testing and geometric dimensions.
For square slot screws, the recess geometry is a critical control point. Socket depth, wall squareness and driver fit are checked so that torque transfer remains consistent and the bit does not strip the recess during installation. Dimensional inspection covers head form, thread pitch, length and diameter against the governing standard.
Related Fasteners We Supply
Square slot screws are part of our broader screw and fastener range. We also manufacture Hexagon Head Bolts, Hexagon Nuts and a full line of Bolts for structural and machinery joints. Consolidating these items with one supplier simplifies procurement and keeps thread and material specifications aligned across the assembly.
Information We Use to Configure Your Solution
To prepare a suitable proposal, we need the following project inputs. Where a drawing or sample is available, we work from that directly.
- Head form and governing standard (ASME, Robertson or equivalent).
- Thread size, pitch and length, or a sample for reverse engineering.
- Material and grade, with the corrosion environment described.
- Finish requirement and any coating thickness specification.
- Installation torque and driver system used on the line.
- Annual volume, batch size and delivery schedule.
- Packaging format: bulk cartons, retail kits or blister packs.
- Any acceptance testing, documentation or certification required.
Frequently Asked Questions
What is a square slot screw used for?
Square slot screws are used where high installation torque must be applied without cam-out and where casual disassembly should be discouraged. Typical applications include construction machinery, railway infrastructure, heavy industrial equipment and outdoor utility enclosures.
What materials do you offer for square slot screws?
We produce them in carbon steel and stainless steel. Carbon steel is selected for strength and cost efficiency; stainless steel is used where corrosion resistance governs. Finishes include zinc plating, hot-dip galvanizing and blackening.
Which standards do your square slot screws comply with?
Our range covers Robertson and equivalent international specifications, including ASME/ANSI B18.6.3:2010 for pan, countersunk and oval fillister heads, ASME B18.6.3 (H8B-III):2024 and (H7B-III):2024 for oval fillister and truss heads, and ASME/ANSI B18.6.7M:1998 for metric oval countersunk heads.
Can you produce square slot screws to our drawing or sample?
Yes. Customized production is our core business. We develop and manufacture products based on the drawings or samples you provide, including non-standard head forms, thread sizes and materials.
How do you ensure the square recess performs consistently?
Socket depth, wall squareness and driver fit are controlled as critical dimensions. Inspections are conducted after each process, and finished products undergo final inspection in accordance with customer requirements and international standards.
What information do you need to quote square slot screws?
We need the head form and standard, thread size and length, material and grade, finish, installation torque, annual volume, delivery schedule and packaging format. A drawing or sample allows us to confirm the configuration directly.
