Torx Screw Manufacturers

Why the Six-Lobe Drive Changes Assembly Economics

A Torx recess engages the driver along vertical side walls, so the bit seats without the downward axial force a Phillips drive needs to stay engaged. Operators can run higher torque with power or pneumatic drivers without stripping the recess, and automated assembly robots hold position more reliably because the bit does not climb out of the socket.

The practical result on a production line is longer bit life, fewer rejected fasteners and more consistent clamp load. Security Torx variants add a center post that requires a hollow driver, which creates a disassembly barrier in automotive components, public furniture and electronics without enlarging the screw head.

• Torque transmission: load spreads across lobe faces rather than corners, reducing localized stress in the recess.
• Tool life: driver bits and recesses wear more slowly in high-cycle automated driving.
• Tamper resistance: security variants accept only a matching hollow Torx driver.
• Automation fit: stable bit engagement suits adjustable-torque electric and pneumatic screwdrivers.

Our Torx Screw Range by Head Form and Standard

The range is organized by head geometry and governing standard, which is how most project drawings arrive. Each line below is a configuration we manufacture, not a catalog abstraction.

Materials, Finishes and Dimensional Control

We work in carbon steel, stainless steel and low-alloy steel, matching the grade to the corrosion exposure, strength class and service temperature of the joint. Post-treatment processes include hot-dip galvanizing and blackening, which lets us handle complex components across different shapes, sizes and materials.

• Drive sizes: T1 through T100, with security variants where a center post is required.
• Thread forms: metric and inch series to the standard named on the drawing.

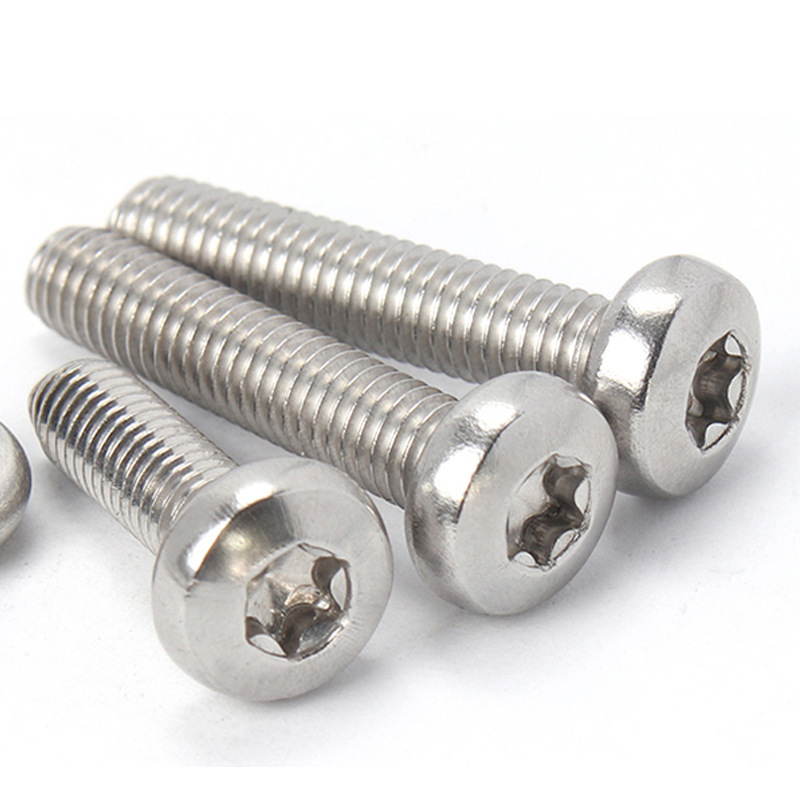

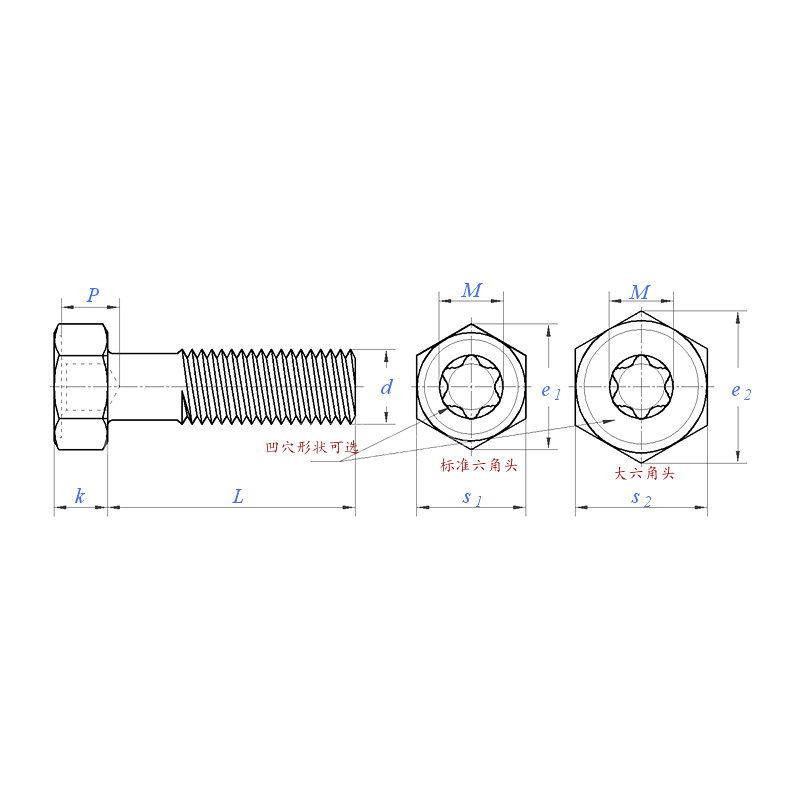

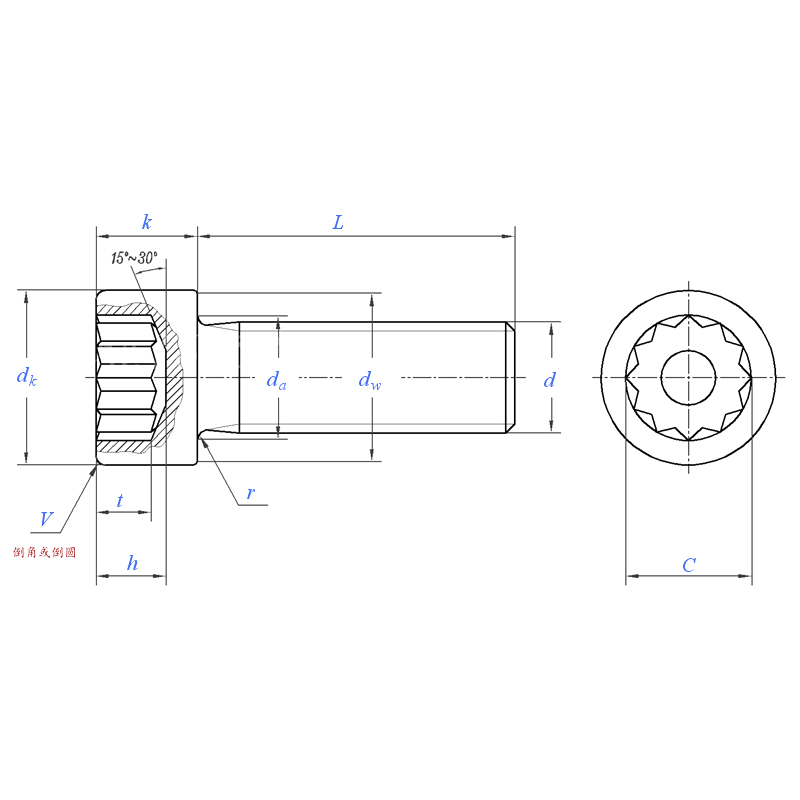

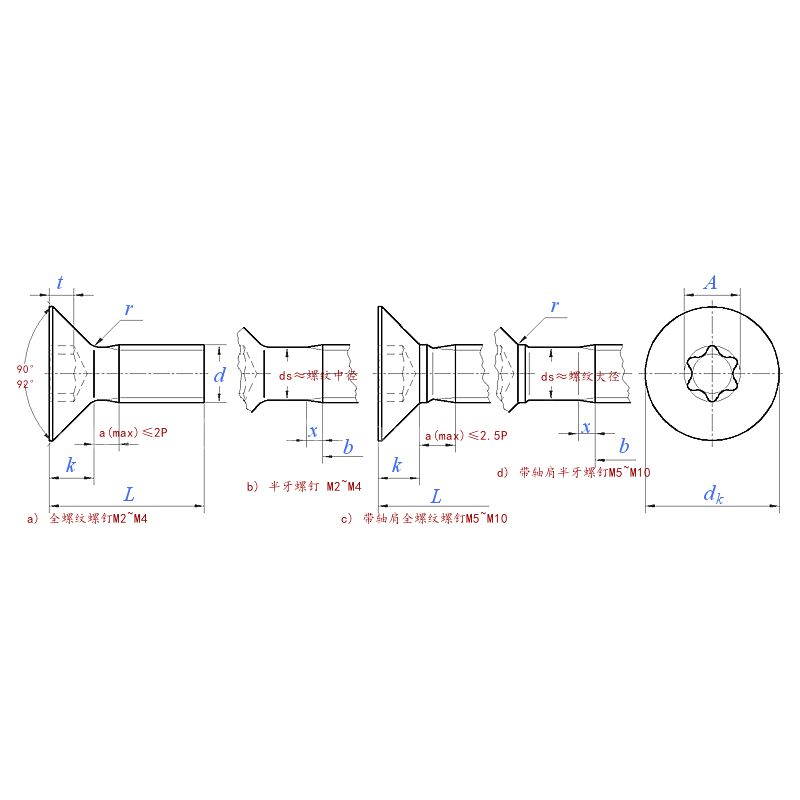

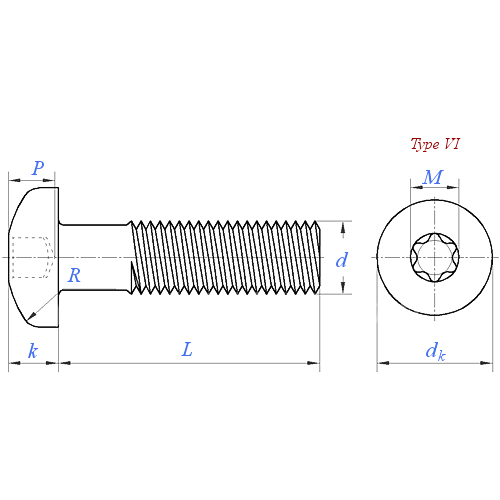

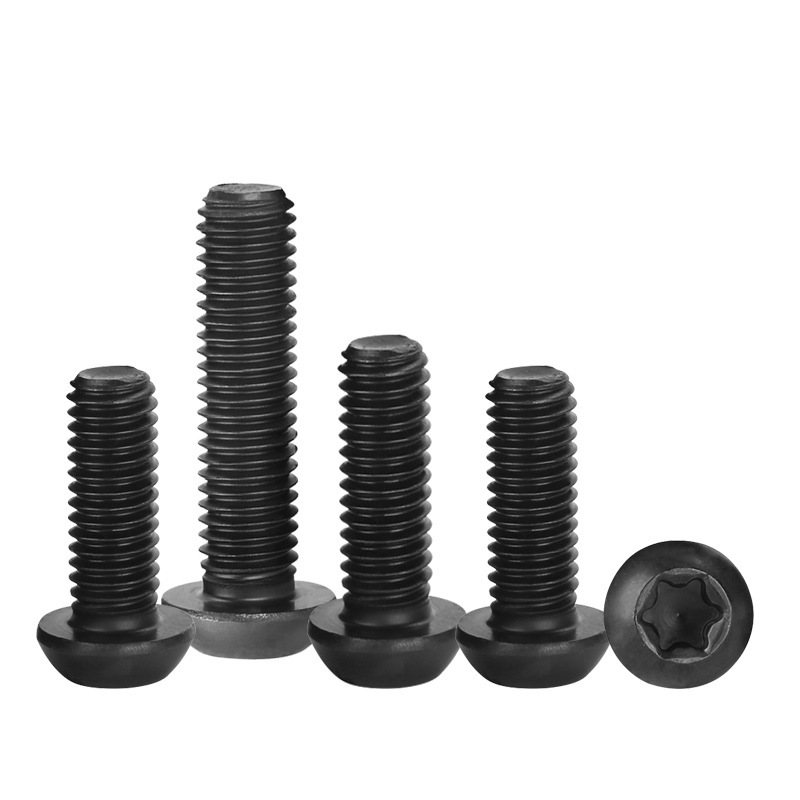

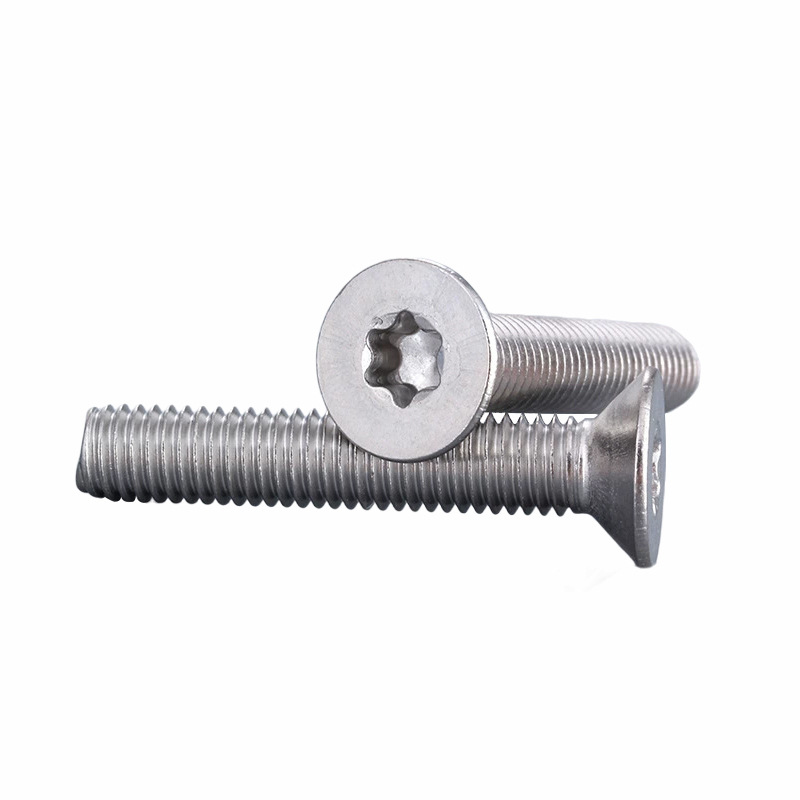

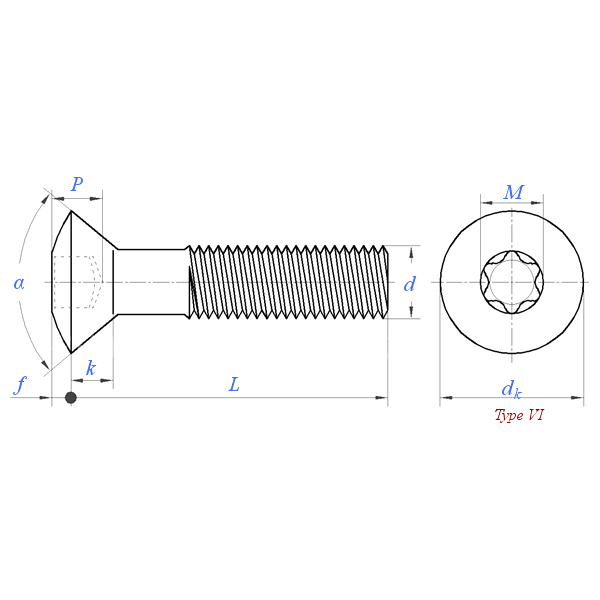

• Head geometry: button, pan, round, countersunk, oval countersunk, hex, heavy hex and socket cap.
• Surface treatment: zinc plating, hot-dip galvanizing, blackening and other specified finishes.

Inspection covers chemical composition, mechanical properties, non-destructive testing and geometric dimensions. Our laboratory is equipped with a spectrometer, CMM and X-ray flaw detector, and 100% of finished products undergo final inspection against customer requirements and international standards. That inspection sequence is what supports acceptance testing on a project, whether the drawing calls for a DIN, ISO or ASME Torx screw.

Where Torx Screws Fit in a Fastener Program

Torx screws rarely ship alone. Most projects pair them with mating nuts, washers and bolts from the same supply program, which keeps thread fit, material grade and finish consistent across the assembly. We consolidate those items so a single specification-led order covers the joint.

Configuration Options We Build To

Customized production is our core business. We develop and manufacture from customer drawings or physical samples, so a Torx screw can be adapted to the joint rather than the joint adapted to a catalog part.

• Non-standard lengths, diameters and thread pitches within the drawing tolerance.
• Head forms outside the standard table when the application requires a specific bearing area or profile.
• Security Torx with center post for controlled disassembly.
• Combination drives where a secondary recess is needed for field service.
• Finish selection matched to indoor, outdoor or chemically exposed service.

Installation, Tooling and Line Integration

Torx engagement is defined by the recess geometry, so the driver bit must match the nominal size and be replaced before wear rounds the lobes. On automated lines, torque is set on the electric or pneumatic screwdriver and monitored per spindle; because the bit does not need downward pressure to stay seated, the tool can run at higher speed without damaging the recess.

For manual stations, the same geometry reduces operator fatigue and the risk of a slipped driver marking the workpiece. Where the joint uses a countersunk head, check that the mating hole is prepared to the correct angle so the head seats flush and the clamp load reaches the design value.

Quality Assurance and Acceptance

Total quality management runs through the production process, with inspection after each operation and final inspection on every finished part. Our facilities include 12 energy-efficient production lines, one fully automatic shell molding line and four heat treatment lines, with annual capacity exceeding 20,000 tons.

• Chemical composition verified by spectrometer.
• Mechanical properties confirmed after heat treatment.
• Non-destructive testing by X-ray flaw detector where specified.
• Dimensional and geometric checks on a coordinate measuring machine.
• Products comply with international standards and ISO 9001 certification.

Information We Use to Configure Your Solution

A usable quotation starts from the working point, not from a part number alone. These are the inputs our engineering team needs to select the head form, material, finish and inspection plan.

Packaging, Delivery and Serviceability

Fasteners ship in retail kits, blister packs, custom boxes or export cartons depending on the sales channel, and we consolidate product sourcing, customized packing and logistics into one program. Our location is within a 2-hour drive of Shanghai and Ningbo ports, with sea freight as the main mode and air freight available for urgent deliveries.

For maintenance planning, keep a stock of matching Torx driver bits alongside the screw inventory. Replacing a worn bit is the single most effective way to protect recess geometry and keep torque values repeatable across service intervals.

Frequently Asked Questions

What Torx sizes and head forms can Better Fastener supply?

We cover standard Torx sizes from T1 through T100 across button, pan, round, countersunk, oval countersunk, hex, heavy hex and socket head cap forms, in carbon steel and stainless steel to ISO 14583 and equivalent OEM specifications.

Can you produce security Torx screws with a center post?

Yes. Security Torx variants incorporate a center post that requires a hollow driver, creating a disassembly barrier in automotive components, public furniture and electronics without adding bulk to the head.

Do you manufacture to customer drawings or samples?

Customized production is our core business. We develop and manufacture based on the drawings or samples you provide, including non-standard lengths, diameters, head profiles and finishes.

How is quality verified before shipment?

Inspection runs after each process, and 100% of finished products receive final inspection against customer requirements and international standards. Our laboratory uses a spectrometer, CMM and X-ray flaw detector to monitor chemical composition, mechanical properties, non-destructive testing and geometric dimensions.

What is the production capacity for large Torx screw orders?

Our facilities operate 12 energy-efficient production lines, including one fully automatic shell molding line and four heat treatment lines, with annual capacity exceeding 20,000 tons. That scale supports large-volume programs while remaining responsive to small and medium batch purchases.

Which industries use your Torx screws?

They are standard in automotive manufacturing, precision electronics, medical device production and other high-volume processes where drive consistency, tool life and reliable torque control matter. Our broader fastener output also serves rail transportation, construction machinery, mining equipment, agricultural machinery, shipbuilding and petrochemicals.
