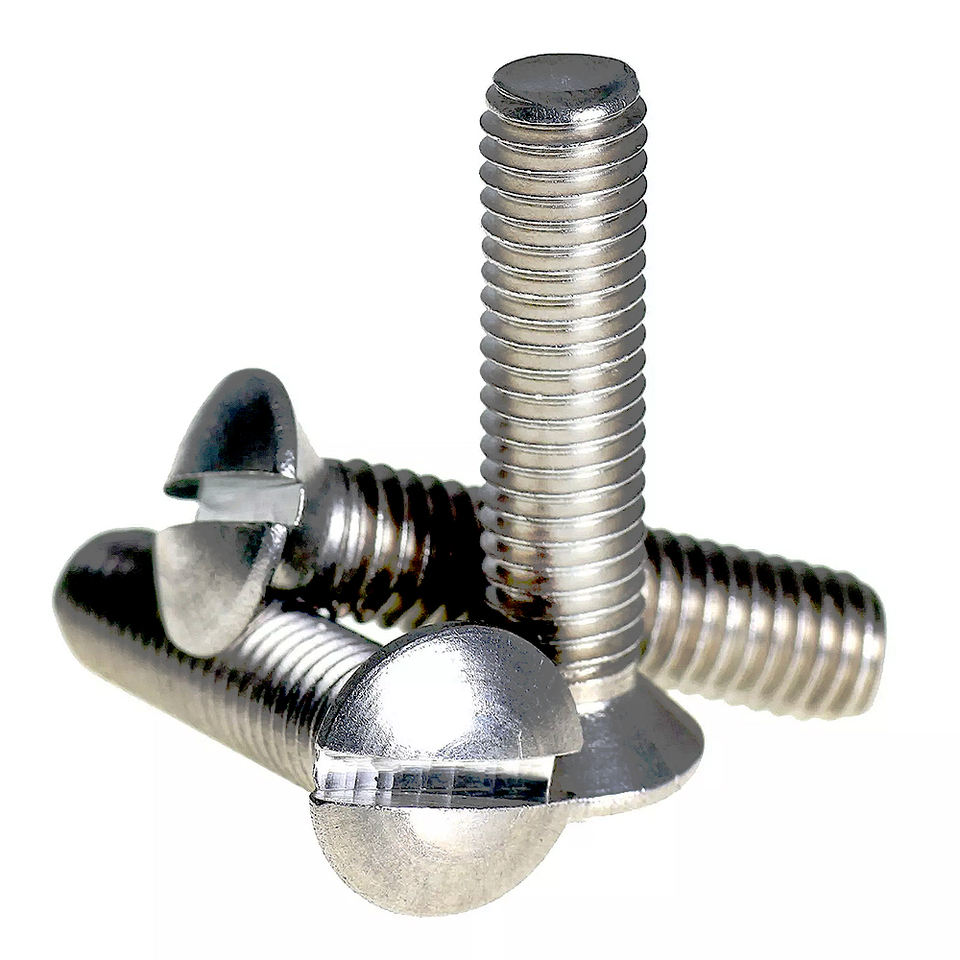

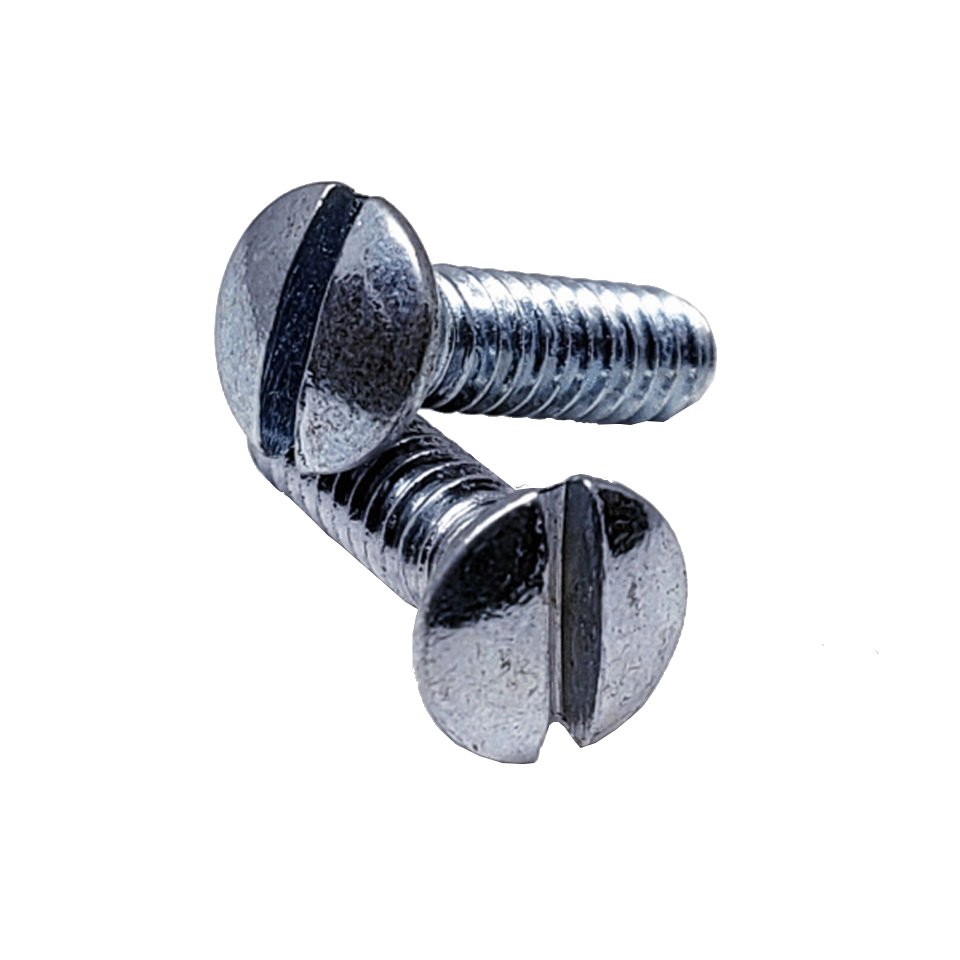

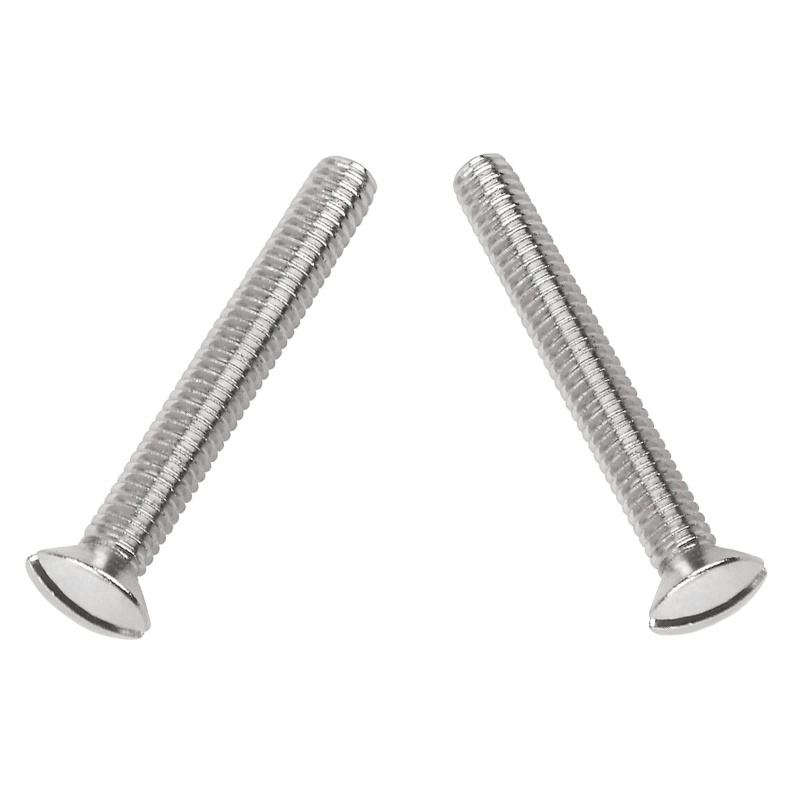

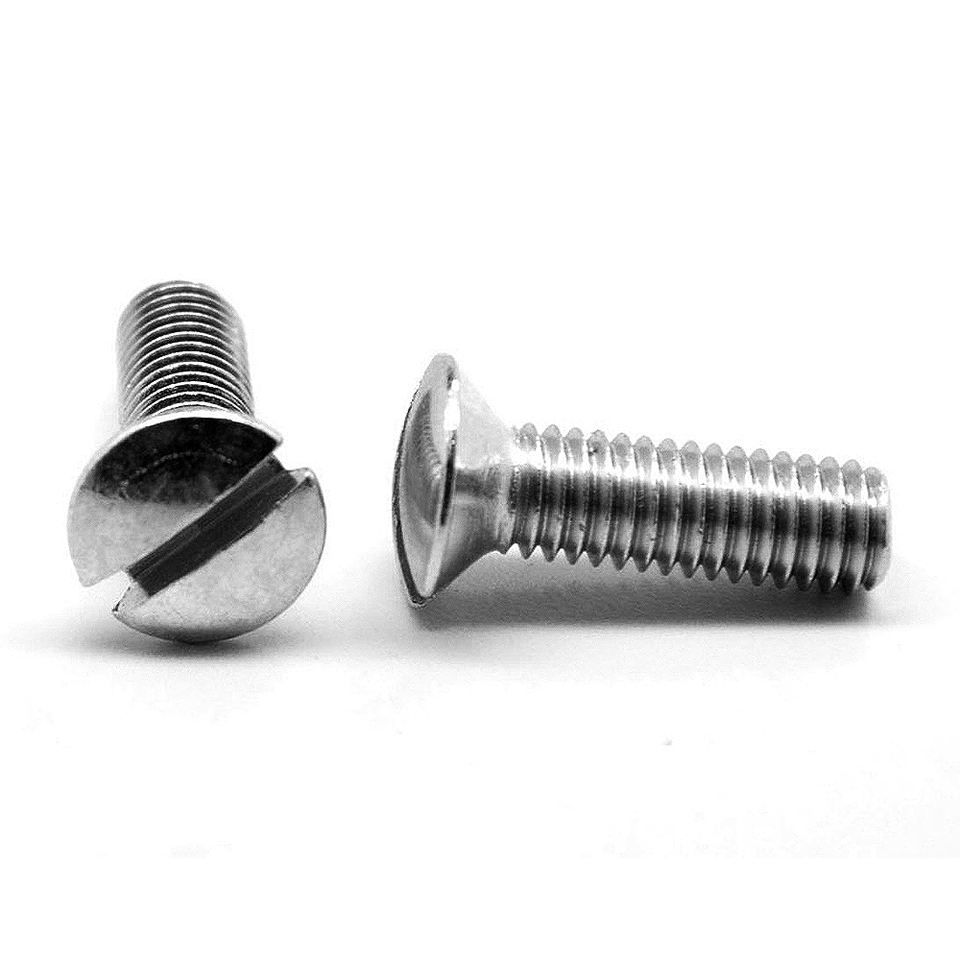

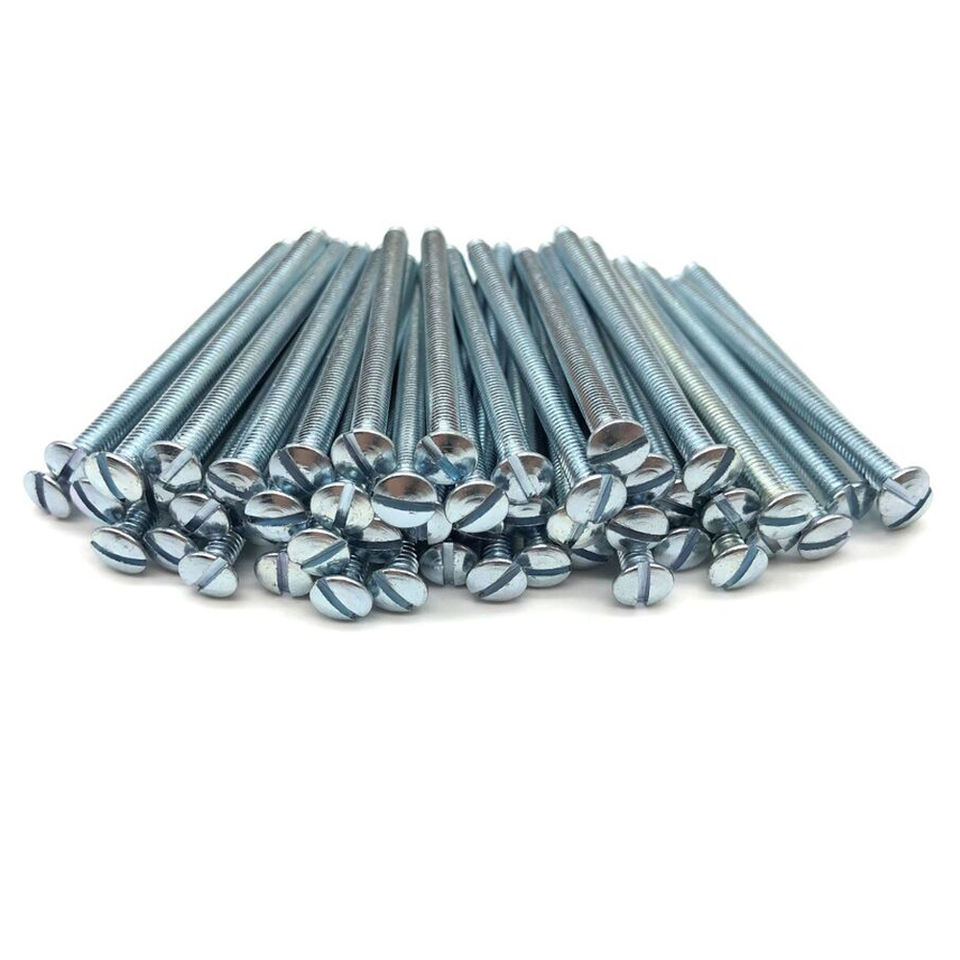

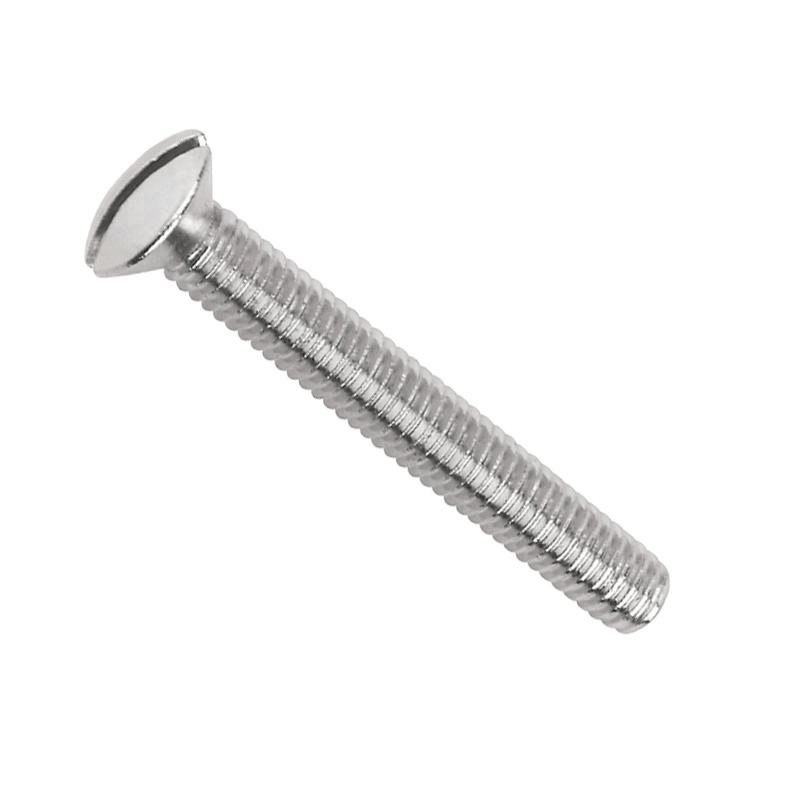

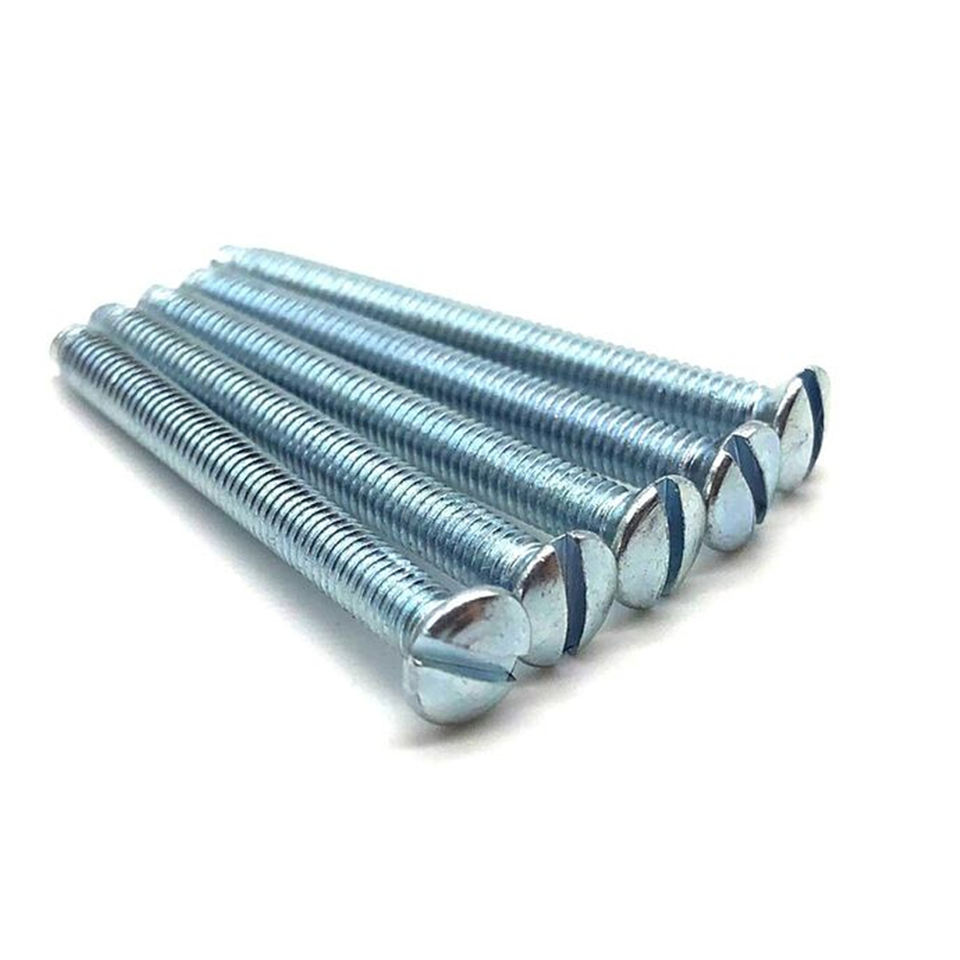

DIN 964:1990 Oval Countersunk Head Slotted Screw combines a slotted drive with a oval countersunk head, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The DIN standard background helps keep dimensional requirements clear across drawings, purchasing, and quality inspection, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.
From an assembly perspective, the slot is easy to identify and works with simple tools, which supports routine maintenance and manual assembly. At the same time, combines a countersunk bearing surface with a rounded top, reducing projection while maintaining a finished appearance, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.
It suits panels, housings, decorative joints, and visible assemblies requiring both a smooth transition and a refined appearance. Supply configuration can be refined by size range, strength grade, thread specification, recess control, and surface finish, making it suitable for use with washers, nuts, or pre-tapped holes.

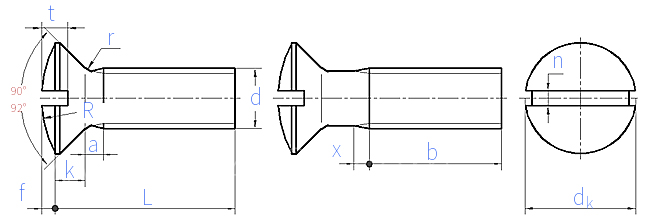

Dimensions unit: mm
|
Thread size d |
M1 |
M1.2 |
M1.4 |
M1.6 |
M2 |
M2.5 |
M3 |
(M3.5) |
M4 |
M5 |
M6 |
M8 |
M10 |
|
|
P |
Pitch |
0.25 |
0.25 |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
|
a |
Max. |
0.5 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1 |
1.2 |
1.4 |
1.6 |
2 |
2.5 |
3 |
|
dk |
Max.=Nominal |
1.9 |
2.3 |
2.6 |
3 |
3.8 |
4.7 |
5.6 |
6.5 |
7.5 |
9.2 |
11 |
14.5 |
18 |
|
Min. |
1.76 |
2.06 |
2.46 |
2.86 |
3.5 |
4.4 |
5.3 |
6.14 |
7.14 |
8.84 |
10.57 |
14.07 |
17.5 |
|
|
f |
≈ |
0.25 |
0.3 |
0.35 |
0.4 |
0.5 |
0.6 |
0.75 |
0.9 |
1 |
1.25 |
1.5 |
2 |
2.5 |
|
k |
Max. |
0.6 |
0.72 |
0.84 |
0.96 |
1.2 |
1.5 |
1.65 |
1.93 |
2.2 |
2.5 |
3 |
4 |
5 |
|
n |
Nominal |
0.25 |
0.3 |
0.3 |
0.4 |
0.5 |
0.6 |
0.8 |
0.8 |
1 |
1.2 |
1.6 |
2 |
2.5 |
|
Max. |
0.45 |
0.5 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1 |
1.2 |
1.51 |
1.91 |
2.31 |
2.81 |
|
|
Min. |
0.31 |
0.36 |
0.36 |
0.46 |
0.56 |
0.66 |
0.86 |
0.86 |
1.06 |
1.26 |
1.66 |
2.06 |
2.56 |
|
|
r |
Max. |
0.1 |
0.12 |
0.14 |
0.16 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
0.5 |
0.6 |
0.8 |
1 |
|
R |
≈ |
2 |
2.5 |
3 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
|
t |
Max. |
0.5 |
0.6 |
0.65 |
0.8 |
1 |
1.2 |
1.45 |
1.7 |
1.9 |
2.3 |
2.8 |
3.7 |
4.6 |
|
Min. |
0.4 |
0.5 |
0.52 |
0.65 |
0.8 |
1 |
1.2 |
1.4 |
1.6 |
2 |
2.4 |
3.2 |
4 |
|
|
x |
Max. |
- |
- |
- |
0.9 |
1 |
1.1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3.2 |
3.8 |
|
Thousand pieces of steel weigh ≈kg |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
Thread length b |
Min. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
