ASME/ANSI B18.6.3:2010 Oval Countersunk Head Slotted Screw
ASME/ANSI B18.6.3:2010 Oval Countersunk Head Slotted Screw combines a slotted drive with a oval countersunk head, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The ASME/ANSI framework suits U.S.-standard projects, export equipment, and cross-regional supply chains, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.
From an assembly perspective, the slot is easy to identify and works with simple tools, which supports routine maintenance and manual assembly. At the same time, combines a countersunk bearing surface with a rounded top, reducing projection while maintaining a finished appearance, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.
It suits panels, housings, decorative joints, and visible assemblies requiring both a smooth transition and a refined appearance. For batch assembly, the product can be tailored around workstation tools, tightening torque, visual grade, and packaging method to reduce sorting cost and improve assembly consistency.

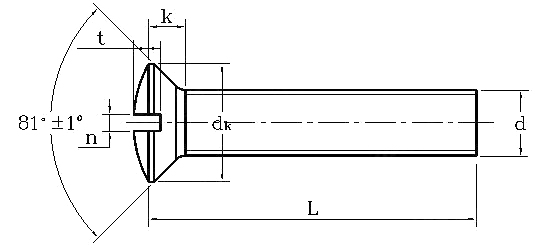

Unit: inch
|
Thread size d |
L |
dk |
k Nominal |
n |
t |
||||
|
max |
min |
max |
min |
max |
min |
||||
|
#0 |
1/8 |
0.112 |
0.096 |
0.035 |
0.023 |
0.016 |
0.028 |
0.022 |
|
|
#1 |
1/8 |
0.137 |
0.12 |
0.043 |
0.026 |
0.019 |
0.034 |
0.027 |
|
|
#2 |
1/8 |
0.162 |
0.144 |
0.051 |
0.031 |
0.023 |
0.04 |
0.033 |
|
|
#3 |
1/8 |
0.187 |
0.167 |
0.059 |
0.035 |
0.027 |
0.047 |
0.038 |
|
|
#4 |
3/16 |
0.212 |
0.191 |
0.067 |
0.039 |
0.031 |
0.053 |
0.043 |
|
|
#5 |
3/16 |
0.237 |
0.215 |
0.075 |
0.043 |
0.035 |
0.059 |
0.048 |
|
|
#6 |
3/16 |
0.262 |
0.238 |
0.083 |
0.048 |
0.039 |
0.065 |
0.053 |
|
|
#8 |
1/4 |
0.312 |
0.285 |
0.1 |
0.054 |
0.045 |
0.078 |
0.064 |
|
|
#10 |
5/16 |
0.362 |
0.333 |
0.116 |
0.06 |
0.05 |
0.09 |
0.074 |
|
|
#12 |
3/8 |
0.412 |
0.38 |
0.132 |
0.067 |
0.056 |
0.103 |
0.085 |
|
|
1/4 |
7/16 |
0.477 |
0.442 |
0.153 |
0.075 |
0.064 |
0.119 |
0.098 |
|
|
5/16 |
1/2 |
0.597 |
0.556 |
0.191 |
0.084 |
0.072 |
0.149 |
0.124 |
|
|
3/8 |
9/16 |
0.717 |
0.67 |
0.23 |
0.094 |
0.081 |
0.179 |
0.149 |
|
|
7/16 |
5/8 |
0.76 |
0.715 |
0.223 |
0.094 |
0.081 |
0.184 |
0.154 |
|
|
1/2 |
3/4 |
0.815 |
0.765 |
0.223 |
0.106 |
0.091 |
0.204 |
0.169 |
|
