Home / Products / Screws / Set Screws / DIN 915:1980 Hex Socket Dog Point Set Screw

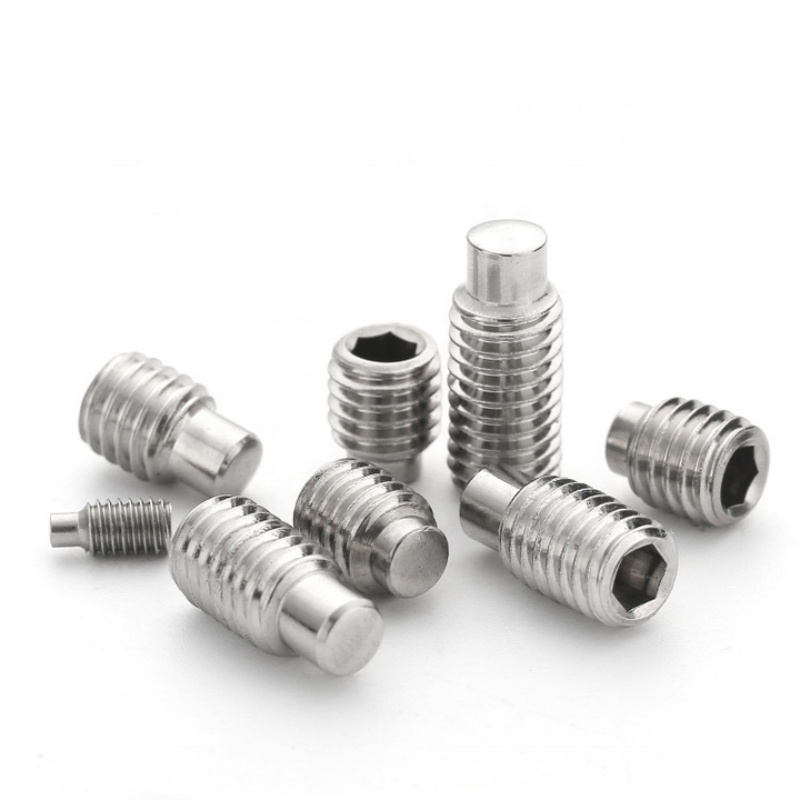

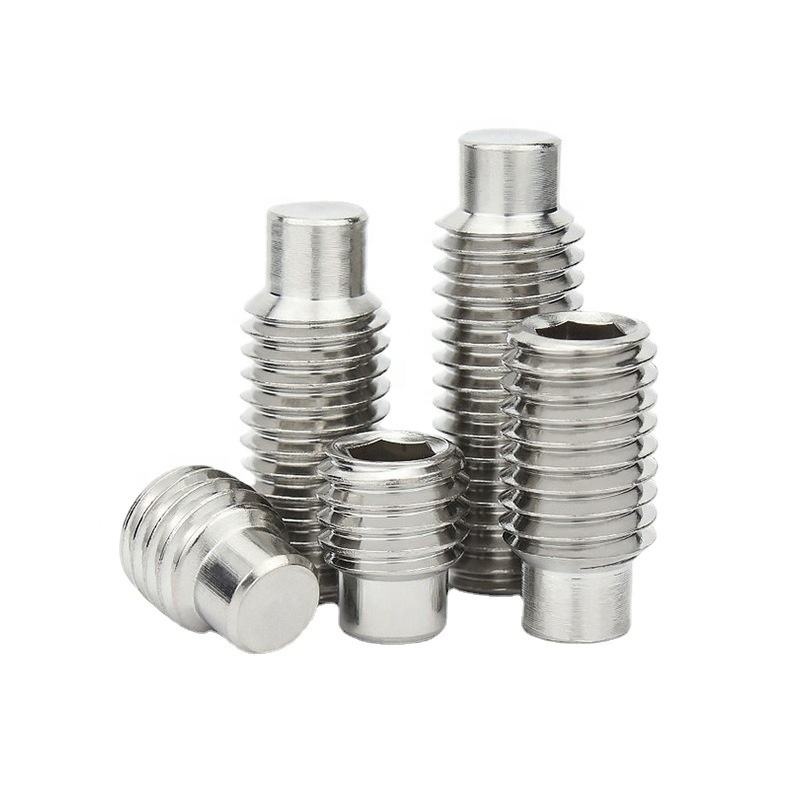

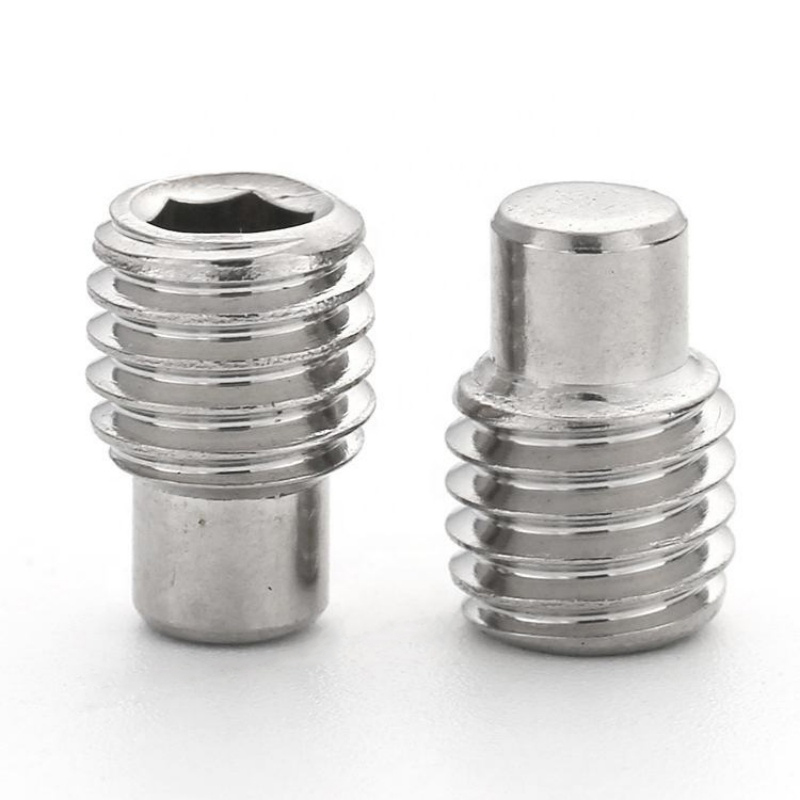

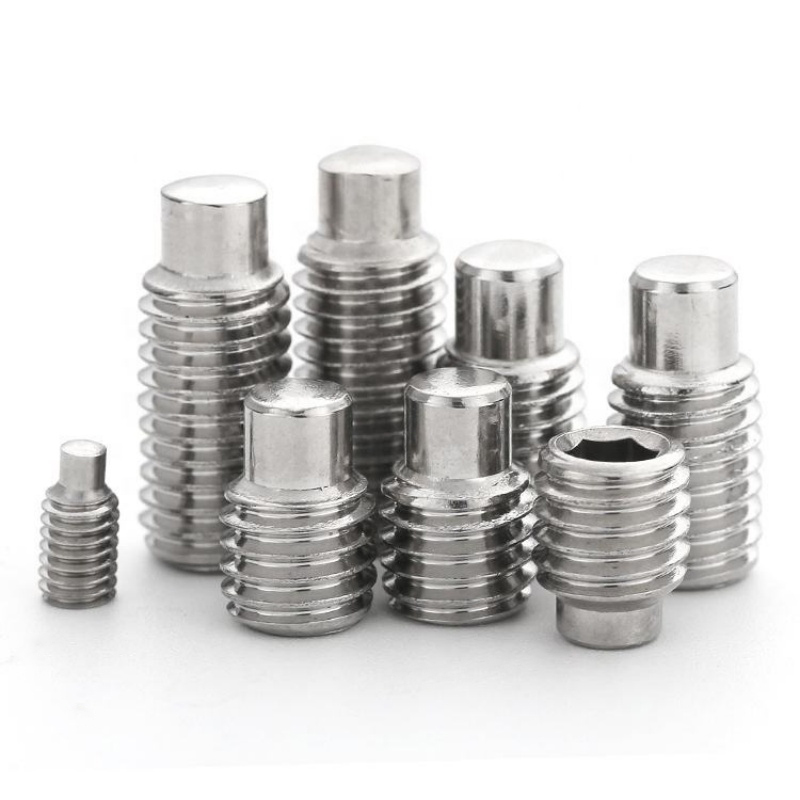

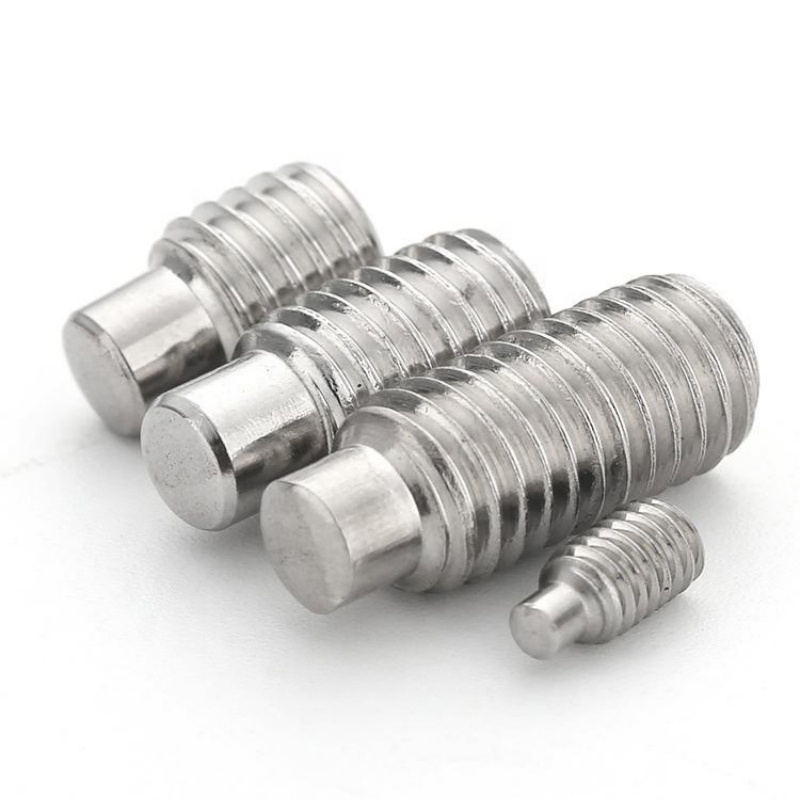

DIN 915:1980 Hex Socket Dog Point Set Screw

DIN 915:1980 Hex Socket Dog Point Set Screw features a cylindrical dog point that can enter a hole, slot, or guide feature to provide positive stopping, guiding, and anti-rotation functions. The hex socket drive supports stable torque application.

Compared with a pointed end, the dog point is better suited for repeated disassembly and controlled positioning, while reducing excessive cutting at the edge of the locating hole. It is useful where a set screw must provide both locking and locating performance.

This product can be used in machine tool fixtures, transmission accessories, locating blocks, slide rail assemblies, and industrial automation equipment. Standard sizes can be supplied with different lengths, materials, strength classes, and finishes to improve assembly accuracy and long-term reliability.

Contact Us
PREV：ASME/ANSI B18.3:2003 Hex Socket Cone Point Set Screw NEXT：ASME/ANSI B18.3:2003 Hex Socket Dog Point Set Screw

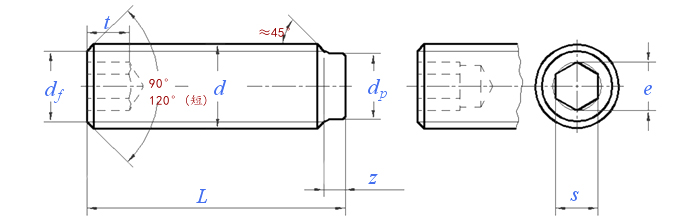

 Dimensions unit: inch

Thread size d

M1.4

M1.6

(M1.8)

M2

M2.5

M3

M4

M5

M6

P

Pitch

0.3

0.35

0.35

0.4

0.45

0.5

0.7

0.8

1

dp

Max.

0.7

0.8

0.9

1

1.5

2

2.5

3.5

4

Min.

0.45

0.55

0.65

0.75

1.25

1.75

2.25

3.2

3.7

s

Nominal

0.7

0.7

0.7

0.9

1.3

1.5

2

2.5

3

Max.

0.724

0.724

0.724

0.902

1.295

1.545

2.045

2.56

3.06

Min.

0.711

0.711

0.711

0.889

1.27

1.52

2.02

2.52

3.02

t

Min.

Short Screw

0.6

0.7

0.8

0.8

1.2

1.2

1.5

2

2

Long Screw

1.4

1.5

1.6

1.7

2

2

2.5

3

3.5

z

Short

Max.

0.65

0.65

0.65

0.75

0.88

1

1.25

1.5

1.75

Min.

0.4

0.4

0.5

0.5

0.63

0.75

1

1.25

1.5

Long

Max.

1.05

1.05

1.25

1.25

1.5

1.75

2.25

2.75

3.25

Min.

0.8

0.8

1

1

1.25

1.5

2

2.5

3

e

Min.

0.803

0.803

0.803

1.003

1.427

1.73

2.3

2.87

3.44

L0 ②

Nominal

2

2.5

3

3

4

5

6

6

8

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-



Thread size d

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

P

Pitch

1.25

1.5

1.75

2

2

2.5

2.5

2.5

3

dp

Max.

5.5

7

8.5

10

12

13

15

17

18

Min.

5.2

6.64

8.14

9.64

11.57

12.57

14.57

16.57

17.57

s

Nominal

4

5

6

6

8

10

10

12

12

Max.

4.095

5.095

6.095

6.095

8.115

10.115

10.115

12.142

12.142

Min.

4.02

5.02

6.02

6.02

8.025

10.025

10.025

12.032

12.032

t

Min.

Short Screw

3

4

4.8

5.6

6.4

7.2

8

9

10

Long Screw

5

6

8

9

10

11

12

13.5

15

z

Short

Max.

2.25

2.75

3.25

3.8

4.3

4.8

5.3

5.8

6.3

Min.

2

2.5

3

3.5

4

4.5

5

5.5

6

Long

Max.

4.3

5.3

6.3

7.36

8.36

9.86

10.36

11.43

12.43

Min.

4

5

6

7

8

9

10

11

12

e

Min.

4.58

5.72

6.86

6.86

9.15

11.43

11.43

13.72

13.72

L0 ②

Nominal

10

12

16

20

20

25

25

30

30

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-
