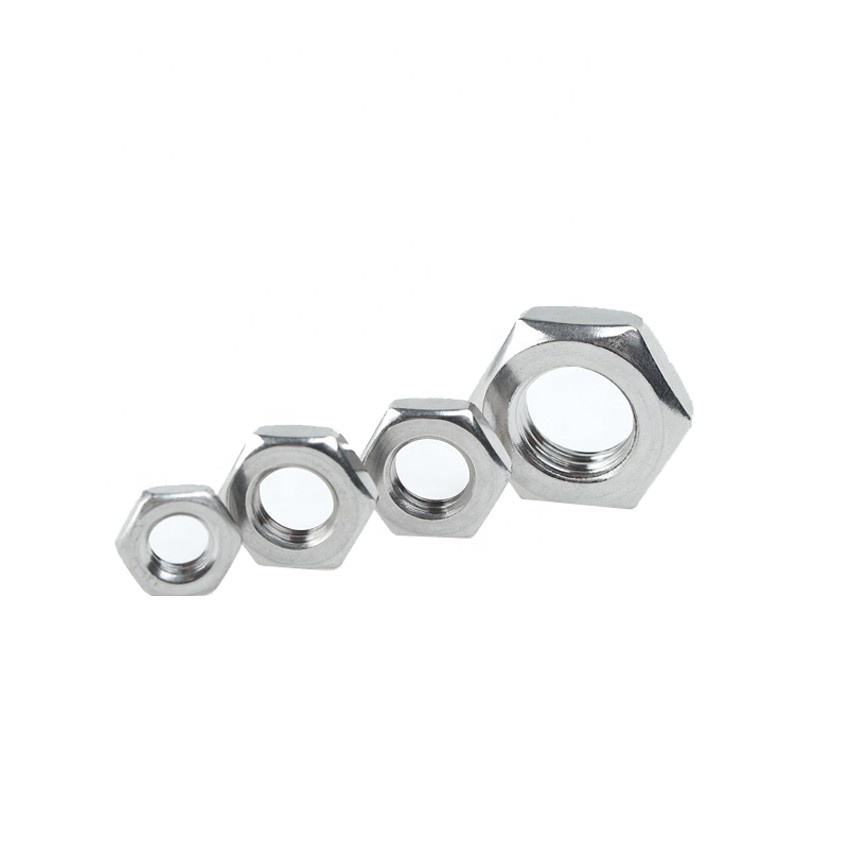

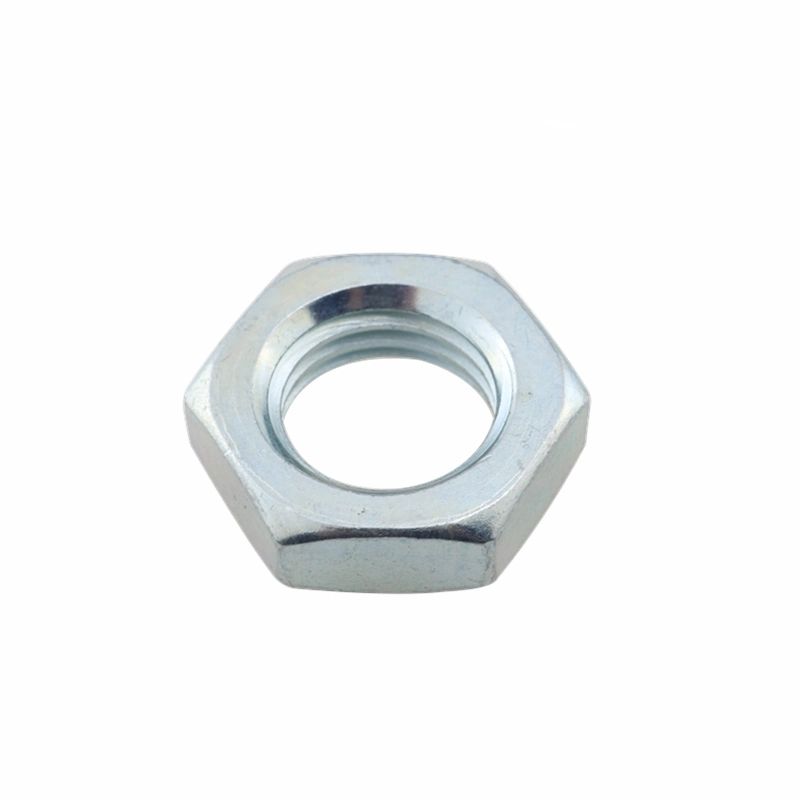

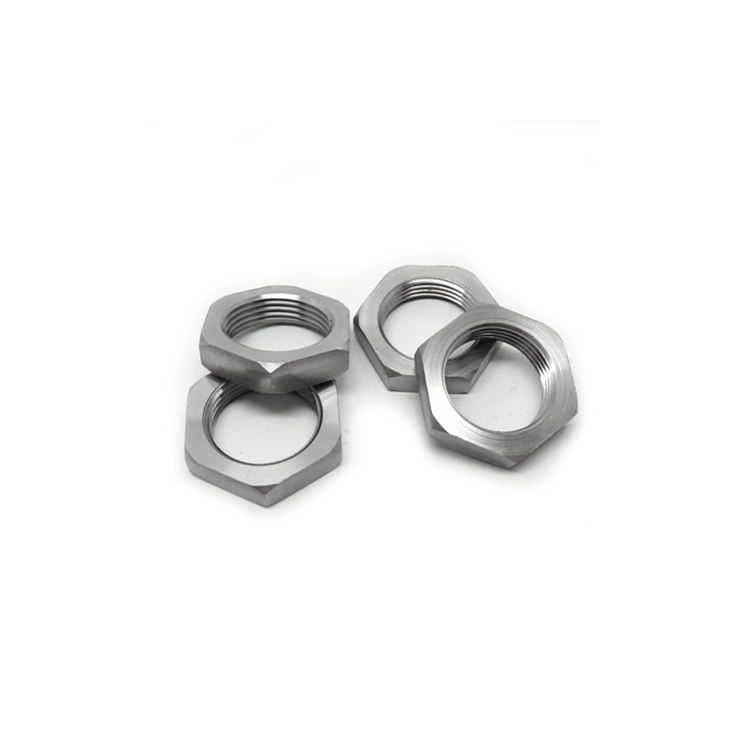

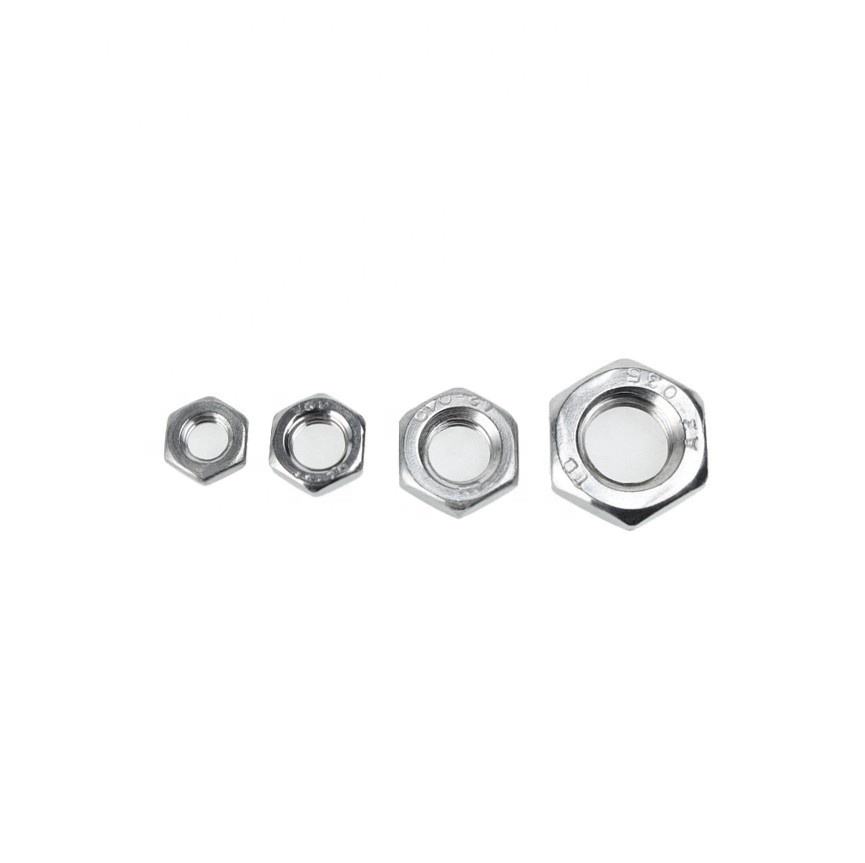

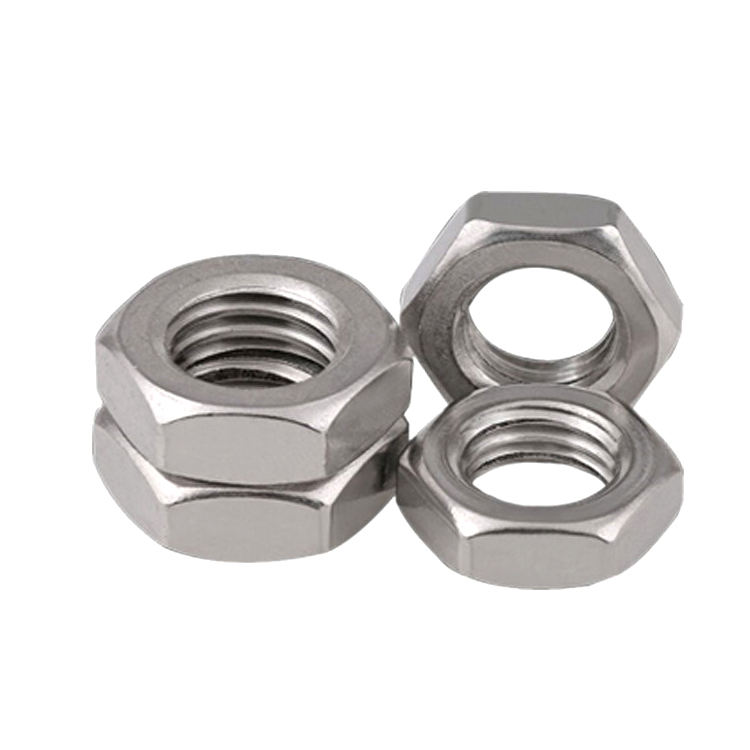

DIN 936:1985 Thin Hexagon Nut

DIN 936:1985 Thin Hex Nut is used where installation space is limited or where a secondary locking nut is required. The thin profile reduces assembly height and enables thread fixing or double-nut locking without adding excessive axial length.

This product is suitable for instruments, thin-plate structures, adjustment mechanisms, fixtures, and mechanical repair areas. The hex exterior maintains good tool access, supporting installation, removal, and fine positioning in compact spaces.

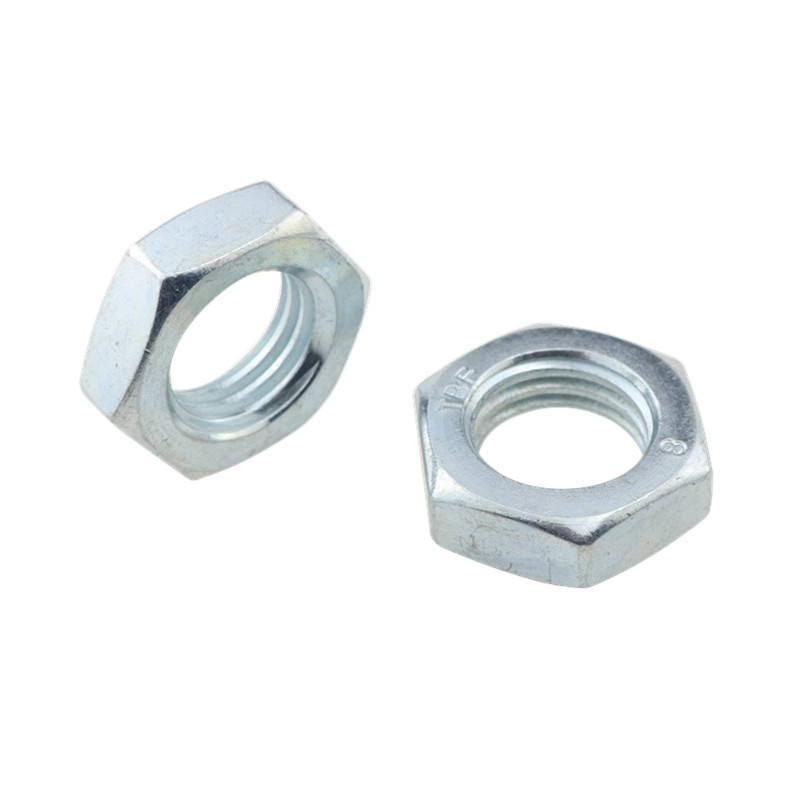

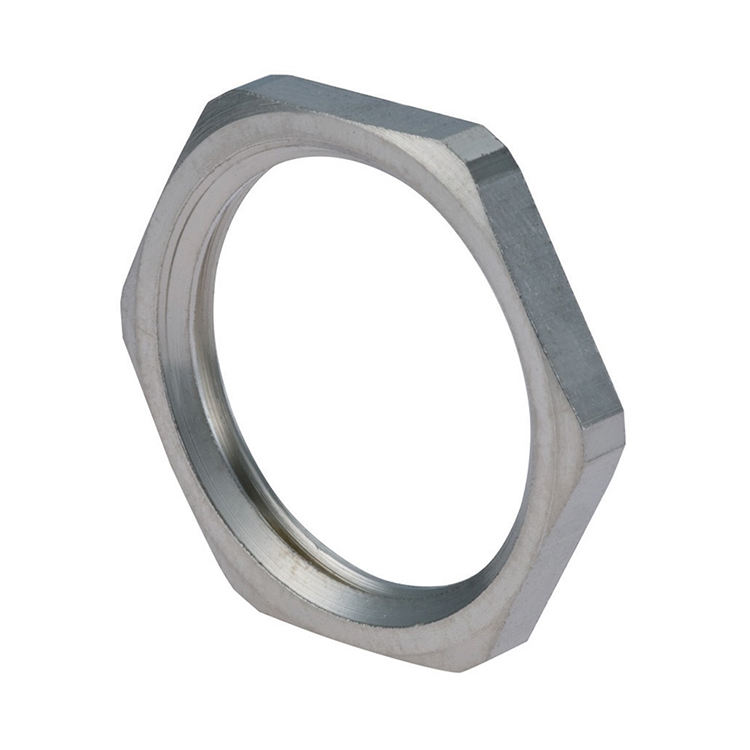

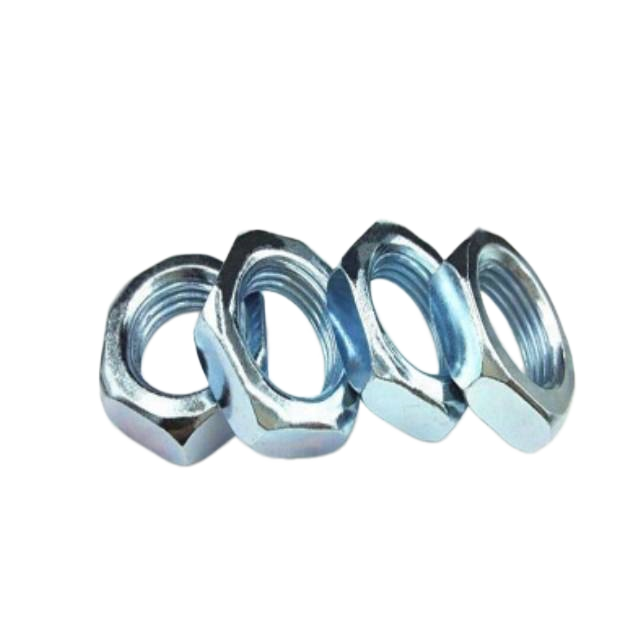

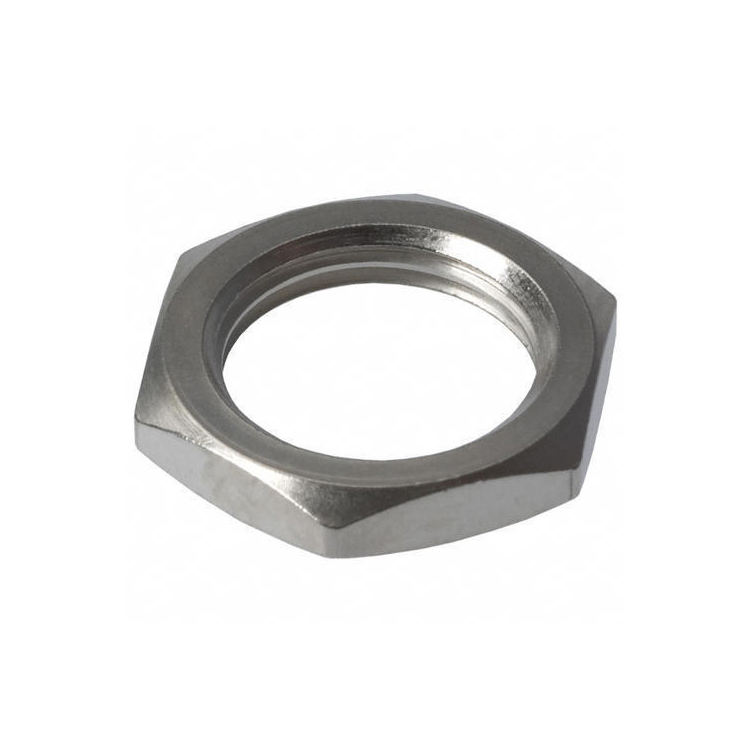

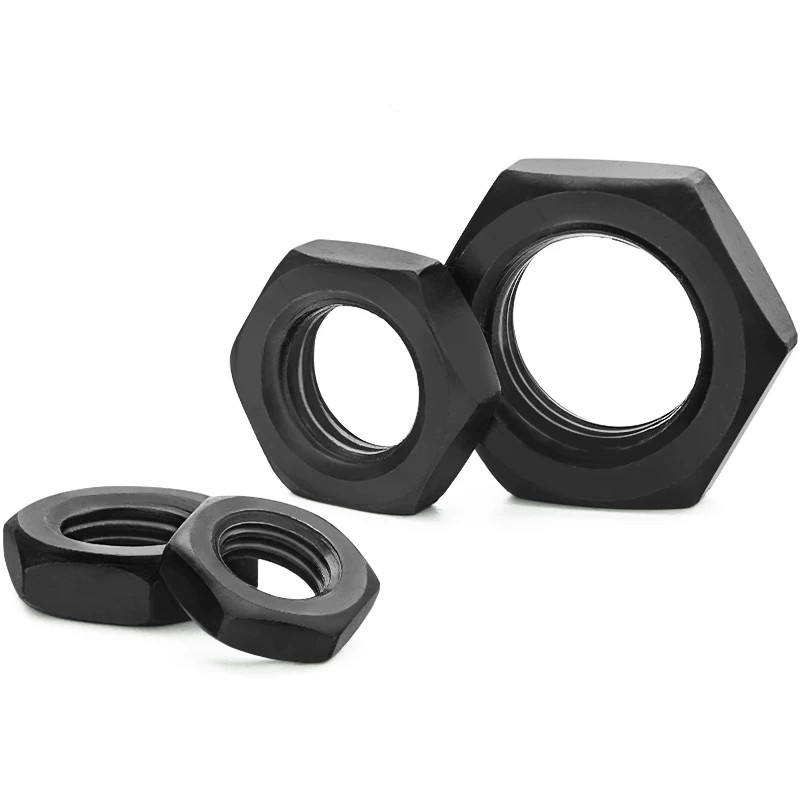

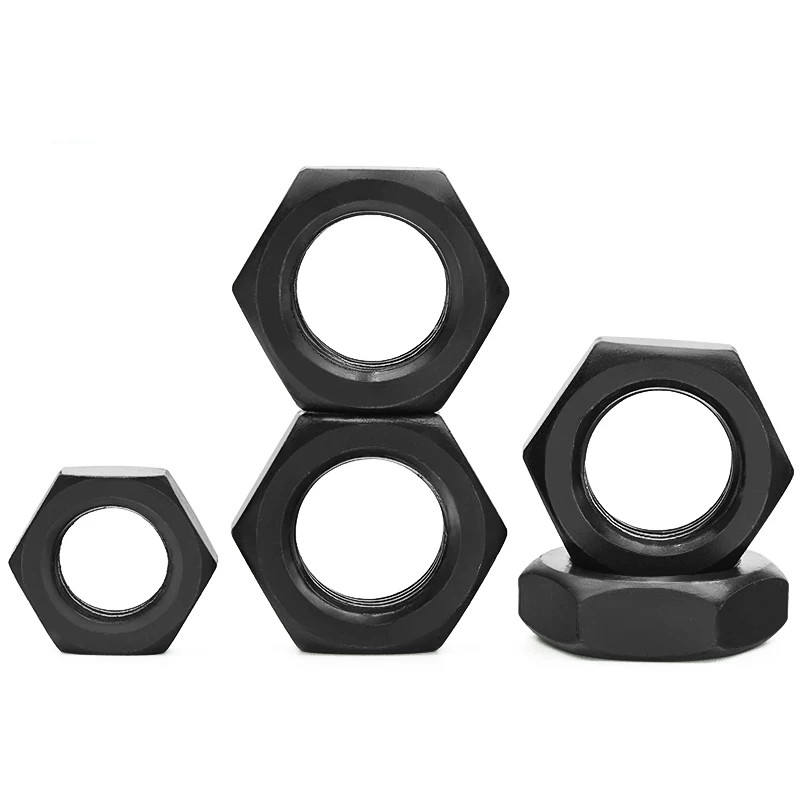

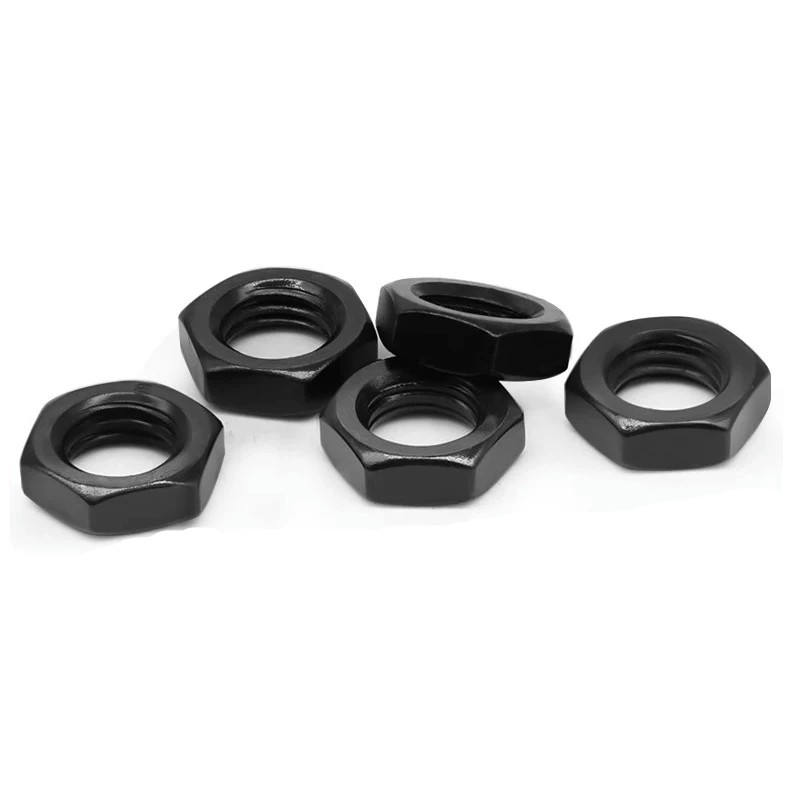

Coarse or fine thread versions, materials, and surface finishes can be selected to match the corresponding bolt or stud while improving corrosion resistance and appearance consistency.

Contact Us

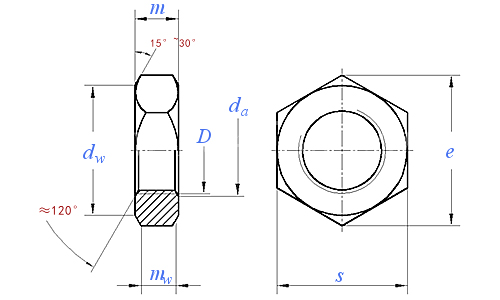

Dimensions unit: mm

Thread size D M8 M10 M12 M14 M16 M18 M20 M22 M24
P Pitch Coarse Teeth  1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
Fine Teeth 1 1 1 1.25 1.5 1.5 1.5 1.5 1.5 1.5
Fine Teeth 2 / 1.25 1.5 / / 2 2 2 2
Fine Teeth 3 / / / / / / / / /
da Max. 8 10 12 14 16 18 20 22 24
Max. 8.75 10.8 13 15.1 17.3 19.5 21.6 23.7 25.9
dw Min. 11.3 15.3 17.2 20.2 22.2 25.3 28.2 29.5 33.2
e Min. 14.38 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55
m Max.=Nominal 5 6 7 8 8 9 9 10 10
Min. 4.7 5.7 6.64 7.42 7.42 8.42 8.1 9.1 9.1
mw Min. 3.8 4.6 5.3 5.9 5.9 6.7 6.5 7.3 7.3
s Max.=Nominal 13 17 19 22 24 27 30 32 36
Min. 12.73 16.73 18.67 21.67 23.67 26.16 29.16 31 35
Weight per thousand pieces (steel)≈kg  4 8.6 12.1 18.2 20.1 29.6 36.3 43.8 58



Thread size D M27 M30 M33 M36 M39 M42 (M45) M48 M52
P Pitch Coarse Teeth  3 3.5 3.5 4 4 4.5 4.5 5 5
Fine Teeth 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Fine Teeth 2 2 2 2 2 2 2 2 2 2
Fine Teeth 3 / / / 3 3 3 3 3 3
da Min. 27 30 33 36 39 42 45 48 52
Max. 29.1 32.4 35.6 38.9 42.1 45.4 48.6 51.8 56.2
dw Min. 38 42.7 46.6 51.1 55.9 60.6 64.7 69.4 74.2
e Min. 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25
m Max.=Nominal 12 12 14 14 16 16 18 18 20
Min. 10.9 10.9 12.9 12.9 14.9 14.9 16.9 16.9 18.7
mw Min. 8.7 8.7 10.3 10.3 11.9 11.9 13.5 13.5 15
s Max.=Nominal 41 46 50 55 60 65 70 75 80
Min. 40 45 49 53.8 58.8 63.1 68.1 73.1 78.1
Weight per thousand pieces (steel)≈kg 90 110 155 190 260 307 400 460 580

① Material:

a) Steel, performance grade: ≤M18: 04,05; > M18: 17H, 22H. Standard ISO 898-2, DIN 267-24

b) Stainless steel, performance grade: ≤M20: A2-70; M20~M39: A2-50; > M39: as per agreement. Standard DIN 267-11

c) Non-ferrous metals, performance class (material): CuZn = copper-zinc alloy, CU2 or CU3, chosen by the manufacturer. Standard DIN 267-18

d) Other material grades or performance levels by agreement.
