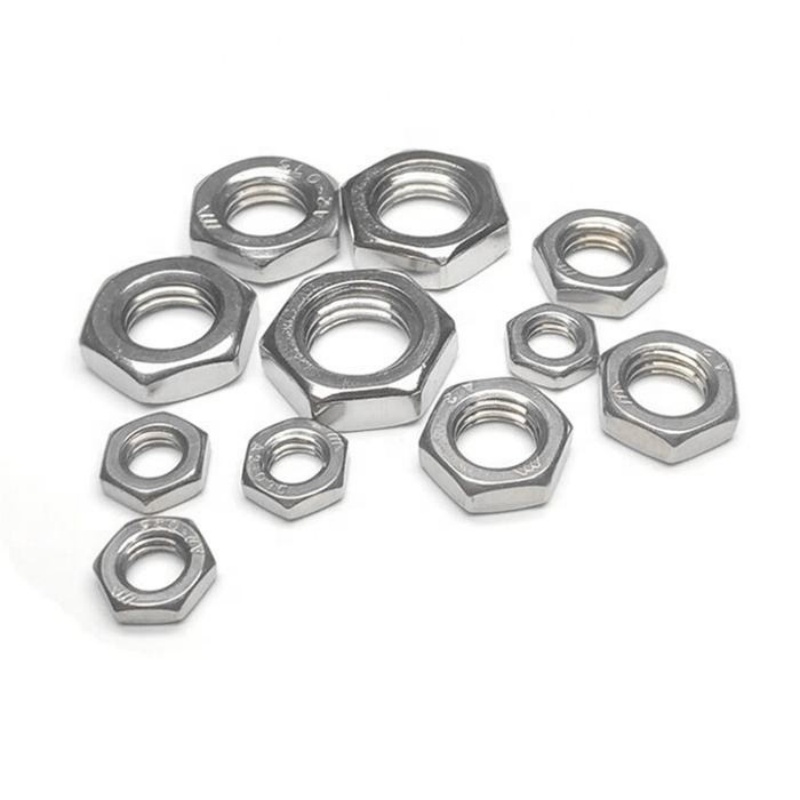

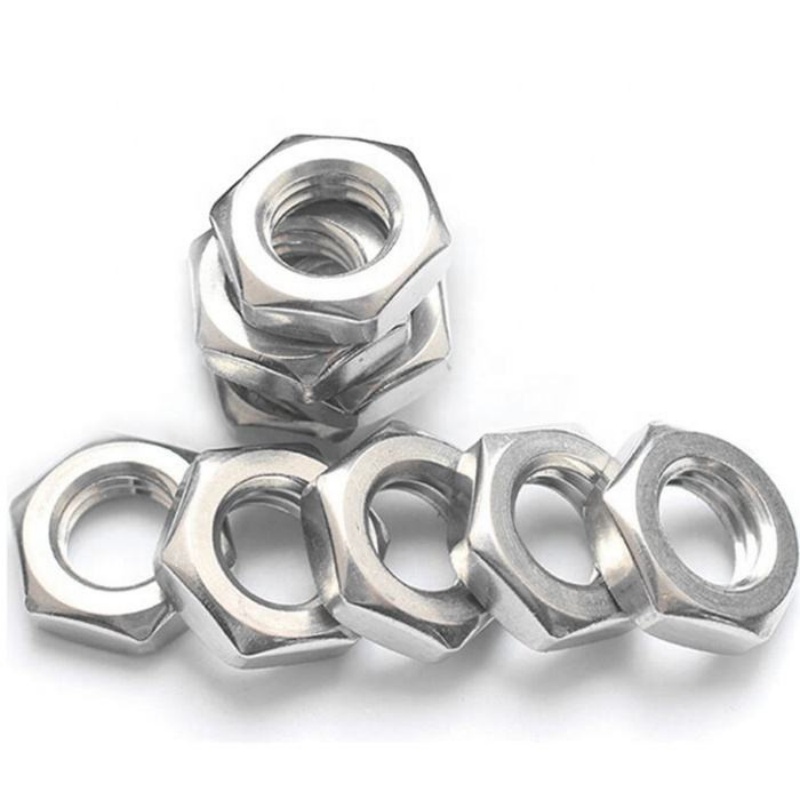

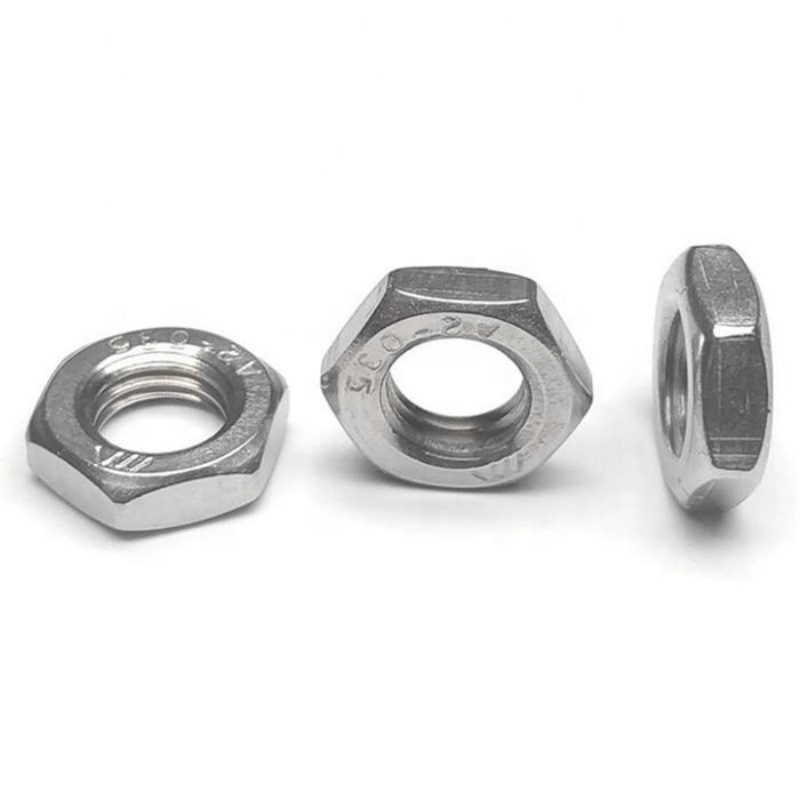

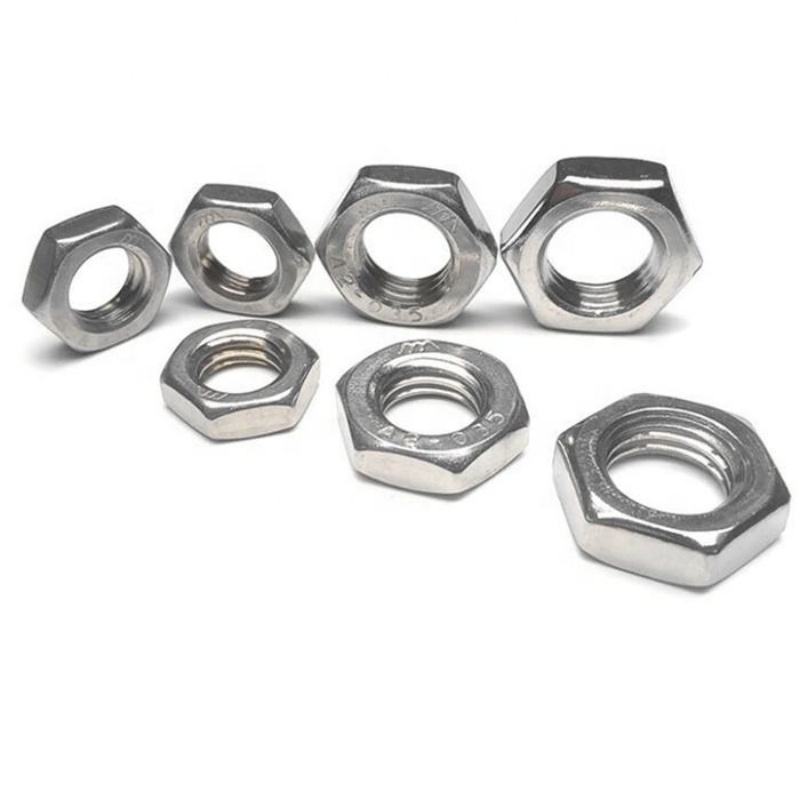

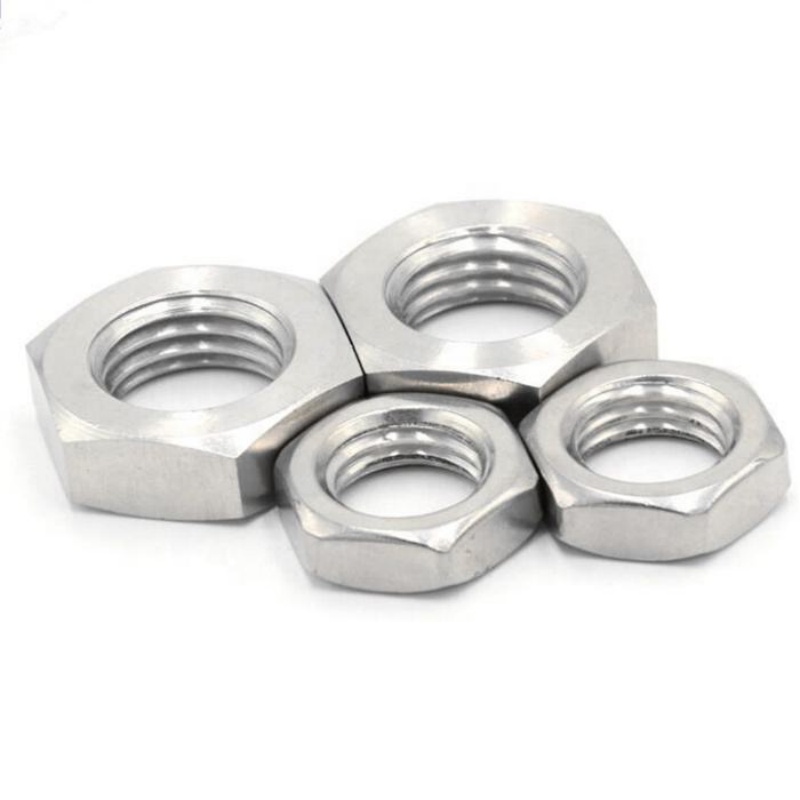

DIN 439 (-1):1987 Thin Hexagon Unchamfered Nut

DIN 439 (-1):1987 Thin Hex Unchamfered Nut features a low-profile body with an unchamfered form, making it suitable for low-height assemblies, auxiliary locking, and connections requiring a defined flat contact face. The unchamfered end can provide clearer installation orientation in selected applications.

It can be used in fixtures, adjustment mechanisms, instrument supports, and mechanical joints with restricted space. The thin structure helps control overall assembly height and can be combined with other nuts or stop components.

Thread size, material, and surface finish can be selected according to assembly requirements, allowing use in light equipment, precision parts, or general industrial environments.

Contact Us

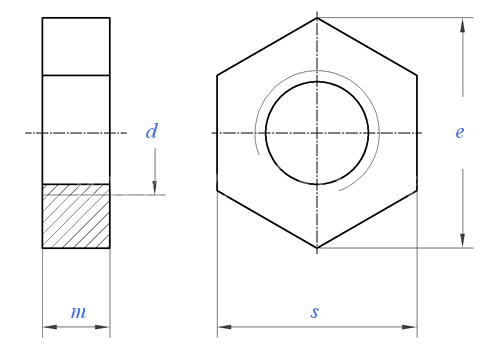

Dimensions unit: mm

Thread size  M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10
d
P Pitch Coarse Teeth  0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
Fine Teeth / / / / / / / / 1 1
e Min. 3.28 4.18 5.31 5.87 6.44 7.5 8.63 10.89 14.2 18.72
m Max.=Nominal  1 1.2 1.6 1.8 2 2.2 2.7 3.2 4 5
Min. 0.6 0.8 1.2 1.4 1.6 1.8 2.3 2.72 3.52 4.52
s Max.=Nominal 3.2 4 5 5.5 6 7 8 10 13 17
Min. 2.9 3.7 4.7 5.2 5.7 6.64 7.64 9.64 12.57 16.57
Weight per thousand pieces (steel)≈kg  0.06 0.11 0.22 0.29 0.37 0.57 0.83 1.6 3.2 7.2

① Material:

a) Steel, mechanical properties: performance grade (hardness grade) not less than 110HV (11H) according to DIN 267-24;

b) Non-ferrous metals, mechanical properties: performance grades such as CU2 or CU3 according to DIN 267-18
