DIN EN 28675:1992 Fine Thread Metric Thin Hexagon Nut

DIN EN 28675:1992 Fine Thread Metric Thin Hex Nut combines a fine thread with a low-profile body, making it suitable for limited-space connections that require more precise adjustment. The fine thread improves positioning control, while the thin form reduces axial space usage.

This product can be used in instrument brackets, adjustment devices, mechanical stops, thin-wall connections, and maintenance assemblies. Its hex exterior allows assembly with common tools and pairs with fine-thread bolts or studs to create low-height fastening joints.

Materials, grades, and surface treatments can be selected according to actual conditions to meet combined requirements for lightweight design, compact space, and corrosion resistance.

Contact Us

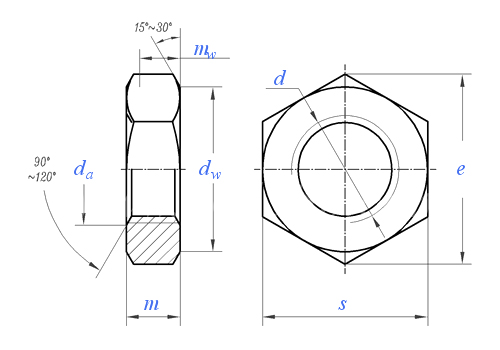

Dimensions unit: mm

Thread size d M8 M10 (M10) M12 (M12) (M14) M16 (M18) M20 (M20) (M22) M24
P Pitch 1 1 1.25 1.5 1.25 1.5 1.5 1.5 1.5 2 1.5 2
da Max. 8.75 10.8 10.8 13 13 15.1 17.3 19.5 21.6 21.6 23.7 25.9
Min. 8 10 10 12 12 14 16 18 20 20 22 24
dw Min. 11.63 14.63 14.63 16.63 16.63 19.64 22.49 24.85 27.7 27.7 31.35 33.25
e Min. 14.38 17.77 17.77 20.03 20.03 23.36 26.75 29.56 32.95 32.95 37.29 39.55
m Max. 4 5 5 6 6 7 8 9 10 10 11 12
Min. 3.7 4.7 4.7 5.7 5.7 6.42 7.42 8.42 9.1 9.1 9.9 10.9
mw Min. 2.96 3.76 3.76 4.56 4.56 5.14 5.94 6.74 7.28 7.28 7.92 8.72
s Max.=Nominal 13 16 16 18 18 21 24 27 30 30 34 36
Min. 12.73 15.73 15.73 17.73 17.73 20.67 23.67 26.16 29.16 29.16 33 35



Thread size d (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52) M56 (M60) M64
P Pitch 2 2 2 3 3 3 3 3 4 4 4 4
da Max. 29.1 32.4 35.6 38.9 42.1 45.4 48.6 51.8 56.2 60.5 64.8 69.1
Min. 27 30 33 36 39 42 45 48 52 56 60 64
dw Min. 38 42.75 46.55 51.11 55.86 59.95 64.7 69.45 74.2 78.66 83.41 88.16
e Min. 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25 93.56 99.21 104.86
m Max. 13.5 15 16.5 18 19.5 21 22.5 24 26 28 30 32
Min. 12.4 13.9 15.4 16.9 18.2 19.7 21.2 22.7 24.7 26.7 28.7 30.4
mw Min. 9.92 11.12 12.32 13.52 14.56 15.76 16.96 18.16 19.76 21.36 22.96 24.32
s Max.=Nominal 41 46 50 55 60 65 70 75 80 85 90 95
Min. 40 45 49 53.8 58.8 63.1 68.1 73.1 78.1 82.8 87.8 92.8
