DIN 134 Large Flat Washer has an enlarged outside diameter for spreading bearing load over soft materials, thin plates, or oversized holes. Compared with a standard flat washer, it distributes clamping force more effectively and helps reduce local deformation and edge damage around the hole.
The product is commonly used in wooden structures, panel assemblies, building installation, equipment bases, and repair reinforcement. The wider bearing surface improves contact between the fastener and the connected surface, making it useful where hole clearance is large or the base material has limited bearing strength.
It can be selected by mating thread size, thickness, material, and surface finish to meet bearing-protection needs in indoor assembly, outdoor corrosion-resistant fastening, and general structural fixing.

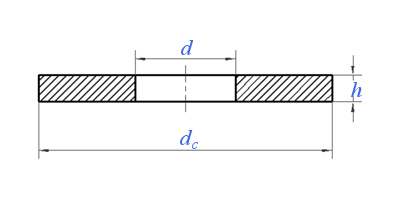

Dimensions unit: mm
|
Nominal diameter |
Φ3 |
Φ4 |
Φ5 |
Φ6 |
Φ8 |
Φ10 |
Φ12 |
Φ14 |
Φ16 |
Φ18 |
Φ20 |
|
|
d |
Min. |
3.2 |
4.3 |
5.3 |
6.4 |
8.4 |
10.5 |
13 |
15 |
17 |
19 |
21 |
|
Max. |
3.38 |
4.48 |
5.48 |
6.62 |
8.62 |
10.77 |
13.27 |
15.27 |
17.27 |
19.33 |
21.33 |
|
|
dc |
Max. |
8 |
10 |
12 |
14 |
18 |
22 |
28 |
28 |
34 |
40 |
40 |
|
Min. |
7.64 |
9.64 |
11.57 |
13.57 |
17.57 |
21.48 |
27.48 |
27.48 |
33.38 |
39.38 |
39.38 |
|
|
h |
Nominal |
0.5 |
0.8 |
1 |
1.5 |
2 |
2.5 |
3 |
3 |
3 |
4 |
4 |
|
Min. |
0.45 |
0.7 |
0.9 |
1.4 |
1.8 |
2.3 |
2.7 |
2.7 |
2.7 |
3.7 |
3.7 |
|
|
Max. |
0.55 |
0.9 |
1.1 |
1.8 |
2.2 |
2.7 |
3.3 |
3.3 |
3.3 |
4.3 |
4.3 |
|
