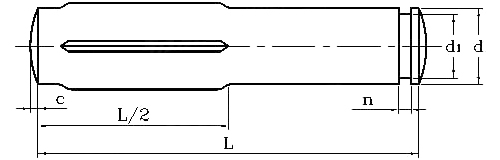

DIN 1469:2011 Grooved Pin

DIN 1469:2011 Grooved Pin combines a grooved pin with a necked fitting area and is suitable for hole connections requiring holding force, location, and anti-loosening through grooves.

The groove creates local elastic or plastic engagement with the hole wall during insertion, while the necked design improves positioning and stopping. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.

It is commonly used in instrument parts, light machinery, handle fixing, hinge accessories, and fixture locating. According to drawings or service conditions, groove type, diameter, material, and surface finish can be selected to improve overall fastening performance and service life.

Contact Us
PREV：DIN 7343:1969 Coiled Spring Dowel Pin NEXT：DIN 6885-1 (A):2021 Type A Round End Parallel Key

Unit: mm

Nominal diameter d

2

2.5

3

4

5

6

8

10

12

14

16

20

25

h9

h11

c≈

0.25

0.3

0.4

0.5

0.6

0.8

1

1.2

1.6

1.6

2

2.5

3

Type A

d1

h11

/

/

2.8

3.8

4.8

5.7

7.6

9.6

11.5

13.4

15.2

19

23.9

n

H13

/

/

0.5

0.5

0.7

0.8

0.9

1.1

1.1

1.1

1.1

1.3

1.3

Type B

d1

h11

1.5

1.9

2.3

3.2

4

5

7

9

10

12

15

19

24

n

max

0.46

0.56

0.67

0.67

0.77

0.77

0.97

1.21

1.31

1.41

1.61

1.86

2.11

min

0.44

0.54

0.64

0.64

0.74

0.74

0.94

1.15

1.25

1.35

1.55

1.8

2.05



Nominal diameter d

2

2.5

3

4

5

6

8

10

12

14

16

20

25

Nominal length L

Mass of every 1000 pieces of steel products ≈kg

6

0.142

0.221

0.318





















8

0.190

0.299

0.429





















10

0.240

0.376

0.540

0.950

1.49

2.23















12

0.289

0.453

0.651

1.15

1.80

2.67















16

0.388

0.606

0.873

1.55

2.42

3.55

6.53

10.0

14.5









20

0.487

0.761

1.09

1.95

3.04

4.43

7.89

12.5

18.0

24.0







25

0.611

0.965

1.37

2.44

3.81

5.49

9.85

15.5

22.5

30.2







30

0.735

1.15

1.64

2.94

4.57

6.55

11.8

18.6

26.9

36.5

49.7

79.8

128

35





1.91

3.43

5.33

7.22

13.8

21.7

31.5

42.5

56.7

92.0

147

40





2.20

3.92

6.12

8.90

15.8

24.8

36.0

48.5

63.8

104

166

45







4.42

6.88

10.0

17.7

27.9

40.5

54.5

71.7

116

185

50







4.91

7.65

11.1

19.7

31.0

45.0

60.6

80.0

128

204

55







5.40

8.42

12.2

21.7

34.1

49.5

66.6

87.6

141

223

60







5.90

9.19

13.3

23.6

37.2

54.0

72.7

95.6

153

242

65











14.4

25.6

40.3

58.5

78.8

103

165

262

70











15.5

27.6

43.3

63.0

84.8

111

178

281

75











17.2

29.6

46.4

67.5

90.8

119

191

301

80











18.9

31.6

49.5

72.0

96.9

127

203

320

90













35.5

55.7

81.0

109

143

228

358

100













39.6

61.9

90.0

121

158

252

397

110















68.1

99.0

133

174

277

435

120















74.3

108

145

190

302

474

140















86.5

126

169

222

351

551

160















98.8

144

193

254

400

628
