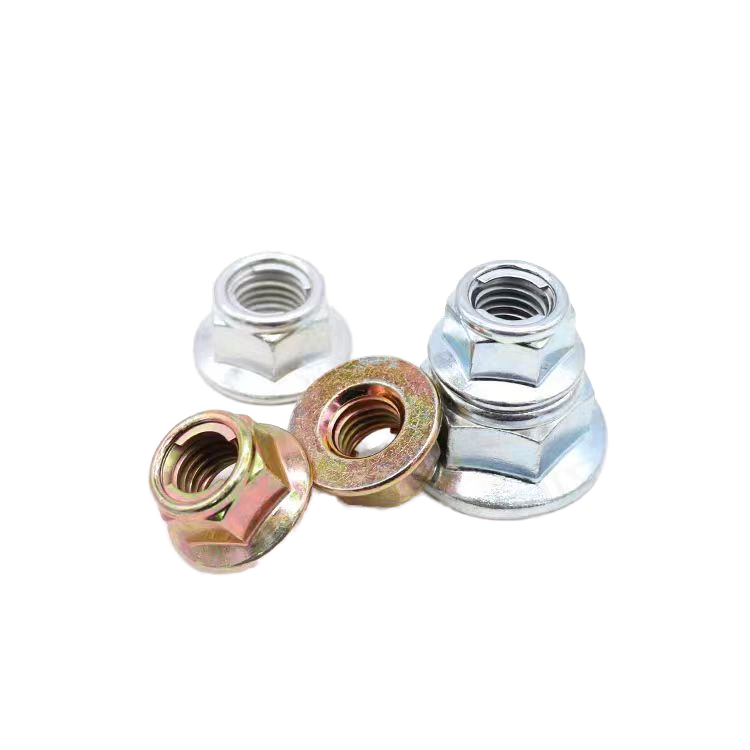

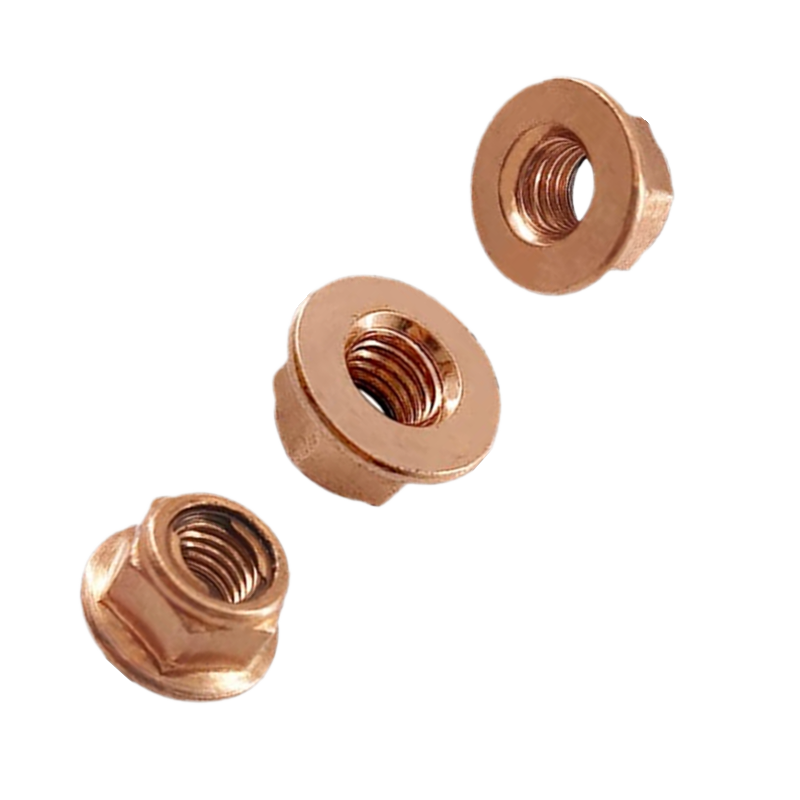

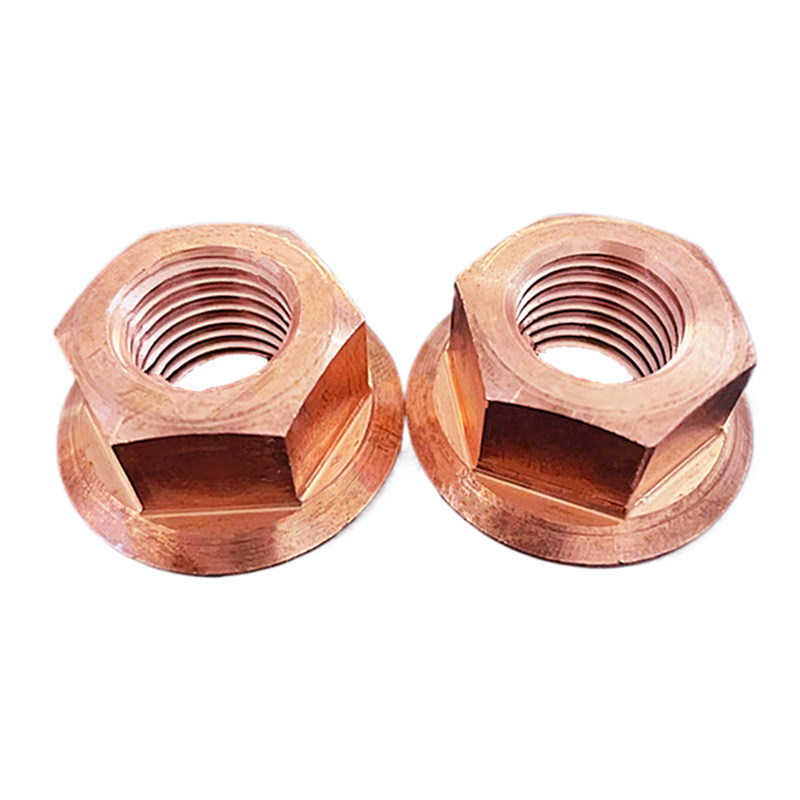

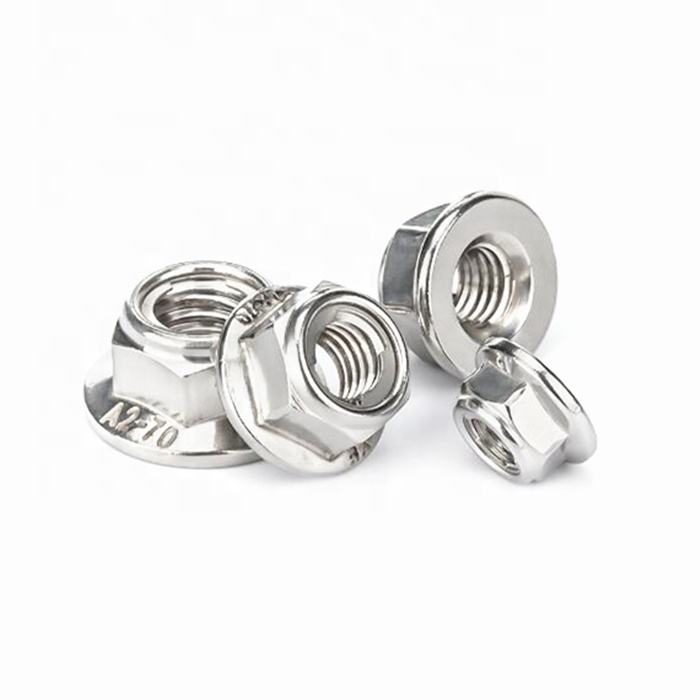

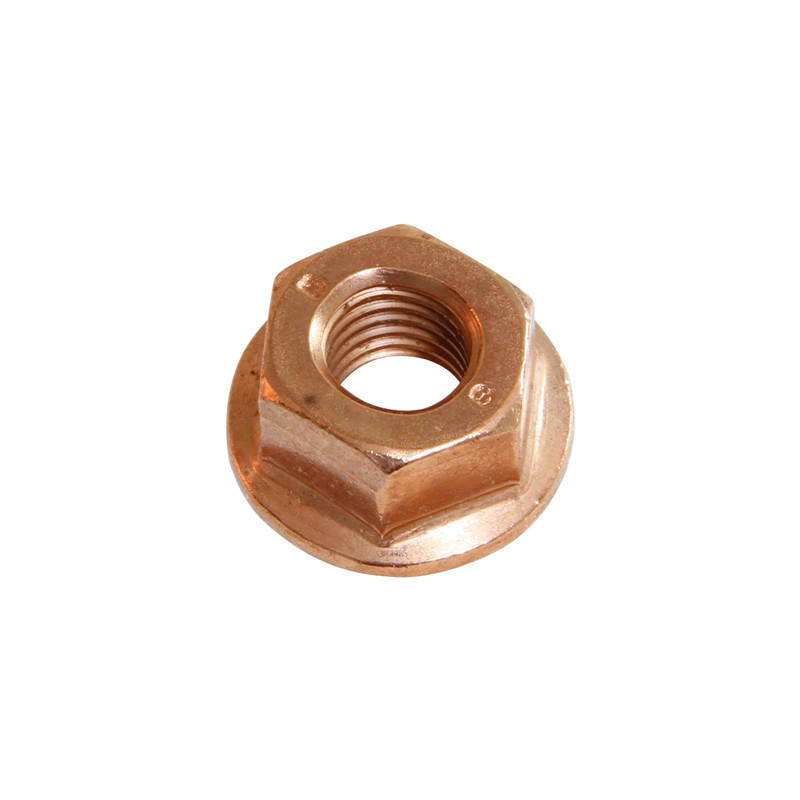

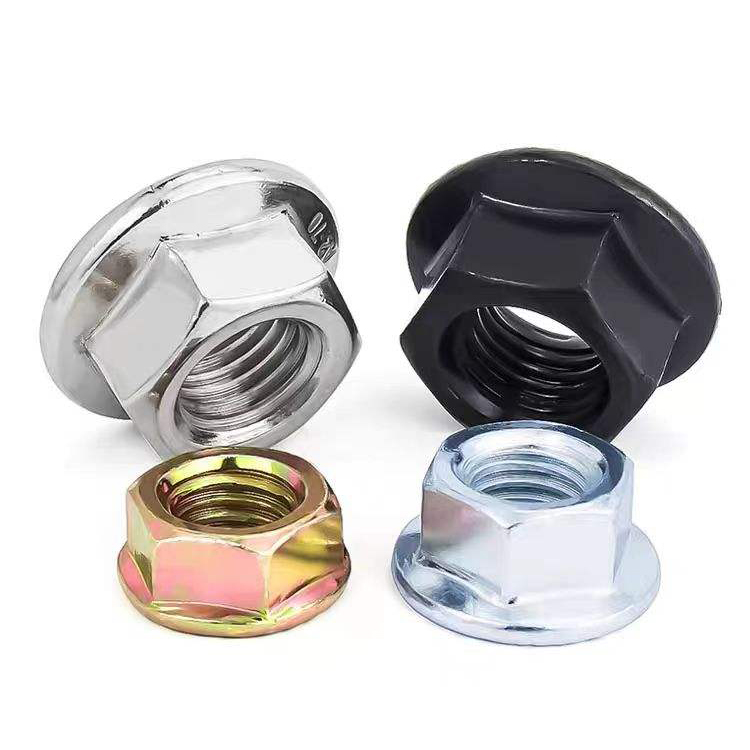

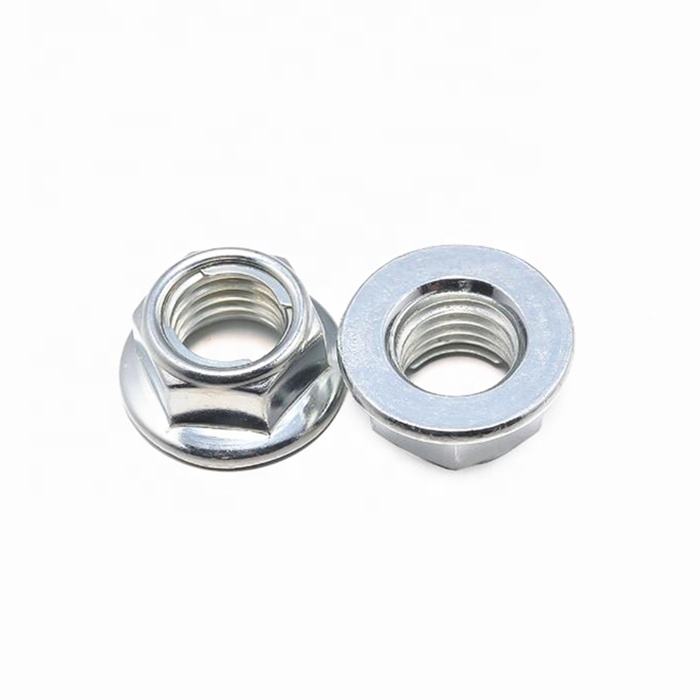

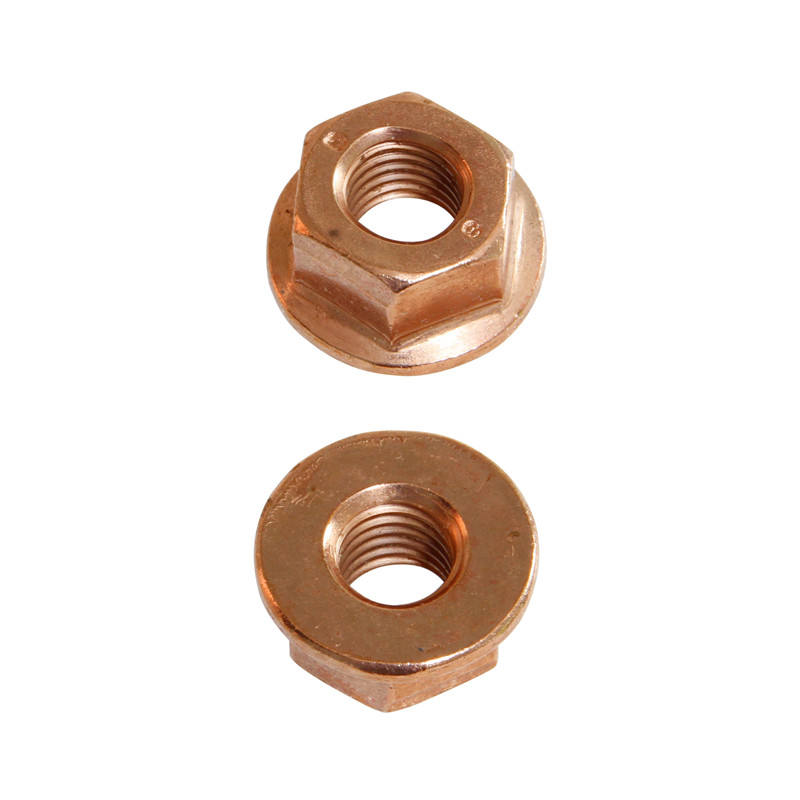

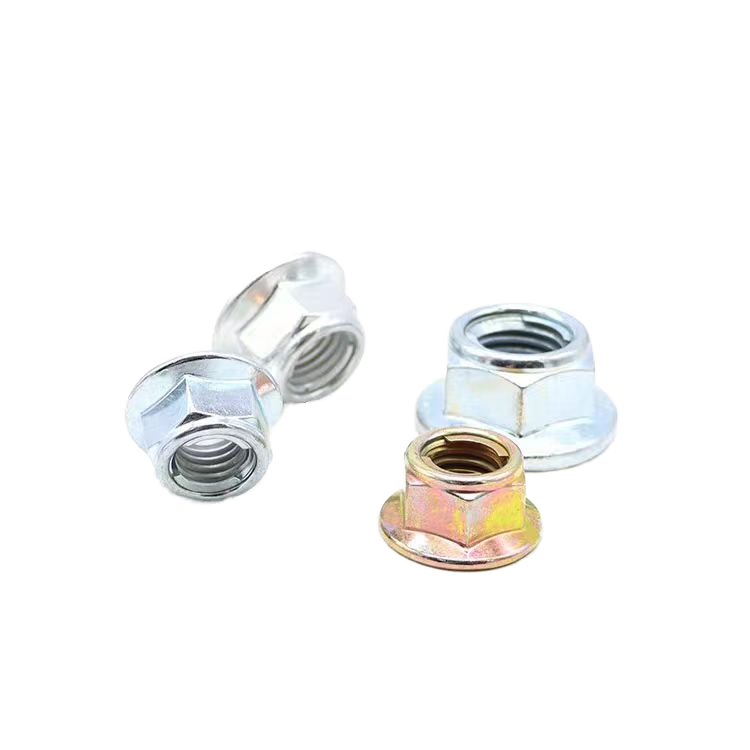

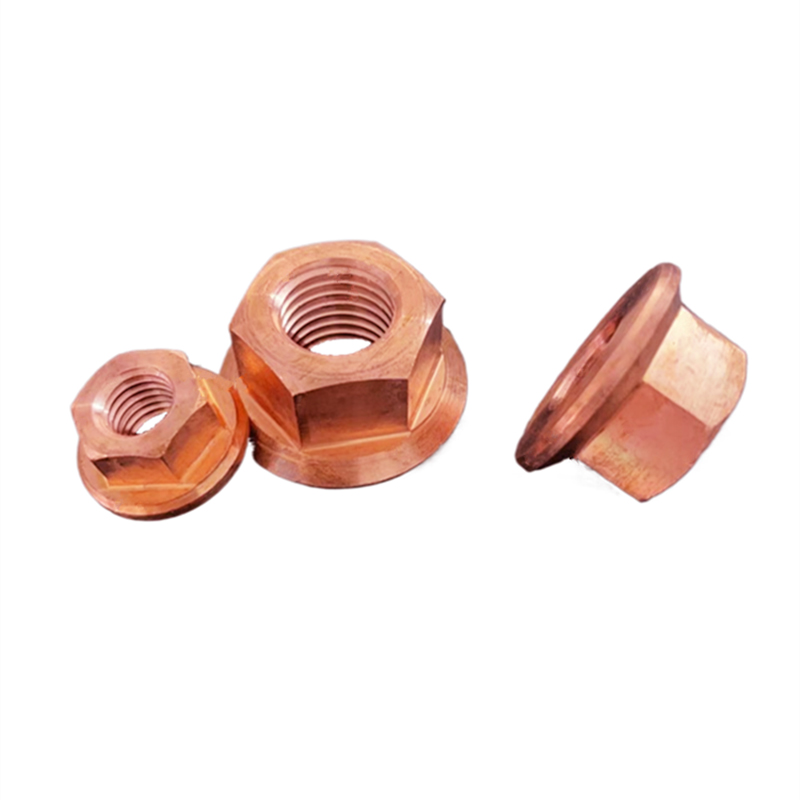

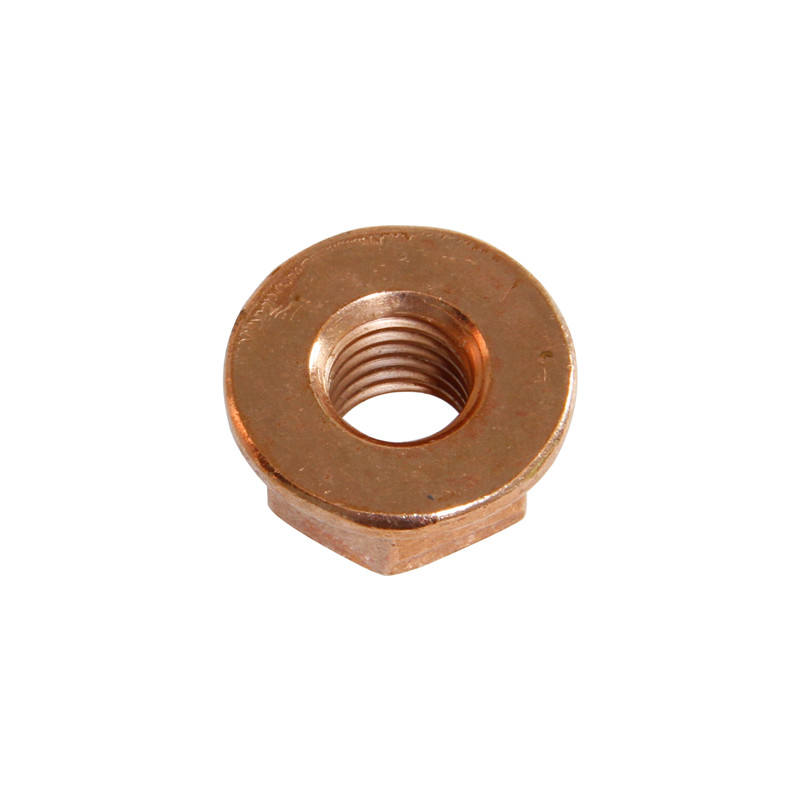

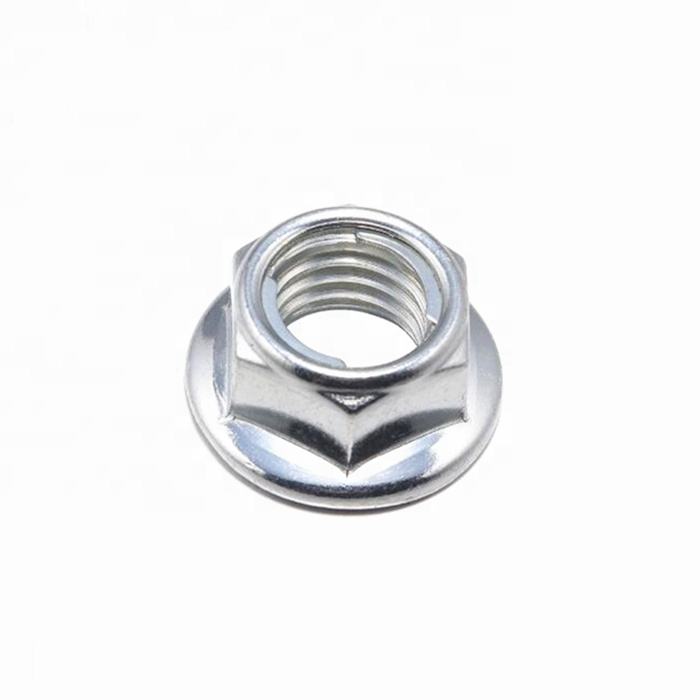

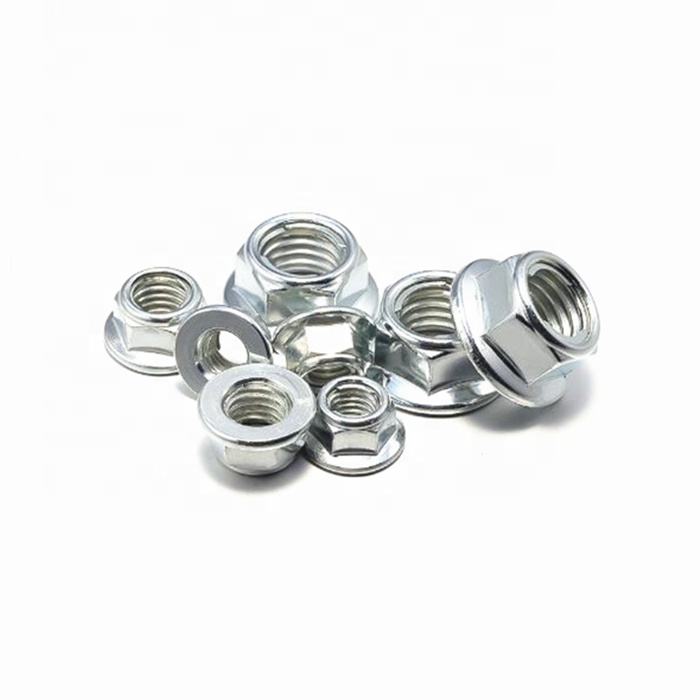

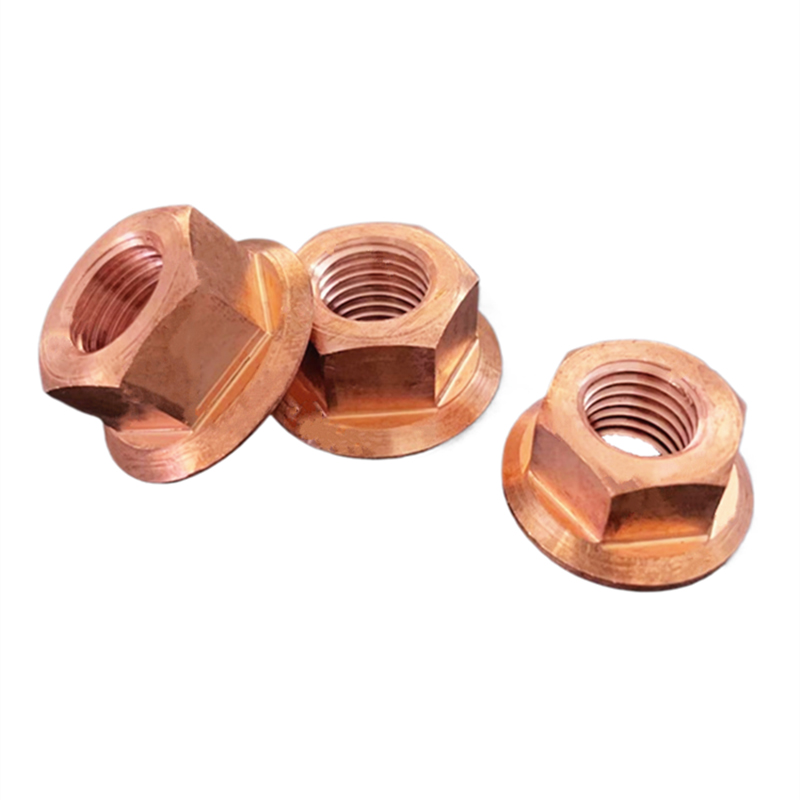

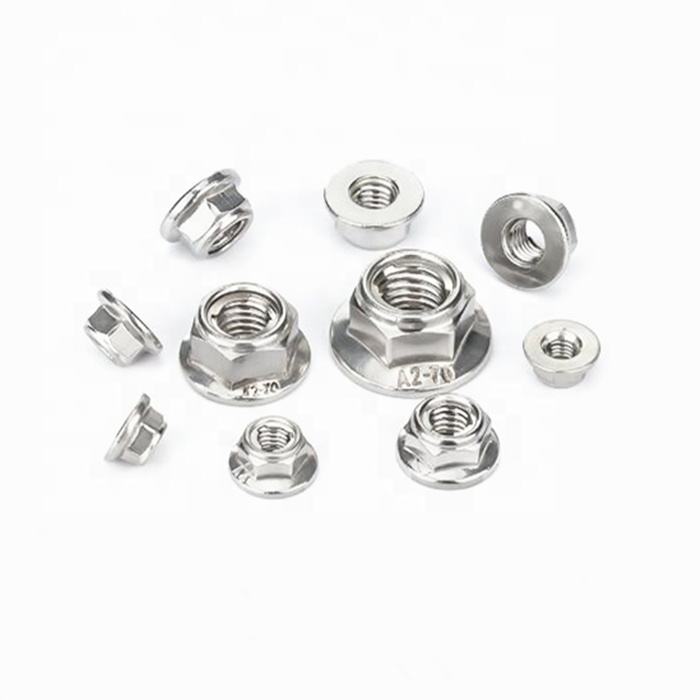

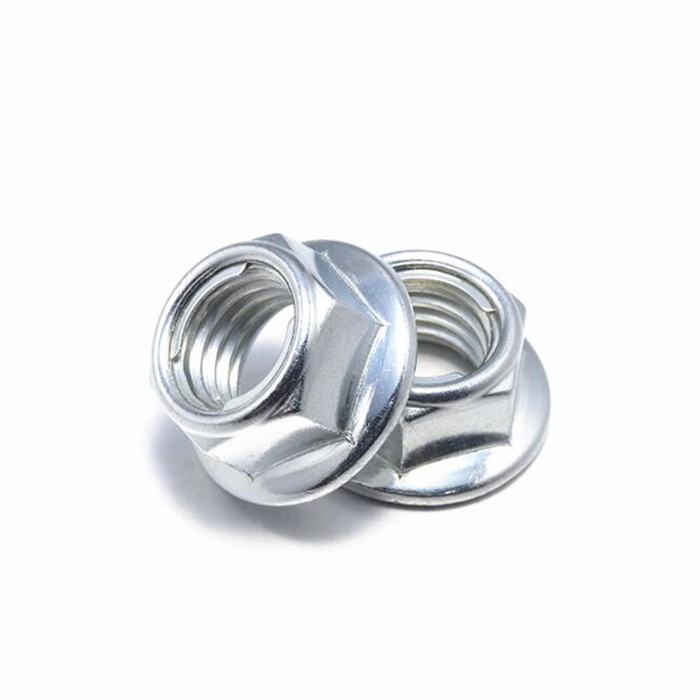

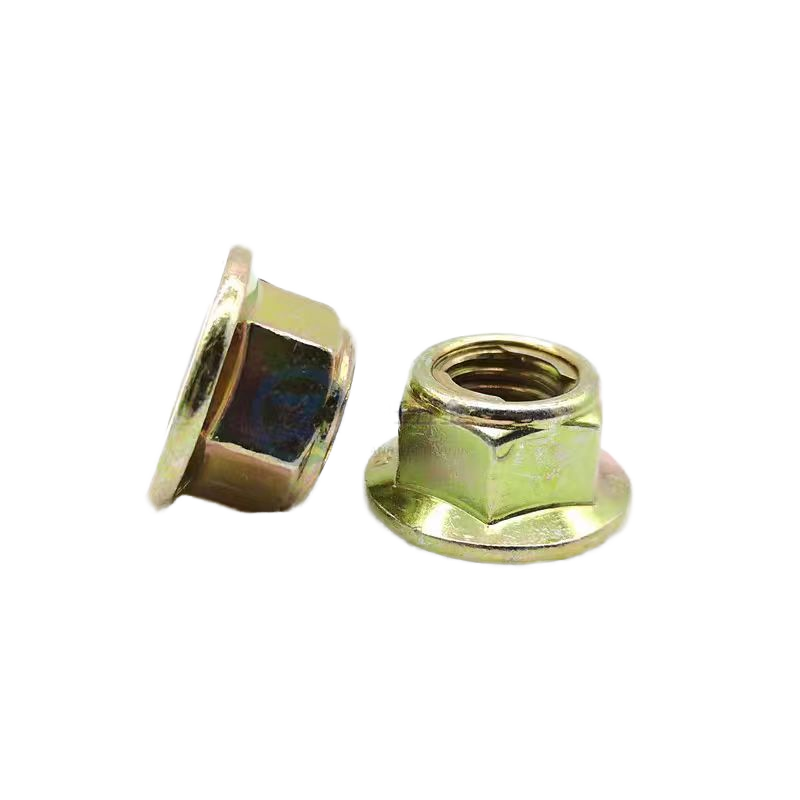

DIN 6927:1983 All-Metal Lock Hex Flange Nut integrates a flange bearing surface with an all-metal locking function, making it suitable for compact joints under vibration. The flange increases the bearing area, while the metal locking feature helps resist thread loosening.
It is commonly used in automotive chassis, construction machinery, equipment brackets, sheet-metal parts, and outdoor structural connections. Compared with a standard nut and washer combination, the integrated design can reduce part count and improve assembly efficiency.
Strength class, material, and surface treatment can be selected to suit higher load, vibration, and corrosion-protection requirements.

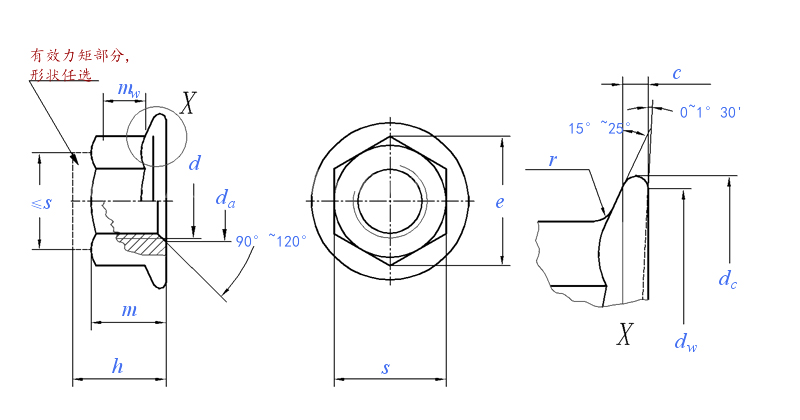

Dimensions unit: mm
| Thread size | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | ||||
| d | ||||||||||||
| P | Pitch | Coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | ||
| Fine Teeth 1 | / | / | 1 | 1.25 | 1.5 | -1.5 | 1.5 | 1.5 | ||||
| Fine Teeth 2 | / | / | / | -1 | -1.25 | / | / | / | ||||
| c | Min. | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |||
| da | Min. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |||
| Max. | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | ||||
| dc | Max. | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | |||
| dw | Min. | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |||
| e | Min. | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |||
| h | Max. | 6.2 | 7.3 | 9.4 | 11.4 | 13.8 | 15.9 | 18.3 | 22.4 | |||
| m | Min. | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | |||
| mw | Min. | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 | |||
| s | Max.=Nominal | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 | |||
| Min. | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | ||||
| r | Max. | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 | |||
① Material: steel, performance grade (material): 8, 10, 12 (≤M16), standard DIN ISO 898-2, DIN 267-23
