DIN 22424:1990 Triangular Screw

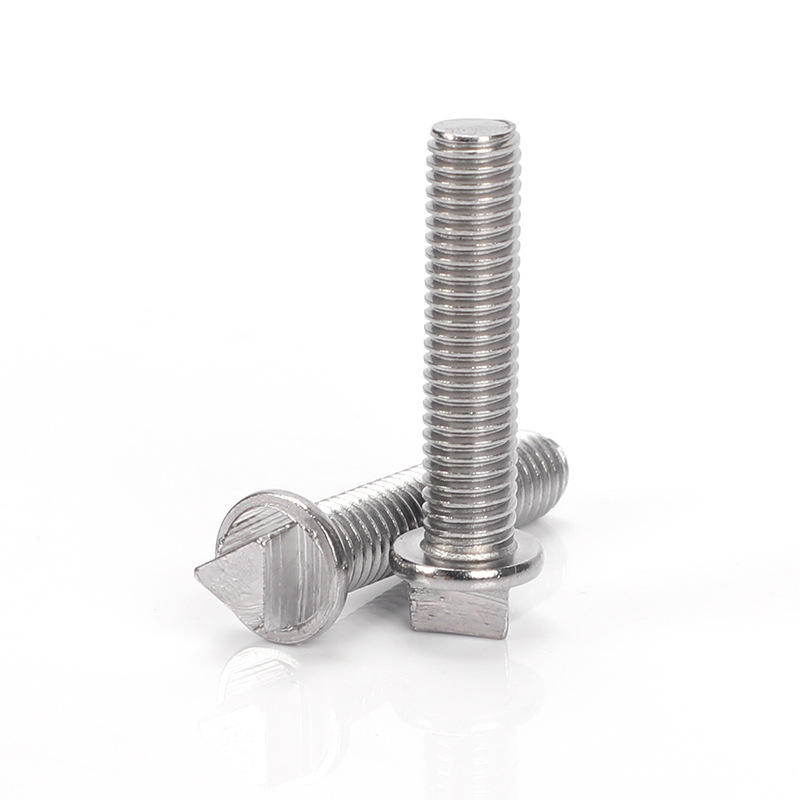

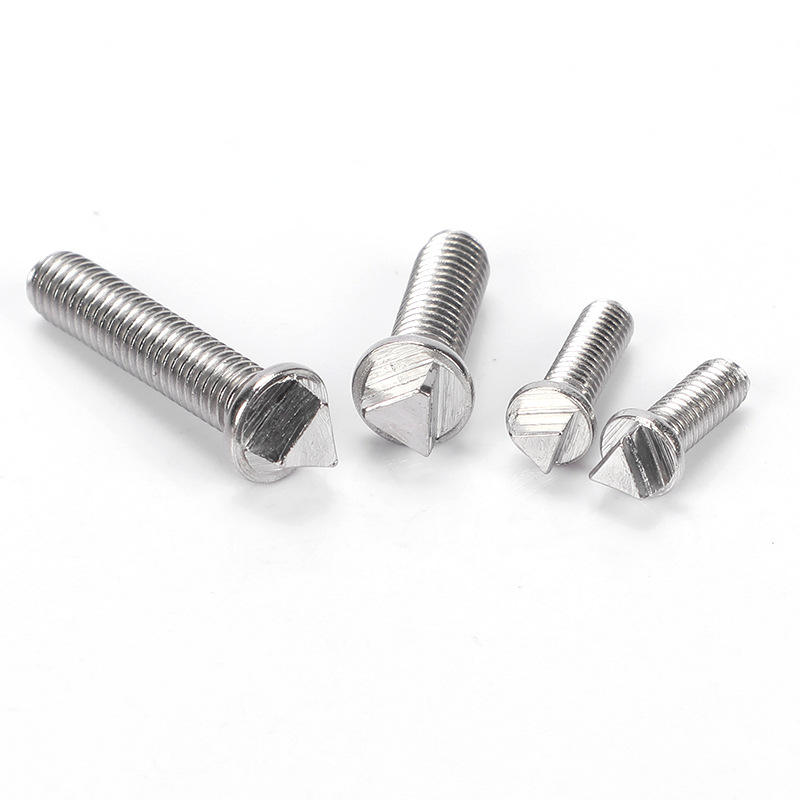

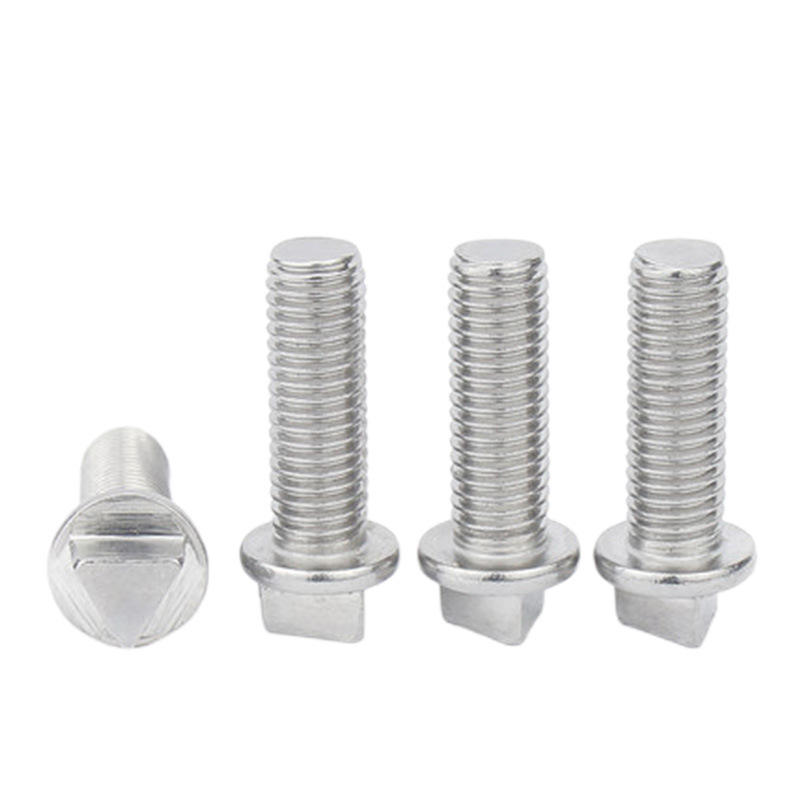

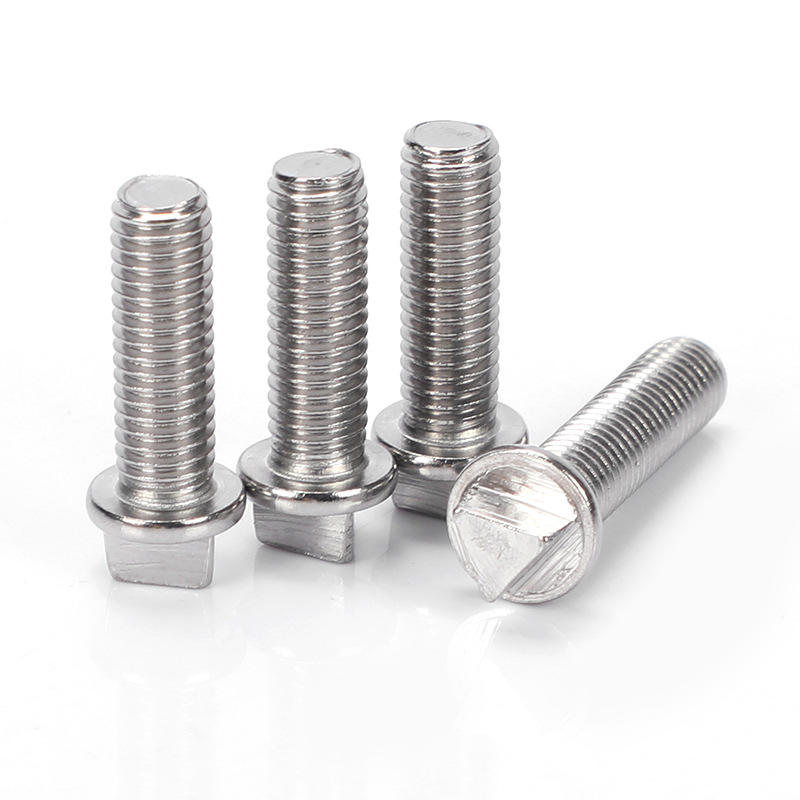

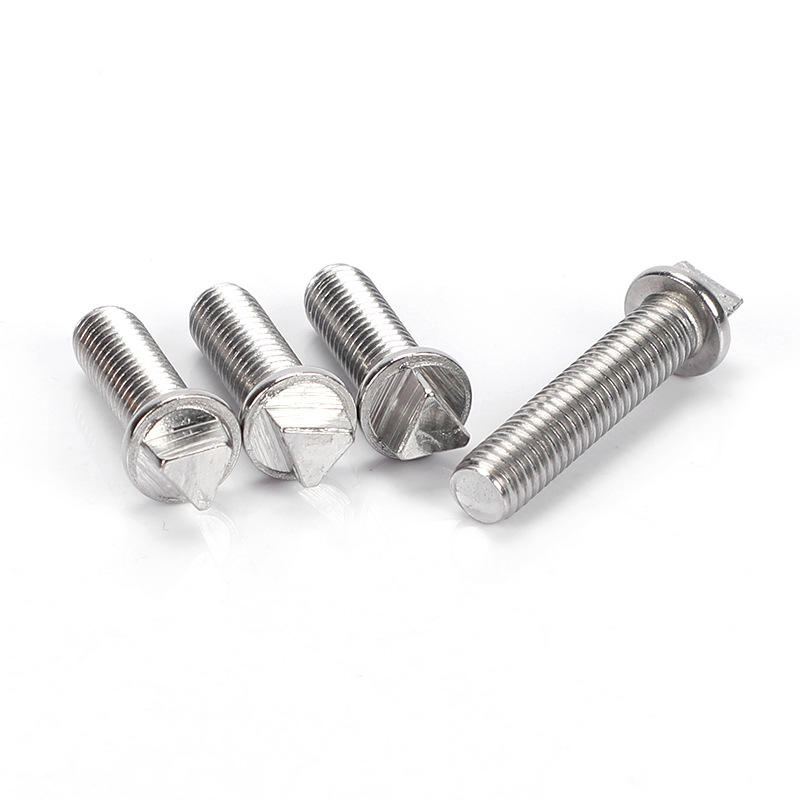

DIN 22424:1990 Triangular Screw combines a triangular head with an integrated washer-style bearing face and is suitable for engineering connections requiring tamper resistance, a larger bearing surface, or a special drive head.

The triangular head limits removal with ordinary tools, while the washer face enlarges the clamping area and improves load distribution. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.

It is commonly used in public facilities, equipment panels, rail transit accessories, cabinet structures, and dedicated fixtures. According to drawings or service conditions, head size, washer-face diameter, and protective finish can be selected to improve overall fastening performance and service life.

Contact Us
PREV：DIN 7643:2005 Bolt NEXT：DIN 15237:1980 Screw

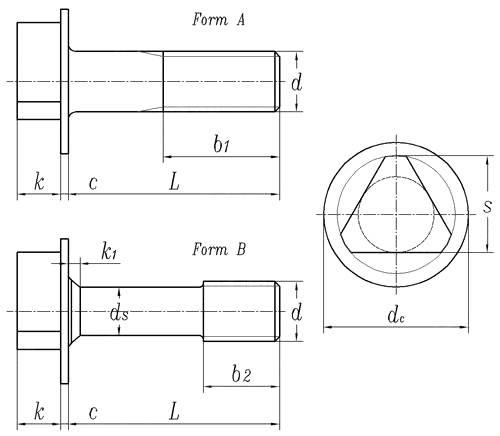

Dimensions unit: inch

Thread size d

M4

M5

M6

M8

M10

M12

M16

M20

M24

P

Pitch

0.7

0.8

1

1.25

1.5

1.75

2

2.5

3

b2

Min.

5

6

8

10

12

14

17

21

25

Max.

5.5

6.5

8.8

10.8

12.1

14.1

18.5

22.5

26.5

c

Min.

1.9

1.9

1.9

2.2

2.7

2.9

3.4

3.9

4.7

Max.

2.1

2.1

2.1

2.4

2.9

3.1

3.6

4.1

5.1

dc

Min.

8.3

9.8

11.8

14.8

17.8

21.8

27.8

34.7

41.7

Max.

8.7

10.2

12.2

15.2

18.2

22.2

28.2

35.3

42.3

ds

Min.

2.8

3.7

4.4

6

7.5

9

12.5

16

19

Max.

3

3.9

4.6

6.2

7.7

9.2

12.7

16.2

19.2

s

Min.

6.3

7.8

9.55

11.55

14.3

15.8

19.8

24.8

29.8

Max.

6.5

8

9.75

11.75

14.5

16

20

25

30

k1

Min.

1

1.3

1.5

1.9

2.4

2.7

3.4

3.9

5.4

Max.

1.2

1.5

1.7

2.1

2.6

2.9

3.6

4.1

5.6

k

Min.

2.9

3.9

4.4

5.9

7.3

8.8

11.3

13.8

16.8

Max.

3.1

4.1

4.6

6.1

7.7

9.2

11.7

14.2

17.2

Weight per thousand pieces kg (Type A)

-

-

-

-

-

-

-

-

-

Weight per thousand pieces kg (Type B)

-

-

-

-

-

-

-

-

-

b1Min.

-

-

-

-

-

-

-

-

-

b1Max.

-

-

-

-

-

-

-

-

-
