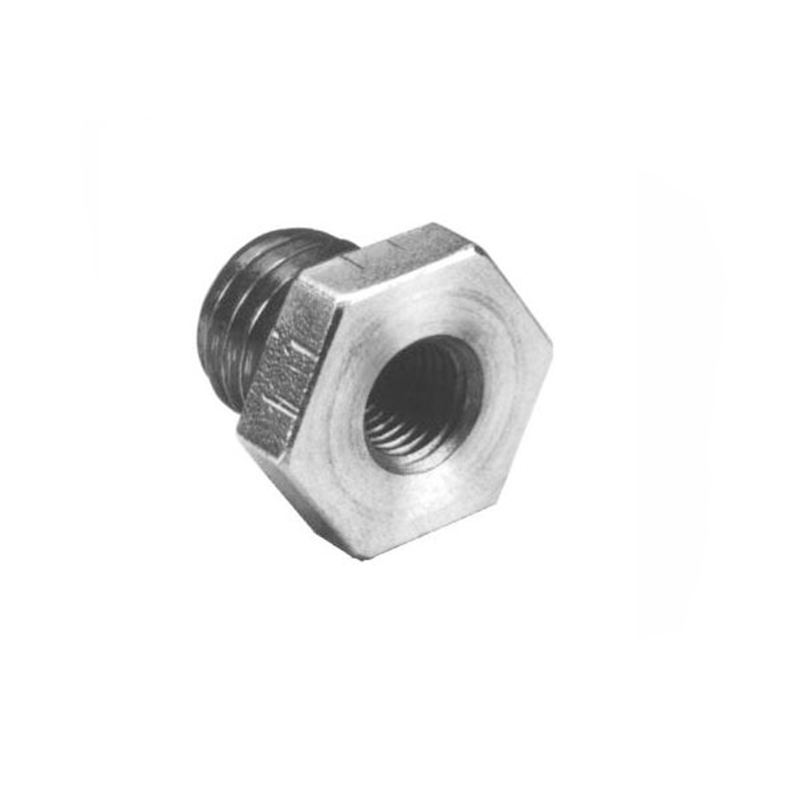

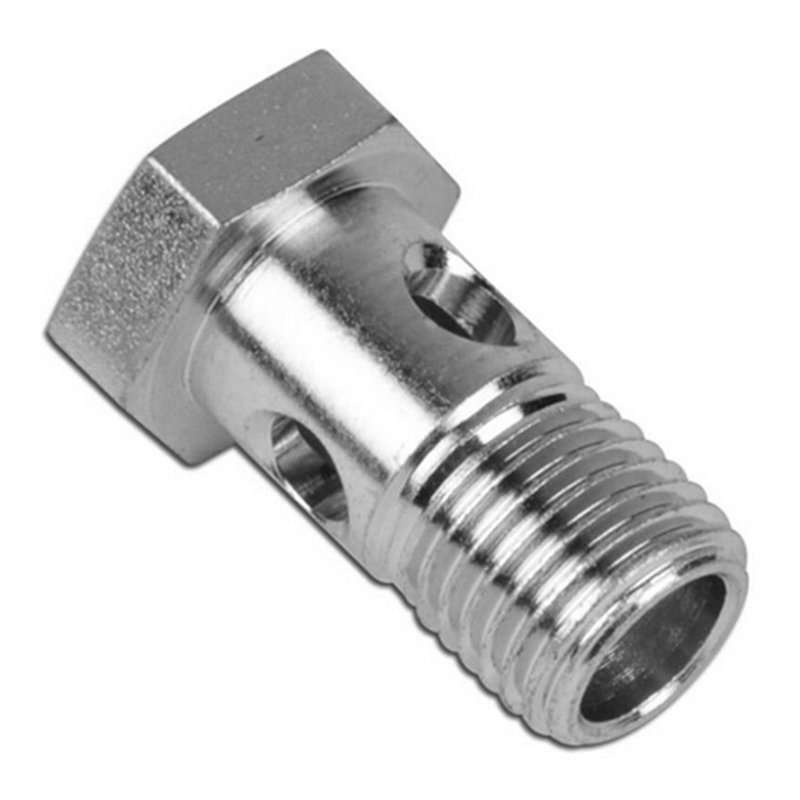

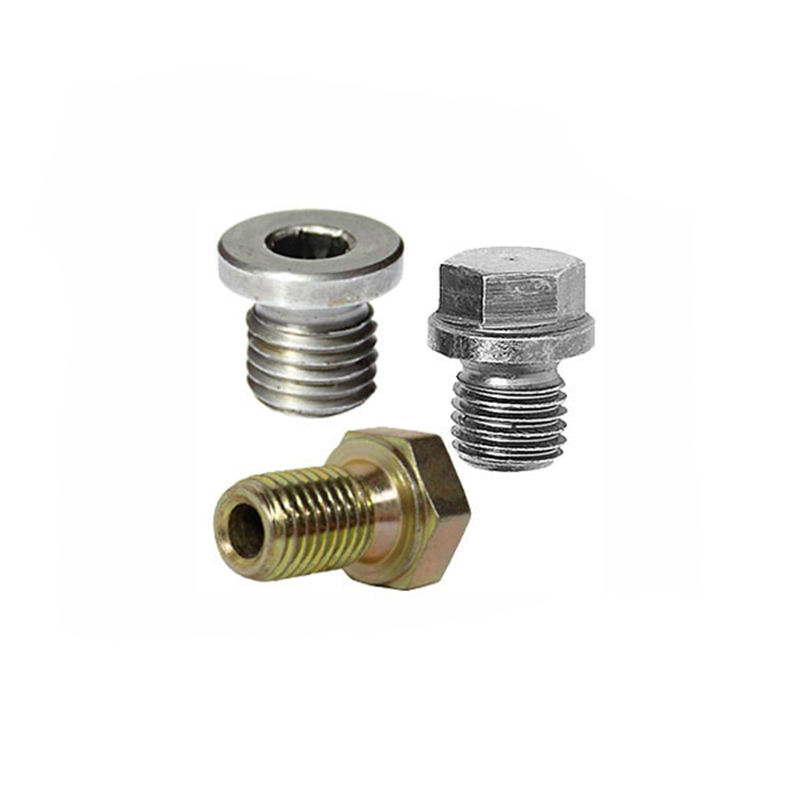

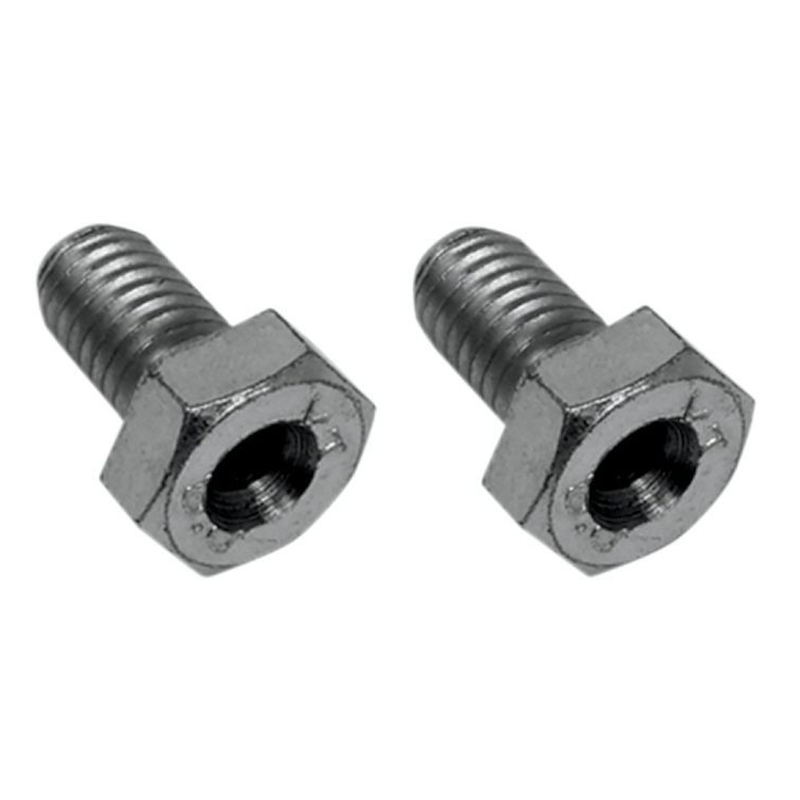

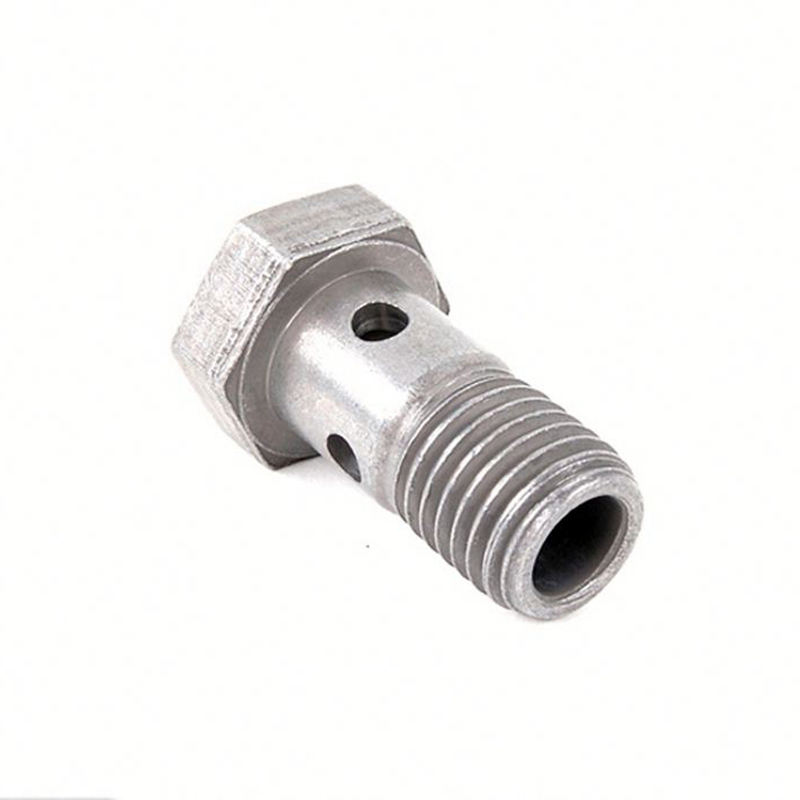

DIN 7643:2005 Bolt

DIN 7643:2005 Bolt is characterized by an annular hollow bolt structure and is intended for bolt applications requiring wire passage, fluid routing, weight reduction, or a special connection path.

The hollow passage can reserve space for cables, oil, air, or gas, while the ring-shaped design supports stopping, connection, or guiding in specific mechanisms. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include hydraulic and pneumatic accessories, special equipment, vehicle systems, fixtures, and custom mechanical structures. The product can be configured with bore size, length, material, and sealing surface finish to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：DIN 564:1995 Small Hex Head Cone Point Set Screw NEXT：DIN 22424:1990 Triangular Screw

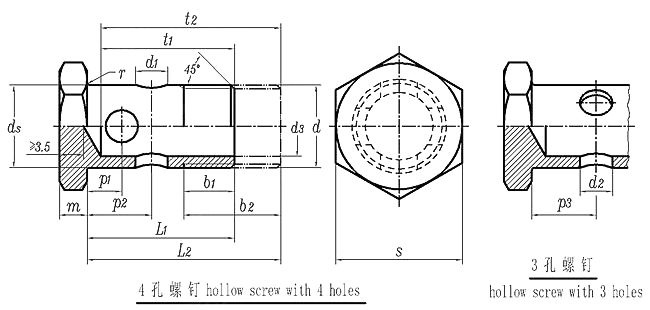

Dimensions unit: inch

 Pipe outer diameter

4 and 5

6

8

10

12

15

18

22

28

35

42

d

M8*1

M10*1

M12*1.5

M14*1.5

M16*1.5

M18*1.5

M22*1.5

M26*1.5

M30*1.5

M38*1.5

M45*1.5

b1

Min.

8.5

8.5

11

11

11

11

13

13

13

15

15

L1

Deviation value

±0.2

17

19

24

26

28

32

39

45

51

61

69

t1

Deviation value

±0.2

15

17

22

24

26

29

35.5

41

46

56

64

b2

Min.

-

12.5

15

17

19

21

24

28

30

-

-

L2

Deviation value

±0.2

-

23

28

32

36

42

50

60

68

-

-

t2

Deviation value

±0.2

-

21

26

30

34

39

46.5

56

63

-

-

d1

Max.

-

3.05

3.8

4.8

5.8

7.36

9.36

11.43

13.43

16.43

20.52

Min.

-

2.8

3.5

4.5

5.5

7

9

11

13

16

20

d2

Max.

3.25

3.8

4.8

5.8

7.36

8.86

11.43

13.93

16.43

20.52

24.52

Min.

3

3.5

4.5

5.5

7

8.5

11

13.5

16

20

24

ds

Max.

8

10

12

14

16

18

22

26

30

38

45

Min.

7.85

9.85

11.82

13.82

15.82

17.82

21.79

25.79

29.79

37.75

44.75

d3

Max.

4.3

5.8

7.36

9.36

11.43

13.43

16.43

20.52

24.52

32.62

39.62

Min.

4

5.5

7

9

11

13

16

20

24

32

39

m

5

6

6

6

6

6

7

7

7

8

9

P1

Deviation value

±0.2

-

4.5

5

5.5

6.5

7.5

9

10.5

12.5

14

16

P2

Deviation value

±0.2

-

6.5

8

9.5

11.5

14

18

22.5

27.5

33

39

P3

Deviation value

±0.2

4.5

6

7

8

9

12

15

17

20

24

28

r

0.2

0.2

0.2

0.2

0.2

0.2

0.4

0.4

0.4

0.6

0.6

s

12

14

17

19

22

24

27

32

36

46

55
