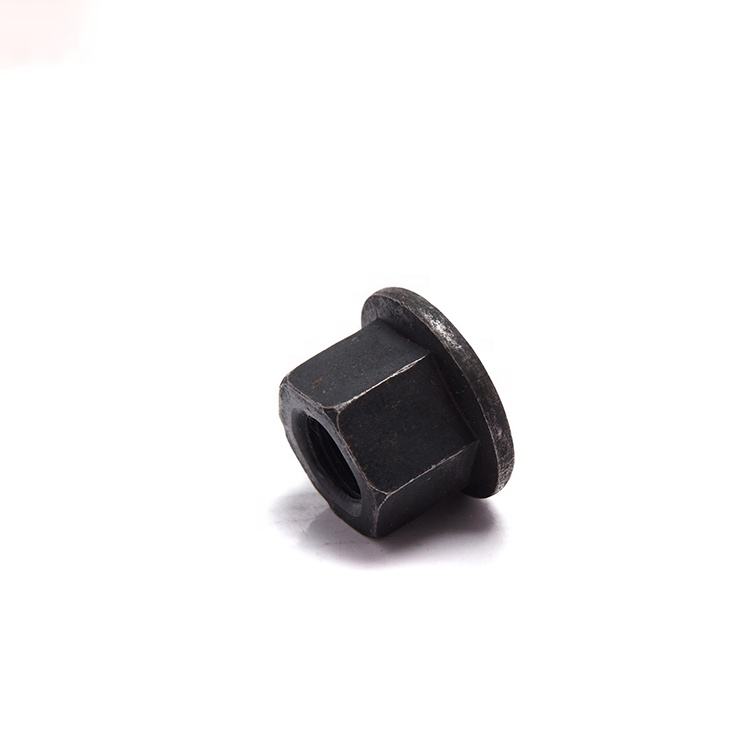

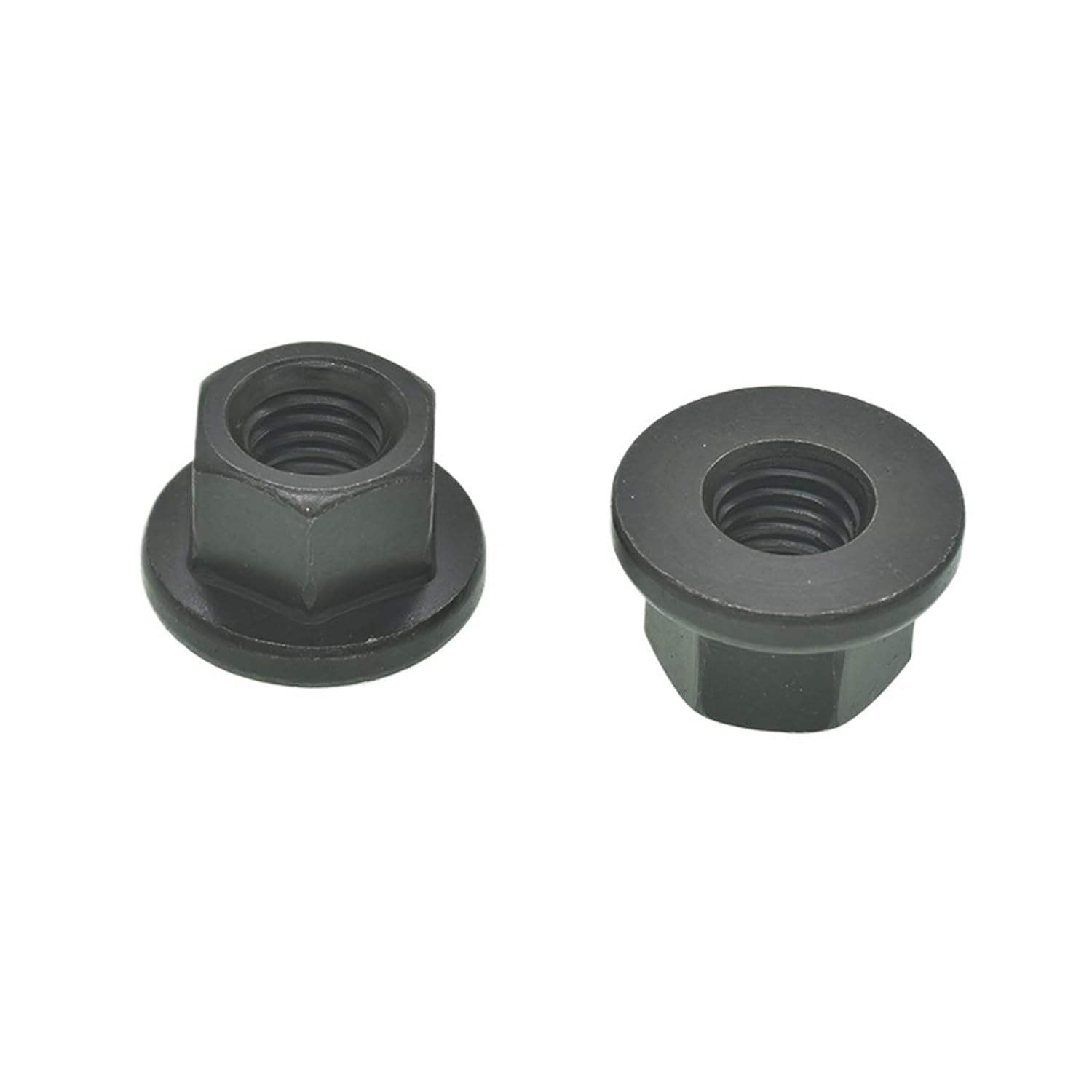

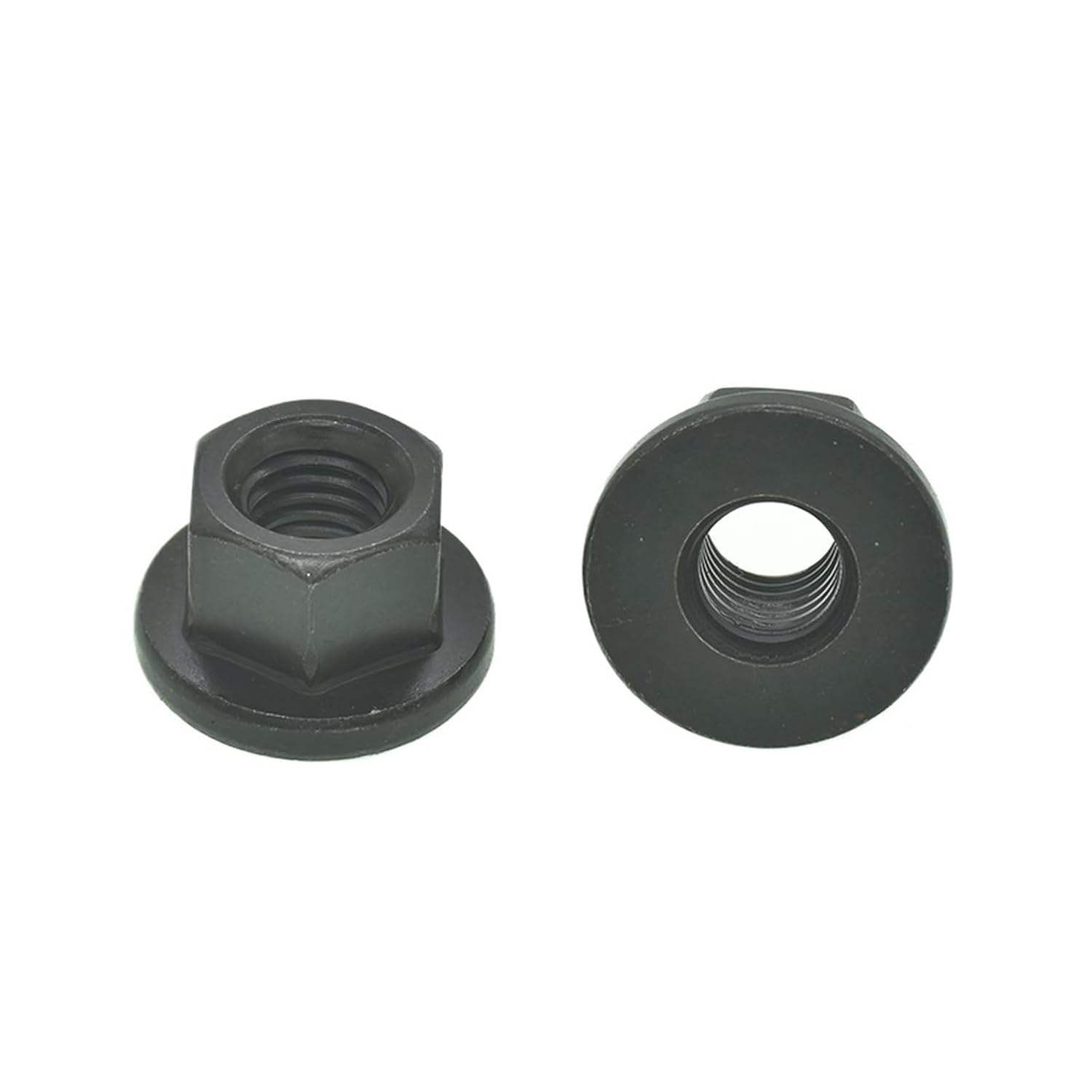

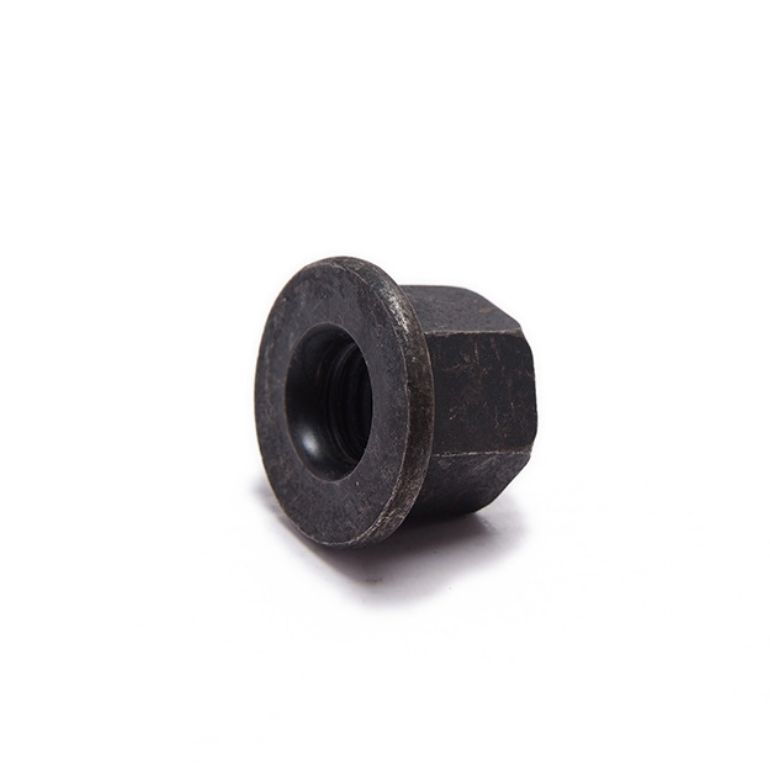

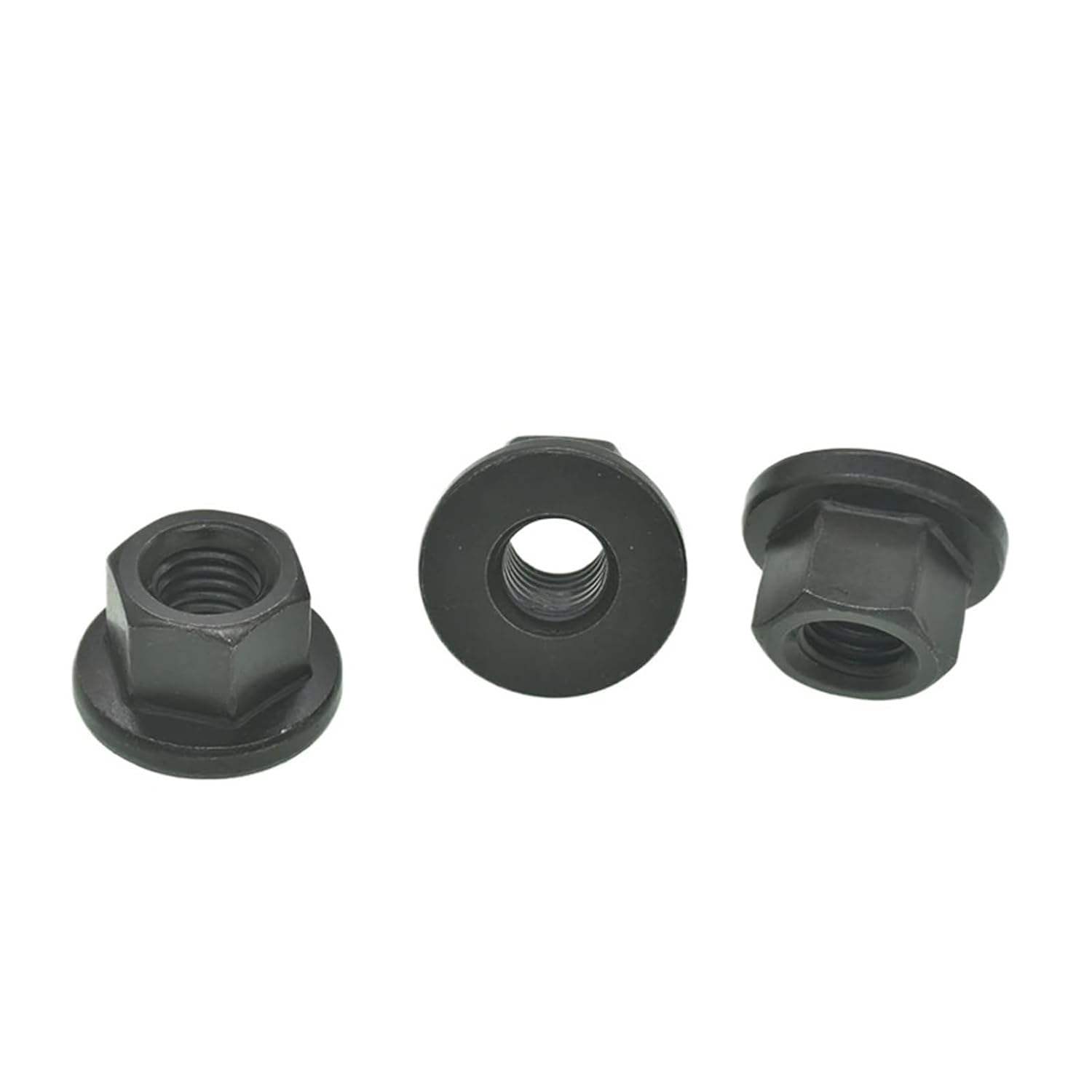

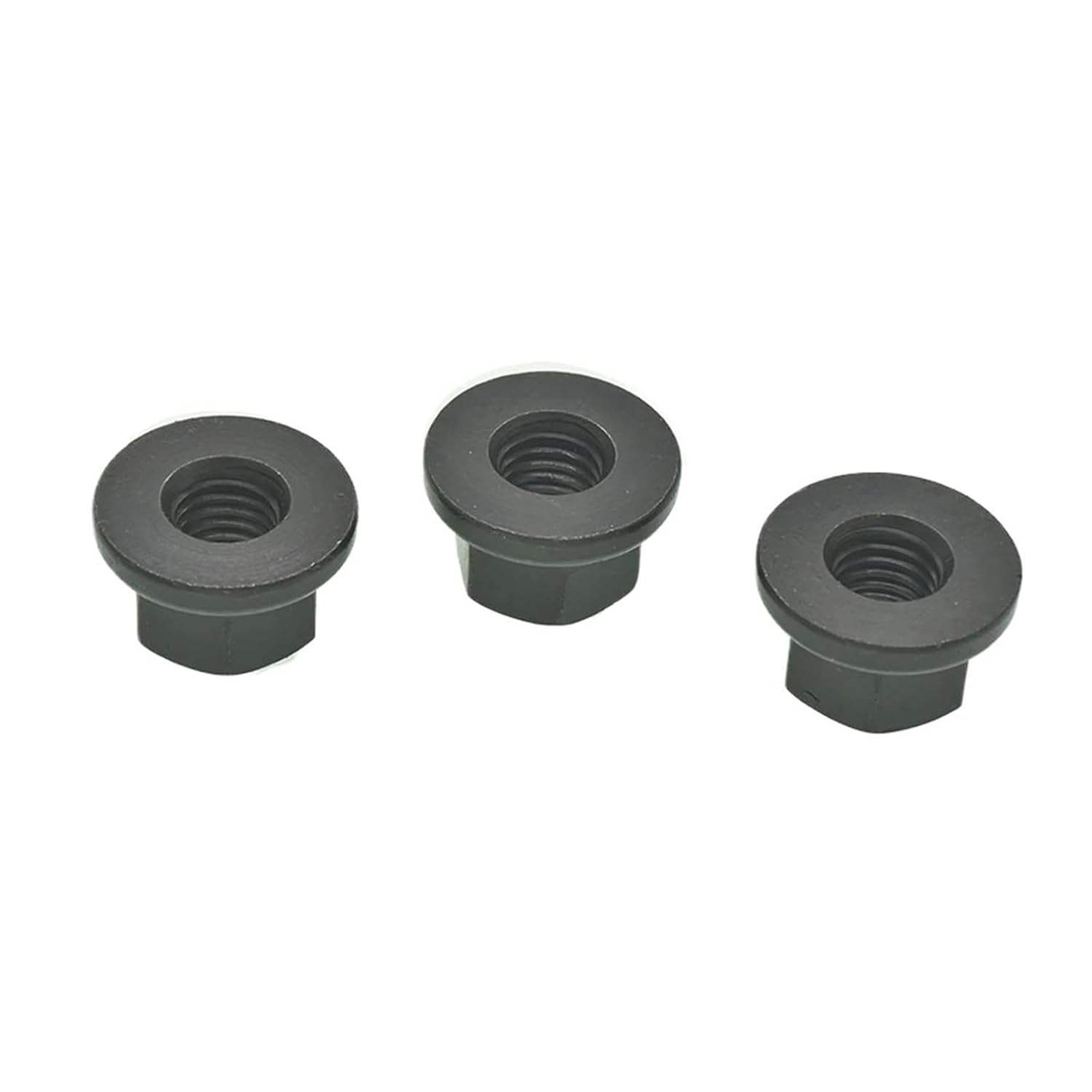

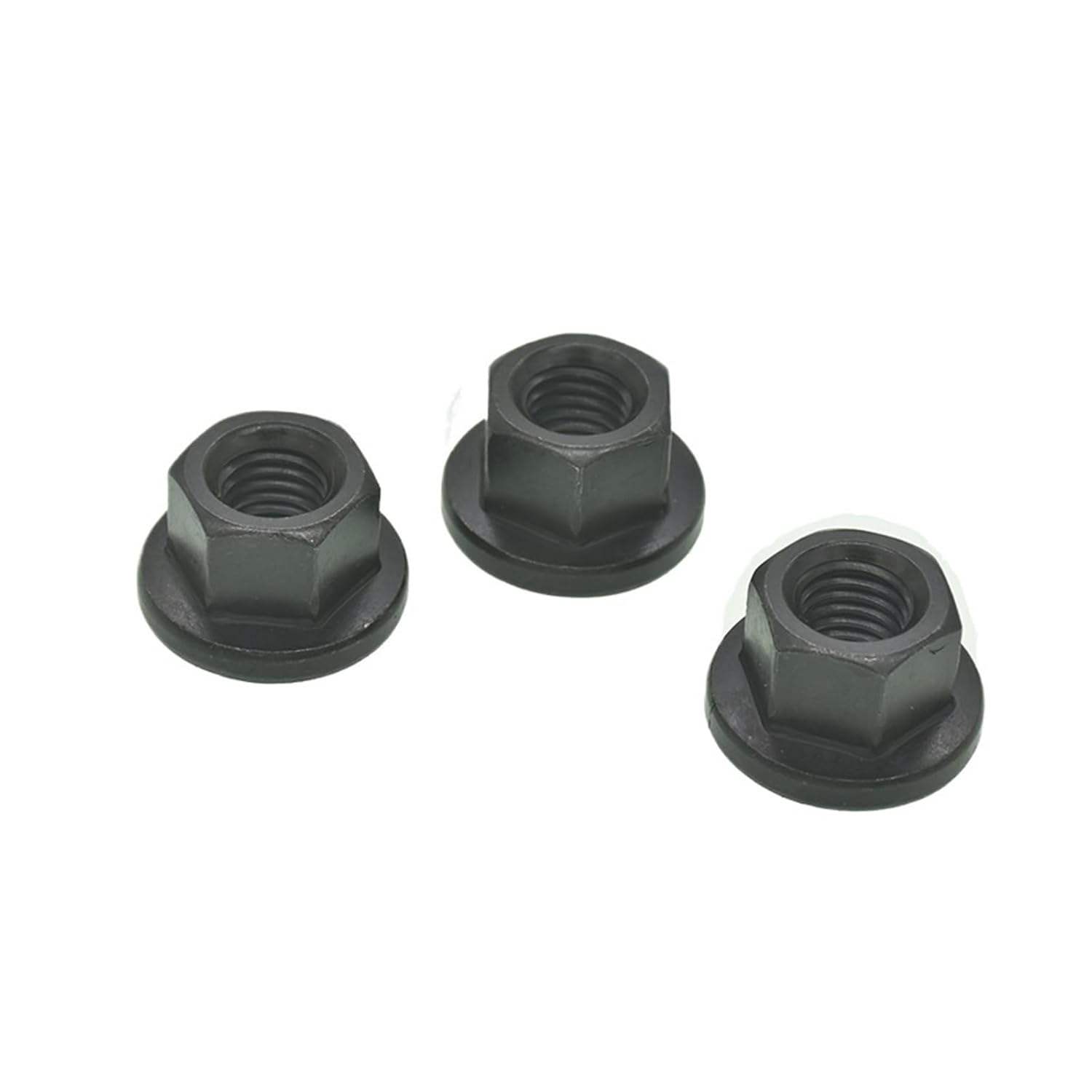

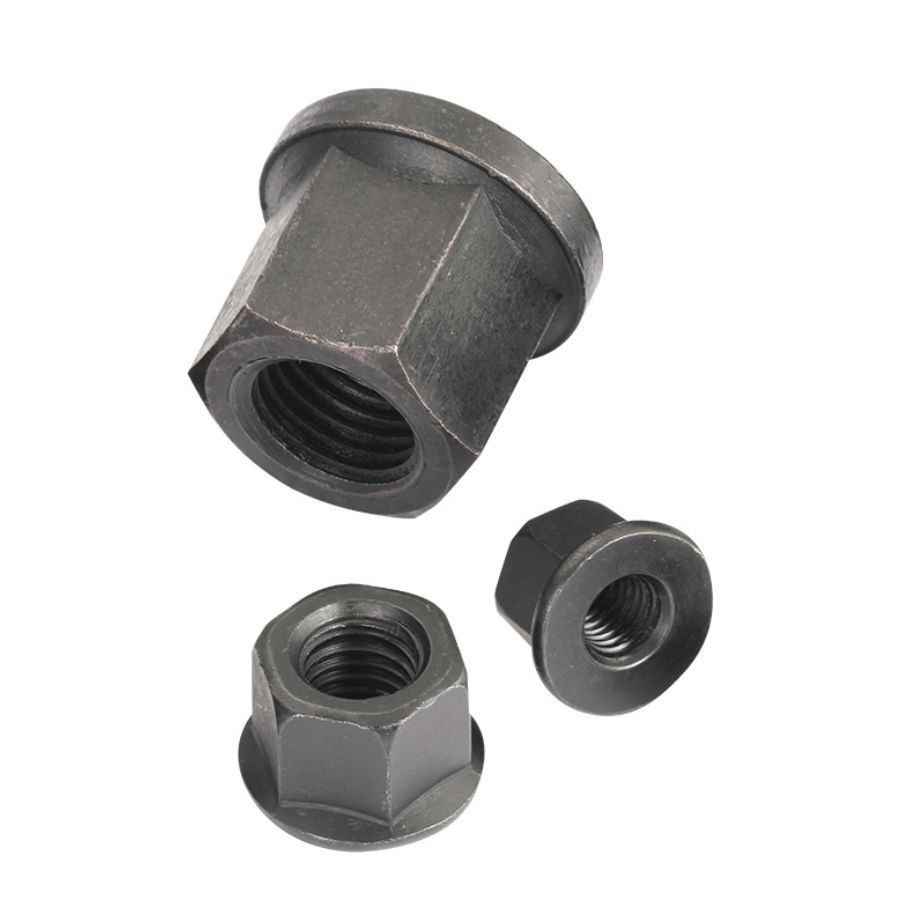

DIN 6331:1991 Hexagon Nut

DIN 6331:1991 Nut with integrated bearing surface provides washer-like support during assembly. Its design helps distribute load, improve contact stability, and reduce the need for a separate washer in selected applications.

This product is suitable for fixtures, tooling, machine-tool accessories, metal brackets, and equipment connections, especially where frequent removal or a more stable bearing face is required. The hex exterior allows operation with standard tools and improves installation efficiency on site.

Strength class, material, and surface finish options can be selected according to service conditions to meet requirements for wear resistance, corrosion protection, and repeated assembly.

Contact Us

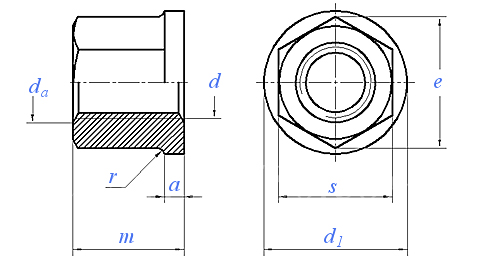

Dimensions unit: mm

Thread size d M6 M8 M10 M12 M16 M20 M24 M27 M30 M36 M42 M48
P Pitch 1 1.25 1.5 1.75 2 2.5 3 3 3.5 4 4.5 5
a Nominal 3 3.5 4 4 5 6 6 7 8 10 12 14
Max. 3.125 3.65 4.15 4.15 5.15 6.15 6.15 7.18 8.18 10.18 12.215 14.215
Min. 2.875 3.35 3.85 3.85 4.85 5.85 5.85 6.82 7.82 9.82 11.785 13.785
d1 Max. 14 18 22 25 31 37 45 50 58 68 80 92
Min. 13.73 17.73 21.67 24.67 30.61 36.61 44.61 49.61 57.54 67.54 79.54 91.46
da Min. 6 8 10 12 16 20 24 27 30 36 42 48
Max. 6.75 8.75 10.8 13 17.3 21.6 25.9 29.1 32.4 38.9 45.4 51.8
e Min. 11.05 14.38 17.77 20.03 26.75 33.53 39.98 45.63 51.28 61.31 72.61 53.91
m Nominal 9 12 15 18 24 30 36 40 45 54 63 72
Max. 9.29 12.35 15.35 18.35 24.42 30.42 36.5 40.5 45.5 54.6 63.6 72.6
Min. 8.71 11.65 14.65 17.65 23.58 29.58 35.5 39.5 44.5 53.4 62.4 71.4
s Max. 10 13 16 18 24 30 36 41 46 55 65 75
Min. 9.78 12.73 15.73 17.73 23.67 29.67 35.38 40.38 45.38 54.26 64.26 74.26
r Max. 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Weight per thousand pieces (steel)≈kg  5 12.4 25.5 36.5 71 135 230 320 470 810 1340 2040
