DIN 15237:1980 Screw adopts a screw form intended for belt and strip-type structures to meet the needs of joints that need reliable clamping in belts, plates, or light covering components.
Its head and shank design generally supports belt seating and load distribution while avoiding excessive local indentation on the belt surface. Its advantages lie in a clear installation method, well-defined load path, and good adaptability across different materials and installation spaces.
This product is suitable for conveying equipment, agricultural machinery, material handling systems, belt joints, and industrial repair. Length, head profile, surface plating, and matching washers can be adjusted for the final application, balancing cost control, corrosion protection, and assembly consistency.

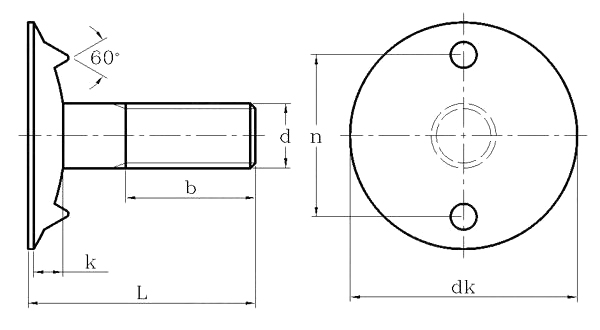

Dimensions unit: inch
|
Thread size d |
M6 |
M8 |
M10 |
M12 |
|
|
P |
Pitch |
1 |
1.25 |
1.5 |
1.75 |
|
dk |
20 |
28 |
35 |
42 |
|
|
n |
14 |
20 |
25 |
30 |
|
|
k |
2.5 |
3.5 |
4.5 |
5.2 |
|
|
Thousand pieces of steel weigh ≈kg |
- |
- |
- |
- |
|
|
Thread length b |
- |
- |
- |
- |
|
