DIN EN ISO 10510 (S1):2011 Hex Head Tapping Screw and Flat Washer Assembly

DIN EN ISO 10510 (S1):2011 Hex Head Tapping Screw and Flat Washer Assembly is characterized by a hex head tapping screw assembled with a flat washer under the ISO system and is intended for assemblies needing socket installation, tapping engagement, and a larger bearing surface.

The flat washer reduces indentation on sheet metal, the hex head supports fast torque application, and the tapping thread creates fastening engagement in pilot holes. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include metal cladding, equipment brackets, vehicle accessories, HVAC equipment, and engineering installation. The product can be configured with washer diameter, screw size, plating, and corrosion-resistant material to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：ASME/ANSI B18.13.1M:2011 Metric Pan Head Slotted Spring Washer Assembly NEXT：ASME B18.13:2017 Hex Head Spring Washer Assembly

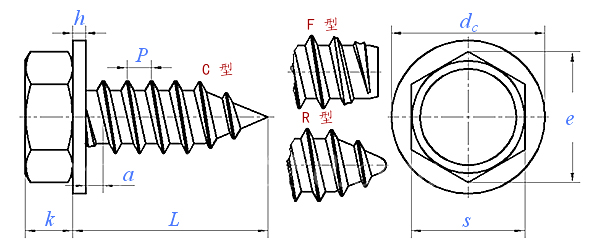

Dimensions unit: inch

Thread size

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

P

Pitch

0.8

1.1

1.3

1.4

1.6

1.8

1.8

2.1

2.1

k

Max.

1.6

2.3

2.6

3

3.8

4.1

4.7

6

7.5

Min.

1.3

2

2.3

2.6

3.3

3.6

4.1

5.2

6.5

s

Max.

3.2

5

5.5

7

8

8

10

13

16

Min.

3.02

4.82

5.32

6.78

7.78

7.78

9.78

12.73

15.73

e

Min.

3.38

5.4

5.96

7.59

8.71

8.71

10.95

14.26

17.62

h

Standard type

Nominal

1

1

1

1

1

1.6

1.6

1.6

2

Enlarged size

Nominal

1

1

1

1

1.6

1.6

1.6

2

2.5

dc

Standard type

Max.

5

7

8

9

10

12

14

16

20

Enlarged size

Max.

7

9

11

12

15

15

18

24

30

a

Max.

0.8

1.1

1.3

1.4

1.6

1.8

1.8

2.1

2.1

①, The mechanical properties of screws as components of combined self-tapping screws must comply with the requirements of ISO 2702. After assembly and heat treatment, the gasket must have a hardness of 90HV to 320HV.

Vickers hardness testing must be performed according to ISO 6507-1.

Test load: HV 10, nominal thickness h~1,2 mm

Test load: HV 30, nominal thickness h > 1,2 mm

Appropriate precautions must be taken before assembly

②, the name and code of the screw

ISO 1479, Hexagonal self-tapping screws, S1

③, Name and code of gasket:

ISO 10669, Flat washers - for combination self-tapping screws, standard N, extra L
