EN 14399-10 (CS Bolt):2018 High Strength Preload HRC System Tension Control Countersunk Head Bolt

EN 14399-10 (CS Bolt):2018 High Strength Preload HRC System Tension Control Countersunk Head Bolt is used where structural joints require controlled preload, low head projection, and high load capacity at the same time.

The HRC tension-control system supports more controlled installation results, while the countersunk head reduces protrusion. It is suitable for steel structures, bridge components, platform panels, and nodes requiring clearance or surface flatness.

This product is usually managed as part of a matched assembly, so consistency among bolts, nuts, and washers is important. Installation should consider friction-surface preparation, tightening sequence, and final inspection to ensure preload and structural safety.

Contact Us

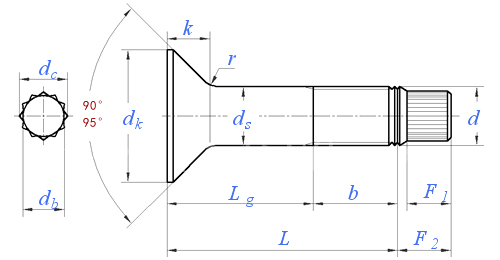

Dimensions unit: mm

Thread size d M12 M16 M20 M22 M24 M27 M30 M36
P Pitch 1.75 2 2.5 2.5 3 3 3.5 4
b L≤125 30 38 46 50 54 60 66 78
125<L≤200 - 44 52 56 60 66 72 84
L>200 - - 65 69 73 79 85 97
ds Max. 12.7 16.7 20.84 22.84 24.84 27.84 30.84 37
Min. 11.3 15.3 19.16 21.16 23.16 26.16 29.16 35
dk Max. 24 32 40 44 48 54 60 72
Min. 23.16 31.16 39 43 47 53 58.8 70.8
k Nominal 8 10 13 14 16 17.5 19.5 23
Max. 8.75 10.75 13.9 14.9 16.9 18.4 20.55 24.05
Min. 7.25 9.25 12.1 13.1 15.1 16.6 18.45 21.95
r Max. 1.6 1.6 2 2 2 2.5 2.5 2.5
Min. 1.2 1.2 1.5 1.5 1.5 2 2 2
db Nominal 7.7 11.3 14.1 15.4 16.8 19 21.1 25.4
Max. 8 11.6 14.4 15.7 17.1 19.3 21.4 25.7
Min. 7.4 11 13.8 15.1 16.5 18.7 20.8 25.1
dc Min. 8.36 12.43 15.6 17.06 18.65 21.13 23.5 28.5
F1 Min. 11 13 15 15.5 16 19 21 25
F2 Max. 16 18 20 21 21.5 24 26 31
Lg Max. - - - - - - - -
Thread length b  - - - - - - - -
