ASME/ANSI B18.13.1M:2011 Metric Pan Head Slotted Spring Washer Assembly

ASME/ANSI B18.13.1M:2011 Metric Pan Head Slotted Spring Washer Assembly features a metric slotted pan head tapping screw with a spring washer in SEMS form, making it suitable for light assemblies requiring tapping engagement, elastic anti-loosening support, and pre-assembled part management.

The spring washer provides elastic compensation after tightening to help resist light vibration loosening; the slotted pan head supports common tooling and the tapping thread enables direct installation. This structure supports efficient assembly while balancing joint stability, load distribution, and convenient maintenance, making it practical for standardized purchasing and volume production.

This product can be used in electrical equipment, control boxes, light metal parts, repair replacement, and export projects. Spring washer size, screw length, and surface finish can be selected to meet requirements for corrosion protection, wear resistance, assembly efficiency, and long-term reliability.

Contact Us
PREV：DIN 6901:1990 Washer Assembly Assembly NEXT：DIN EN ISO 10510 (S1):2011 Hex Head Tapping Screw and Flat Washer Assembly

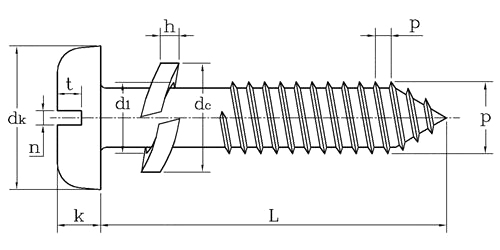

Dimensions unit: inch

Thread size d

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

P

Pitch

1.1

1.3

1.4

1.6

1.8

1.8

2.1

2.1

d1

Max.

2.57

3.08

3.66

4.11

4.78

5.52

7.06

8.59

Min.

2.44

2.95

3.5

3.96

4.6

5.31

6.86

8.38

h

Min.

0.79

0.86

0.79

1.42

1.42

1.57

1.98

2.39

dc

Max.

5.1

6.43

7.82

8.43

9.09

11.82

13.61

15.95

Min.

4.83

6.09

7.47

8.07

8.71

11.41

13.21

15.54

dk

Max.

5.6

7

8

9.5

11

12

16

20

Min.

5.3

6.6

7.6

9.1

10.6

11.6

15.6

19.5

k

Max.

1.8

2.1

2.4

3

3.2

3.6

4.8

6

Min.

1.6

1.9

2.2

2.7

2.9

3.3

4.5

5.7

n

Min.

0.86

1.06

1.26

1.26

1.66

1.66

2.06

2.56

Max.

1

1.2

1.51

1.51

1.91

1.91

2.31

2.81

t

Min.

0.7

0.8

1

1.2

1.3

1.4

1.9

2.4
