DIN 525:1986 Weld Stud is characterized by a weld stud structure and is intended for applications requiring a strong external threaded mounting point on metal base material.
One end of the stud is welded to the base and the other end is used for nuts or component mounting, reducing through-holes, improving surface neatness, and supporting automated welding. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.
Typical applications include automotive bodies, ship structures, electrical cabinets, equipment base plates, and metal housings. The product can be configured with weld-end form, thread length, material, and coating to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

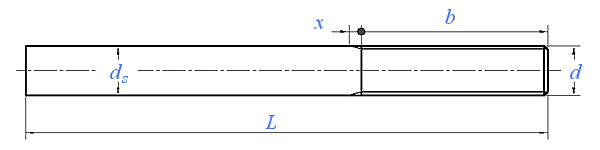

Dimensions unit: inch
|
Thread size d |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
|
|
P |
Pitch |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
|
b |
+2P,0 |
35 |
40 |
45 |
55 |
65 |
75 |
85 |
105 |
125 |
145 |
165 |
|
ds |
Max.=Nominal |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
30 |
36 |
42 |
48 |
|
L |
Nominal |
130 |
140 |
150 |
170 |
190 |
210 |
230 |
270 |
310 |
350 |
390 |
|
Min. |
128 |
138 |
148 |
168 |
187.7 |
207.7 |
227.7 |
267.4 |
307.4 |
347.1 |
387.1 |
|
|
Max. |
132 |
142 |
152 |
172 |
192.3 |
212.3 |
232.3 |
272.6 |
312.6 |
352.9 |
392.9 |
|
|
Weight per thousand pieces (steel)≈kg |
26 |
49.2 |
83.5 |
135 |
273 |
473 |
745 |
1370 |
2280 |
3510 |
5110 |
|
① x(maximum value)=2.5P
FAQ
A: We take every inquiry seriously. On working days, we will respond within 12 hours after receiving your inquiry.
A: We focus on the production of fasteners made of carbon steel, stainless steel, and low-alloy steel. We are a direct manufacturer with independent production capacity. DIN 525:1986 Weld Stud Factory. We own several fastener manufacturing facilities and have an international sales department, providing full-process services from production to export.
A: Customized production is our core business. We can develop and manufacture products based on the drawings or samples you provide.
A: Yes. In addition to custom products, we also produce general construction machinery parts (GET parts) for equipment such as excavators, including bucket teeth, tooth holders, corner blades, pins, clips, bolts and nuts. DIN 525:1986 Weld Stud Wholesale.
A: We have 12 energy-efficient and environmentally friendly modern production lines (including one fully automatic shell molding line and four heat treatment lines), with an annual production capacity exceeding 20,000 tons, enabling us to steadily meet various order requirements.
A: Trade terms (such as FOB, CIF, etc.) are confirmed when quoting. For batch production, we typically require a 30% deposit, with the balance paid against the copy of the bill of lading. T/T is the main payment method accepted, and L/C can also be negotiated.
A: We are only 35 km away from Shanghai Port and Ningbo Port, so sea freight is the main mode of transportation, which is convenient and efficient. For urgent deliveries, we can also arrange air freight via Ningbo or Shanghai airports.
