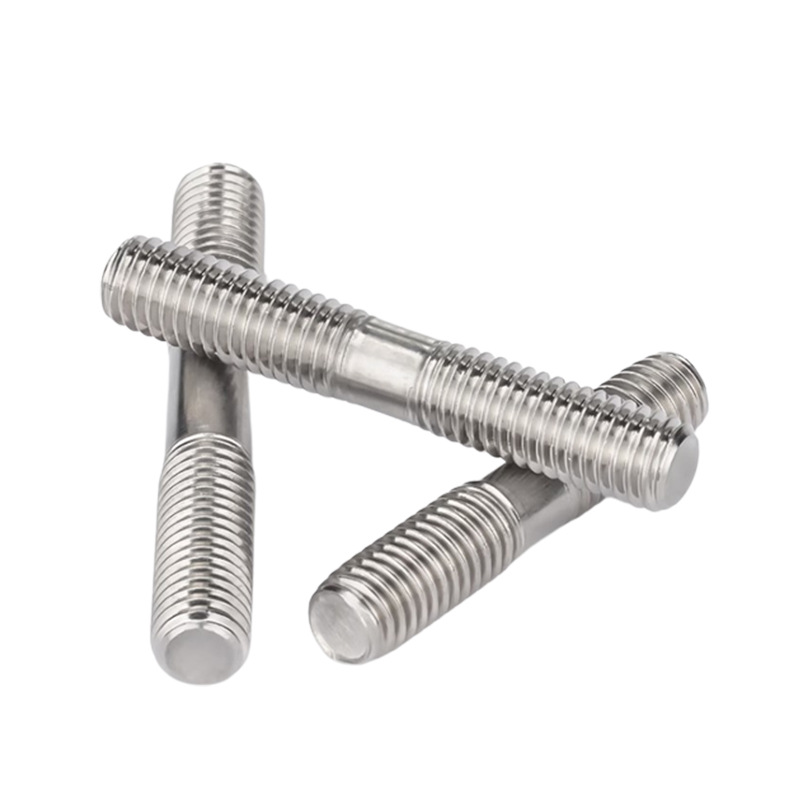

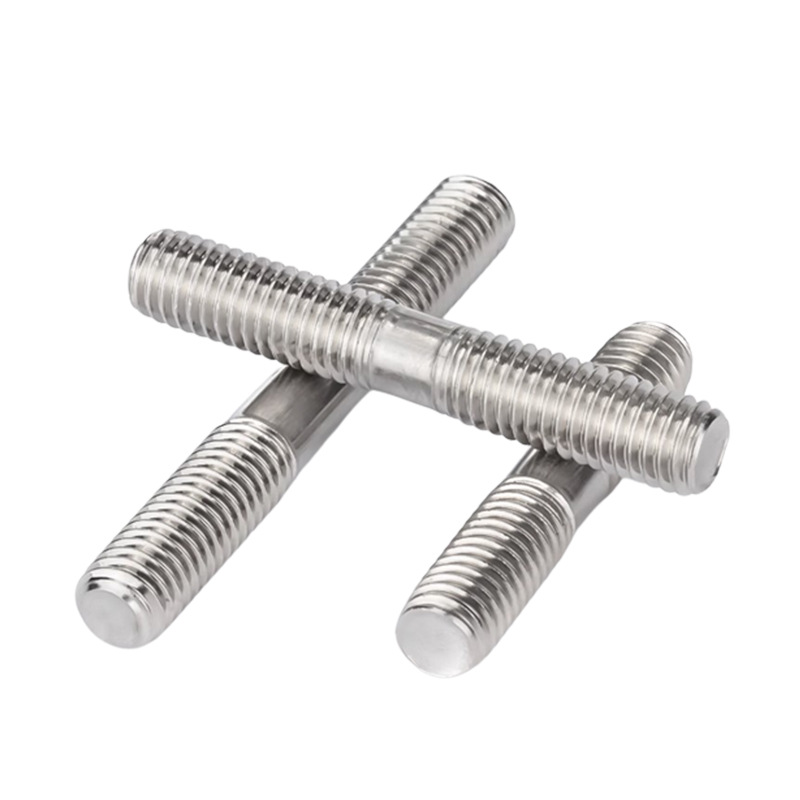

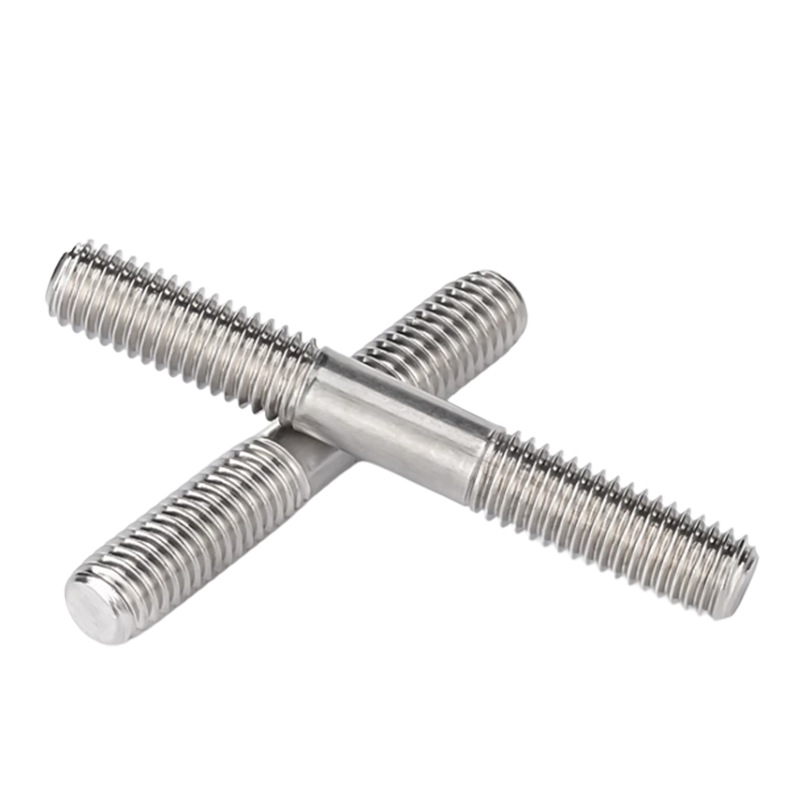

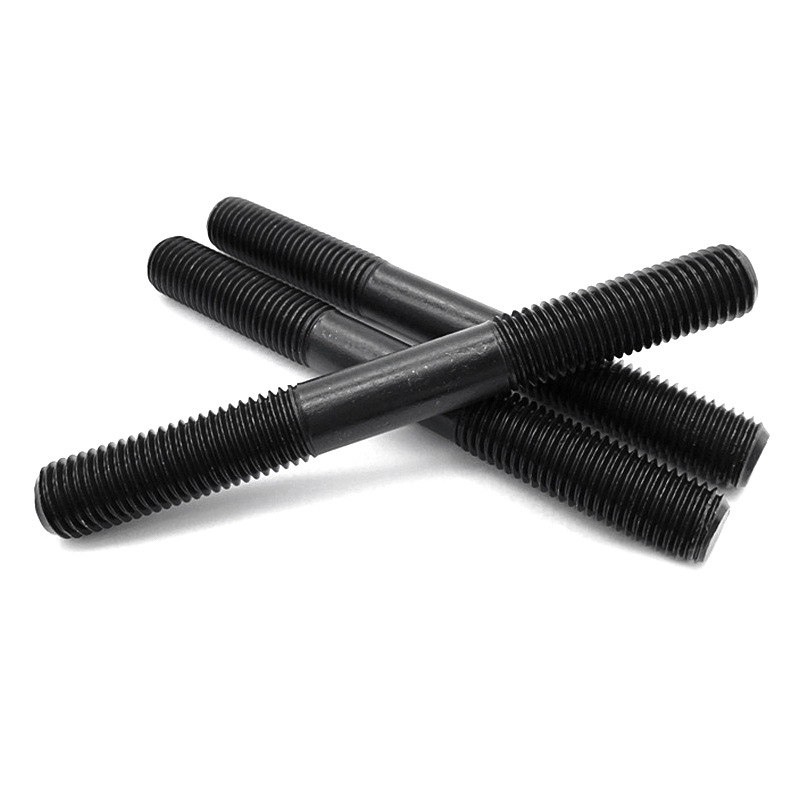

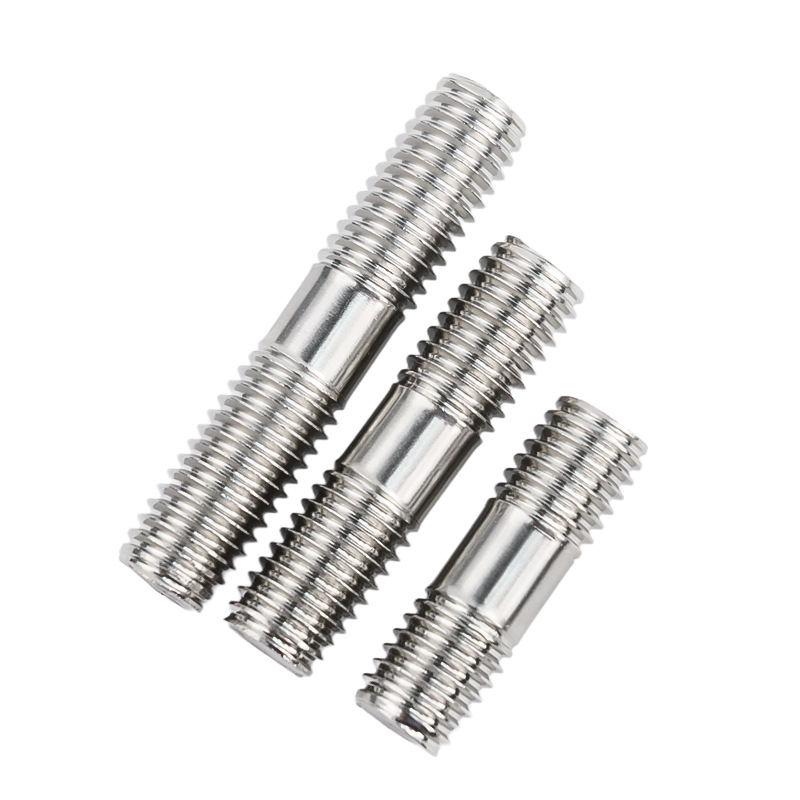

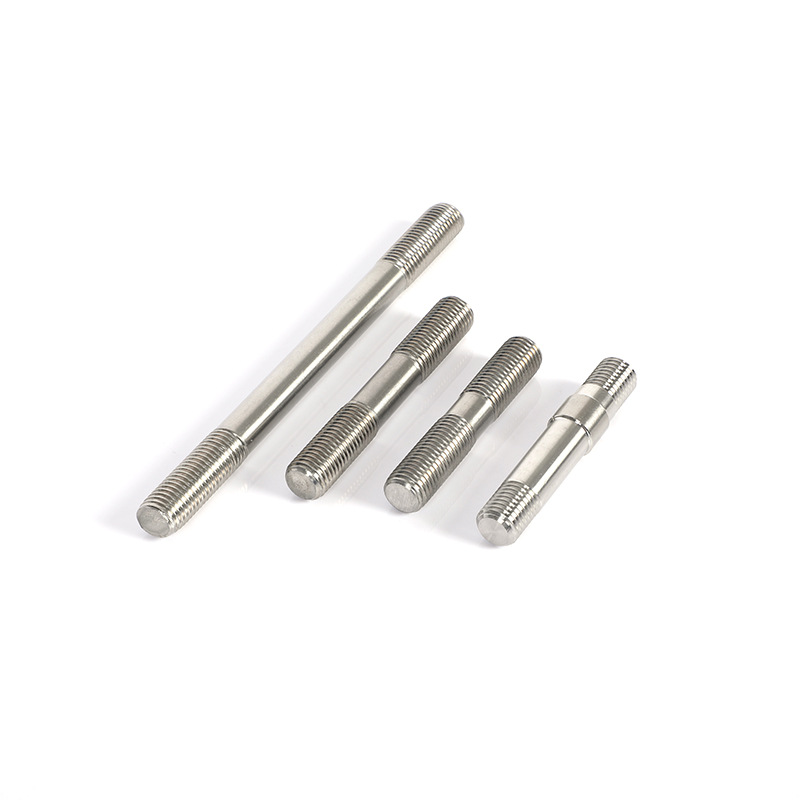

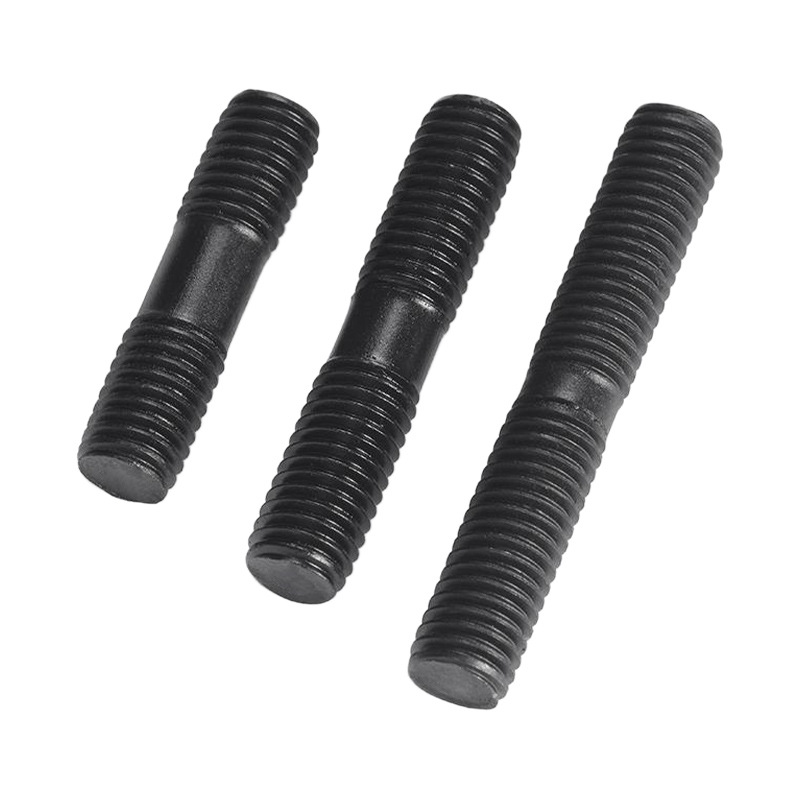

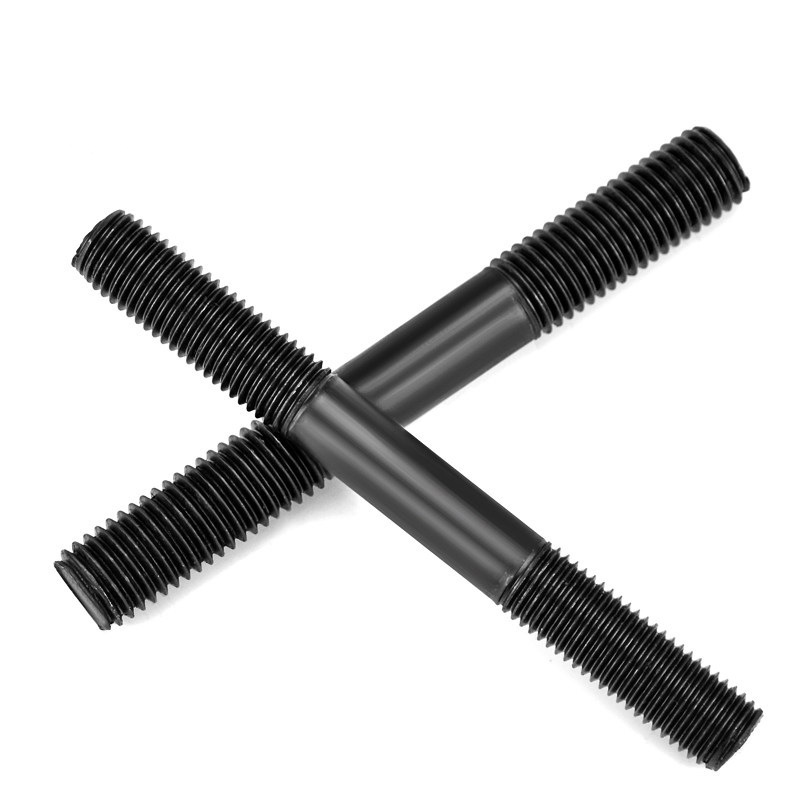

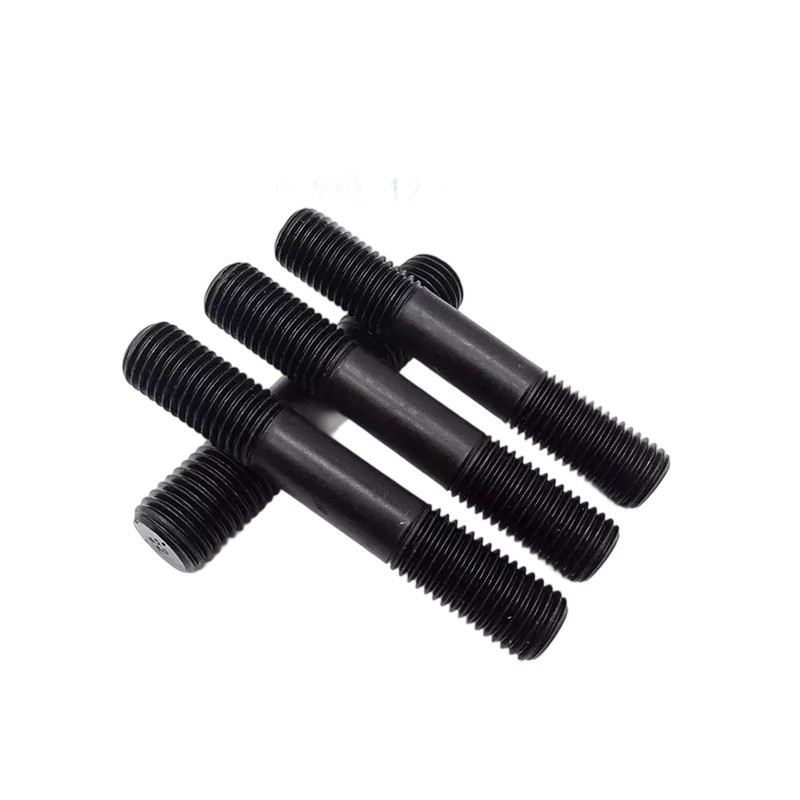

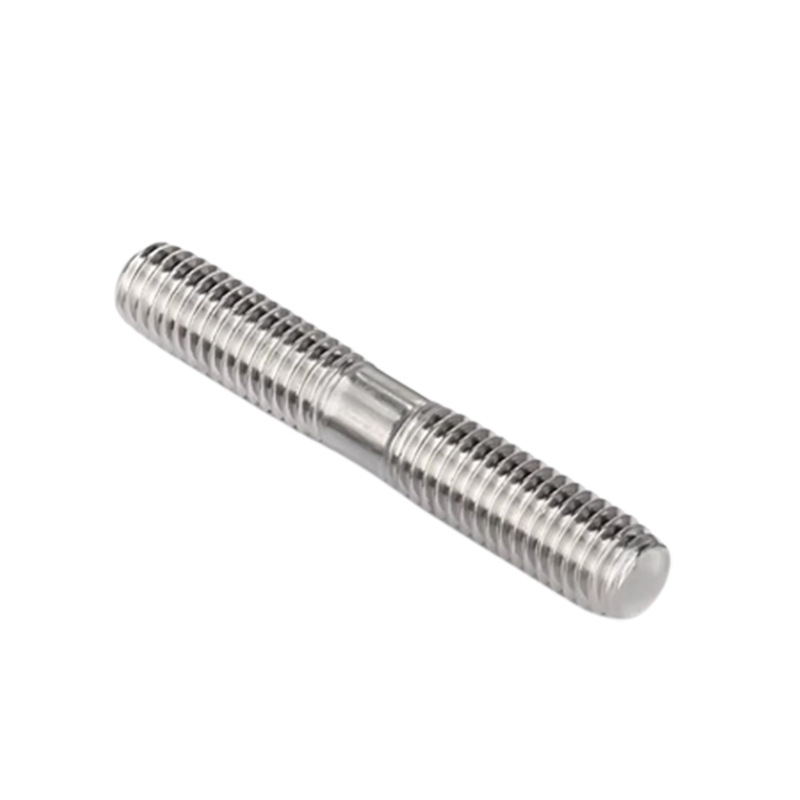

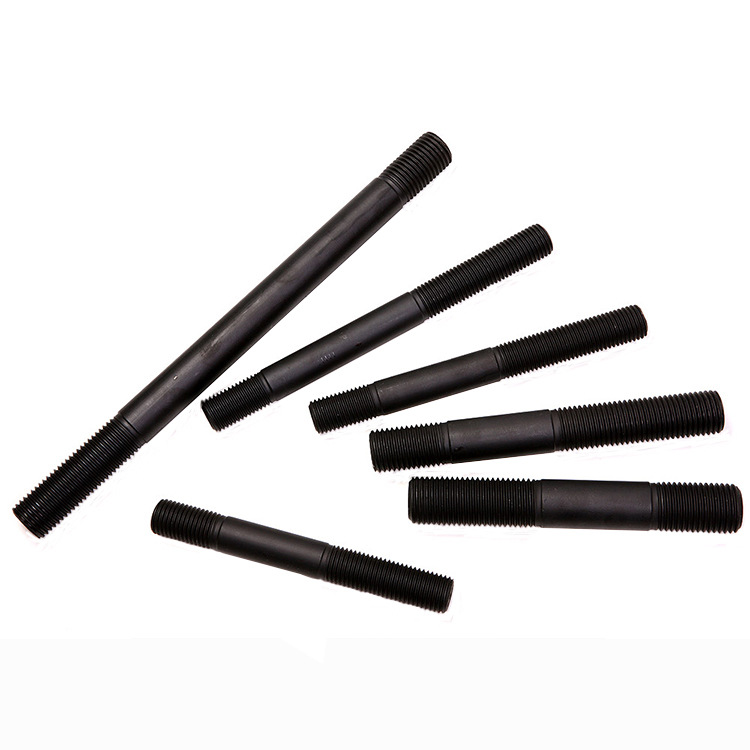

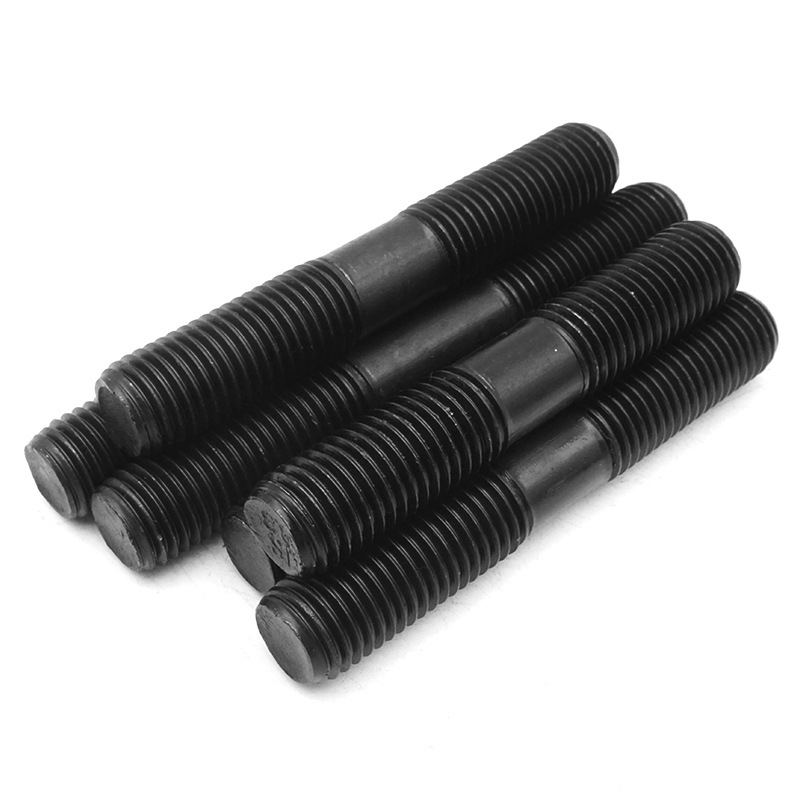

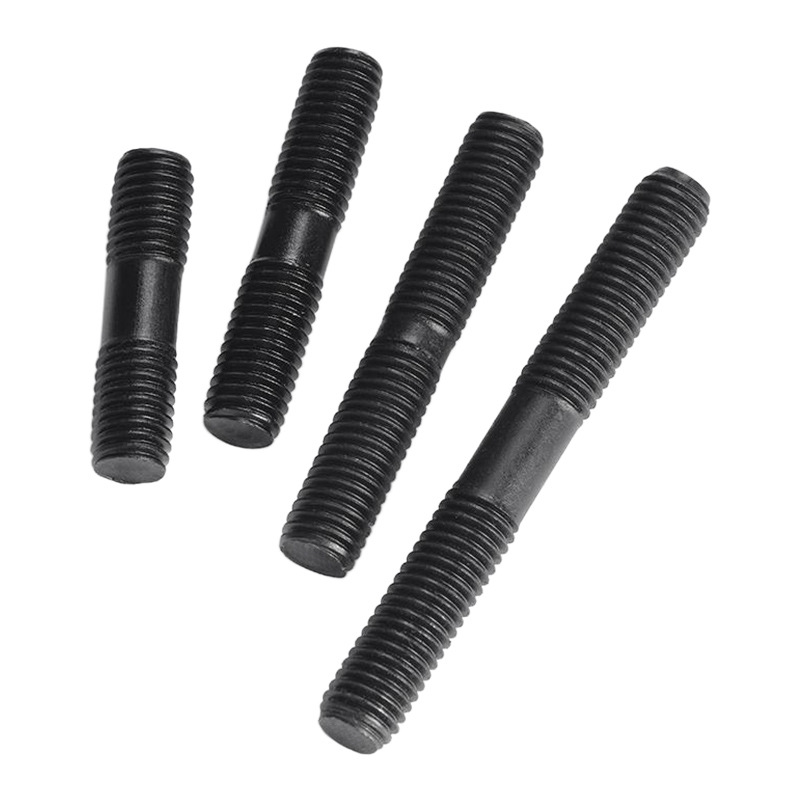

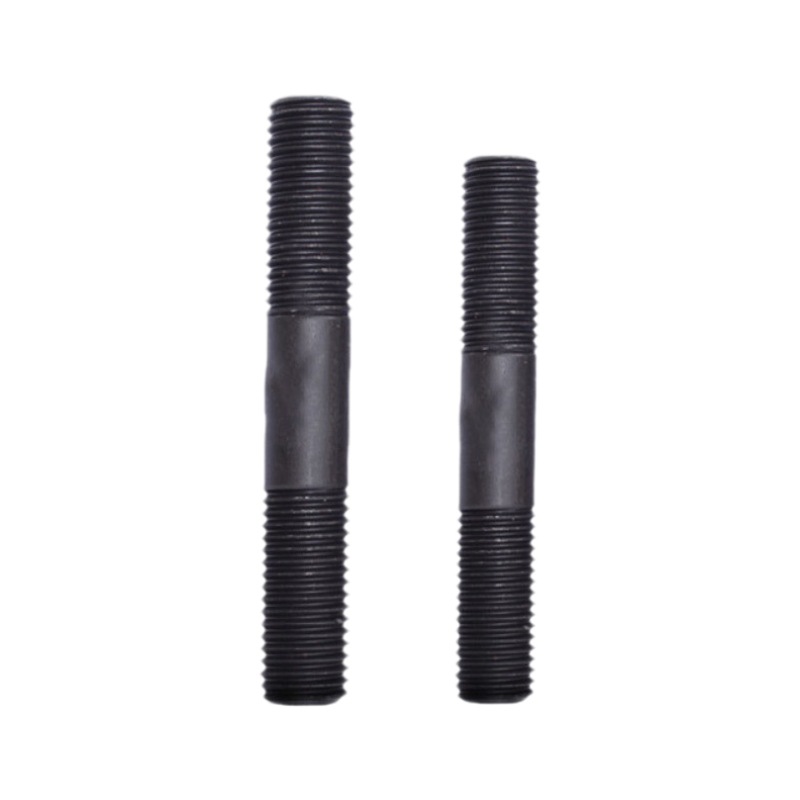

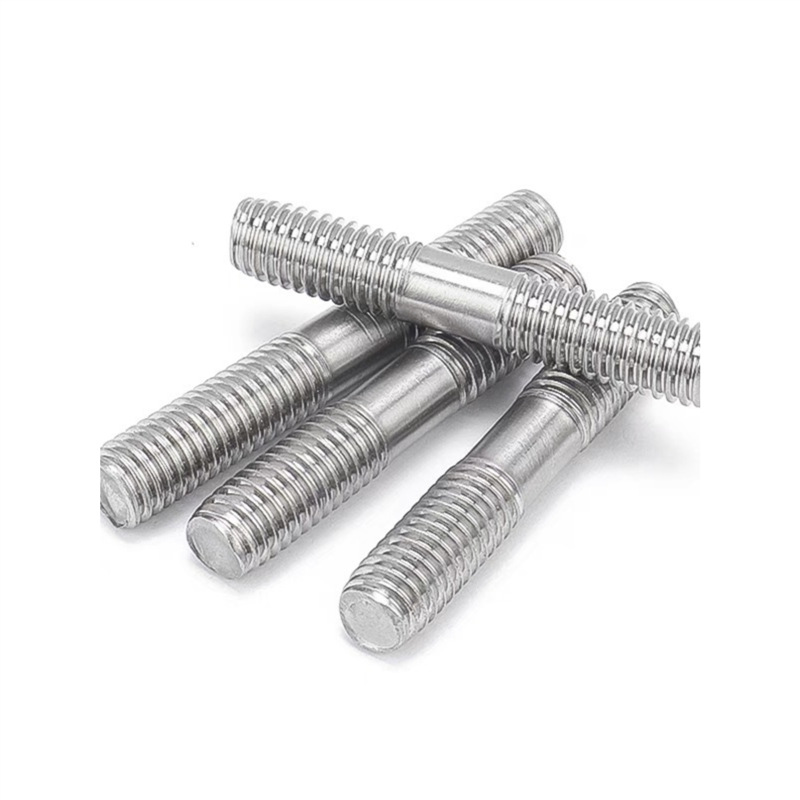

DIN 835:2025 b1≈2d Double End Stud

DIN 835:2025 b1≈2d Double End Stud is used where one end is screwed into a base component and the other end is fastened with a nut. The b1≈2d engagement length is suitable for base connections requiring deeper thread engagement and reliable location.

A double end stud allows repeated removal of the outer nut without repeatedly wearing the internal thread of the base. It is used in flanges, pumps, valves, equipment housings, molds, and machinery mounting faces. The middle shank or non-engaged section can provide location and support.

Engagement length, exposed-end length, thread size, and base material should be confirmed. For cast iron, aluminum alloy, or softer materials, thread depth and thread-strength compatibility are especially important.

Contact Us

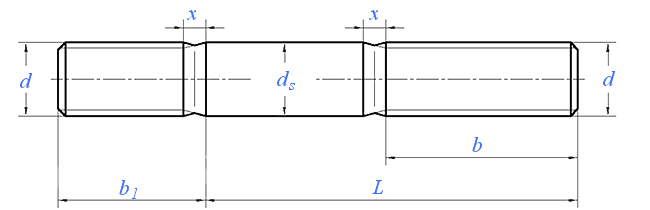

Dimensions unit: mm

Thread size

M4

M5

M6

(M7)

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

d



P

Pitch

Coarse teeth

0.7

0.8

1

1

1.25

1.5

1.75

2

2

2.5

2.5

2.5

3

Fine Teeth 1

/

/

/

/

1

1.25

1.25

1.5

1.5

1.5

1.5

1.5

2

Fine Teeth 2

/

/

/

/

/

/

1.5

/

/

/

/

/

/

b1

8

10

12

14

16

20

24

28

32

36

40

44

48

b

L≤125

14

16

18

20

22

26

30

34

38

42

46

50

54

125<L≤200

20

22

24

26

28

32

36

40

44

48

52

56

60

L>200

/

/

/

/

/

45

49

53

57

61

65

69

73

ds

Max.

4

5

6

7

8

10

12

14

16

18

20

22

24

Min.

3.82

4.82

5.82

6.78

7.78

9.78

11.73

13.73

15.73

17.73

19.67

21.67

23.67

x

1.75

2

2.5

2.5

3.2

3.8

4.3

5

5

6.3

6.3

6.3

7.5

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-

-

-

-
