DIN 478:2016 Square Head Bolt

DIN 478:2016 Square Head Bolt features a square head with an integral bearing surface. The head can be gripped with a wrench, while the bearing face helps enlarge the contact area and reduce local surface damage.

The square head can provide anti-rotation benefits in fixtures, channels, or special locating structures, improving stability during assembly. The integrated bearing surface may also reduce the need for a separate washer in certain mounting positions, simplifying installation.

This bolt is used for machine tool accessories, fixtures, rail clamps, bracket fixing, and industrial equipment connections. Different strength classes and surface treatments can be selected for heavy loads, repeated disassembly, or corrosion-sensitive environments.

Contact Us
PREV：ASME/ANSI B18.6.2 (T4):1998 Square Head Set Screw NEXT：DIN 34827:2016 Torx Set Screw

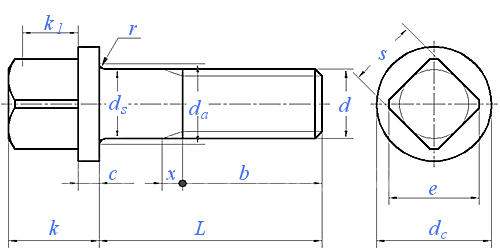

 Dimensions unit: inch

Thread size d

M5

M6

M8

M10

M12

M16

M16

M20

M20

M24

SW16

SW17

SW21

SW22

P

Pitch

0.8

1

1.25

1.5

1.75

2

2

2.5

2.5

3

b

+2P，0

L≤125

16

18

22

26

30

38

38

46

46

54

L＞125

-

-

-

32

36

44

44

52

52

60

c

Min.

1.88

1.88

1.88

2.88

2.88

3.85

3.85

4.85

4.85

5.85

Max.

2.12

2.12

2.12

3.12

3.12

4.15

4.15

5.15

5.15

6.15

dc

Max.=Nominal

9.5

10.5

13.5

16.5

19.5

25

25

31

31

36

Min.

8.92

9.8

12.8

15.8

18.66

24.16

24.16

30

30

35

ds

Max.=Nominal

5

6

8

10

12

16

16

20

20

24

Min.

4.82

5.82

7.78

9.78

11.73

15.73

15.73

19.67

19.67

23.67

k

Min.

6.82

7.82

9.82

12.78

14.78

19.74

19.74

24.74

24.74

27.74

Max.

7.18

8.18

10.18

13.22

15.22

20.26

20.26

25.26

25.26

28.26

s

Max.=Nominal

5

6

8

10

13

16

17

21

22

24

Min.

4.82

5.82

7.78

9.78

12.73

15.73

16.73

20.67

21.67

23.67

e

Max.=Nominal

6.5

8

10

13

17

21

22

27

28

32

Min.

5.92

7.42

9.42

12.3

16.3

20.16

21.16

26.16

27.16

31

da

Max.

5.7

6.8

9.2

11.2

13.7

17.7

17.7

22.4

22.4

26.4

k1

Min.

3.4

4.1

5.5

6.9

8.3

11.1

11.1

13.8

13.8

15.2

r

Min.

0.2

0.25

0.4

0.4

0.6

0.6

0.6

0.8

0.8

0.8

x

Max.

2

2.5

3.2

3.8

4.3

5

5

6.3

6.3

7.5

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-

Thread length b

-

-

-

-

-

-

-

-

-

-
