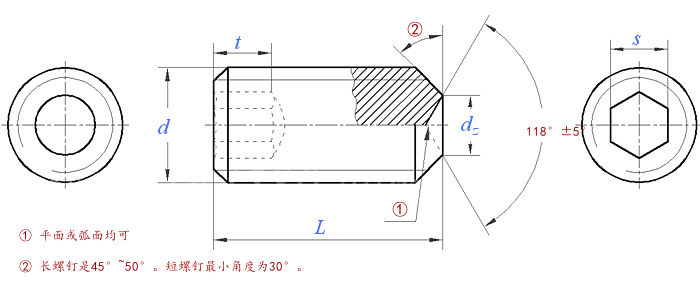

ASME B18.3 (T14 CUP-A):2012 Hex Socket Cup Point Set Screw

ASME B18.3 (T14 CUP-A):2012 Hex Socket Cup Point Set Screw uses the cup point design defined in the ASME B18.3 system and is suitable for U.S. standard equipment, export machinery, and fastening locations requiring unified spare part specifications.

The cup point provides strong grip on the locking surface and helps prevent collars, hubs, or adjustment parts from rotating relative to the shaft. The hex socket allows stable torque application in narrow spaces and improves assembly consistency.

This product can be used in transmission systems, mechanical adjustment mechanisms, automation equipment, instrument assemblies, and industrial maintenance. Multiple material, strength, and surface treatment options can be supplied to improve loosening resistance, wear resistance, and corrosion protection.

Contact Us

Dimensions unit: inch


Thread size
 d

0#

1#

2#

3#

4#

5#

6#

8#

10#

1/4

5/16

3/8

d

Thread diameter

0.0600

0.0730

0.0860

0.0990

0.1120

0.1250

0.1380

0.1640

0.1900

0.2500

0.3125

0.3750

PP

Coarse Thread/UNC

-

64.0

56.0

48.0

40.0

40.0

32.0

32.0

24.0

20.0

18.0

16.0

Fine Thread/UNF

80.0

72.0

64.0

56.0

48.0

44.0

40.0

36.0

32.0

28.0

24.0

24.0

Extra-Fine Thread/UNEF

-

-

-

-

-

-

-

-

-

32.0

32.0

32.0

s

Nominal

0.028

0.035

0.035

0.050

0.050

0.062

0.062

0.078

0.094

0.125

0.156

0.188

t ③

Min.

0.050

0.060

0.060

0.070

0.070

0.080

0.080

0.090

0.100

0.125

0.156

0.188

dz

Max.

0.033

0.040

0.047

0.054

0.061

0.067

0.074

0.087

0.102

0.132

0.172

0.212

Min.

0.027

0.033

0.039

0.045

0.051

0.057

0.064

0.076

0.088

0.118

0.156

0.194

L0 ②

0.13

0.13

0.13

0.19

0.19

0.19

0.19

0.19

0.19

0.25

0.31

0.38




Thread size
 d

7/16

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

2

d

Thread diameter

0.4375

0.5000

0.6250

0.7500

0.8750

1.0000

1.1250

1.2500

1.3750

1.5000

1.7500

2.0000

PP

Coarse Thread/UNC

14.0

13.0

11.0

10.0

9.0

8.0

7.0

7.0

6.0

6.0

5.0

4.5

Fine Thread/UNF

20.0

20.0

18.0

16.0

14.0

12.0

12.0

12.0

12.0

12.0

-

-

Extra-Fine Thread/UNEF

28.0

28.0

24.0

20.0

20.0

20.0

18.0

18.0

18.0

18.0

-

-

s

Nominal

0.219

0.250

0.312

0.375

0.500

0.562

0.562

0.625

0.625

0.750

1.000

1.000

t ③

Min.

0.219

0.250

0.312

0.375

0.500

0.562

0.562

0.625

0.625

0.750

1.000

1.000

dz

Max.

0.252

0.291

0.371

0.450

0.530

0.609

0.689

0.767

0.848

0.926

1.086

1.244

Min.

0.232

0.270

0.347

0.425

0.502

0.579

0.655

0.733

0.808

0.886

1.039

1.193

L0 ②

0.44

0.5

0.63

0.75

0.88

1

1.25

1.25

1.5

1.5

1.75

2
