ASME B18.2.1 (T8):2012 Hex Flange Screw

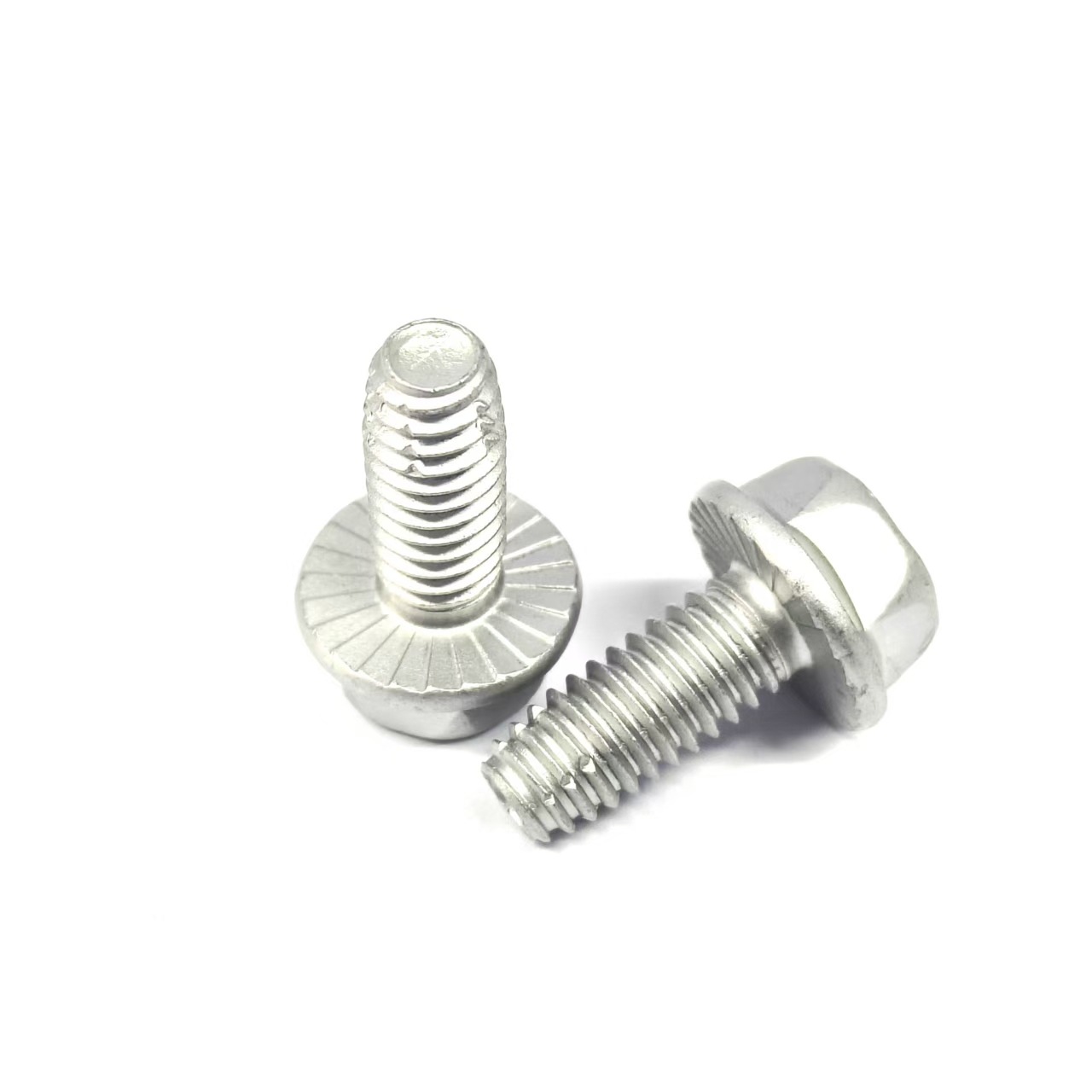

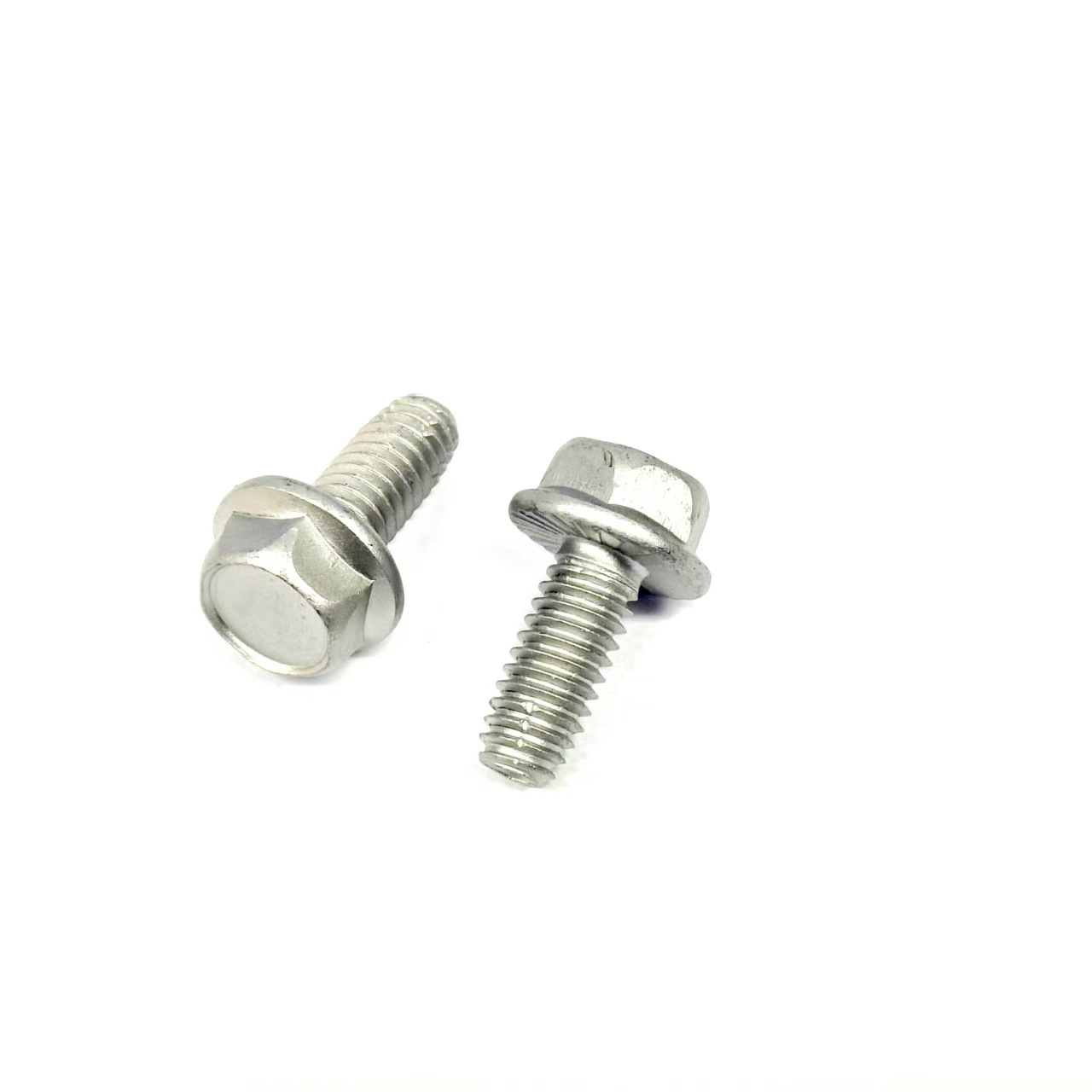

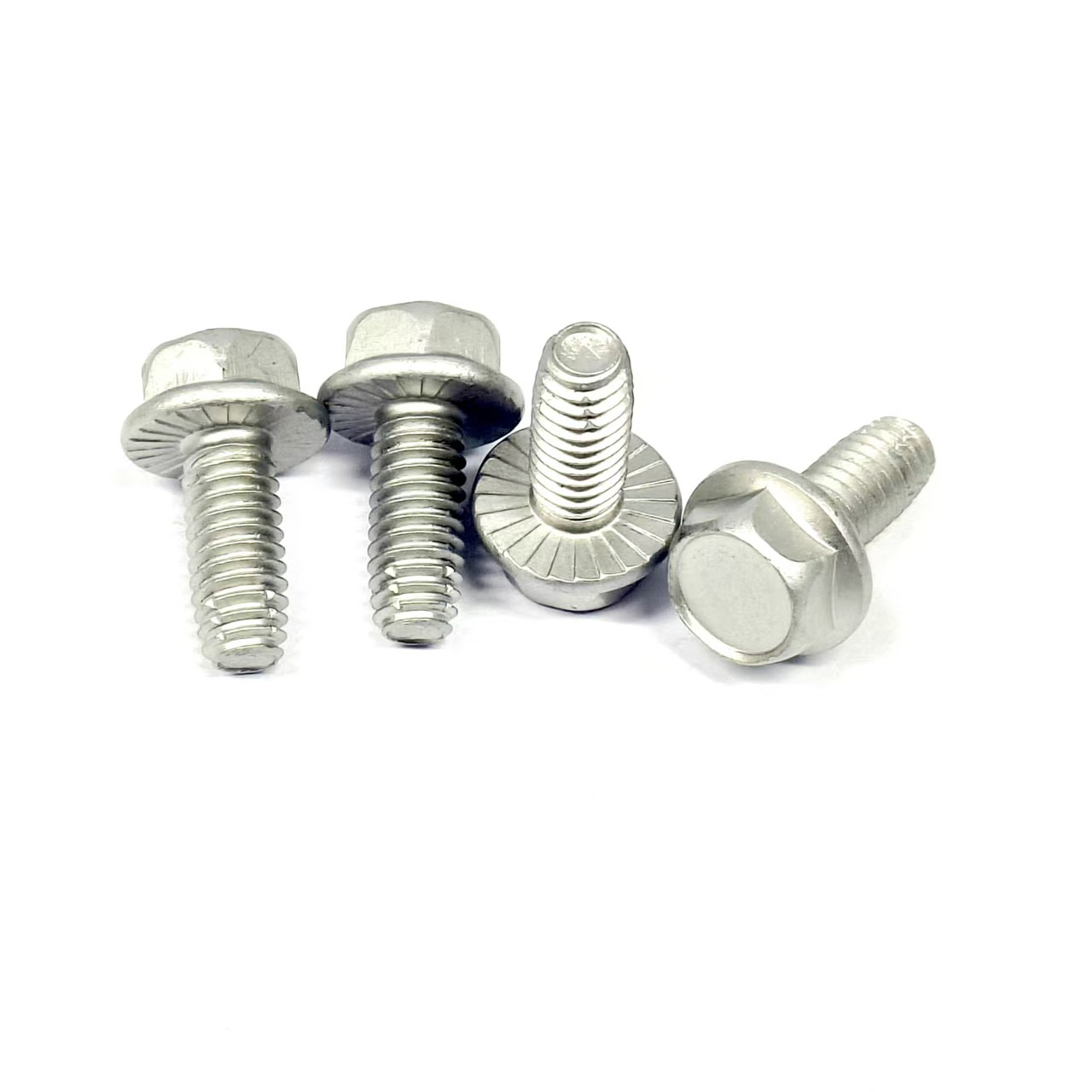

ASME B18.2.1 (T8):2012 Hex Flange Screw is suitable for direct fastening into tapped holes or threaded components. The flanged head provides a larger bearing area, helping protect the mating surface and improve clamp-load distribution.

Compared with a standard hex screw, this product can reduce the need for washers, making it useful where space is limited, assembly steps must be simplified, or a clean external appearance is desired. It can be used for equipment covers, brackets, light structures, and industrial components.

Selection should consider thread size, engagement depth, material compatibility, and finish. For thin plates or softer base materials, the balance between flange bearing area and tightening force should be managed to prevent local surface damage.

Contact Us
PREV：DIN 6921:1983 Hex Head Flange Bolt NEXT：ASME B18.2.3.9M:2001 Metric Hex Head Flange Heavy Bolt

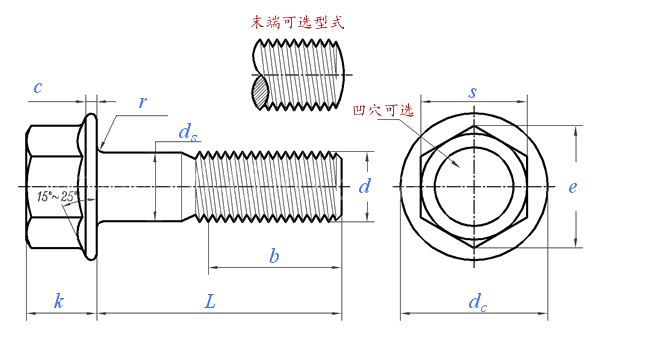

Dimensions unit: mm

Thread size  1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4
d
PP UNC 20 18 16 14 13 12 11 10
UNF 28 24 24 20 20 18 18 16
ds Max. 0.25 0.3125 0.375 0.4375 0.5 0.5625 0.625 0.75
Min. 0.245 0.3065 0.369 0.4305 0.493 0.5545 0.617 0.741
s Max. 0.375 0.5 0.5625 0.625 0.75 0.8125 0.9375 1.125
Min. 0.367 0.489 0.551 0.612 0.736 0.798 0.922 1.1
e Max. 0.433 0.577 0.65 0.722 0.866 0.938 1.083 1.299
Min. 0.409 0.548 0.618 0.685 0.825 0.895 1.034 1.234
dc Max. 0.56 0.68 0.81 0.93 1.07 1.19 1.33 1.59
c Min. 0.04 0.05 0.06 0.07 0.08 0.09 0.1 0.11
k Max. 0.28 0.32 0.39 0.46 0.51 0.57 0.62 0.73
b L≤6 0.75 0.875 1 1.125 1.25 1.375 1.5 1.75
L＞6 1 1.125 1.25 1.375 1.5 1.625 1.75 2
r Max. 0.025 0.025 0.025 0.025 0.025 0.045 0.045 0.045
Thousand pieces of steel weigh ≈kg  Reference - - - - - - - -
Thread length b  Reference - - - - - - - -

① The nominal thread length b is a reference size and is only used for calculation. When the nominal length of the bolt is L ≤ 6 in, b = 2d + 0.25; when L > 6 in, b = 2d + 0.5.
