DIN 5405 (-3):2016 Washer

DIN 5405 (-3):2016 Thrust Washer is used at rotating or sliding support points that carry axial force and protect adjacent component end faces. Its flat bearing structure creates a wear-resistant separation layer between shafts, sleeves, gears, or bearing-related parts.

The product is commonly used with rolling bearings, transmission devices, gear reducers, pumps, and mechanical positioning structures. A thrust washer helps control axial clearance, distribute end-face load, and reduce direct wear between neighboring metal surfaces.

Specifications should be selected according to shaft diameter, load, speed, lubrication condition, and material requirement. Heat treatment or surface treatment can be used where needed to improve wear resistance and long-term operating stability.

Contact Us

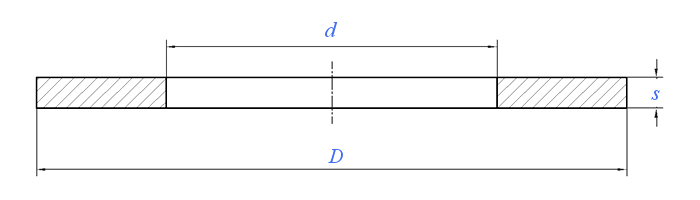

Dimensions unit: mm

Nominal diameter d

4

5

6

8

10

12

15

17

20

25

30

35

40

45

50

D

14

15

19

21

24

26

28

30

35

42

47

52

60

65

70

s

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1



Nominal diameter d

55

60

65

70

75

80

85

90

100

110

120

130

140

150

160

D

78

85

90

95

100

105

110

120

135

145

155

170

180

190

200

s

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1
