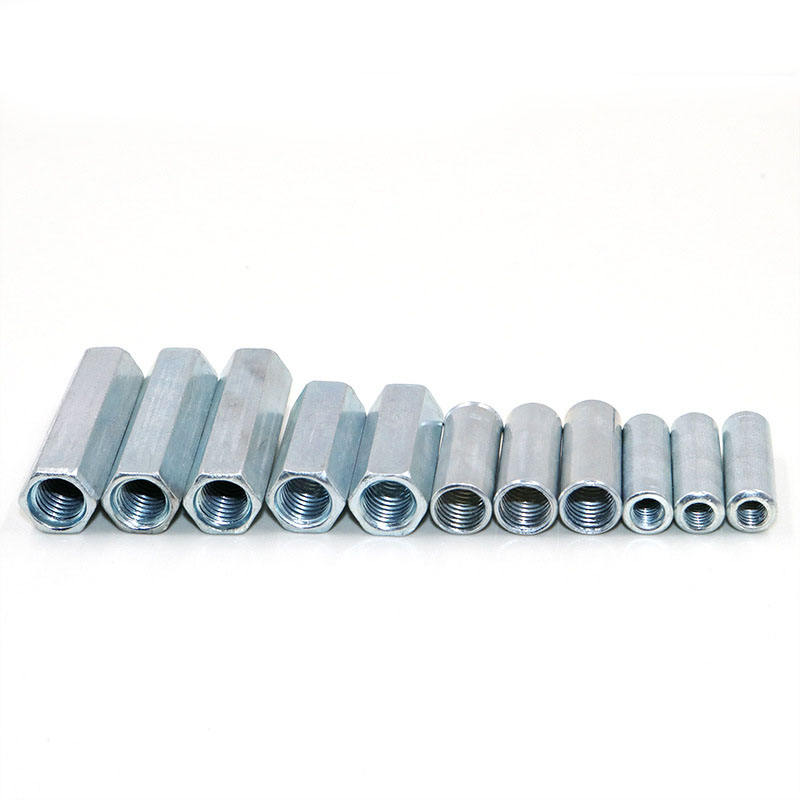

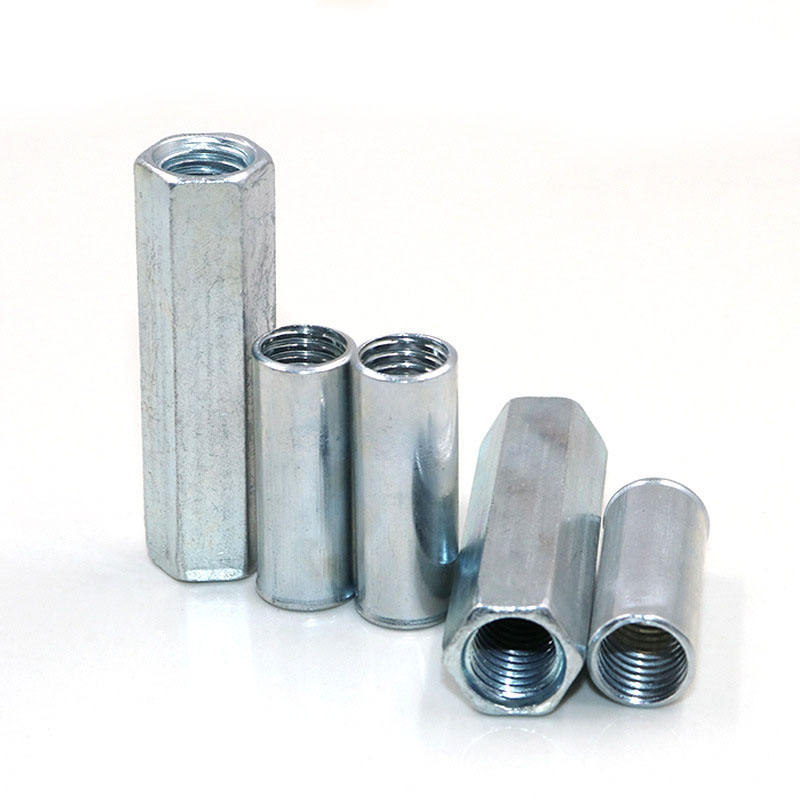

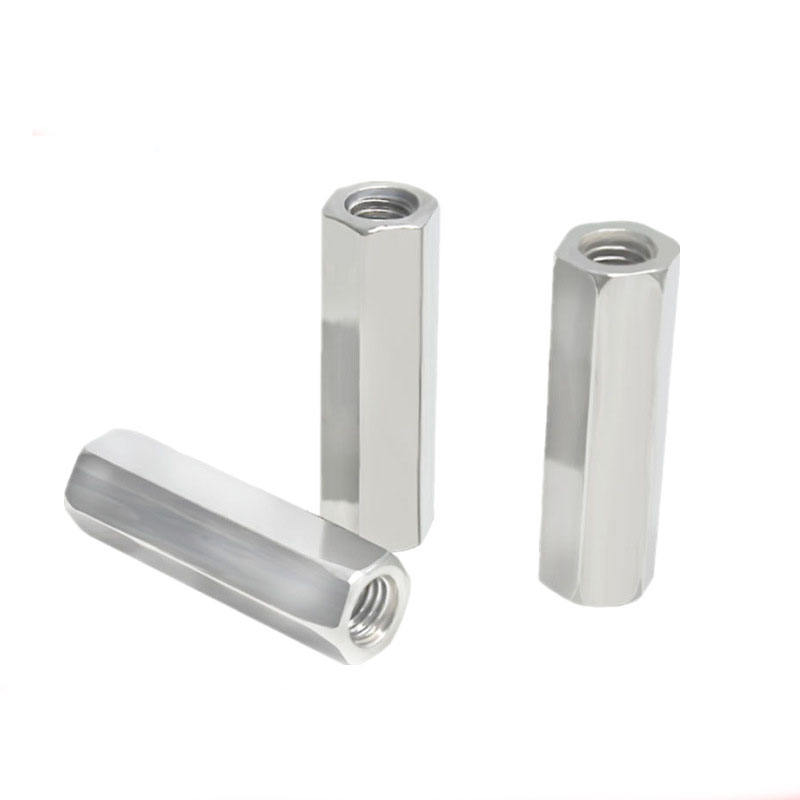

DIN 6334 Hex Coupling 3d Nut provides an extended internal thread engagement length and is commonly used to connect two threaded rods, studs, or bars for extension or adjustment. The hex exterior allows wrench operation, making it practical for quick on-site joining and tension adjustment.
This product is widely used in suspension supports, building installation, equipment fixing, formwork systems, and mechanical adjustment mechanisms. The 3d coupling length offers more thread contact, helping improve joint stability and adjustment reliability.
Matching threads can be selected according to the connected rod size, with zinc plating, stainless steel, or other finishes available to suit different connection and corrosion-protection requirements.

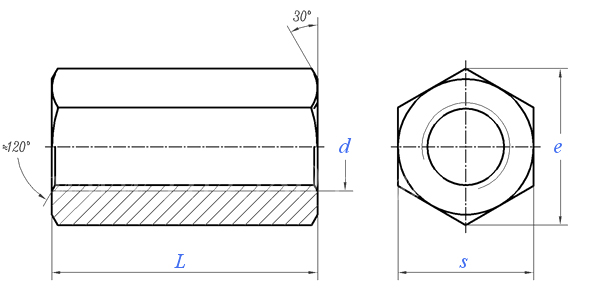

Dimensions unit: mm
|

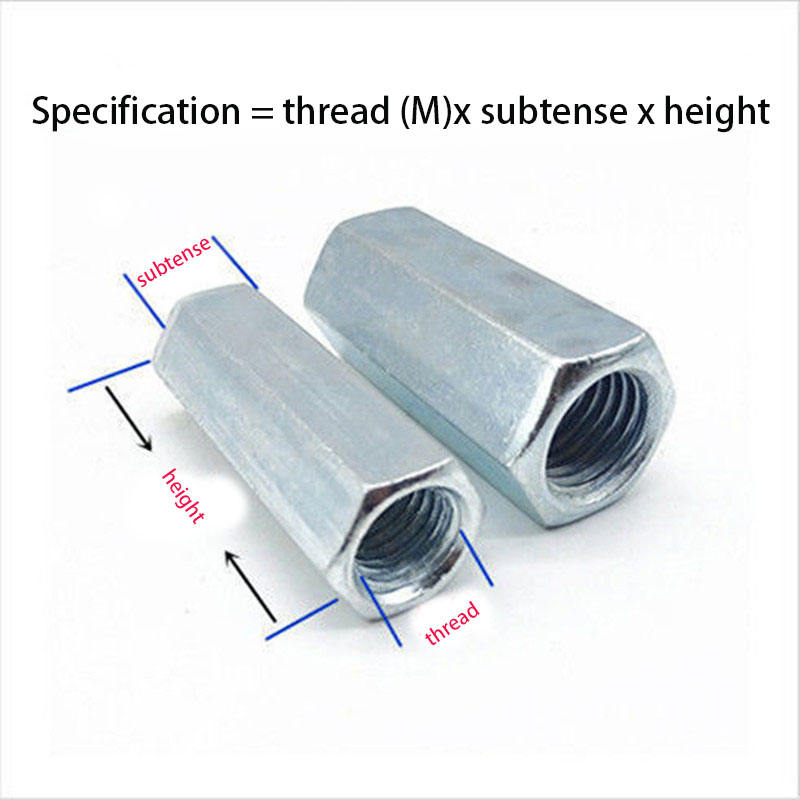

Thread size d |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
||
|
P |
Pitch |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
|
|
s |
10 |
13 |
17 |
19 |
22 |
24 |
27 |
30 |
32 |
36 |
41 |
46 |
50 |
55 |
||
|
L |
18 |
24 |
30 |
36 |
42 |
48 |
54 |
60 |
66 |
72 |
81 |
90 |
99 |
108 |
||
|
e |
11.05 |
14.38 |
18.9 |
21.1 |
24.49 |
26.75 |
29.56 |
33.53 |
35.03 |
39.98 |
45.2 |
50.85 |
55.37 |
60.79 |
||
|
Weight per thousand pieces (steel)≈kg |
7 |
18 |
42 |
63 |
95.5 |
122 |
140 |
240 |
300 |
412 |
608 |
825 |
1100 |
1470 |
||
① Material:

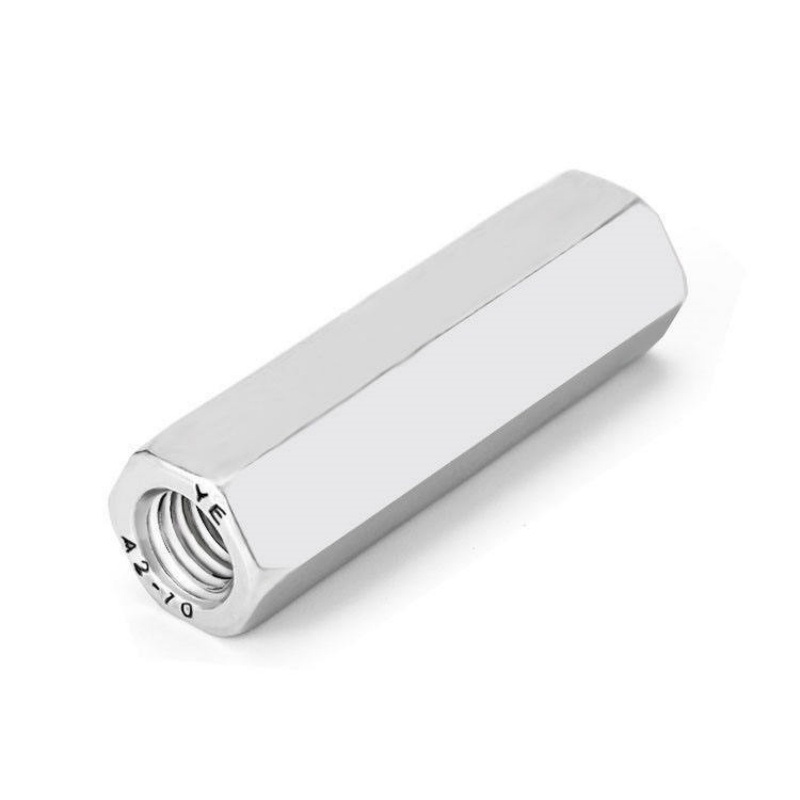

a) Austenitic stainless steel, grade: A2, A4; strength grade: ≤M39:50, ≤M20:70,80; standard DIN EN ISO 3506-1-1979.
b) Performance strength level: 50, manufactured from A1, A2; characteristics: soft; cold-worked, turned and soft-pressed fasteners; (A2 applies to fasteners of this standard)
c) Performance strength level: 70, manufactured from A2, A4; Features: cold worked, standard strength formed fasteners;
d) Performance strength level: 80, made of A2, A4; characteristics: extremely cold processing, high strength, special purpose
