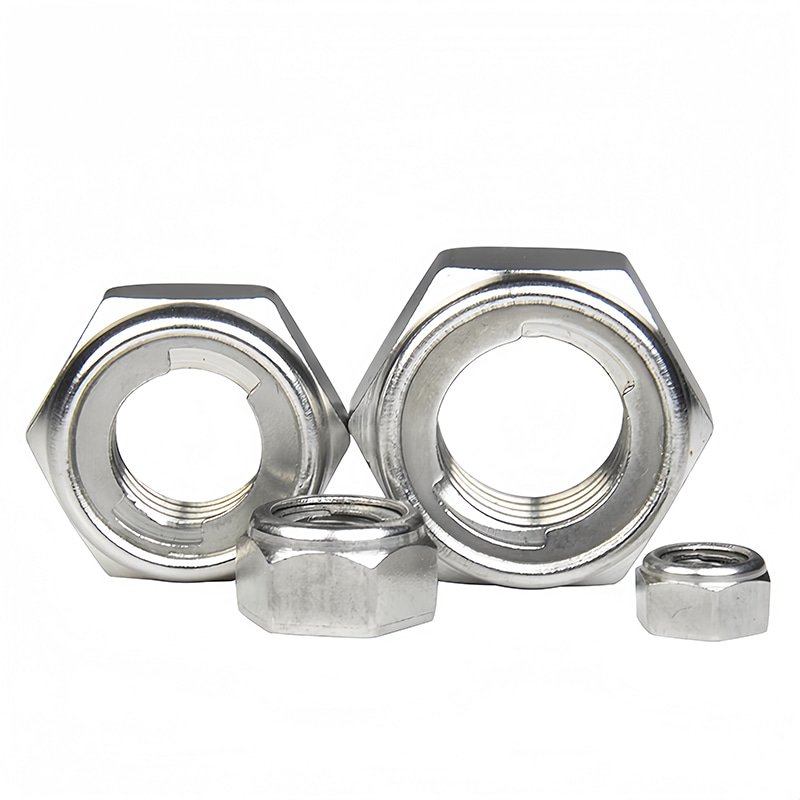

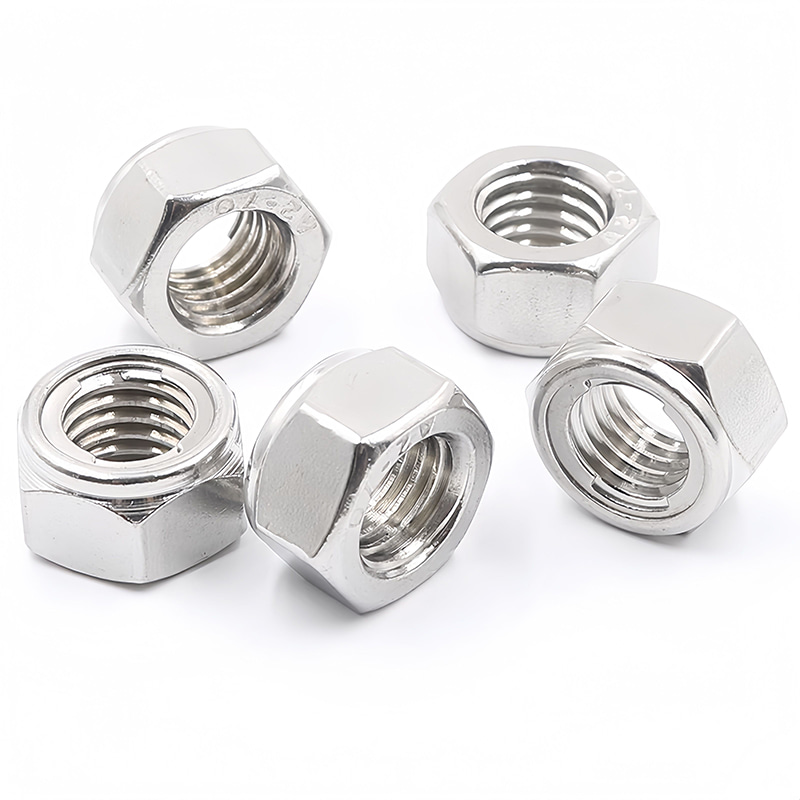

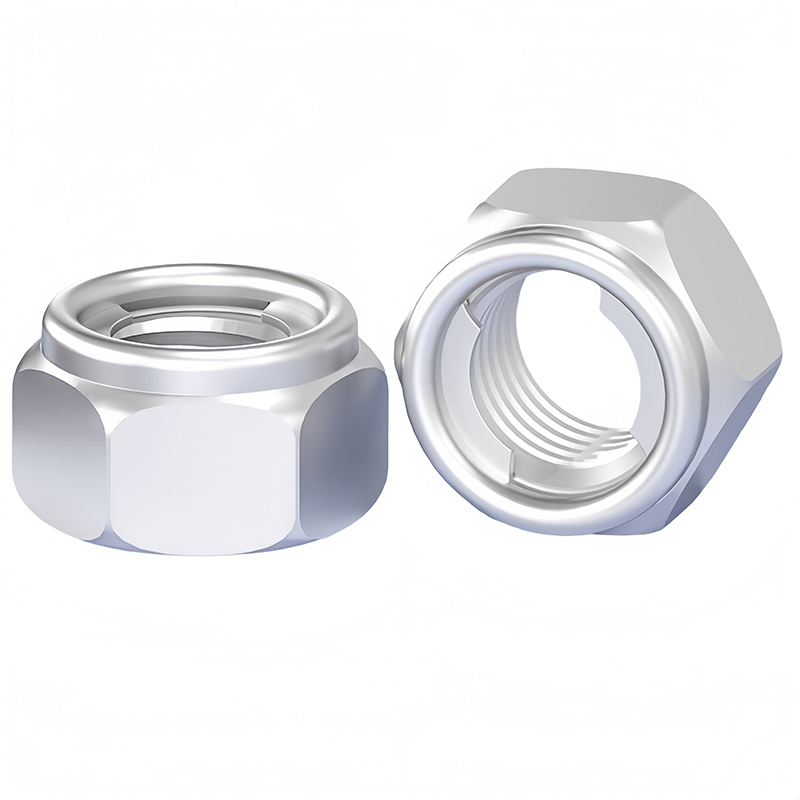

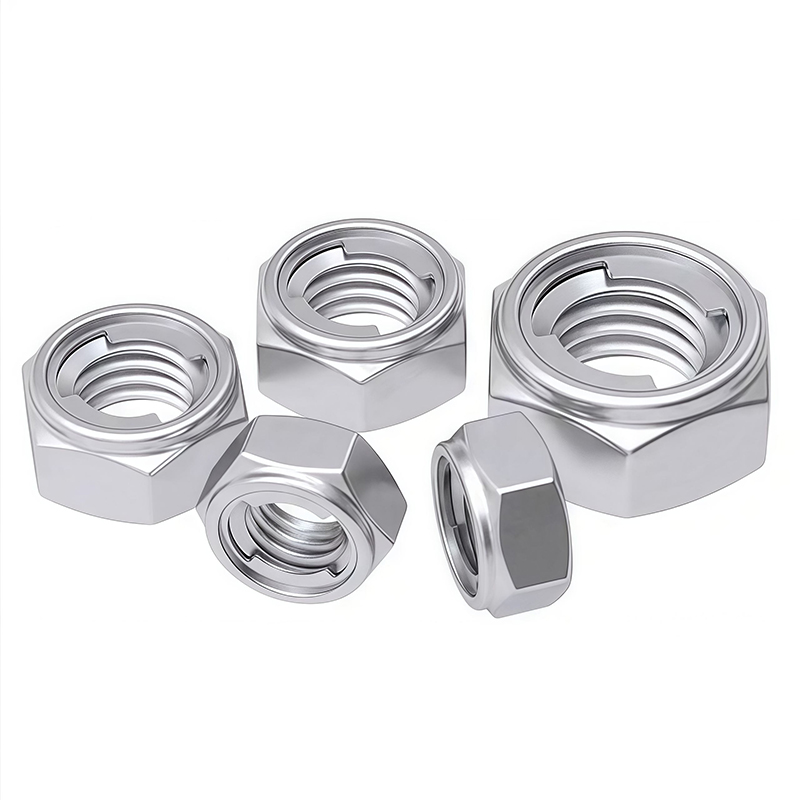

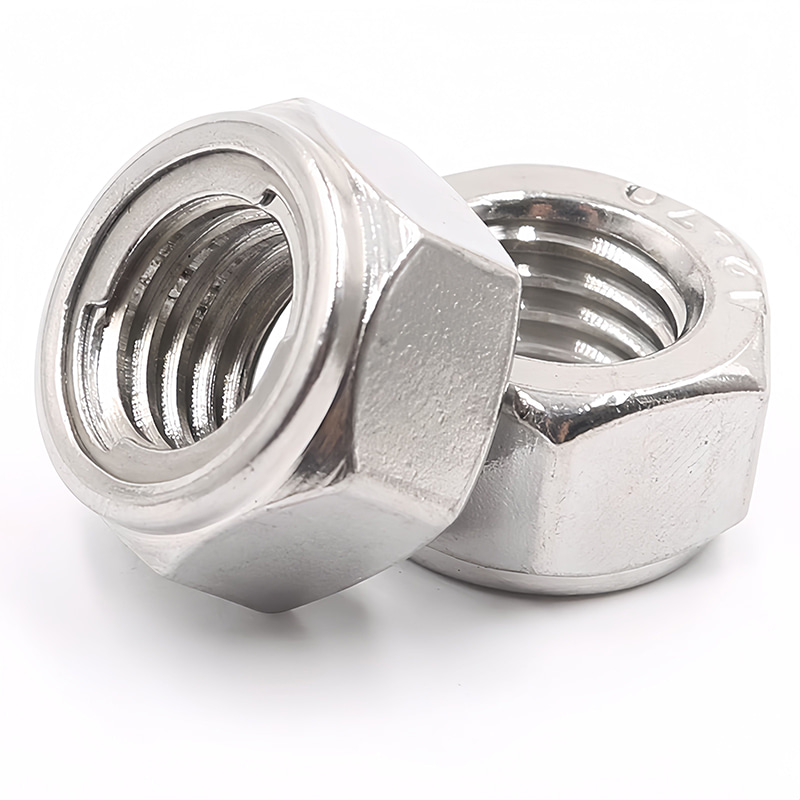

DIN 980 (V):1987 Type V All Metal Lock Nut

DIN 980 (V):1987 Type V All-Metal Lock Nut provides reliable resistance to loosening through a special locking form. It is suitable for connections where nylon inserts are not appropriate or where temperature and oil exposure may affect performance. The V-type structure helps create sustained clamping resistance in the thread contact.

This product can be applied in mechanical transmissions, vehicle parts, industrial equipment, pump and valve accessories, and maintenance assemblies. The all-metal form offers good durability in repeated assembly and harsh environments, making it suitable for safety-critical joints.

Materials and surface treatments can be selected according to load and corrosion conditions to maintain locking performance and service life after installation.

Contact Us

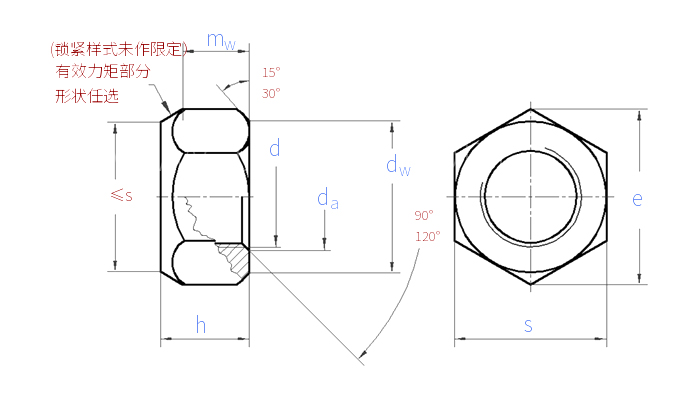

Dimensions unit: mm

Thread size  M3 M4 M5 M6 M7 M8 M10 M12 M14 M16
d
P Pitch Coarse teeth 0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2
Fine Teeth 1 / / / / / 1 1 1.5 1.5 1.5
Fine Teeth 2 / / / / / / 1.25 1.25 / /
da Min. 3 4 5 6 7 8 10 12 14 16
Max. 3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3
dw Min. 4.6 5.9 6.9 8.9 9.6 11.6 15.6 17.4 20.5 22.5
e Min. 6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75
h Max.=Nominal 3.7 4.2 5.1 6 7 8 10 12 14 16
Min. 3.4 3.9 4.8 5.7 6.5 7.5 9 11 12 14
mw Min. 1.65 2.2 2.75 3.3 3.85 4.4 5.5 6.6 7.7 8.8
s Max.=Nominal 5.5 7 8 10 11 13 17 19 22 24
Min. 5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67



Thread size  M18 M20 M22 M24 M27 M30 M33 M36 M39
d
P Pitch Coarse teeth 2.5 2.5 2.5 3 3 3.5 3.5 4 4
Fine Teeth 1 2 2 2 2 2 2 2 3 3
Fine Teeth 2 1.5 1.5 1.5 / / / / / /
da Min. 18 20 22 24 27 30 33 36 39
Max. 19.5 21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1
dw Min. 24.9 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
e Min. 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
h Max.=Nominal 18 20 22 24 27 30 33 36 39
Min. 16 18 20 22 25 28 31 34 37
mw Min. 9.9 11 12.2 13.2 14.8 16.5 18.2 19.8 21.5
s Max.=Nominal 27 30 32 36 41 46 50 55 60
Min. 26.16 29.16 31 35 40 45 49 53.8 58.8

① V-type is a single-piece locking nut without inserts;

Type M is a two-piece lock nut with insert.

② Material:

Steel, strength grade (strength grade): 5, 8, 10, 12 (≤M16). Standard ISO 898-2 is suitable for V type (خيط خشن nuts), DIN 267-4 is suitable for M and V types (fine thread nuts)
