DIN 9841:2017 Hex Socket Screw

DIN 9841:2017 Hex Socket Screw combines a hex socket drive with a shoulder structure, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The DIN standard background helps keep dimensional requirements clear across drawings, purchasing, and quality inspection, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.

From an assembly perspective, the internal hex socket provides deeper tool engagement, enabling higher assembly torque in compact spaces while reducing external head interference. At the same time, the defined shoulder can serve as a locating, guiding, or rotational bearing surface, while the threaded section provides locking, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.

It is suitable for linkages, guide elements, stamping tools, sliding parts, and assemblies requiring repeatable positioning. For exposed equipment positions, head forming quality, recess integrity, edge chamfering, and coating uniformity can be emphasized so fastening performance aligns with the finished product appearance.

Contact Us

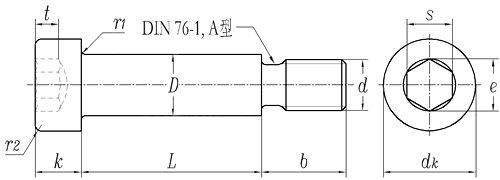

Dimensions unit: mm

Nominal diameter D

8

10

13

16

20

25

32

D

Max.

8

10

13

16

20

25

32

Min.

7.91

9.91

12.89

15.89

19.87

24.87

31.84

b

9

12

15

18

24

30

36

d

M6

M8

M10

M12

M16

M20

M24

dk

13

16

18

24

30

36

45

k

Type A

8

10

12

16

20

24

33

Type B

5

6

7

9

11

13

15

r1

0.5

0.5

1

1

1

1

1

r2

0.8

1

1

2

2

2

2

s

Type A

6

8

10

14

17

19

22

Type B

4

5

6

8

10

12

14

t

Type A

5

6

8

10

12

16

18

Type B

4.2

5

5.3

6.5

9

11

13
