DIN 604:2017 Countersunk Nib Bolt

DIN 604:2017 Countersunk Nib Bolt provides low-profile installation through a countersunk head while using a nib to improve anti-rotation performance. It is suitable for joints that need a flat surface and where the head is difficult to hold during assembly.

The nib can embed into a prepared slot or softer base material to keep the bolt positioned during tightening. Applications include wood structures, vehicle floors, equipment guards, platform plates, and light-to-medium structural components.

Countersink depth, nib engagement, base material hardness, and finish should be considered together. In vibration or exposed environments, locking hardware and corrosion-resistant coatings can further improve joint reliability.

Contact Us

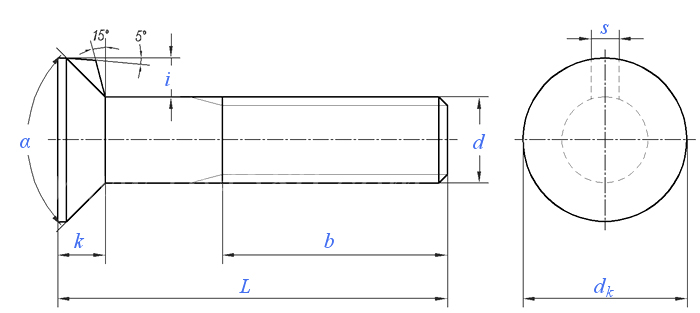

Dimensions unit: mm

Thread size  M6 M8 M10 M12 M16 M20 M24
d
P Pitch 1 1.25 1.5 1.75 2 2.5 3
b L≤125 18 22 26 30 38 46 54
125<L≤200 24 28 32 36 44 52 60
L>200 / 41 45 49 57 65 73
dk Max. 12.55 16.55 19.65 24.65 32.8 32.8 38.8
Min. 11.45 15.45 18.35 23.35 31.2 31.2 37.2
s Max. 2.5 3 3.2 3.6 4.2 5.4 6.6
Min. 2.1 2.6 2.72 3.12 3.72 4.92 6.02
k Max. 4 5 5.5 7 9 11.5 13
α Min. 90° 90° 90° 90° 90° 60° 60°
Max. 95° 95° 95° 95° 95° 65° 65°
i Min. 2.8 3.5 4.2 5.7 7.5 5.7 6.7
Thread length b - - - - - - -
