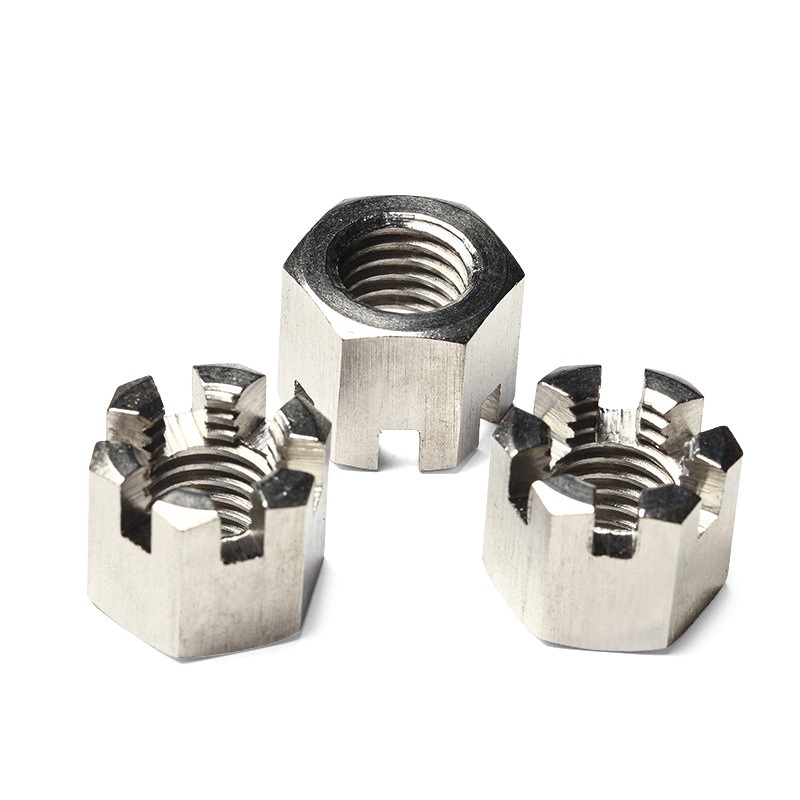

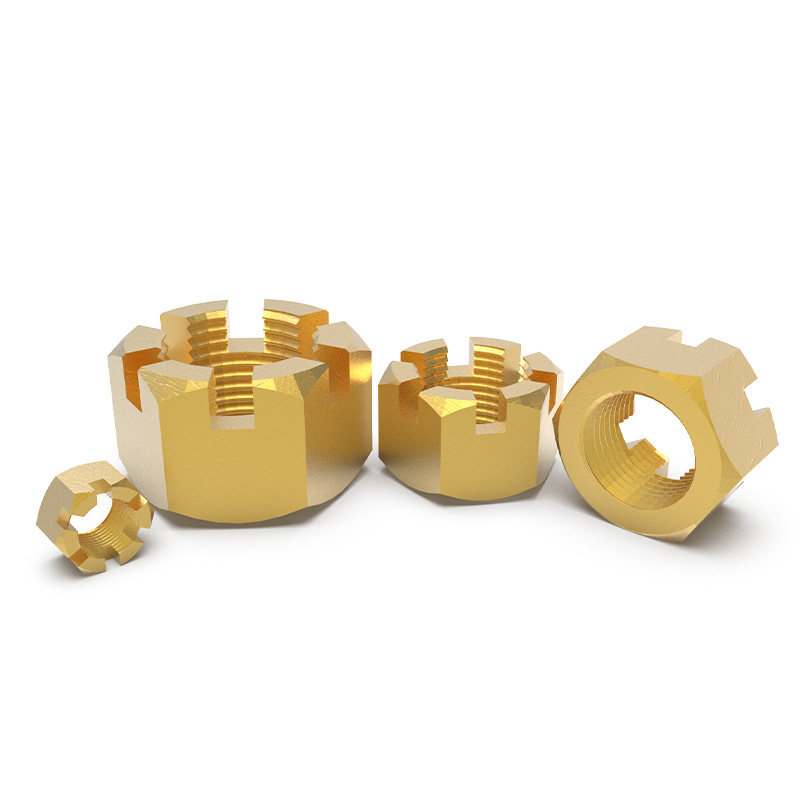

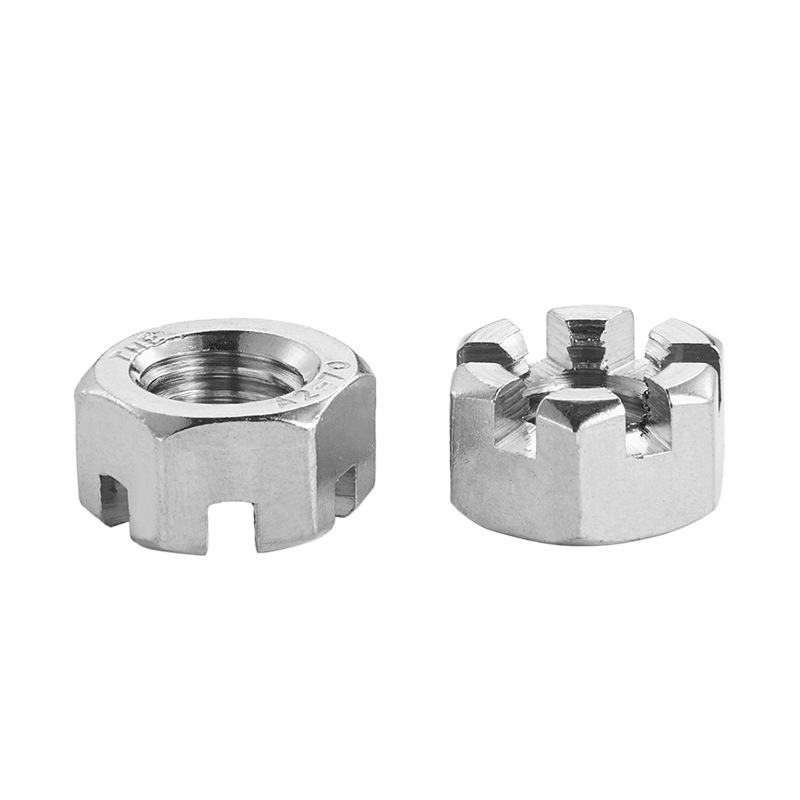

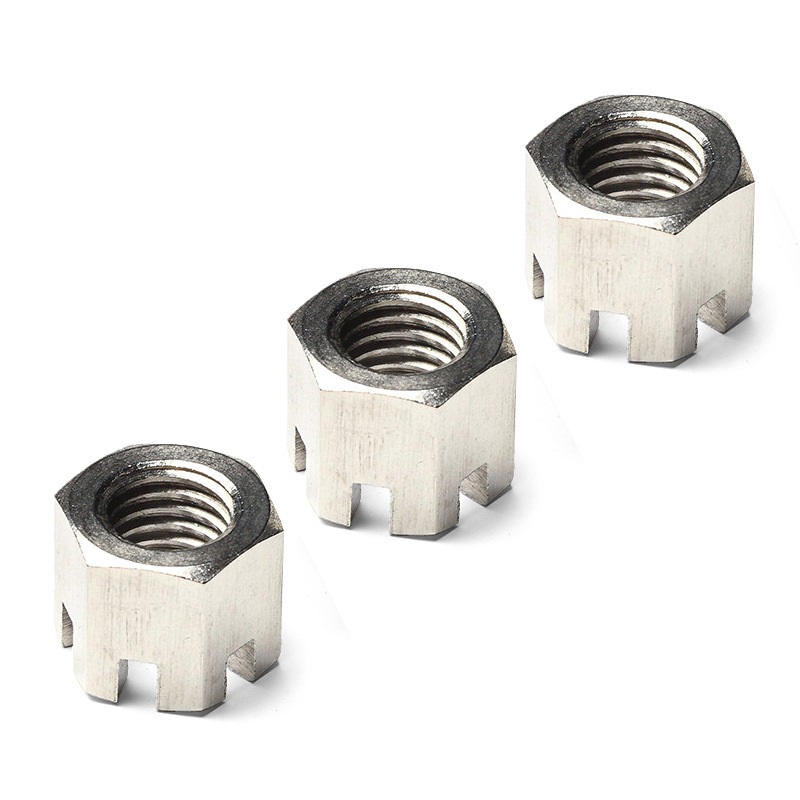

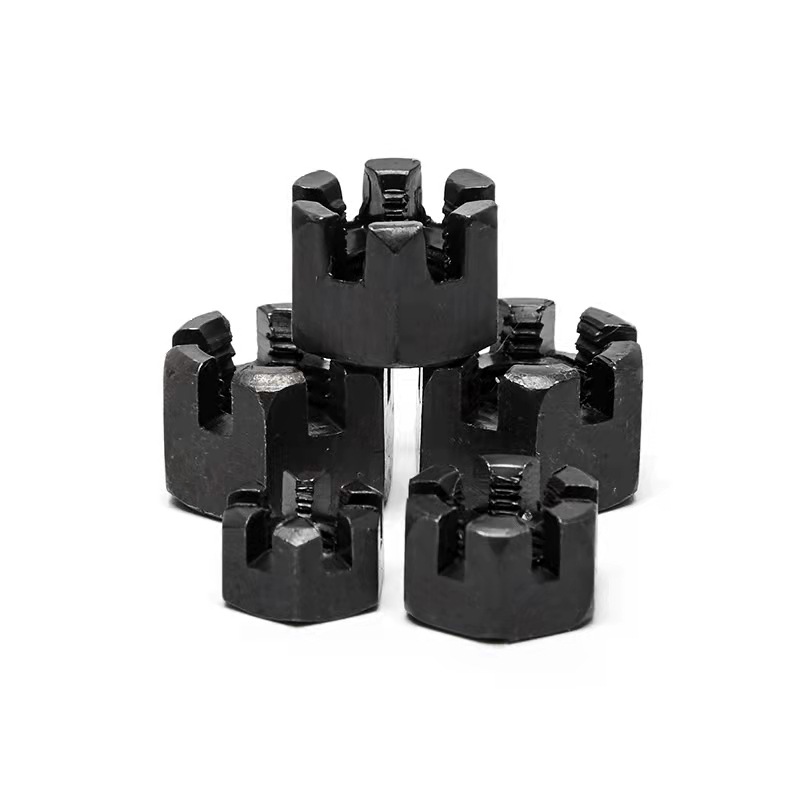

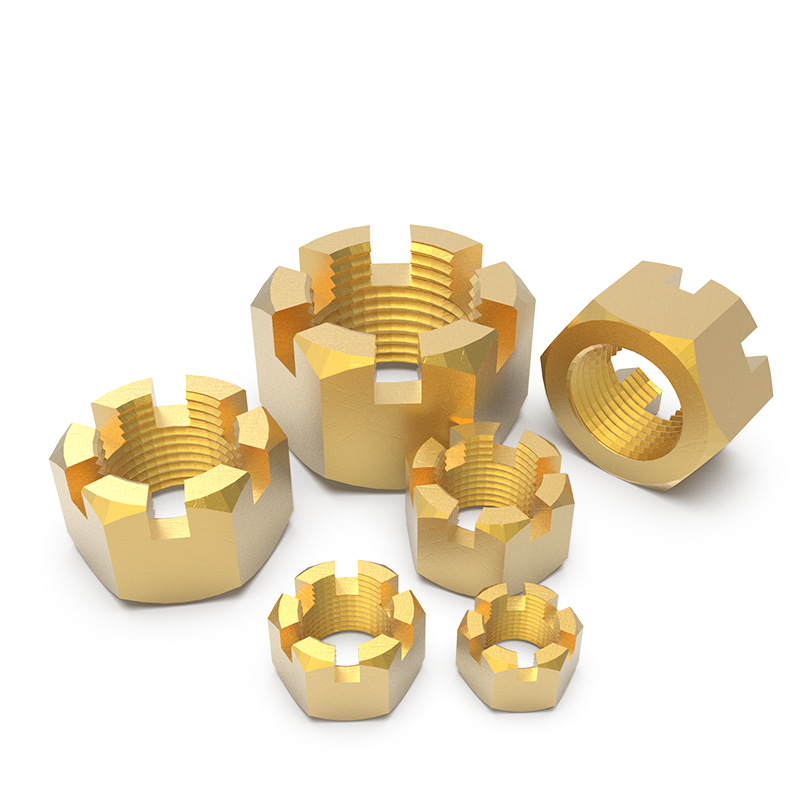

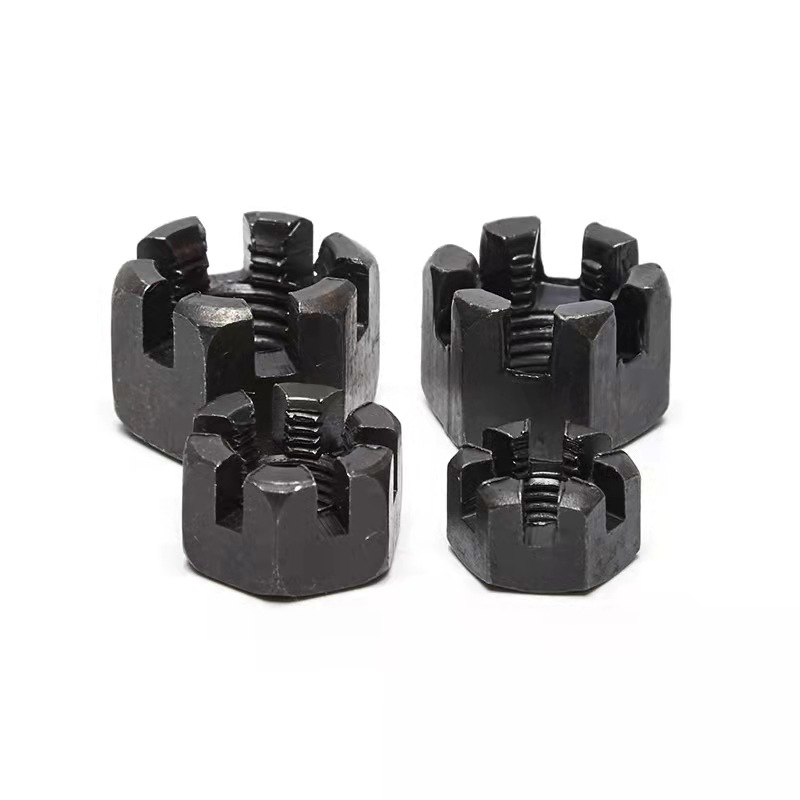

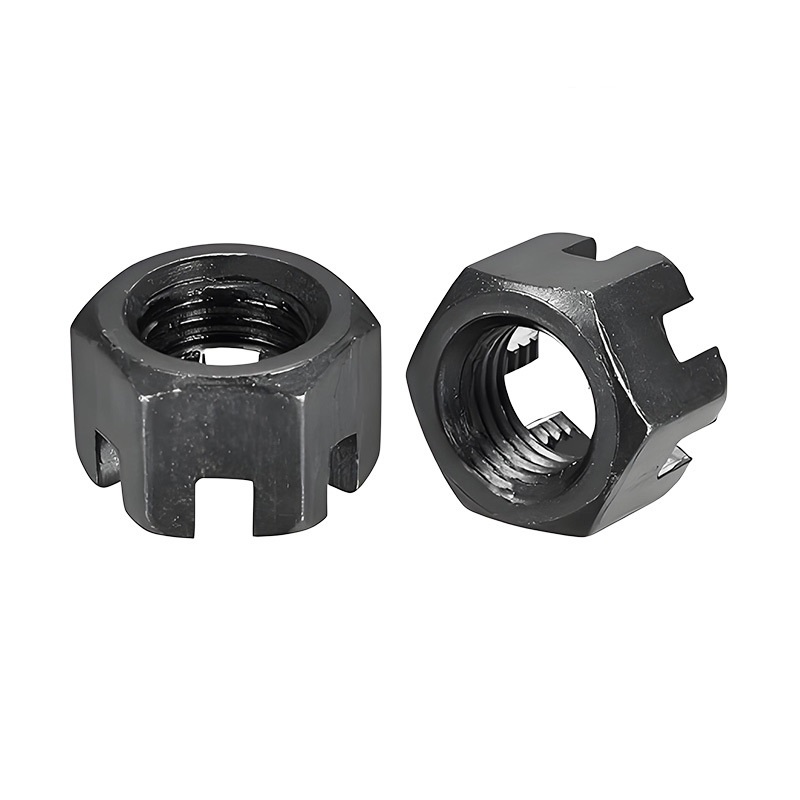

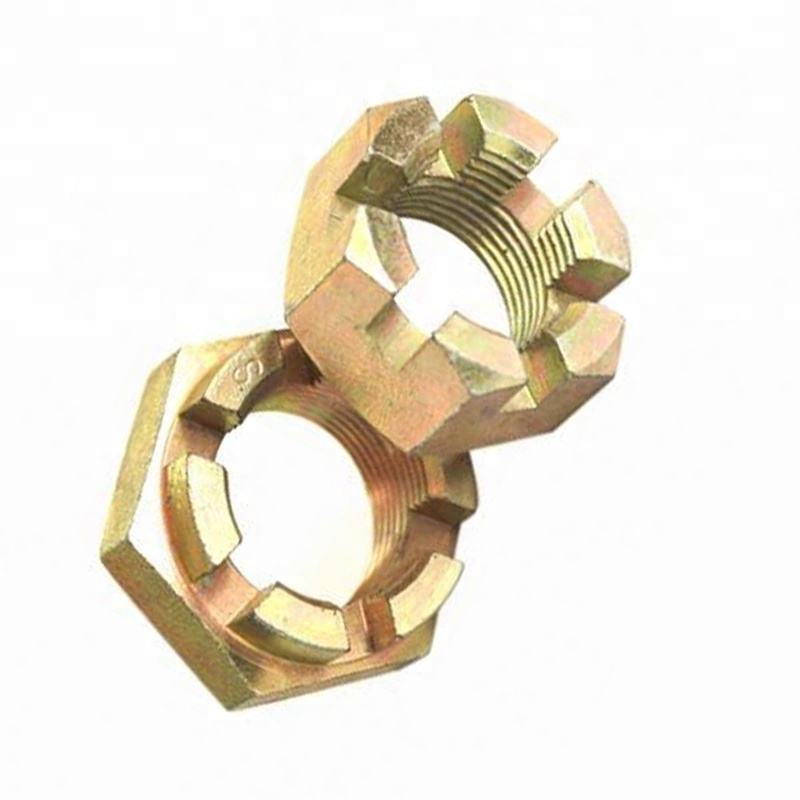

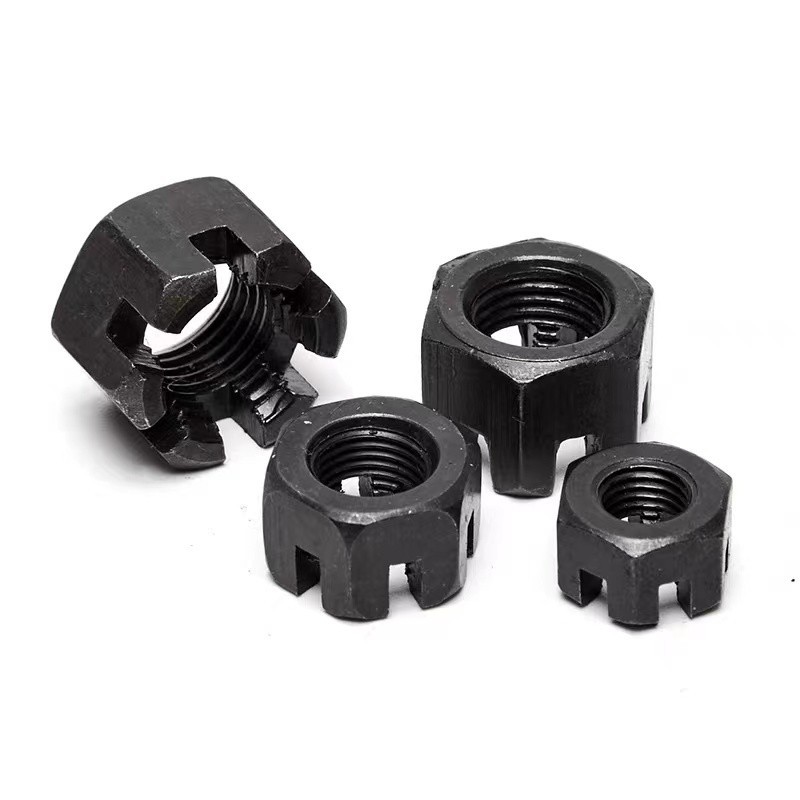

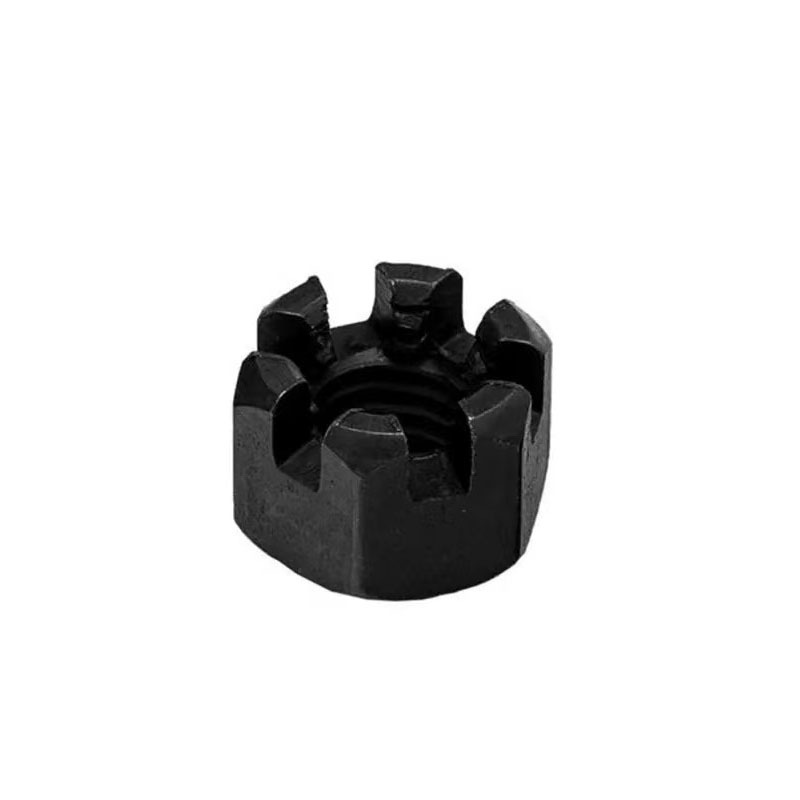

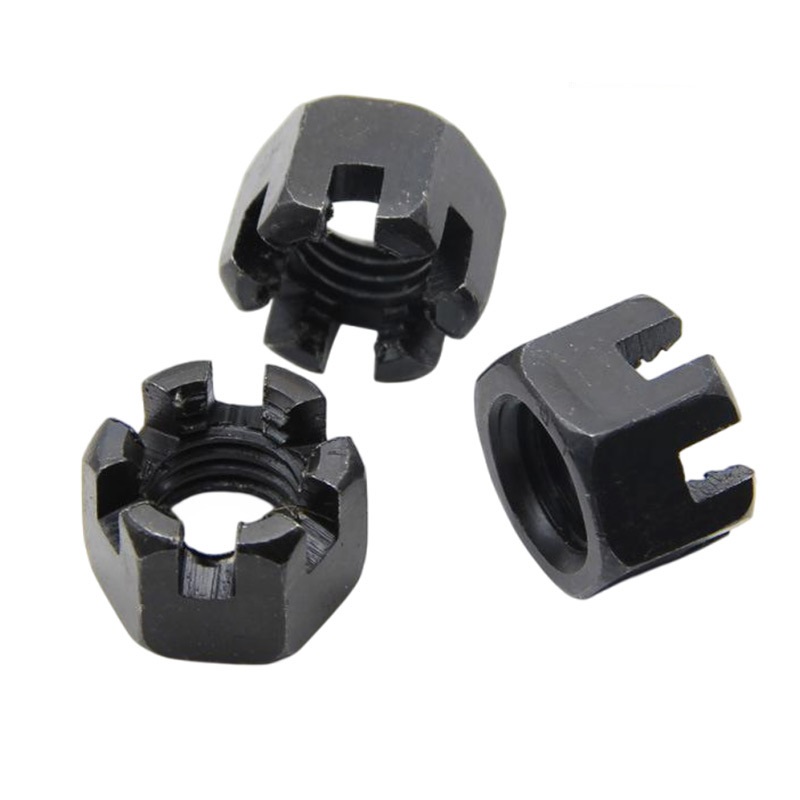

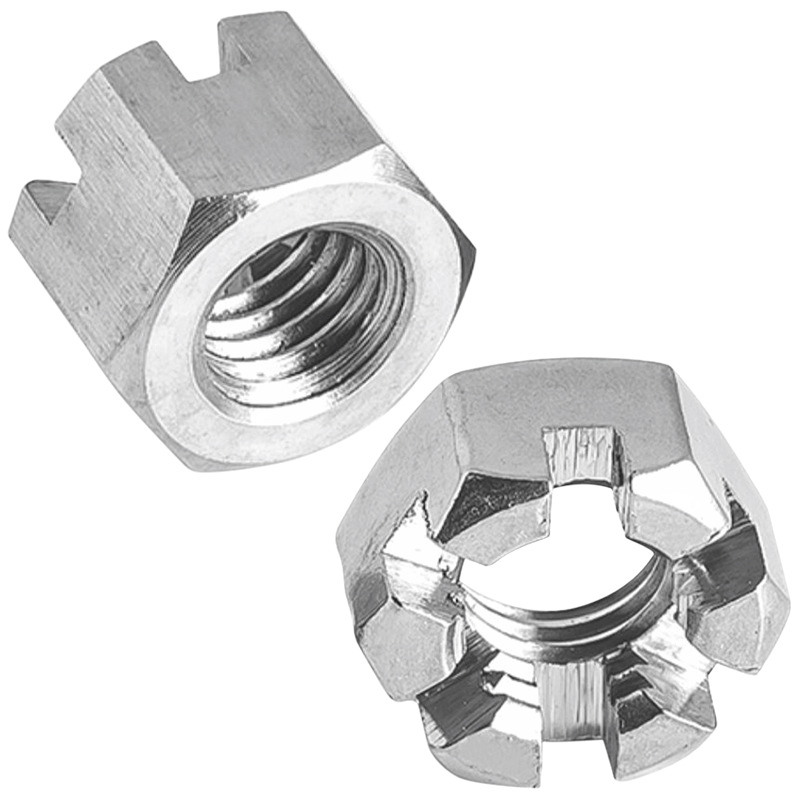

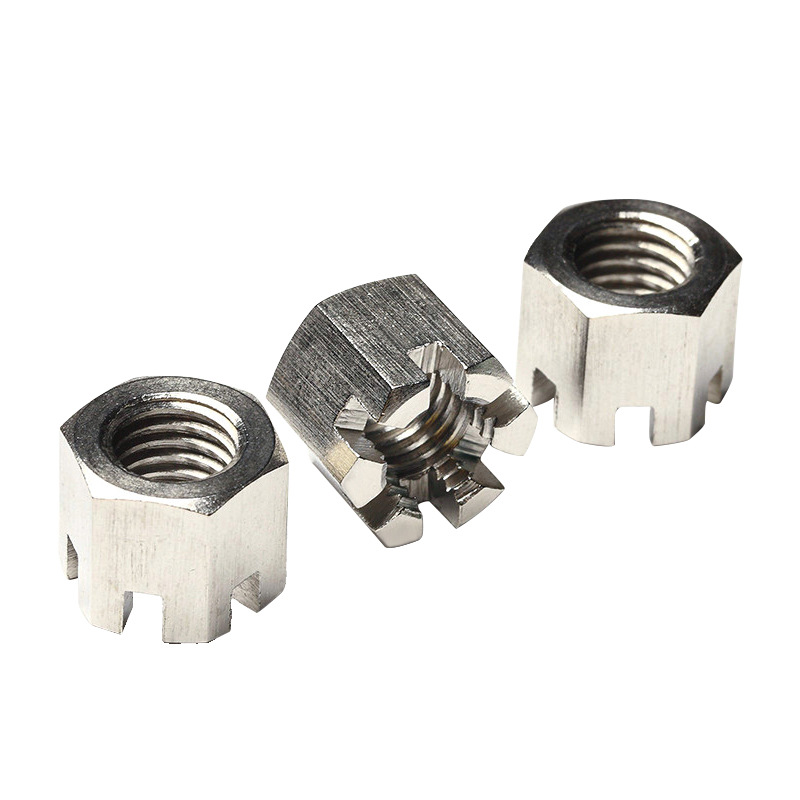

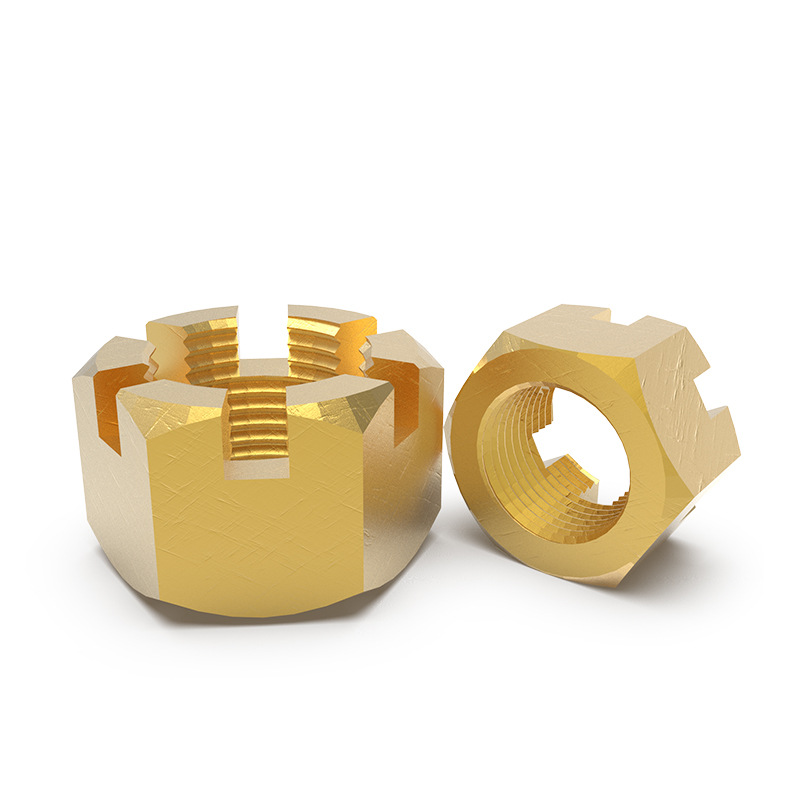

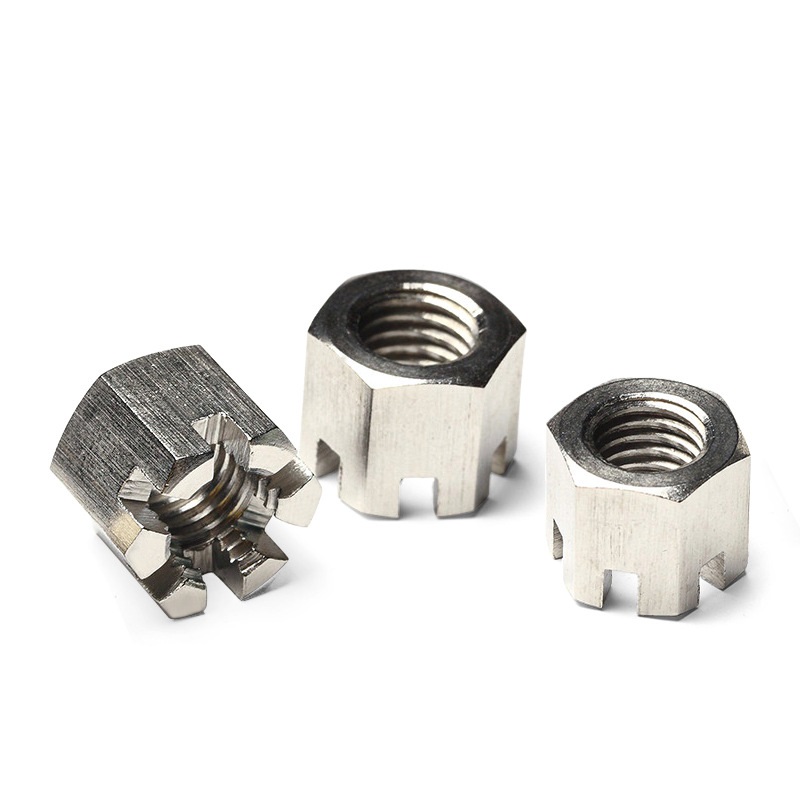

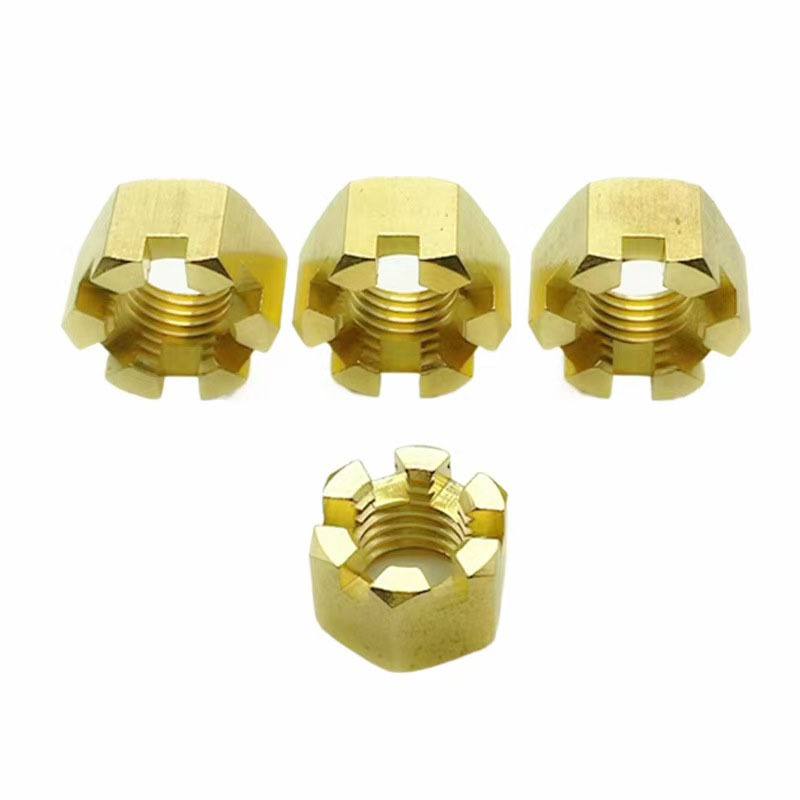

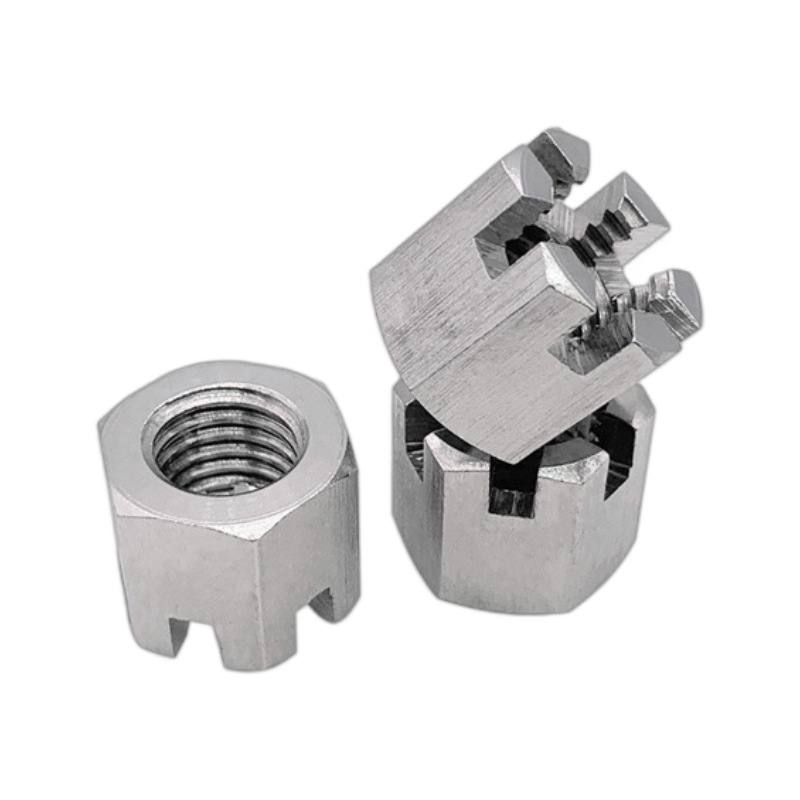

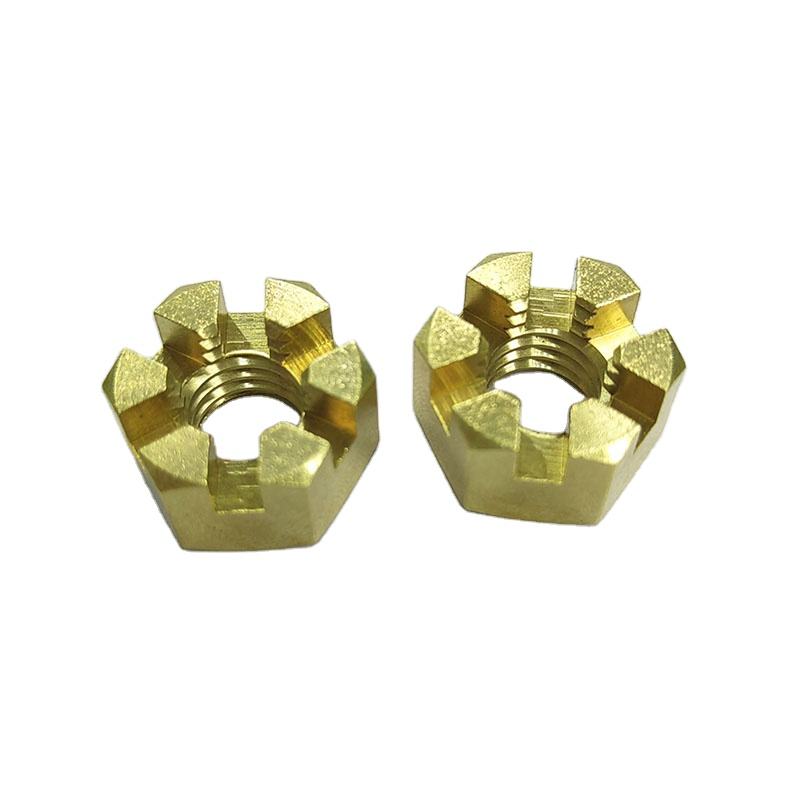

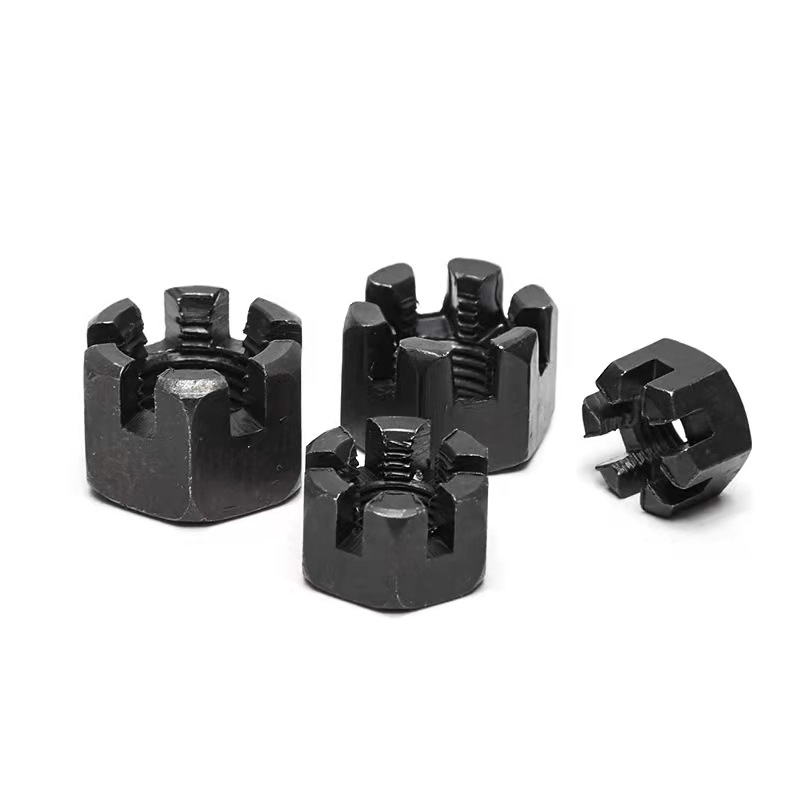

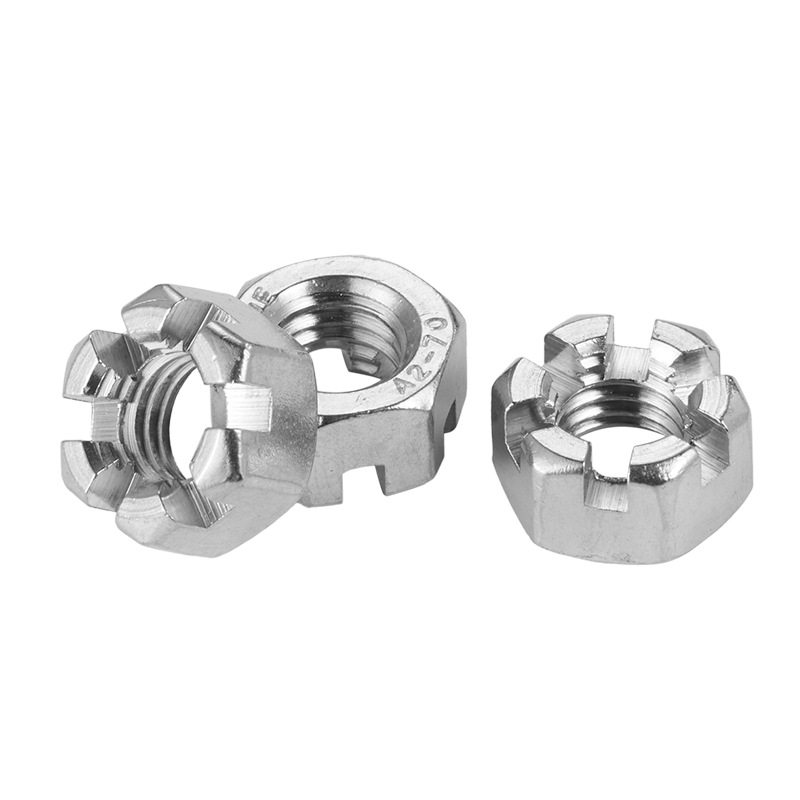

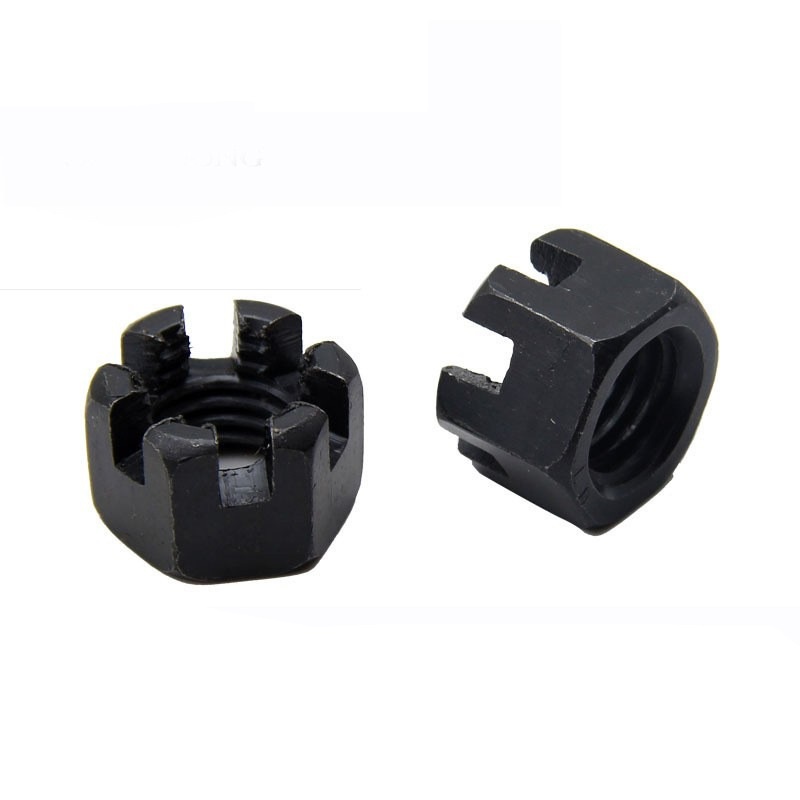

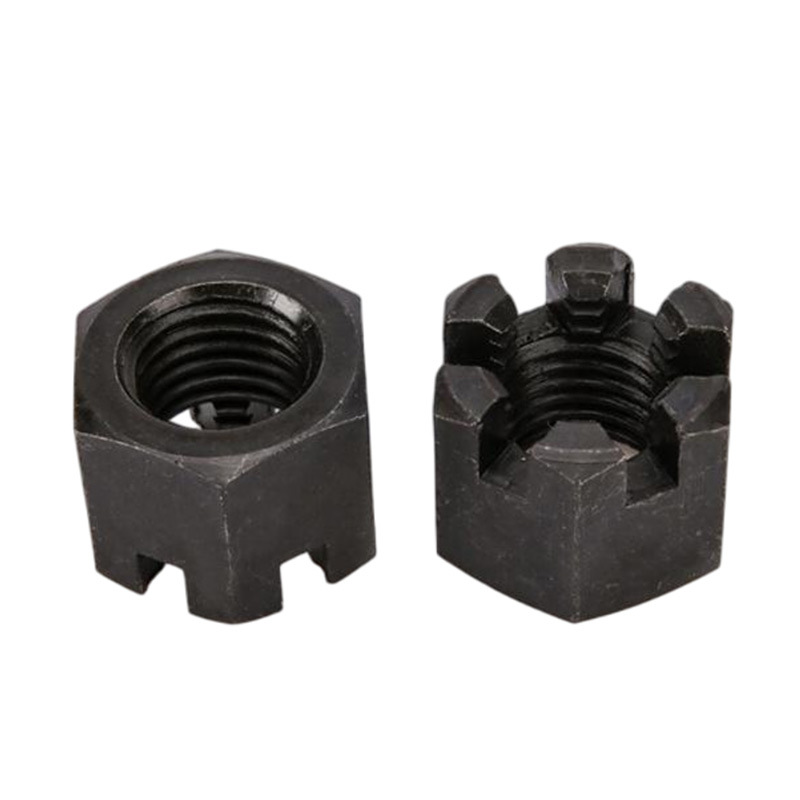

DIN 935-1:2013 Coarse Thread Fine Thread Metric Hexagon Slotted Nut

DIN 935-1:2013 Metric Slotted Hex Nut with coarse and fine thread options has slots at the top for use with cotter pins or similar locking elements. The available thread forms cover different assembly needs and are suitable for connections requiring reliable mechanical retention.

This product is commonly used in vehicle chassis, shaft-end fixing, rotating mechanical parts, agricultural equipment, and safety-related joints. The slotted design allows a pin to be installed after tightening, providing visible anti-rotation security.

Materials and corrosion-protection finishes can be selected according to load class, thread form, and service environment to meet requirements for maintainability and long-term reliability.

Contact Us
PREV：No previous product NEXT：ASME/ANSI B18.2.2 (T5):2010 Hexagon Slotted Nut

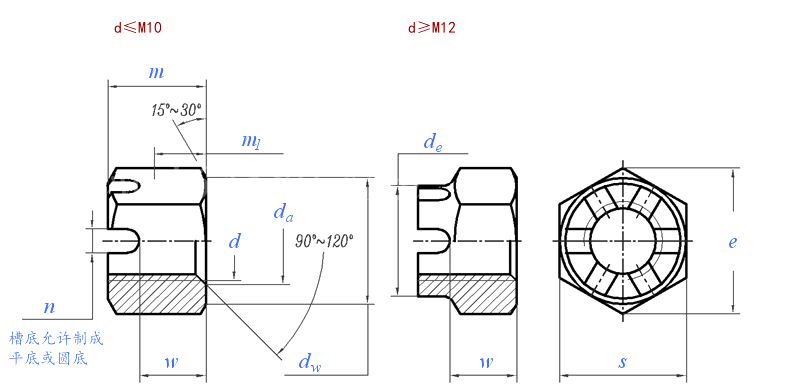

Dimensions unit: mm

Thread size d

M4

M5

M6

(M7)

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

P

Pitch (coarse thread)

0.7

0.8

1

1

1.25

1.5

1.75

2

2

2.5

2.5

2.5

3

3

3.5

3.5

Fine Teeth 1

-

-

-

-

1

1.25

1.5

1.5

1.5

1.5

2

1.5

2

2

2

2

Fine Teeth 2

-

-

-

-

-

1

1.25

-

-

2

1.5

2

-

-

-

-

da

Max.

4.6

5.75

6.75

7.75

8.75

10.8

13

15.1

17.3

19.5

21.6

23.8

25.9

29.2

32.4

35.6

Min.

4

5

6

7

8

10

12

14

16

18

20

22

24

27

30

33

de

Max.

/

/

/

/

/

/

16

18

22

25

28

32

34

38

42

46

Min.

/

/

/

/

/

/

15.57

17.57

21.48

24.3

27.3

31

33

37

41

45

dw

Min.

5.9

6.9

8.9

9.5

11.6

14.6

16.6

19.6

22.5

24.9

27.7

31.4

33.2

38

42.7

46.6

e

Min.

7.66

8.79

11.05

12.12

14.38

17.77

20.03

23.35

26.75

29.56

32.95

37.29

39.55

45.2

50.85

55.37

m

Max.=Nominal

5

6

7.5

8

9.5

12

15

16

19

21

22

26

27

30

33

35

Min.

4.7

5.7

7.14

7.64

9.14

11.57

14.57

15.57

18.48

20.16

21.16

25.16

26.16

29.16

32

34

w

Max.

3.2

4

5

5.5

6.5

8

10

11

13

15

16

18

19

22

24

26

Min.

2.9

3.7

4.7

5.2

6.14

7.64

9.64

10.57

12.57

14.57

15.57

17.57

18.48

21.48

23.48

25.48

m1

Min.

2.3

3

3.8

4.2

4.9

6.1

7.7

8.2

9.8

11.2

11.9

13.5

14.2

16.6

18.2

19.8

n

Max.

1.45

1.65

2.25

2.25

2.75

3.05

3.8

3.8

4.8

4.8

4.8

5.8

5.8

5.8

7.36

7.36

Min.

1.2

1.4

2

2

2.5

2.8

3.5

3.5

4.5

4.5

4.5

5.5

5.5

5.5

7

7

s

Max.=Nominal

7

8

10

11

13

16

18

21

24

27

30

34

36

41

46

50

Min.

6.78

7.78

9.78

10.73

12.73

15.73

17.73

20.67

23.67

26.16

29.16

33

35

40

45

49

Type ②

Cotter pins according to DIN EN ISO 1234

1x10

1.2x12

1.6x14

1.6x14

2x16

2.5x20

3.2x22

3.2x25

4x28

4x32

4x36

5x36

5x40

5x45

6.3x50

6.3x56

Weight per thousand pieces (steel)≈kg

1.12

2.3

3.16

3.96

7.35

-

-

-

38.9

57.5

75.2

-

131

192

264

333



Thread size d

M36

(M39)

M42

(M45)

M48

(M52)

M56

(M60)

M64

(M68)

M72

(M76)

M80

(M85)

M90

M100

P

Pitch (coarse thread)

4

4

4.5

4.5

5

5

5.5

5.5

6

6

-

-

-

-

-

-

Fine Teeth 1

3

3

3

3

3

3

4

4

4

4

6

6

6

6

6

6

Fine Teeth 2

-

-

-

-

-

-

-

-

-

-

4

4

4

4

4

4

da

Max.

38.9

42.1

45.4

48.6

51.8

56.2

61

64.8

69.1

73.4

77.8

82.1

86.4

91.8

97.2

108

Min.

36

39

42

45

48

52

56

60

64

68

72

76

80

85

90

100

de

Max.

50

55

58

62

65

70

75

80

85

90

95

100

105

110

120

130

Min.

49

53.8

56.8

60.8

63.8

68.8

73.8

78.8

83.6

88.6

93.6

98.6

103.6

108.6

118.6

128.4

dw

Min.

51.1

55.9

60.6

64.7

69.4

74.2

78.7

83.4

88.2

92.9

97.7

102.4

107.2

111.9

121.1

135.4

e

Min.

60.79

66.44

71.3

76.95

82.6

88.25

93.56

99.21

104.86

110.51

116.16

121.81

127.46

133.11

144.08

161.02

m

Max.=Nominal

38

40

46

48

50

54

57

63

66

69

73

76

79

88

92

100

Min.

37

39

45

47

49

52.8

55.8

61.8

64.8

67.8

71.8

74.8

77.8

86.6

90.6

98.6

w

Max.

29

31

34

36

38

42

45

48

51

54

58

61

64

68

72

80

Min.

28.48

30.28

33.38

35.38

37.38

41.38

44.38

47.38

50.26

53.26

57.26

60.26

63.26

67.26

71.26

79.26

m1

Min.

21.9

23.5

25.9

27.5

29.1

32.3

34.7

37.1

39.3

41.7

44.9

47.3

49.7

52.9

56.1

62.5

n

Max.

7.36

7.36

9.36

9.36

9.36

9.36

9.36

11.43

11.43

11.43

11.43

11.43

11.43

14.43

14.43

14.43

Min.

7

7

9

9

9

9

9

11

11

11

11

11

11

14

14

14

s

Max.=Nominal

55

60

65

70

75

80

85

90

95

100

105

110

115

120

130

145

Min.

53.8

58.8

63.1

68.1

73.1

78.1

82.8

87.8

92.8

97.8

102.8

107.8

112.8

117.8

127.5

142.5

Type ②

Cotter pins according to DIN EN ISO 1234

6.3x63

6.3x71

8x71

8x80

8x80

8x90

8x100

10x100

10x100

10x112

10x112

10x125

10x140

10x140

10x140

10x160

Weight per thousand pieces (steel)≈kg

447

584

710

860

1060

1300

1500

1800

2150

2500

2900

3300

3700

4100

5450

7600
