ASME/ANSI B18.2.2 (T5):2010 Hexagon Slotted Nut

ASME/ANSI B18.2.2 (T5):2010 Slotted Hex Nut is used in inch-thread systems where mechanical retention is required. The slotted top can be paired with cotter pins, drilled bolts, or shaft-end features to create a visible and reliable anti-loosening arrangement.

This product is suitable for vehicles, mechanical transmissions, agricultural equipment, wheel and axle assemblies, and maintenance spare parts. For points requiring periodic inspection or safety retention, the slotted design makes it easy to verify the locked condition through the pin.

It can be supplied according to inch size, material grade, and surface finish requirements to match ASME-standard fastening systems and different service environments.

Contact Us
PREV：DIN 935-1:2013 Coarse Thread Fine Thread Metric Hexagon Slotted Nut NEXT：DIN 979:2013 Hexagon Slotted Thin Nut

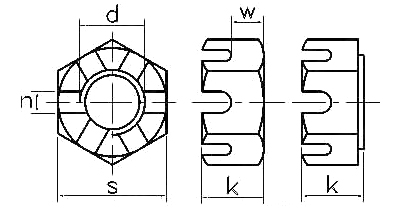

Unit:inch

Nominal diameter d

s

k

n

w

max

min

max

min

max

min

max

min

1/4

0.438

0.428

0.226

0.212

0.10

0.07

0.14

0.12

5/16

0.500

0.489

0.273

0.258

0.12

0.09

0.18

0.16

3/8

0.562

0.551

0.337

0.32

0.15

0.12

0.21

0.19

7/16

0.688

0.675

0.385

0.365

0.15

0.12

0.23

0.21

1/2

0.750

0.736

0.448

0.427

0.18

0.15

0.29

0.27

9/16

0.875

0.861

0.496

0.473

0.18

0.15

0.31

0.29

5/8

0.938

0.922

0.559

0.535

0.24

0.18

0.34

0.32

3/4

1.125

1.088

0.665

0.617

0.24

0.18

0.4

0.38

7/8

1.312

1.269

0.776

0.724

0.24

0.18

0.52

0.49

1

1.500

1.450

0.887

0.831

0.30

0.24

0.59

0.56

1-1/8

1.688

1.631

0.999

0.939

0.33

0.24

0.64

0.61

1-1/4

1.875

1.812

1.094

1.03

0.40

0.31

0.7

0.67

1-3/8

2.062

1.994

1.206

1.138

0.40

0.31

0.82

0.78

1-1/2

2.250

2.175

1.317

1.245

0.46

0.37

0.86

0.82
