DIN 6900-1:1990 Phillips Pan Head Screw and Flat Washer Assembly is characterized by a pre-assembled Phillips pan head screw and flat washer design and is intended for applications needing fewer loose parts, washer-loss prevention, and faster production rhythm.
The flat washer enlarges the bearing area and protects the mating surface, while the assembly format supports automatic feeding and manual installation with lower part-management complexity. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.
Typical applications include electronic equipment, appliance panels, cabinets, light brackets, and standardized production lines. The product can be configured with screw size, washer outside diameter, material, and plating to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

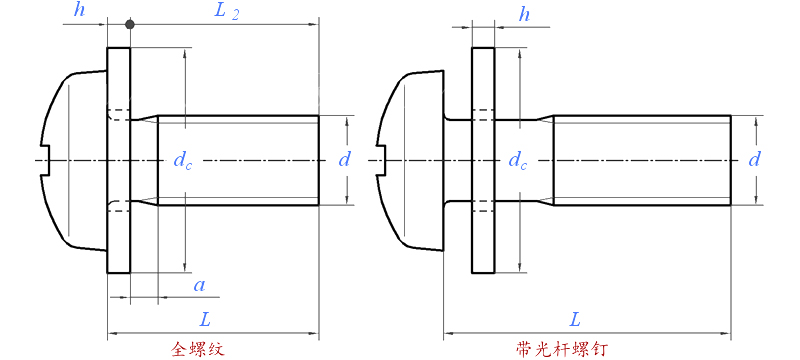

Dimensions unit: inch
|
Nominal diameter d |
M2.5 |
M3 |
(M3.5) |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
||
|
a |
0.9 |
1 |
1.2 |
1.4 |
1.6 |
2 |
2.5 |
3 |
3.5 |
||
|
L2 |
Min. |
4 |
4 |
6 |
6 |
6 |
8 |
10 |
12 |
14 |
|
|
h |
DIN 6902 |
Type C |
0.6 |
0.6 |
0.8 |
0.8 |
1 |
1.6 |
2 |
2.5 |
3 |
|
Type A |
0.6 |
0.6 |
0.8 |
0.8 |
1 |
1.6 |
2 |
2.5 |
3 |
||
|
Type B |
0.8 |
0.8 |
0.8 |
1 |
1.6 |
1.6 |
2 |
2.5 |
3 |
||
|
dc |
DIN 6902 |
Type C |
5 |
6 |
7 |
8 |
9 |
11 |
15 |
18 |
20 |
|
Type A |
6 |
7 |
8 |
9 |
10 |
12 |
16 |
20 |
24 |
||
|
Type B |
8 |
9 |
11 |
12 |
15 |
18 |
24 |
30 |
37 |
||
FAQ
A: We take every inquiry seriously. On working days, we will respond within 12 hours after receiving your inquiry.
A: We focus on the production of fasteners made of carbon steel, stainless steel, and low-alloy steel. We are a direct manufacturer with independent production capacity. DIN 6900-1:1990 Phillips Pan Head Screw and Flat Washer Assembly Factory. We own several fastener manufacturing facilities and have an international sales department, providing full-process services from production to export.
A: Customized production is our core business. We can develop and manufacture products based on the drawings or samples you provide.
A: Yes. In addition to custom products, we also produce general construction machinery parts (GET parts) for equipment such as excavators, including bucket teeth, tooth holders, corner blades, pins, clips, bolts and nuts. DIN 6900-1:1990 Phillips Pan Head Screw and Flat Washer Assembly Wholesale.
A: We have 12 energy-efficient and environmentally friendly modern production lines (including one fully automatic shell molding line and four heat treatment lines), with an annual production capacity exceeding 20,000 tons, enabling us to steadily meet various order requirements.
A: Trade terms (such as FOB, CIF, etc.) are confirmed when quoting. For batch production, we typically require a 30% deposit, with the balance paid against the copy of the bill of lading. T/T is the main payment method accepted, and L/C can also be negotiated.
A: We are only 35 km away from Shanghai Port and Ningbo Port, so sea freight is the main mode of transportation, which is convenient and efficient. For urgent deliveries, we can also arrange air freight via Ningbo or Shanghai airports.
