DIN 607:2010 Round Head Nib Bolt uses a nib below the head for anti-rotation and locating support. The round head provides a safe and clean exposed surface, making it useful where one-side tightening is required or the head cannot be held easily.
The nib can seat into wood, metal plate, or prepared slots to stabilize the bolt during tightening. Applications include woodworking structures, vehicle body components, guardrails, machinery covers, and light-to-medium bracket joints.
The nib dimensions should match the base material or slot to avoid slipping or surface damage during installation. Different strength classes, materials, and coatings can be supplied for indoor and outdoor assembly requirements.

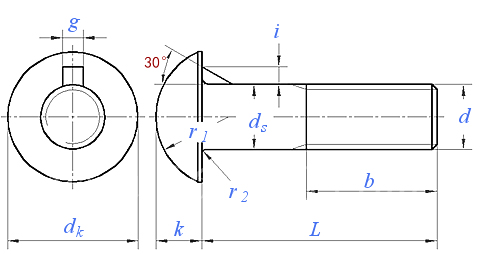

Dimensions unit: mm
| Thread size d | M8 | M10 | M12 | M16 | |
| P | Pitch | 1.25 | 1.5 | 1.75 | 2 |
| b | L≤125 | 22 | 26 | 30 | 38 |
| 125<L≤200 | 28 | 32 | 36 | 44 | |
| L>200 | / | / | / | 57 | |
| dk | Max. | 16.55 | 19.65 | 24.65 | 30.65 |
| Min. | 15.45 | 18.35 | 23.35 | 29.35 | |
| ds | Max. | 8 | 10 | 12 | 16 |
| Min. | 7.42 | 9.42 | 11.3 | 15.3 | |
| g | Max. | 3 | 3.2 | 3.6 | 4.2 |
| Min. | 2.6 | 2.72 | 3.12 | 3.72 | |
| i | Min. | 2.3 | 2.7 | 3.2 | 3.5 |
| k | Max. | 6.38 | 7.45 | 9.65 | 11.75 |
| Min. | 5.62 | 6.55 | 8.75 | 10.65 | |
| r1 | ≈ | 8.9 | 10.5 | 13.3 | 15.8 |
| r2 | Max. | 0.5 | 0.5 | 1 | 1 |
| Thousand pieces of steel weigh ≈kg | - | - | - | - | |
