Home / Products / Screws / Wood Screws / NF E 25-609:1985 Eye Wood Screw

NF E 25-609:1985 Eye Wood Screw

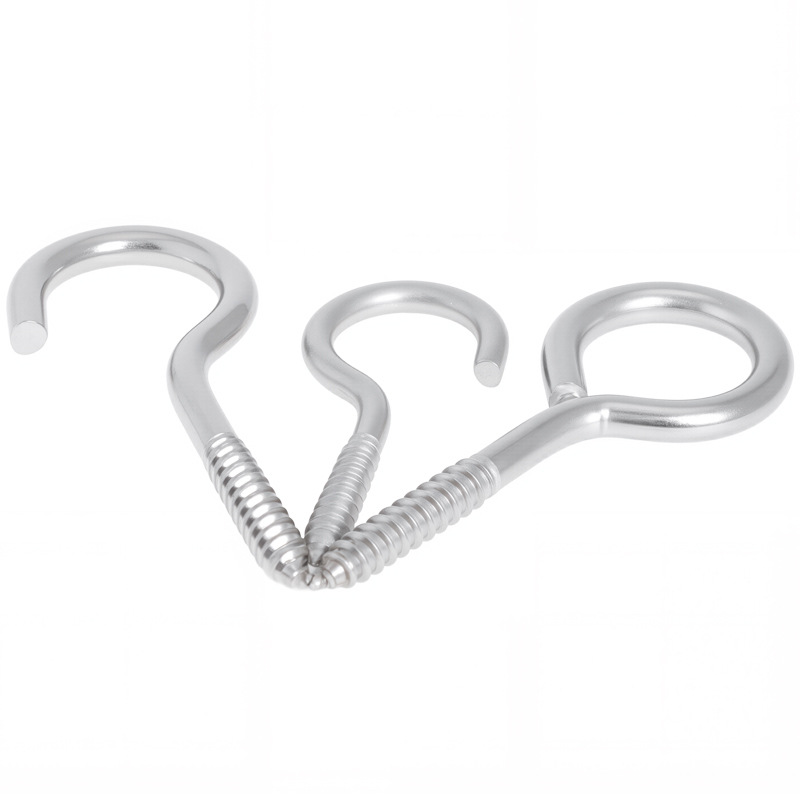

NF E 25-609:1985 Eye Wood Screw is characterized by an eye head with wood screw threading and is intended for applications where a hanging, pulling, or temporary fixing point is needed in timber.

The eye provides an interface for ropes, chains, hooks, or accessories, while the wood thread can be screwed directly into timber or a pilot hole. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include display racks, timber hanging points, garden facilities, light suspension devices, and decorative installation. The product can be configured with eye size, rust-resistant finish, and stainless steel material to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：ASME B18.2.1 (T15):2012 Hex Head Wood Screw NEXT：NF E 25-611:1985 Wood Screw

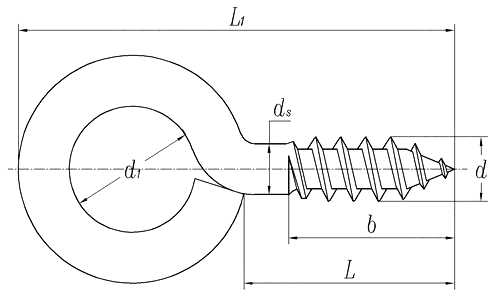

Dimensions unit: inch

Thread size d

2.25

2.5

3

3

3.5

4

4.5

5

6

6

d

1

Max.

3

3.3

4.2

4.2

4.5

5

6

7

7.8

7.8

Min.

2.6

2.9

3.7

3.7

4

4.5

5.5

6

7.4

7.4

P

1

Pitch

1.1

1.2

1.5

1.5

1.6

1.75

2

2

2.9

2.9

d

2

Max.

2.25

2.5

3

3

3.5

4

4.5

5

6

6

Min.

2

2.2

2.6

2.6

3

3.5

4

4.5

5.5

5.5

P

2

Pitch

1.1

1.25

1.5

1.5

1.5

1.75

2

2

2.5

2.5

ds

Max.

2.25

2.5

3

3

3.5

4

4.5

5

6

6

Min.

2

2.2

2.6

2.6

3

3.4

3.8

4.3

5.3

5.3

d1

Max.

5.4

6.4

7.4

9.5

9.5

10.5

12.5

14.6

14.6

16.6

Min.

5

6

7

9

9

10

12

14

14

16

L1 Max.

-

-

-

-

-

-

-

-

-

-

 Thread length b

-

-

-

-

-

-

-

-

-

-
