Home / Products / Screws / Wood Screws / DIN 7995:2016 Oval Countersunk Head Phillips Wood Screw

DIN 7995:2016 Oval Countersunk Head Phillips Wood Screw

DIN 7995:2016 Oval Countersunk Head Phillips Wood Screw is characterized by a Phillips oval countersunk head with wood screw threading and is intended for wood joints that require both decorative appearance and higher installation efficiency.

The oval countersunk head creates a rounded surface finish, the Phillips recess supports fast driving, and the wood thread provides stable engagement in the base material. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include furniture surfaces, decorative timber boards, wood trim, door and window hardware, and light craft structures. The product can be configured with nickel plating, brass-like finish, stainless steel, or standard zinc plating to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：ASME/ANSI B18.6.1 (T3):1997 Countersunk Head Phillips Wood Screw NEXT：ASME/ANSI B18.6.1 (T7):1997 Oval Countersunk Head Phillips Wood Screw

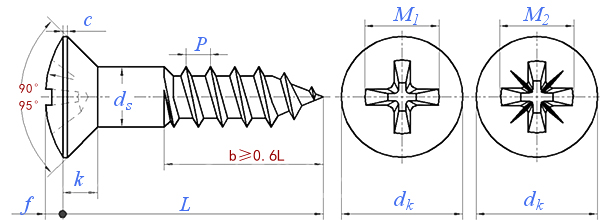

Dimensions unit: inch

Thread size d

(2)

2.5

3

3.5

4

4.5

5

(5.5)

6

(7)

(8)

ds

Max.

2

2.5

3

3.5

4

4.5

5

5.5

6

7

8

Min.

1.6

2.1

2.6

3.02

3.52

4.02

4.52

5.02

5.52

6.42

7.42

dk

Nominal

3.8

4.7

5.6

6.5

7.5

8.3

9.2

10.2

11

12.5

14.5

Max.

4.18

5.08

5.98

6.95

7.95

8.75

9.65

10.75

11.55

13.05

15.05

Min.

3.42

4.32

5.22

6.05

7.05

7.85

8.75

9.65

10.45

11.95

13.95

f

≈

0.5

0.6

0.75

0.9

1

1.1

1.25

1.4

1.5

1.75

2

k

Max.

1.2

1.5

1.65

1.93

2.2

2.35

2.5

2.75

3

3.5

4

Slot number

0

1

1

2

2

2

2

3

3

3

4

M1

≈

/

2.7

3.1

4.2

4.5

5

5.3

7.1

7.4

8.3

9

M2

≈

/

2.8

3.1

4.3

4.6

5.1

5.3

6.6

7

8

8.8

Depth

 Cross recess

Min.

/

1.3

1.7

1.74

2.04

2.55

2.77

3.31

3.66

4.52

4.18

Max.

/

1.6

2

2.24

2.54

3.05

3.27

3.81

4.16

5.02

4.68

 Rice slot

Min.

/

1.5

1.83

1.93

2.26

2.69

2.89

2.92

3.3

4.34

4.06

Max.

/

1.75

2.08

2.39

2.72

3.15

3.35

3.38

3.76

4.8

4.52
