ASME B18.6.9:2010 Type A Wing Nut

ASME B18.6.9:2010 Type A Wing Nut uses two side wings for hand tightening and removal, making it suitable for frequent adjustment, quick clamping, or tool-free fastening. The Type A form allows fingers to apply torque efficiently and improves on-site operation.

This product can be used in fixtures, access covers, light equipment, furniture hardware, display equipment, and temporary fixing devices. The wing shape makes the fastener easy to identify and operate, especially for hand-tightened joints that do not require high torque.

Steel, stainless steel, or finished versions can be selected according to the service environment to meet rust protection, appearance, and repeated-use requirements.

Contact Us
PREV：No previous product NEXT：DIN 314:1999 Square Wing Wing Nut

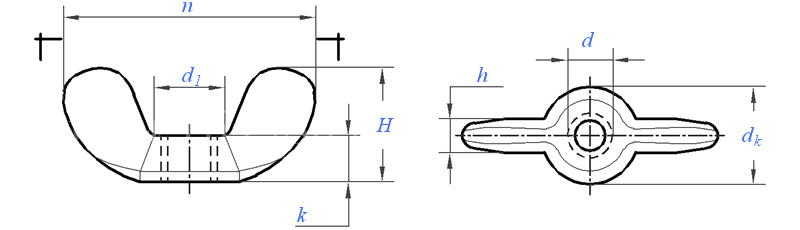

Dimensions unit: inch

Thread Size d

3# Heavy Type

4# Heavy Type

5# Light Type

5# Heavy Type

6# Light Type

6# Heavy Type

8# Light Type

8# Heavy Type

10# Light Type

10# Heavy Type

12# Light Type

12# Heavy Type

1/4 Heavy Type

1/4 Light Standard Type

PP

Threads Per Inch

48

40

40

40

32

32

32

32

24

24

24

24

20

20

Threads Per Inch

56

48

44

44

40

40

36

36

32

32

28

28

28

28

n

Max.

0.72

0.72

0.72

0.91

0.72

0.91

0.91

1.1

0.91

1.1

1.1

1.25

1.1

1.25

Min.

0.59

0.59

0.59

0.78

0.59

0.78

0.78

0.97

0.78

0.97

0.97

1.12

0.97

1.12

H

Max.

0.41

0.41

0.41

0.47

0.41

0.47

0.47

0.57

0.47

0.57

0.57

0.66

0.57

0.66

Min.

0.28

0.28

0.28

0.34

0.28

0.34

0.34

0.43

0.34

0.43

0.43

0.53

0.43

0.53

h

Max.

0.11

0.11

0.11

0.14

0.11

0.14

0.14

0.18

0.14

0.18

0.18

0.21

0.18

0.21

Min.

0.07

0.07

0.07

0.1

0.07

0.1

0.1

0.14

0.1

0.14

0.14

0.17

0.14

0.17

d1

Max.

0.21

0.21

0.21

0.27

0.21

0.27

0.27

0.33

0.27

0.33

0.33

0.39

0.33

0.39

Min.

0.17

0.17

0.17

0.22

0.17

0.22

0.22

0.26

0.22

0.26

0.26

0.32

0.26

0.32

dk

Max.

0.33

0.33

0.33

0.43

0.33

0.43

0.43

0.5

0.43

0.5

0.5

0.58

0.5

0.58

Min.

0.29

0.29

0.29

0.39

0.29

0.39

0.39

0.45

0.39

0.45

0.45

0.51

0.45

0.51

k

Max.

0.14

0.14

0.14

0.18

0.14

0.18

0.18

0.22

0.18

0.22

0.22

0.25

0.22

0.25

Min.

0.1

0.1

0.1

0.14

0.1

0.14

0.14

0.17

0.14

0.17

0.17

0.2

0.17

0.2
