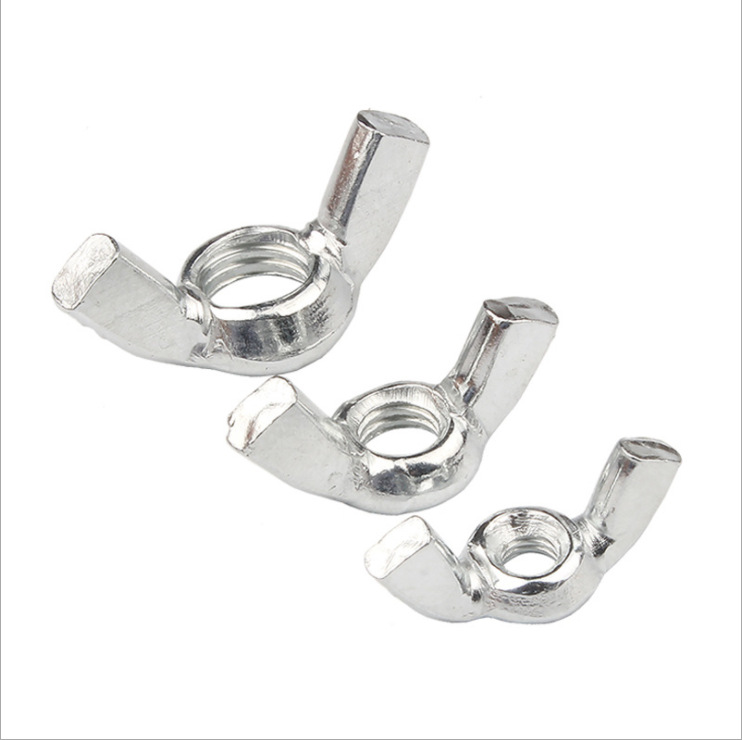

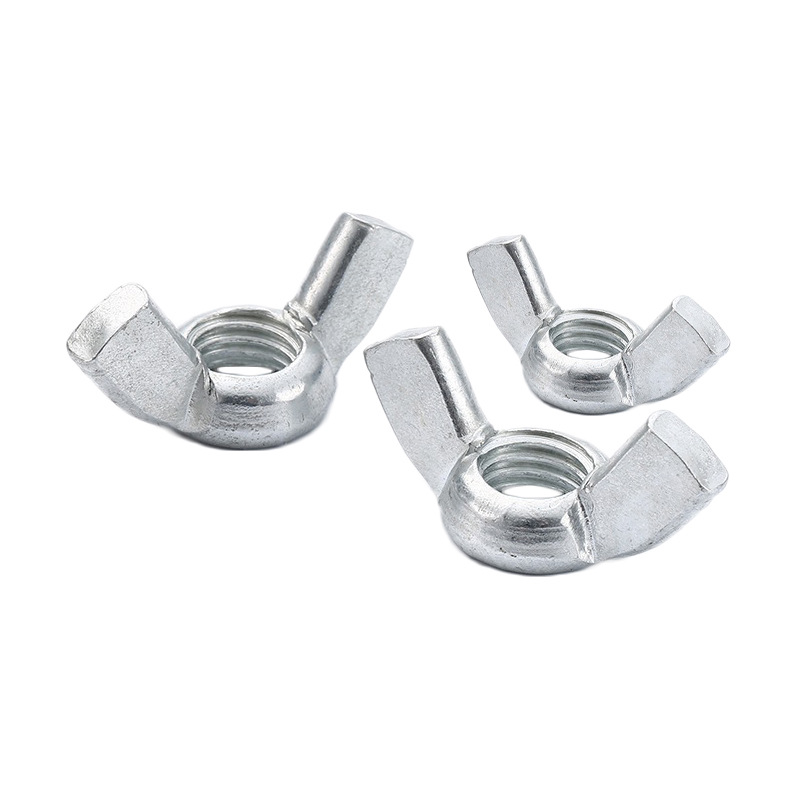

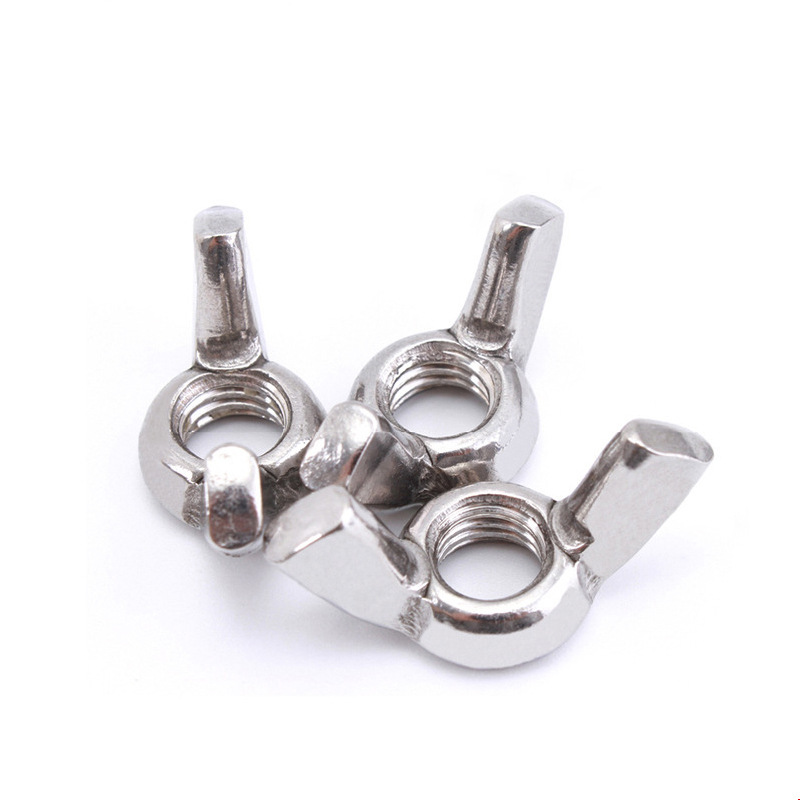

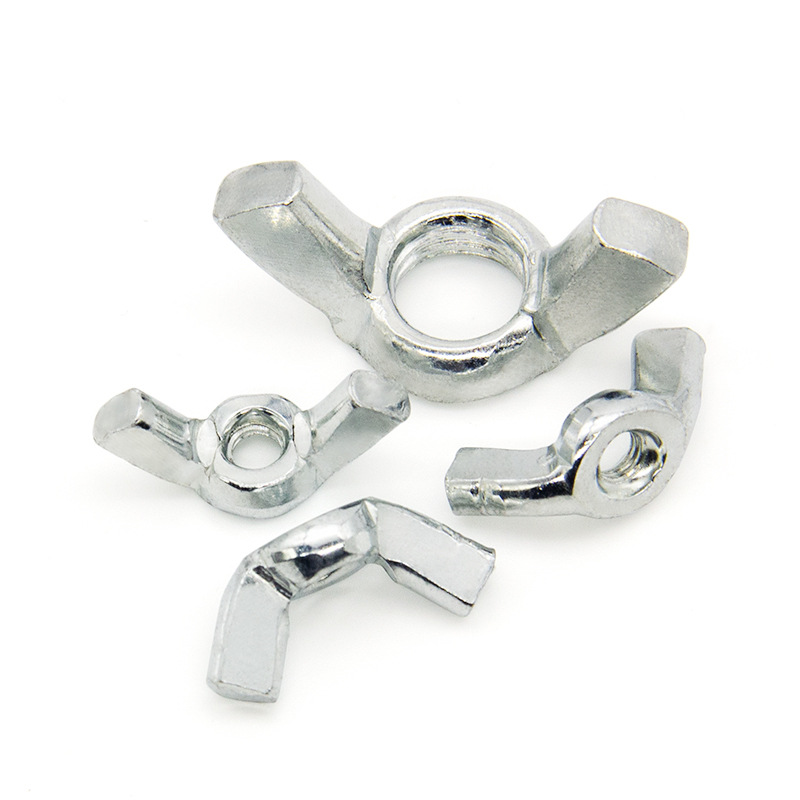

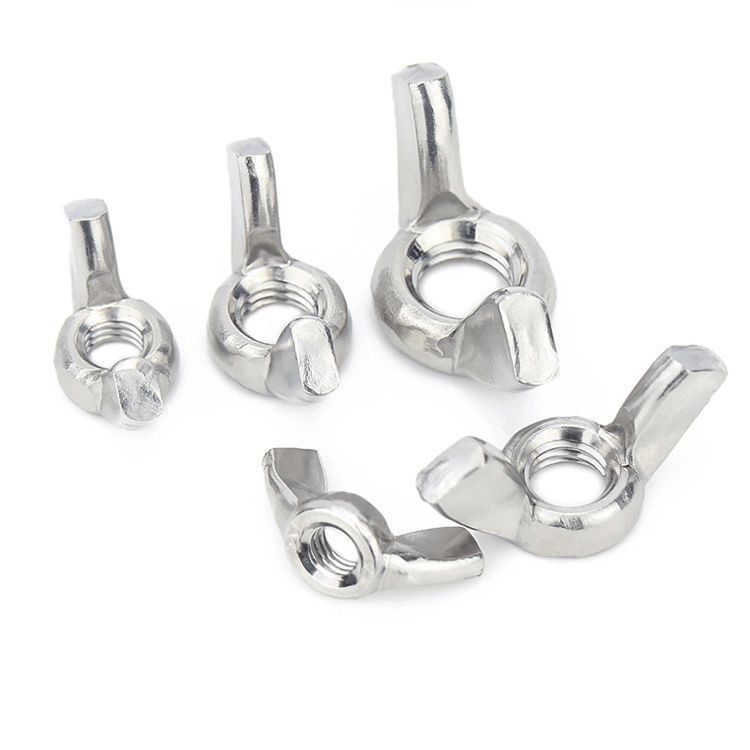

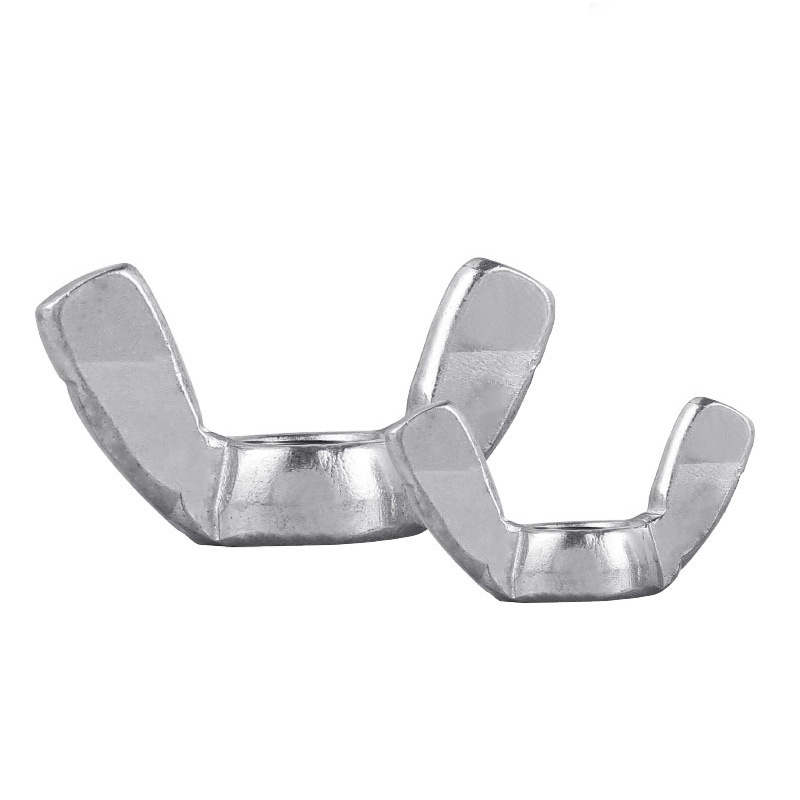

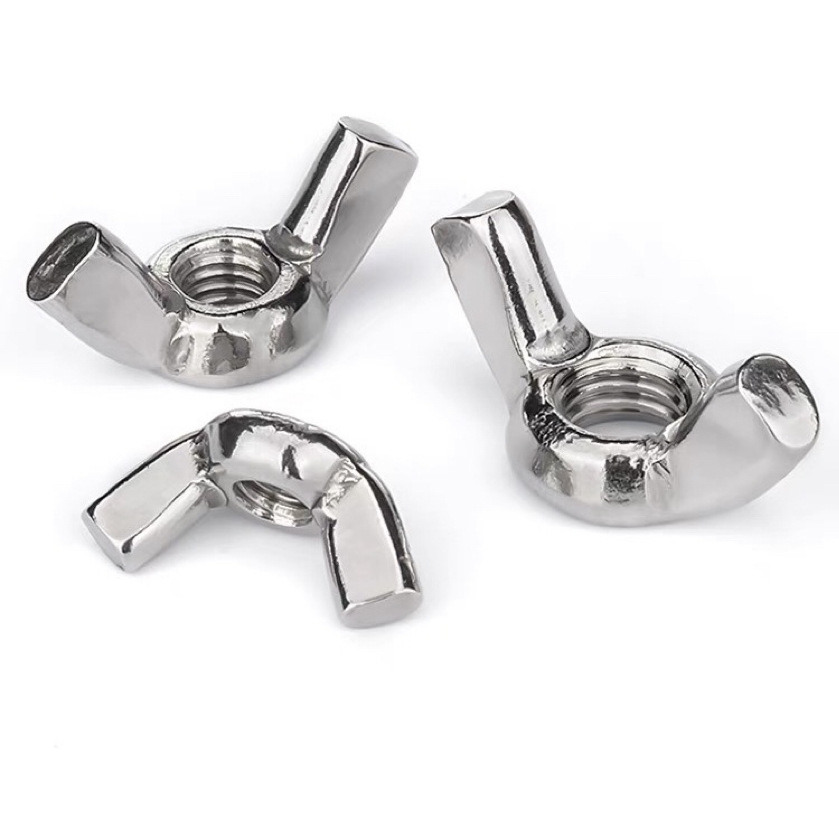

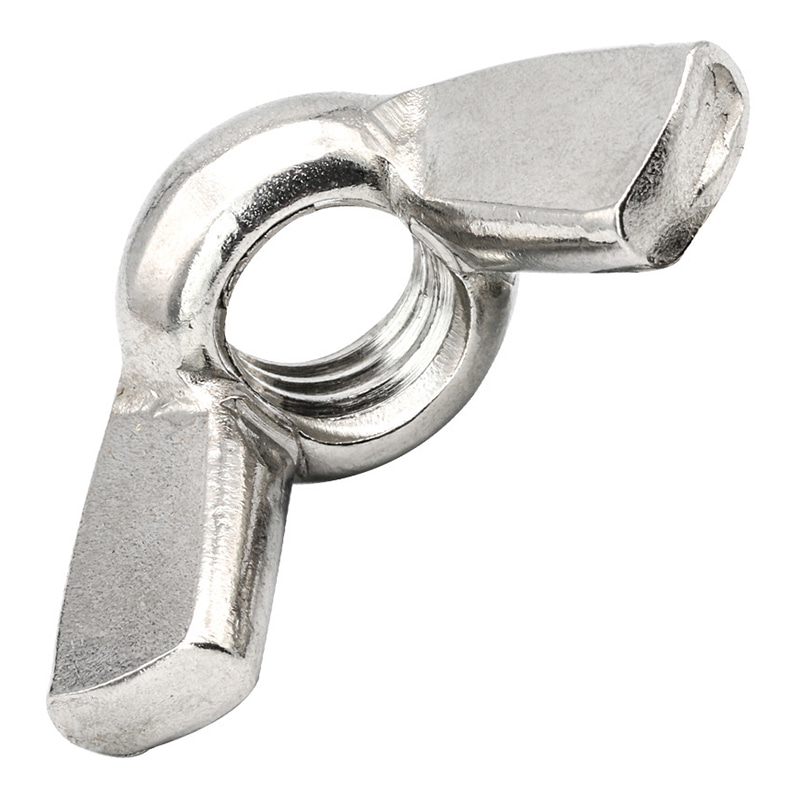

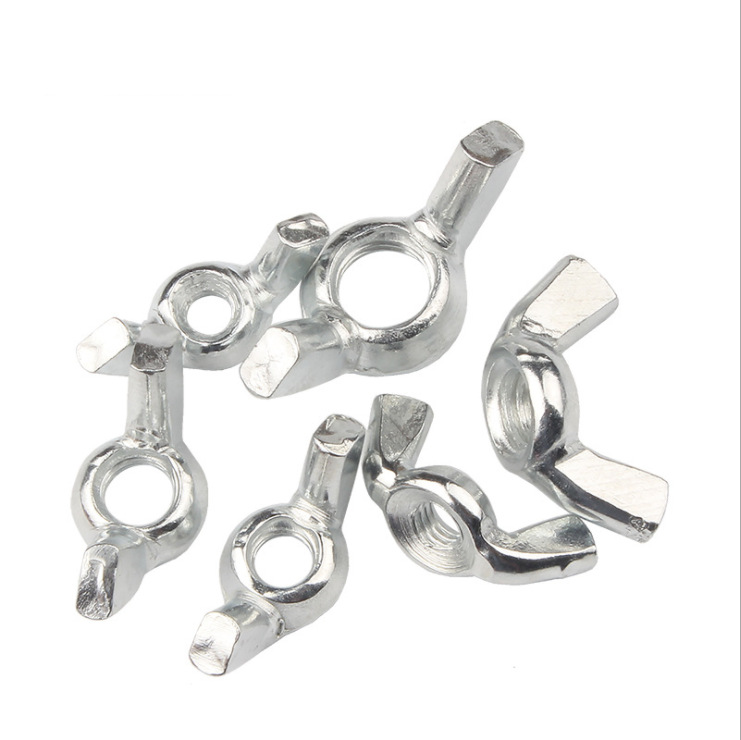

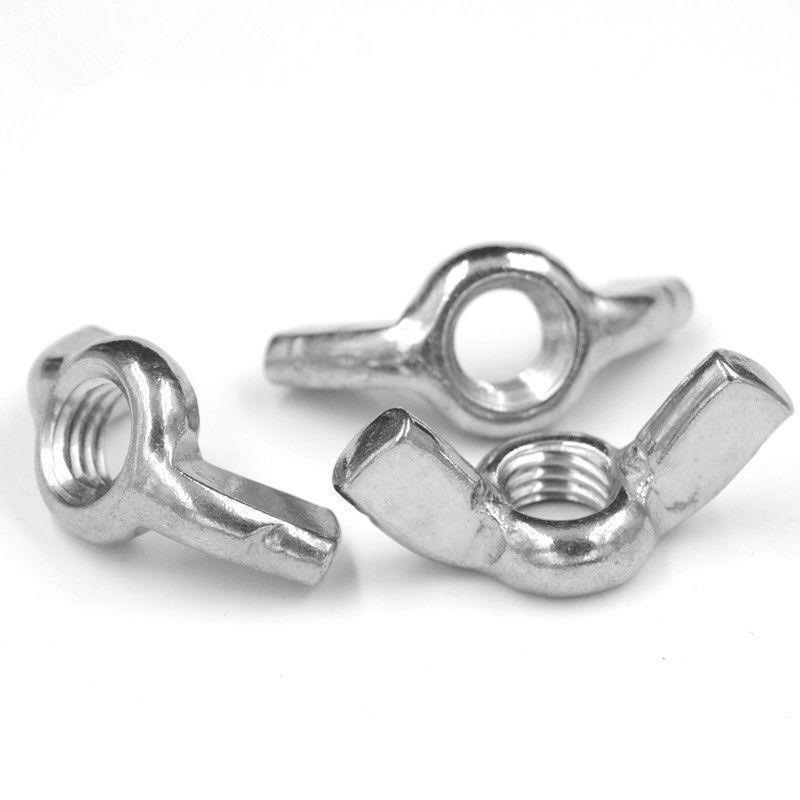

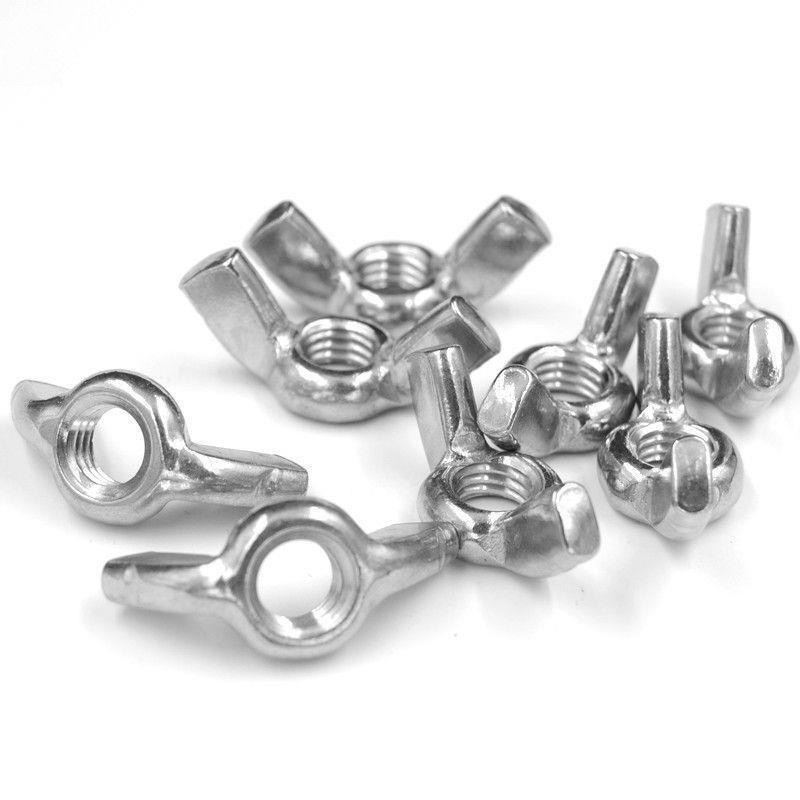

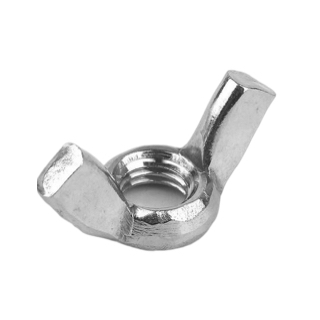

DIN 314:1999 Square Wing Wing Nut

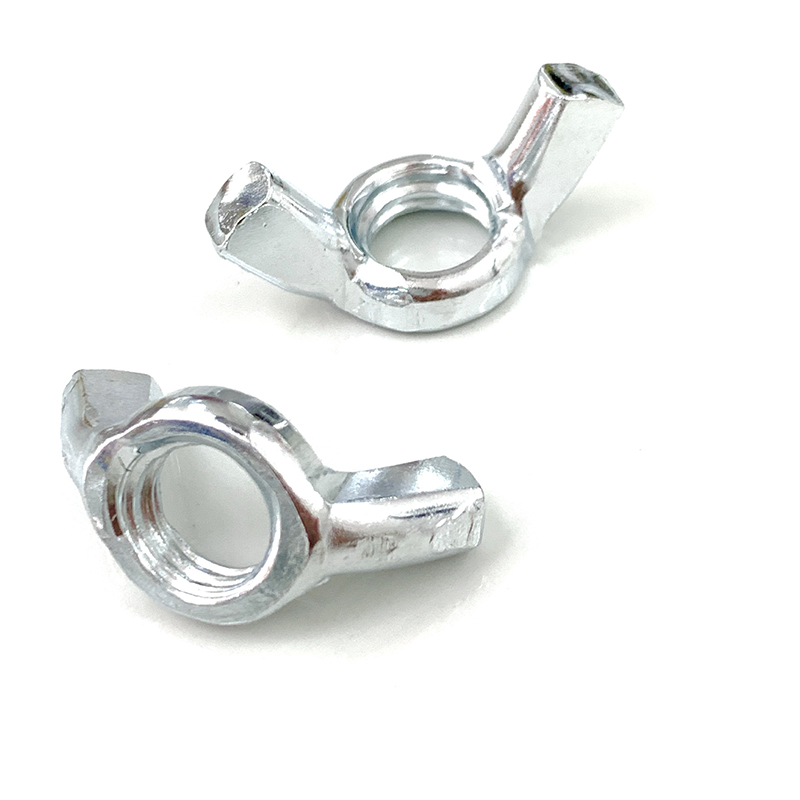

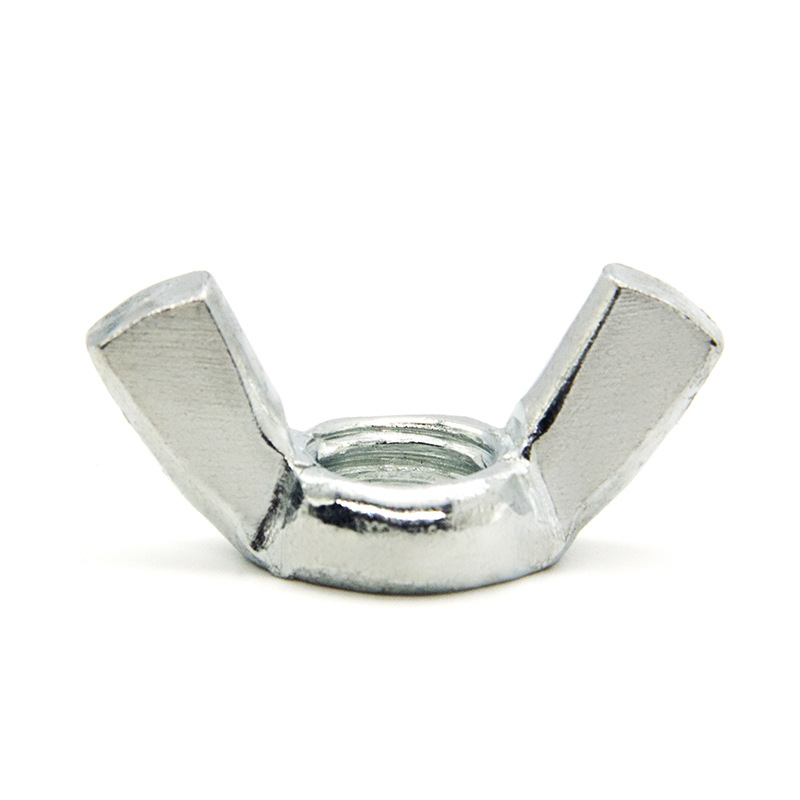

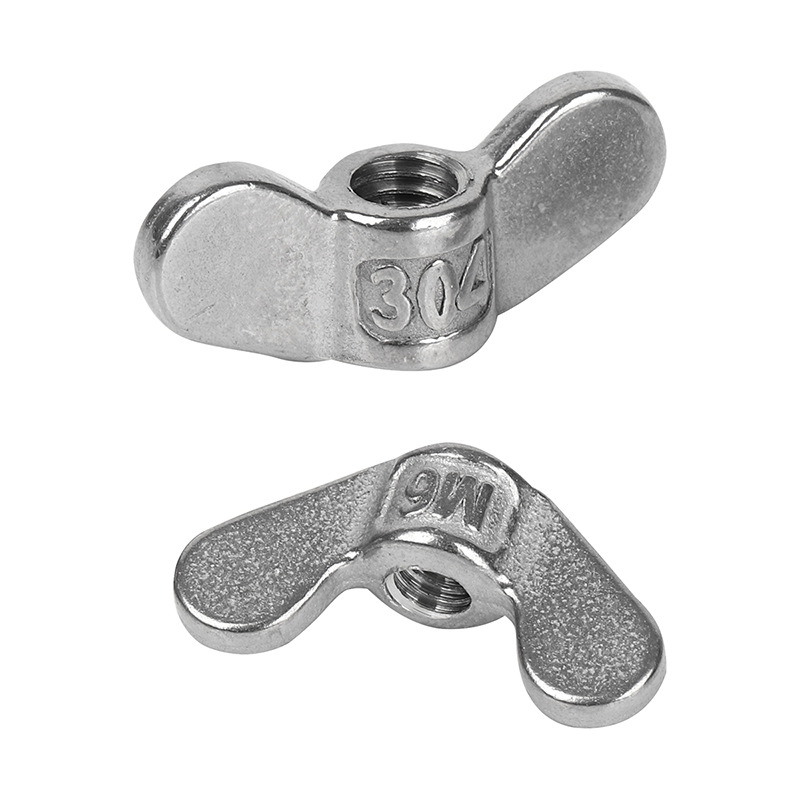

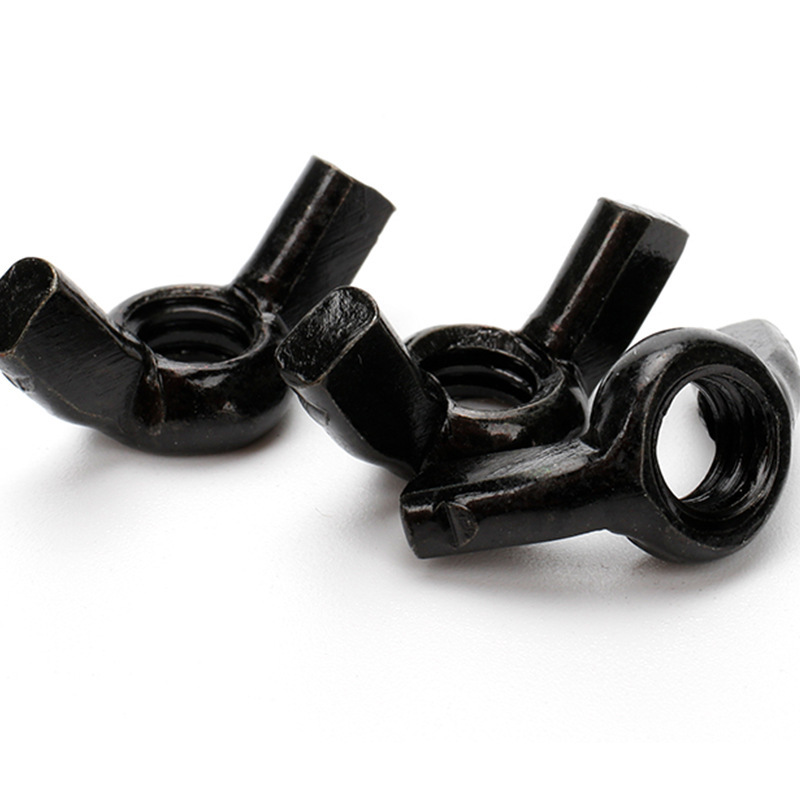

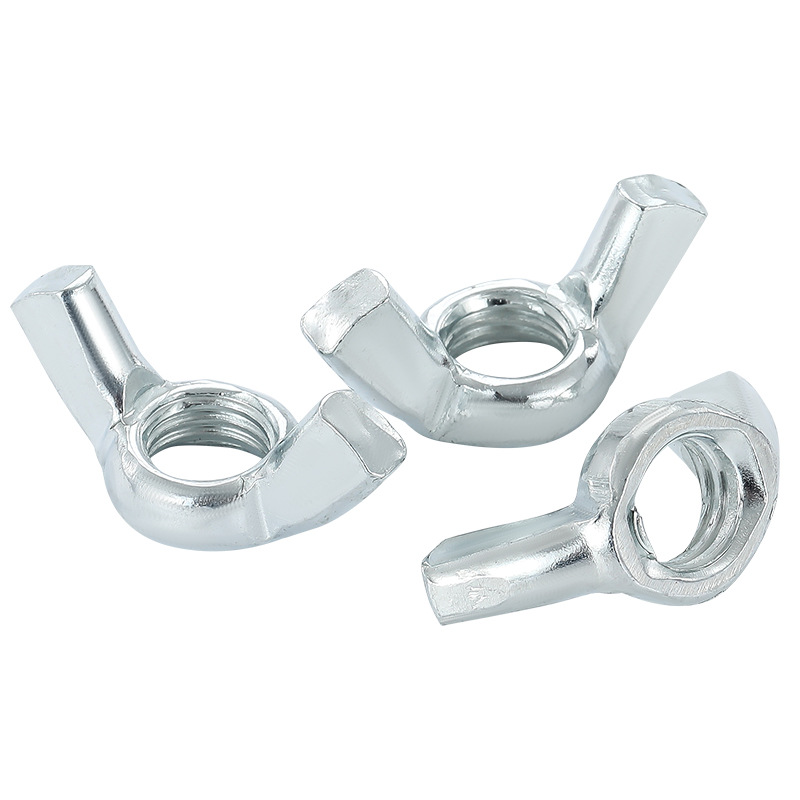

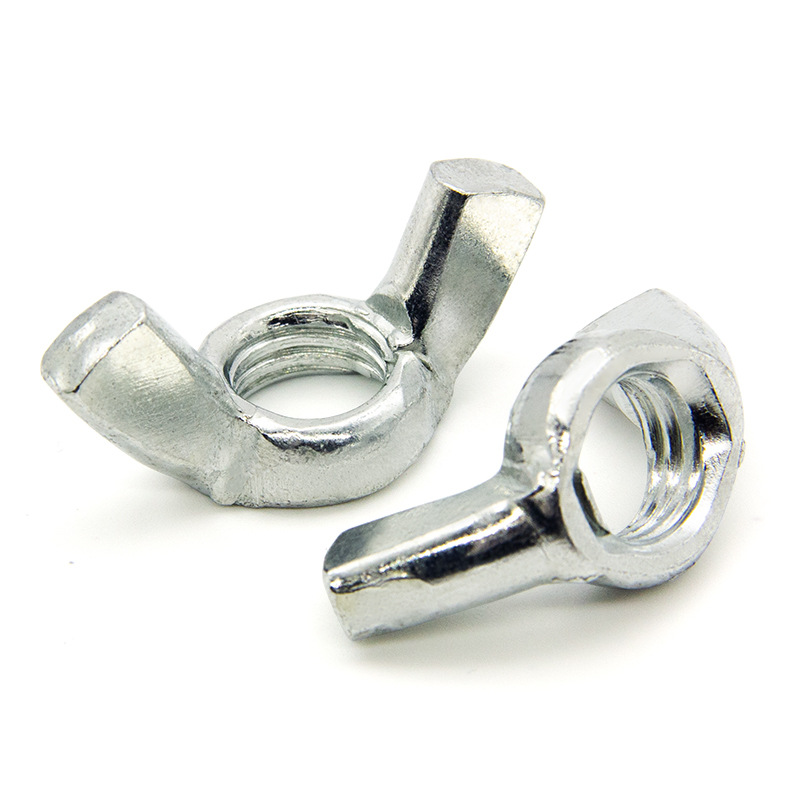

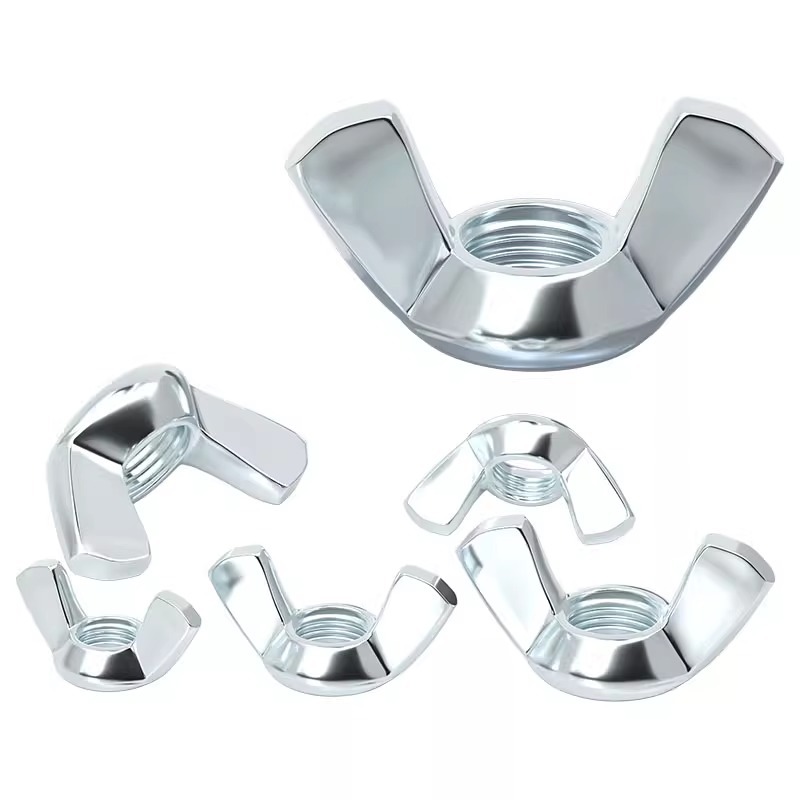

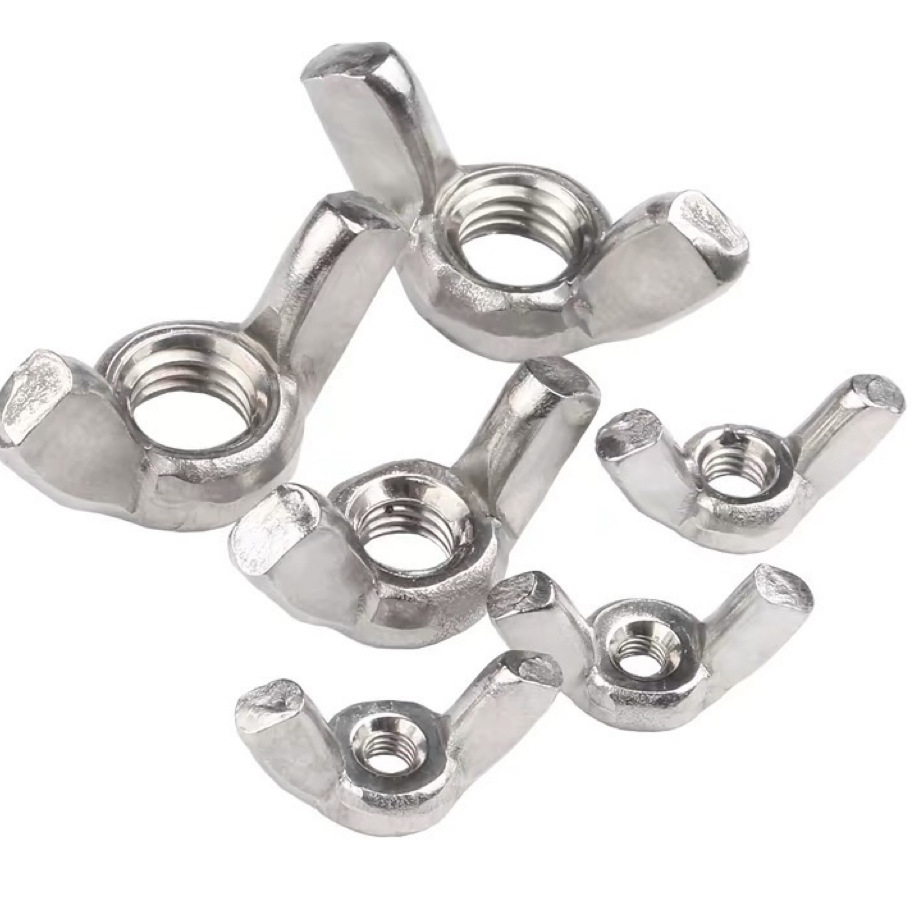

DIN 314:1999 Square Wing Nut features square-shaped wings for manual tightening, loosening, and position adjustment. The wing form provides clear gripping edges, making it suitable for low-torque joints, frequent removal, or temporary fixing.

It can be used in fixtures, woodworking equipment, access doors, lighting brackets, packaging machinery, and display devices. Tool-free operation helps improve maintenance and adjustment efficiency.

Materials and surface treatments can be selected according to usage frequency, humidity exposure, and appearance needs, supporting light industrial, consumer hardware, and equipment accessory applications.

Contact Us

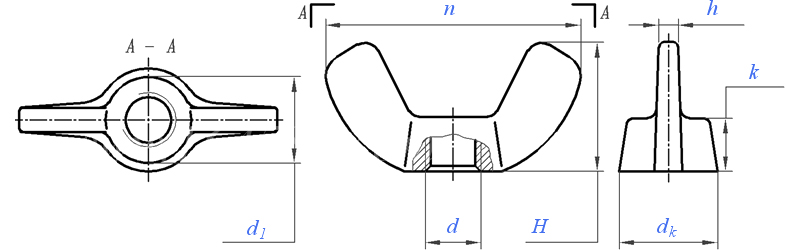

Dimensions unit: inch

Thread size d

M4

M5

M6

M8

M10

M12

P

Pitch

0.7

0.8

1

1.25

1.5

1.75

n

Max.

21

26.5

32

38

50

66

Min.

19

24.5

29

35

47

63

H

Max.

11

13

16

19

24

32

Min.

9

11

14

17

22

29

h

Min.

1.1

1.5

1.5

2

3.6

4.1

d1

Max.

7

9

11

12.5

16

19

Min.

5.5

7.5

9

10.5

14

17

dk

Max.

9

12

14

16

21

24

Min.

7

9

11

13

18

21

k

Max.

4.6

6

7

8.5

10

13

Min.

3.2

4

5

6.5

8

10

① Material: Steel (St) (forged or cold worked), or malleable iron (GT) (GTS or GTW), or copper-zinc alloy (CuZn) (wrought alloy or cast alloy), or austenitic stainless steel (A) (grade determined by manufacturer)
