ASME B18.2.6:2019 High Strength Tension Control Button Head Bolt

ASME B18.2.6:2019 High Strength Tension Control Button Head Bolt is suitable for structural joints that need high preload while also requiring a low-protrusion, smooth head profile. The button head reduces external interference and improves local clearance.

The tension-control installation method supports more stable preload control in steel structures, bridge components, equipment supports, and space-limited high-strength nodes. Compared with hex head styles, the button head offers advantages in appearance and clearance.

It should be used with appropriate installation tools, nuts, and washers. Batch consistency, friction-surface condition, and final tightening inspection are important, especially for safety-related structural applications.

Contact Us

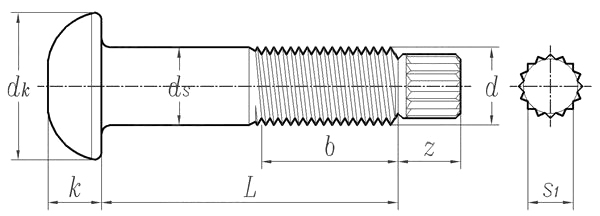

Dimensions unit: mm

Thread size  1/2 5/8 3/4 7/8 1 1-1/8 1-1/4
PP UNC 13 11 10 9 8 7 7
k Max. 0.323 0.403 0.483 0.563 0.627 0.718 0.813
Min. 0.302 0.378 0.455 0.531 0.591 0.658 0.749
ds Max. 0.515 0.642 0.768 0.895 1.022 1.149 1.277
Min. 0.482 0.605 0.729 0.852 0.976 1.098 1.223
dk Max. 1.126 1.313 1.58 1.88 2.158 2.375 2.76
b Thread length  Reference value  1 1.25 1.38 1.5 1.75 2 2
z Reference value 0.5 0.6 0.65 0.72 0.8 0.9 1
s1 Reference value 0.32 0.43 0.53 0.61 0.7 0.8 0.9

① Material and mechanical properties should meet the requirements of ASTM F 1852 or ASTM F 2280.

② ASTM A325/A325M/A490/A490M/F1852/F2280 has been merged into ASTM F3125
