DIN 74361-2 (A):1982 Type A Wheel Spherical Flange Nut is used for positioning and clamping in vehicle wheel-hub connections. The spherical flange is intended to mate with a corresponding spherical seat, helping achieve stable contact among the hub, rim, and bolt while reducing the risk of localized misalignment.
This nut is suitable for commercial vehicles, trailers, special-purpose vehicles, and engineering vehicle wheel-end systems. The hexagonal outer form supports installation and maintenance with standard sockets, while the flange bearing surface helps maintain clamping stability under vibration, alternating loads, and road impact.
Selection should consider seat geometry, thread size, strength class, and surface protection requirements to ensure compatibility with the wheel-end fastening system and support long-term vehicle safety and durability.

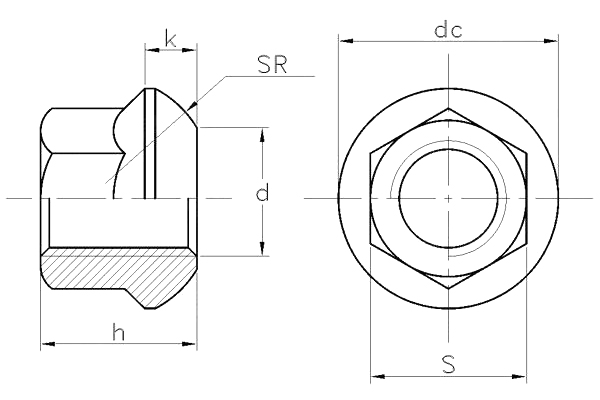

Dimensions unit: mm
|
Thread size d |
M12 |
M14 |
M18 |
M20 |
M22 |
|
|
P |
Pitch |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
dc |
Max. |
23 |
26 |
28 |
33 |
36 |
|
Min. |
22.5 |
25.5 |
27.5 |
32.5 |
35.5 |
|
|
h |
Max. |
19 |
21 |
26 |
28 |
31 |
|
Min. |
18 |
20 |
25 |
27 |
30 |
|
|
k |
7.5 |
7.5 |
7.5 |
9 |
10.5 |
|
|
s |
Max. |
17 |
19 |
24 |
27 |
30 |
|
Min. |
16.73 |
18.67 |
23.67 |
26.67 |
29.67 |
|
|
Weight per thousand pieces (steel)≈kg |
26 |
33 |
53 |
76 |
100 |
|
