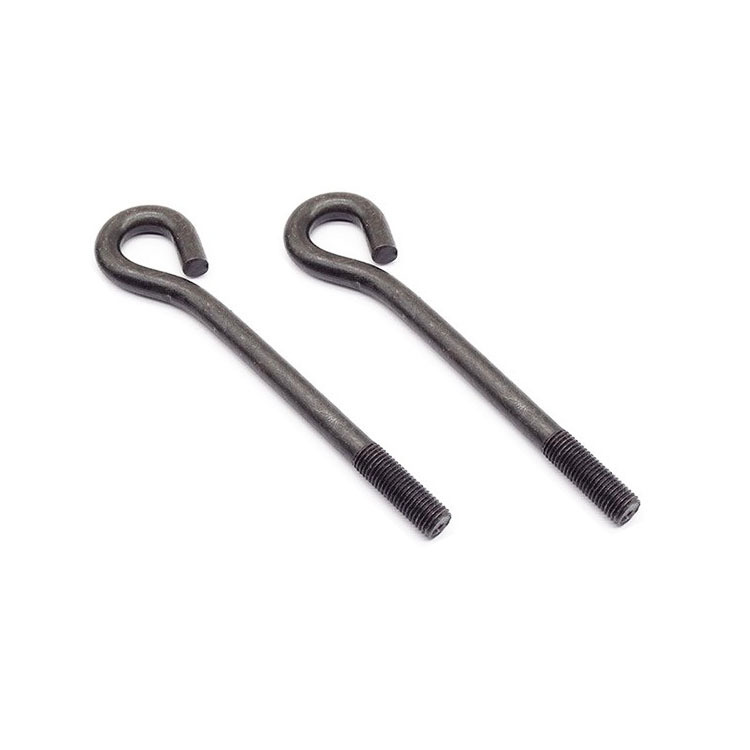

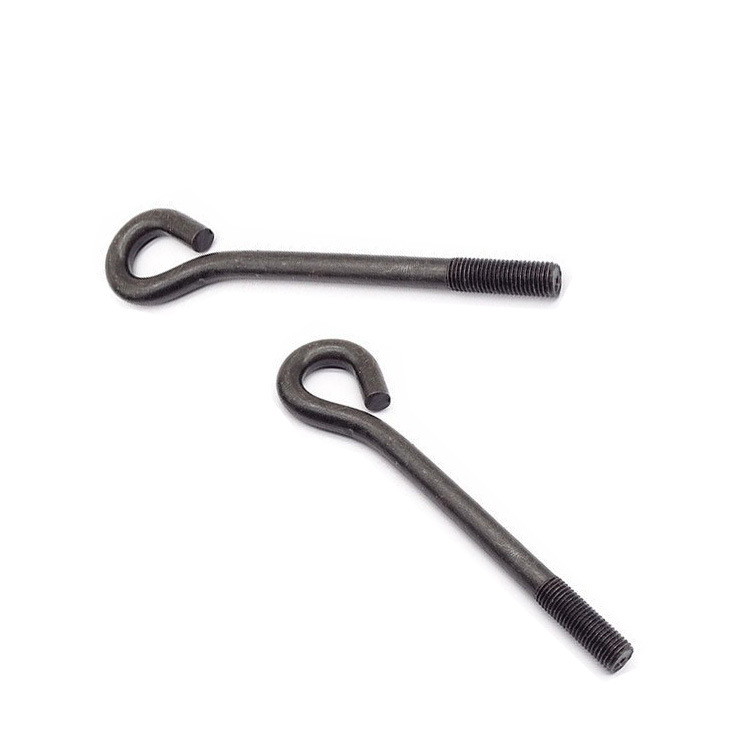

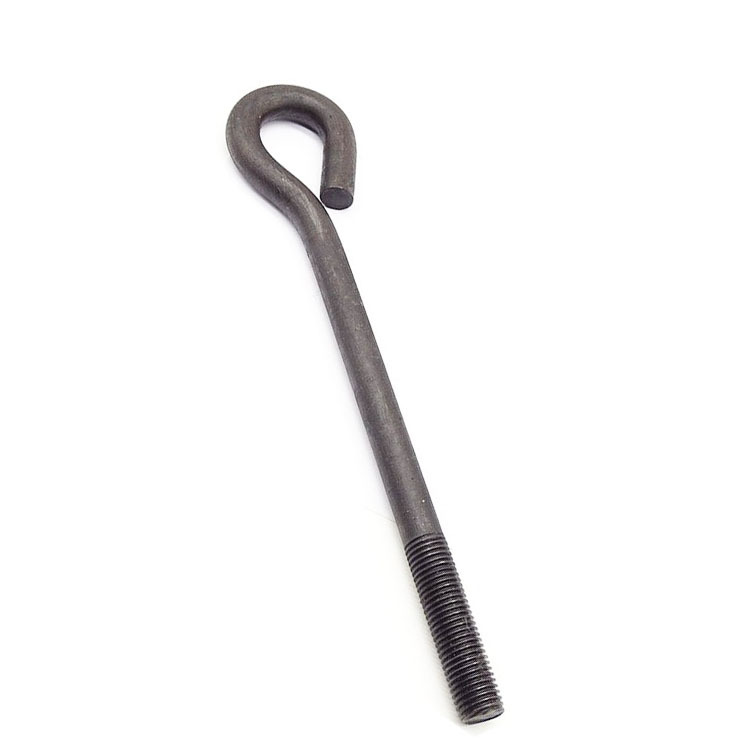

DIN 529 (A):2010 Type A Foundation Anchor Bolt

DIN 529 (A):2010 Type A Foundation Anchor Bolt is used for equipment foundations, concrete embedment, and structural anchoring. It is a common fastener for securing upper equipment or steel structures to a foundation.

The Type A form is suitable for embedment during foundation construction, creating a stable anchoring end. Applications include machinery bases, steel column feet, pipe-rack supports, industrial platforms, and various foundation installation projects.

Anchor length, exposed length, thread size, material strength, and corrosion protection should be confirmed during design and procurement. For critical equipment foundations, drawings, concrete strength, and installation elevation should be controlled together.

Contact Us

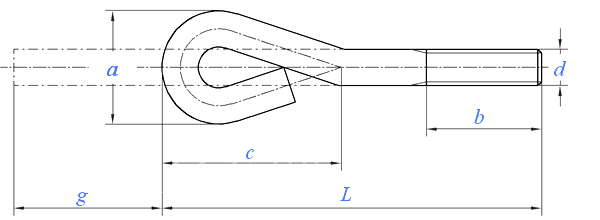

Dimensions unit: mm

Thread size d M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72×6
a Nominal  24 30 36 48 60 75 95 115 135 155 180 200 240
Max. 27 33 39 51 63 78 98 118 138 158 183 203 243
Min. 21 27 33 45 57 72 92 112 132 152 177 197 237
c Nominal  45 55 65 85 105 125 155 190 220 250 290 335 370
Max. 50 60 70 90 110 130 160 195 225 255 295 340 375
Min. 40 50 60 80 100 120 150 185 215 245 285 330 365
g ≈ 30 38 45 60 75 90 115 135 155 180 210 235 260
b Min.=Nominal  20 25 30 40 50 60 75 90 105 120 140 160 180
Max. 22.5 28 33.5 44 55 66 82 98 114 130 151 172 192
