ASME B18.6.3 (H9B-VI):2024 Hex Head Heavy Hex Torx Screw combines an external hex head with an internal Torx recess, allowing both wrench-driven and internal-drive installation methods where assembly or maintenance conditions vary.
The recessed drive provides positive tool location, while the heavy hex head helps enlarge the contact area and improve handling during tightening. This makes the screw useful in applications that require installation efficiency, serviceability, and robust head geometry.
It is suitable for equipment housings, bracket joints, engineering assemblies, vehicle components, and industrial maintenance work. Different materials, coatings, and dimensional options can be selected to improve fastening reliability in outdoor, humid, or vibration-prone environments.

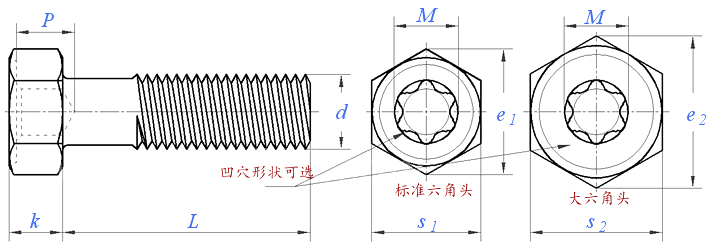

Dimensions unit: inch
|
Thread size d |
4# |
5# |
6# |
8# |
10# |
12# |
1/4 |
5/16 |
3/8 |
||
|
d |
Nominal |
0.112 |
0.125 |
0.138 |
0.164 |
0.19 |
0.216 |
0.25 |
0.3125 |
0.375 |
|
|
PP |
40 |
40 |
32 |
32 |
24 |
24 |
20 |
18 |
16 |
||
|
M |
Reference value |
0.111 |
0.111 |
0.132 |
0.155 |
0.178 |
0.2 |
0.221 |
0.266 |
0.312 |
|
|
Slot number |
T10 |
T10 |
T15 |
T20 |
T25 |
T27 |
T30 |
T40 |
T45 |
||
|
P |
Max. |
0.04 |
0.05 |
0.051 |
0.065 |
0.08 |
0.08 |
0.095 |
0.125 |
0.155 |
|
|
Min. |
0.035 |
0.04 |
0.04 |
0.05 |
0.065 |
0.065 |
0.08 |
0.1 |
0.125 |
||
|
s1 |
Standard type |
Max. |
0.188 |
0.188 |
0.25 |
0.25 |
0.312 |
0.312 |
0.375 |
0.5 |
0.562 |
|
Min. |
0.181 |
0.181 |
0.244 |
0.244 |
0.305 |
0.305 |
0.367 |
0.489 |
0.551 |
||
|
s2 |
Big hexagon |
Max. |
0.219 |
0.25 |
/ |
0.312 |
/ |
0.375 |
0.438 |
/ |
/ |
|
Min. |
0.213 |
0.244 |
/ |
0.305 |
/ |
0.367 |
0.428 |
/ |
/ |
||
|
e1 |
Standard type |
Min. |
0.202 |
0.202 |
0.272 |
0.272 |
0.34 |
0.34 |
0.409 |
0.545 |
0.614 |
|
e2 |
Big hexagon |
Min. |
0.238 |
0.272 |
/ |
0.34 |
/ |
0.409 |
0.477 |
/ |
/ |
|
k |
Max. |
0.06 |
0.07 |
0.093 |
0.11 |
0.12 |
0.155 |
0.19 |
0.23 |
0.295 |
|
|
Min. |
0.049 |
0.058 |
0.08 |
0.096 |
0.105 |
0.139 |
0.172 |
0.208 |
0.27 |
||
