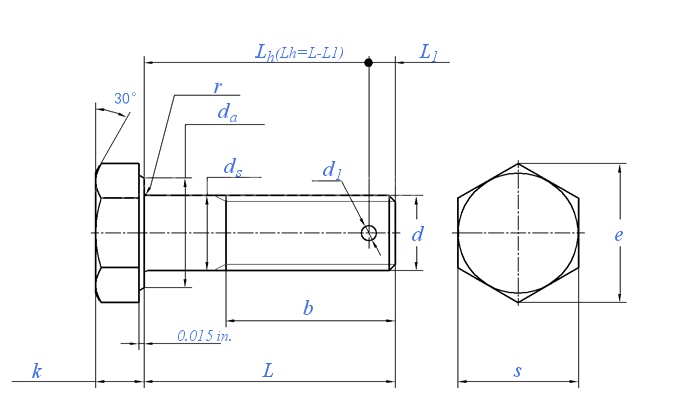

BS 1768:1963 Inch Series Hex Head Drilled Shank Bolt

BS 1768:1963 Inch Series Hex Head Drilled Shank Bolt belongs to the inch-series fastener system. The drilled shank allows use with split pins, lock wire, or other mechanical locking methods where additional locking confirmation is required.

The refined specification supports dimensional consistency and good assembly feel, while the hex head allows quick service with common tools. It is suitable for legacy inch-series equipment, older machinery maintenance, engineering vehicles, transmission joints, and export spare parts.

Procurement should confirm inch thread form, drilled-hole location, grip length, and matching nut size. Material and corrosion-protection options can be selected according to inventory needs or project environment to reduce replacement and maintenance risk.

Contact Us
PREV：GOST 7796 (-3):1970 Type 3 Hex Head Drilled Head Bolt NEXT：ASME B18.2.6:2019 High Strength Tension Control Hex Head Bolt

Dimensions: inch

Thread size d

1/4

5/16

3/8

7/16

1/2

(9/16)

5/8

3/4

PP

UNC

20

18

16

14

13

12

11

10

UNF

28

24

24

20

20

18

18

16

ds

Max.

0.25

0.3125

0.375

0.4375

0.5

0.5625

0.625

0.75

Min.

0.2465

0.309

0.3715

0.4335

0.496

0.5585

0.619

0.744

s

Max.

0.4375

0.5

0.5625

0.625

0.75

0.8125

0.9375

1.125

Min.

0.4305

0.493

0.5545

0.617

0.742

0.8045

0.9295

1.115

e

Max.

0.505

0.577

0.65

0.722

0.866

0.938

1.083

1.3

da

Max.

0.421

0.483

0.545

0.605

0.73

0.792

0.918

1.1

Min.

0.411

0.473

0.535

0.595

0.72

0.782

0.908

1.09

k

Max.

0.163

0.211

0.243

0.291

0.323

0.371

0.403

0.483

Min.

0.153

0.201

0.233

0.281

0.313

0.361

0.393

0.463

r

Max.

0.025

0.025

0.025

0.025

0.025

0.045

0.045

0.045

Min.

0.015

0.015

0.015

0.015

0.015

0.02

0.02

0.02

d1

Max.

0.084

0.1

0.117

0.117

0.152

0.152

0.184

0.184

Min.

0.079

0.095

0.112

0.112

0.146

0.146

0.177

0.177



Thread size d

7/8

1

1-1/8

1-1/4

(1-3/8)

1-1/2

1-3/4

2

PP

UNC

9

8

7

7

6

6

5

2004/1/2

UNF

14

12

-

-

-

-

-

-

ds

Max.

0.875

1

1.125

1.25

1.375

1.5

1.75

2

Min.

0.867

0.992

1.117

1.242

1.365

1.49

1.74

1.99

s

Max.

1.3125

1.5

1.6875

1.875

2.0625

2.25

2.625

3

Min.

1.3005

1.488

1.6575

1.83

2.0175

2.205

2.565

2.94

e

Max.

1.515

1.732

1.948

2.165

2.382

2.598

3.031

3.464

da

Max.

1.285

1.473

1.641

1.813

2.001

2.188

2.543

2.918

Min.

1.275

1.463

1.625

1.797

1.985

2.172

2.527

2.902

k

Max.

0.563

0.627

0.718

0.813

0.878

0.974

1.134

1.263

Min.

0.543

0.597

0.678

0.773

0.838

0.934

1.074

1.203

r

Max.

0.065

0.095

0.095

0.095

0.095

0.095

0.095

0.095

Min.

0.04

0.06

0.06

0.06

0.06

0.06

0.06

0.06

d1

Max.

0.184

0.222

0.222

0.254

0.254

0.29

0.353

0.353

Min.

0.177

0.213

0.213

0.244

0.244

0.28

0.343

0.343

① Bolts with cotter pins are only available on special order. Purchasers should indicate Dimension Lh in their inquiries and orders.
